7-60 — SEAT BELT (#111135) — 20 parça

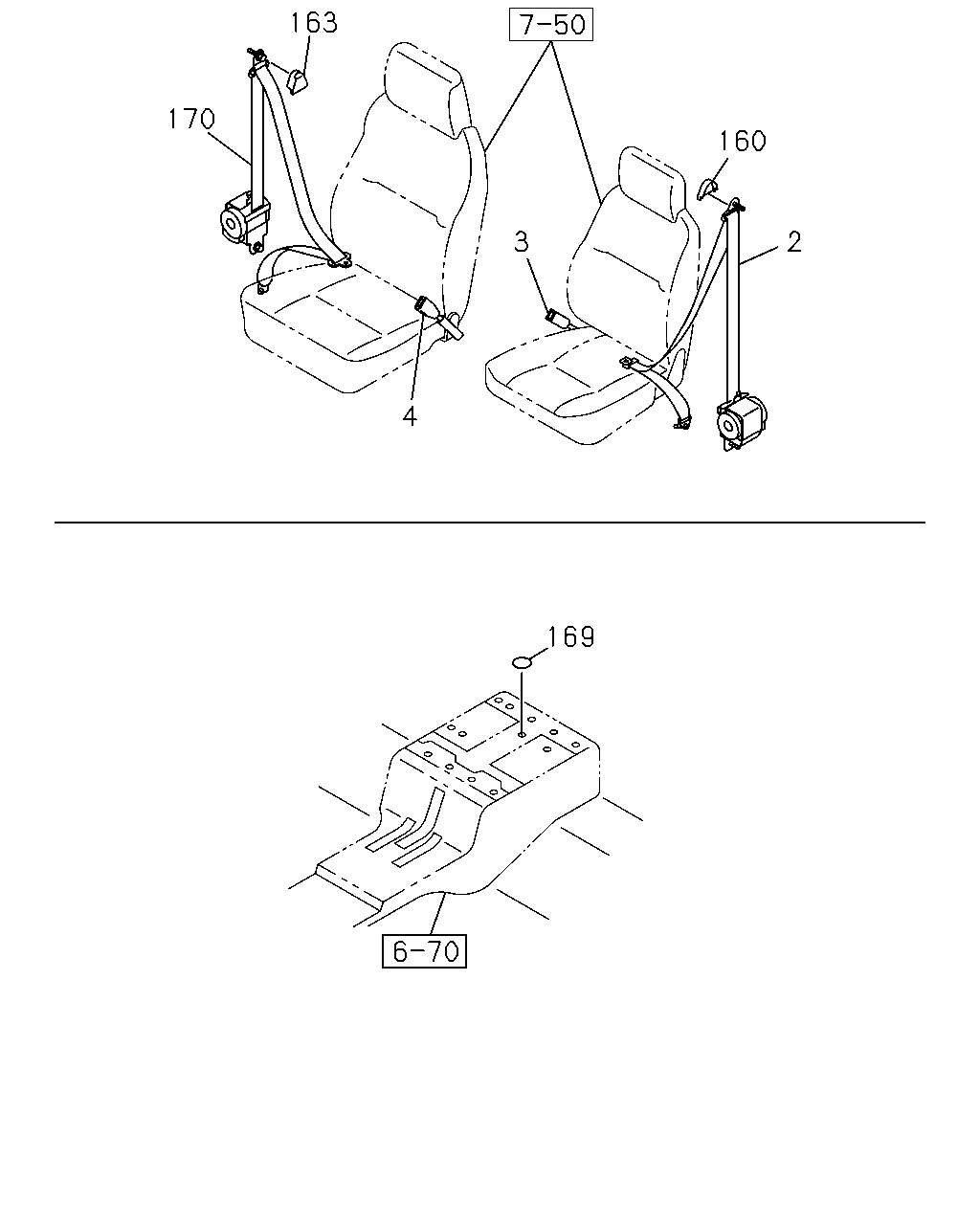

170 163 3 4 160 2 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BELT; SEAT,TONGUE SIDE GRAY	8-97423-516-1	01	1	1212-1310
2	BELT; SEAT,TONGUE SIDE GRAY	8-97428-089-0	01	1	1311-
3	BELT; SEAT,BUCKLE SIDE GRAY	8-97411-565-3	01	1	1212-
4	BELT; PASSENGER SEAT,BUCKLE SIDE CENTER SEAT DELETE 2 CREWS<SP9> GRAY	8-97409-769-1	01	1	1212-1310
4	BELT; PASSENGER SEAT,BUCKLE SIDE EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-769-1	01	1	1311-
160	COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	1212-
163	COVER; ADJUSTER GRAY	8-97405-991-0	01	1	1212-
169	SEAL CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK	1-76798-019-0	01	1	1212-
170	BELT; PASSENGER SEAT,TONGUE SIDE GRAY	8-97423-516-1	01	1	1212-1310
170	BELT; PASSENGER SEAT,TONGUE SIDE GRAY	8-97428-089-0	01	1	1311-

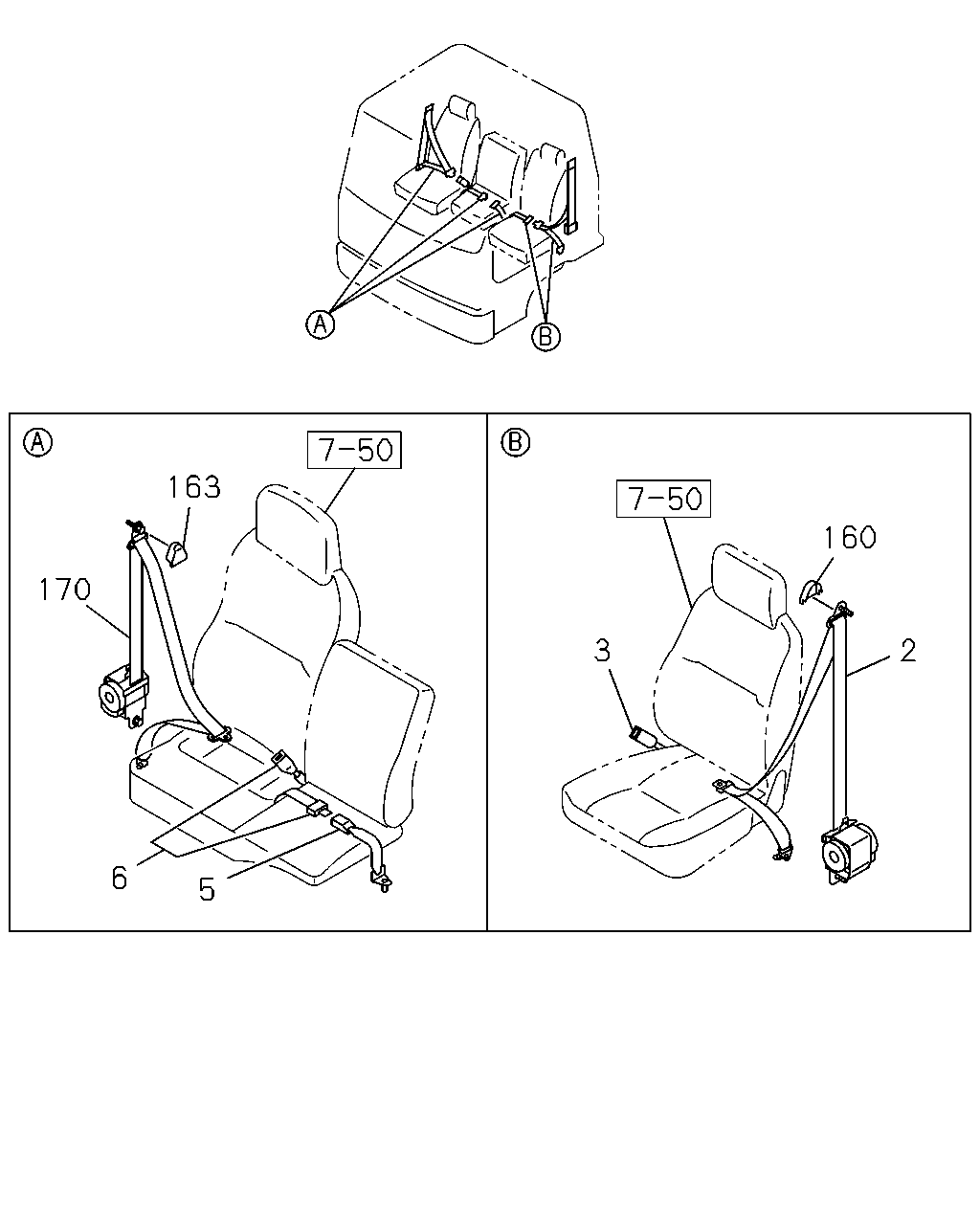

6 5 170 163 3 160 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BELT; SEAT,TONGUE SIDE GRAY	8-97423-516-1	01	1	1212-1310
2	BELT; SEAT,TONGUE SIDE GRAY	8-97428-089-0	01	1	1311-
3	BELT; SEAT,BUCKLE SIDE GRAY	8-97411-565-3	01	1	1212-
5	BELT; CENTER SEAT,BUCKLE SIDE SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97407-377-1	01	1	1212-
6	BELT; CENTER SEAT,TONGUE SIDE SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97423-660-1	01	1	1212-1310
6	BELT; CENTER SEAT,TONGUE SIDE SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97428-090-0	01	1	1311-
160	COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	1212-
163	COVER; ADJUSTER GRAY	8-97405-991-0	01	1	1212-
170	BELT; PASSENGER SEAT,TONGUE SIDE GRAY	8-97423-516-1	01	1	1212-1310
170	BELT; PASSENGER SEAT,TONGUE SIDE GRAY	8-97428-089-0	01	1	1311-
