Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

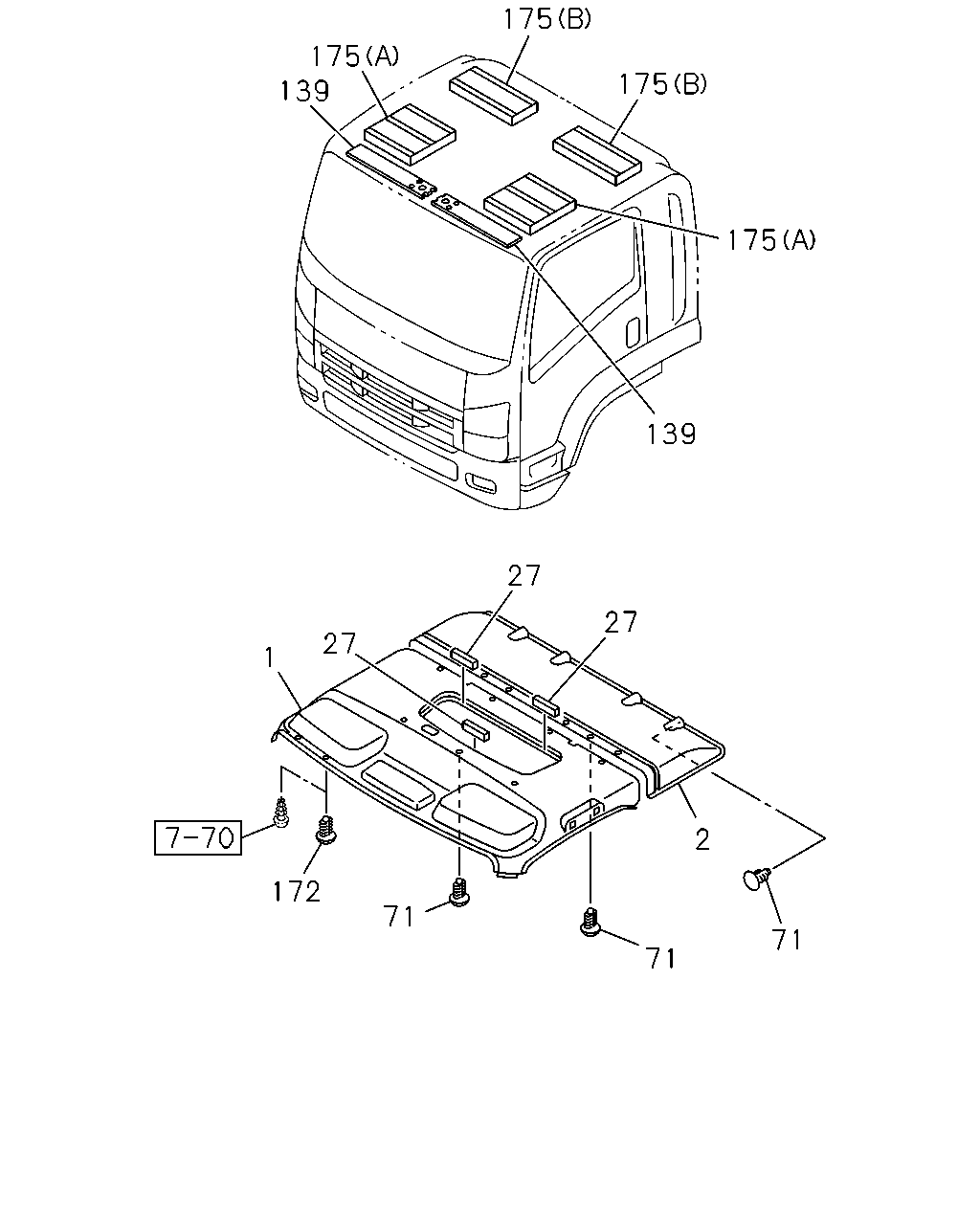

6-66 — HEAD LINING AND TRIM
(#111128) — 11 parça
71
71
2
27
27
71
172
1
139
27
175
175
175
175
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY
8-97411-881-4
01
1
1212-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-691-0
01
1
1307-
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97411-880-4
01
1
1212-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-692-0
01
1
1307-
2
LINING; HD,ROOF RR
DARK GRAY
8-97415-673-0
01
1
1212-
27
INSULATION; ROOF
FLUORESCENT LAMP<6UC>
8-98046-638-2
03
1
1212-
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1212-
139
SEAL; ROOF
8-98169-116-0
02
1
1212-
172
RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY
8-97411-875-0
14
1
1212-
175
CUSHION; HEAD LINING
(A)
8-98030-965-2
02
1
1212-
175
CUSHION; HEAD LINING
(B)
8-98082-685-1
02
1
1212-
