Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#111126) — 65 parça
◀

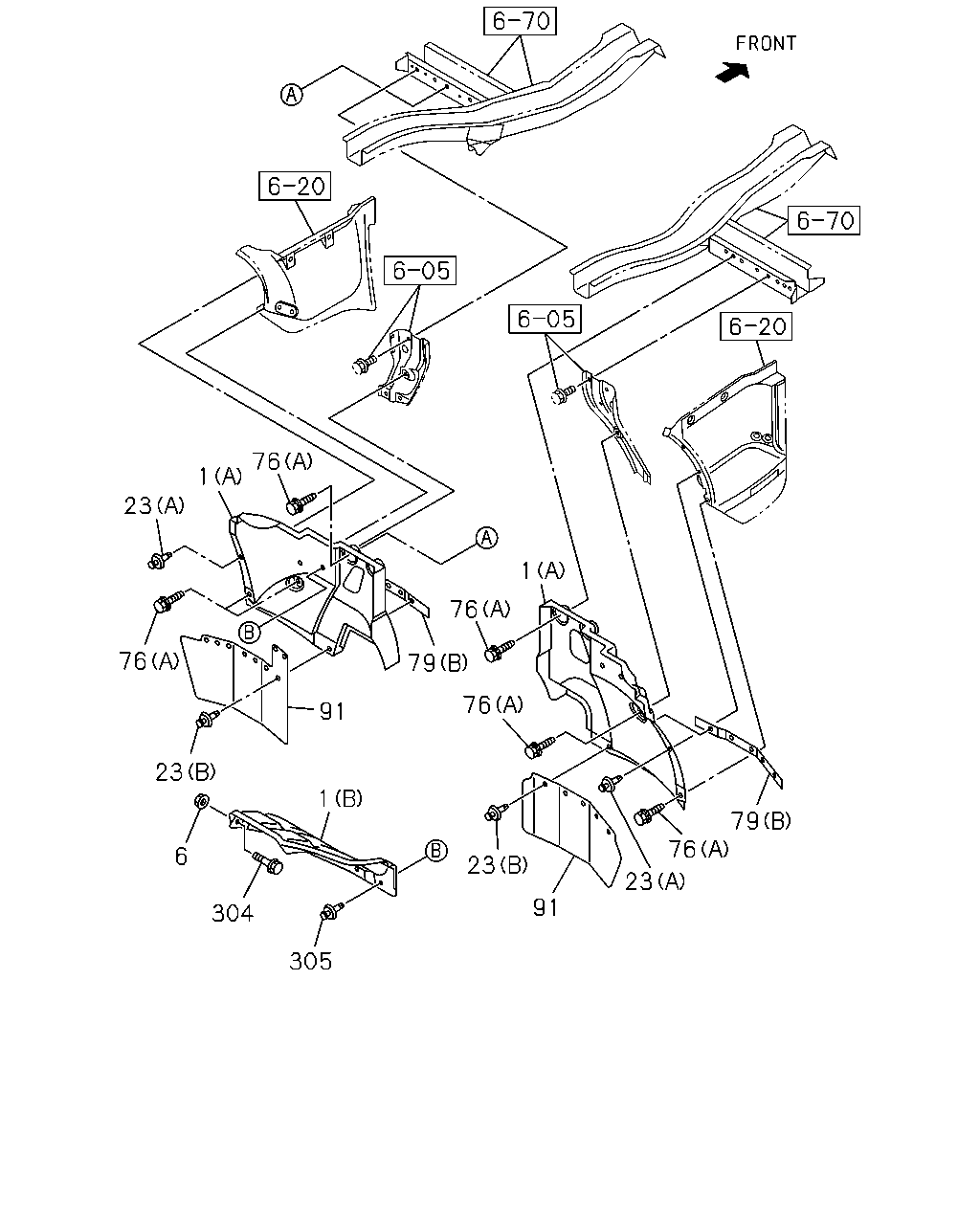

[647A] MUD GUARD;FRONT (21 parça)

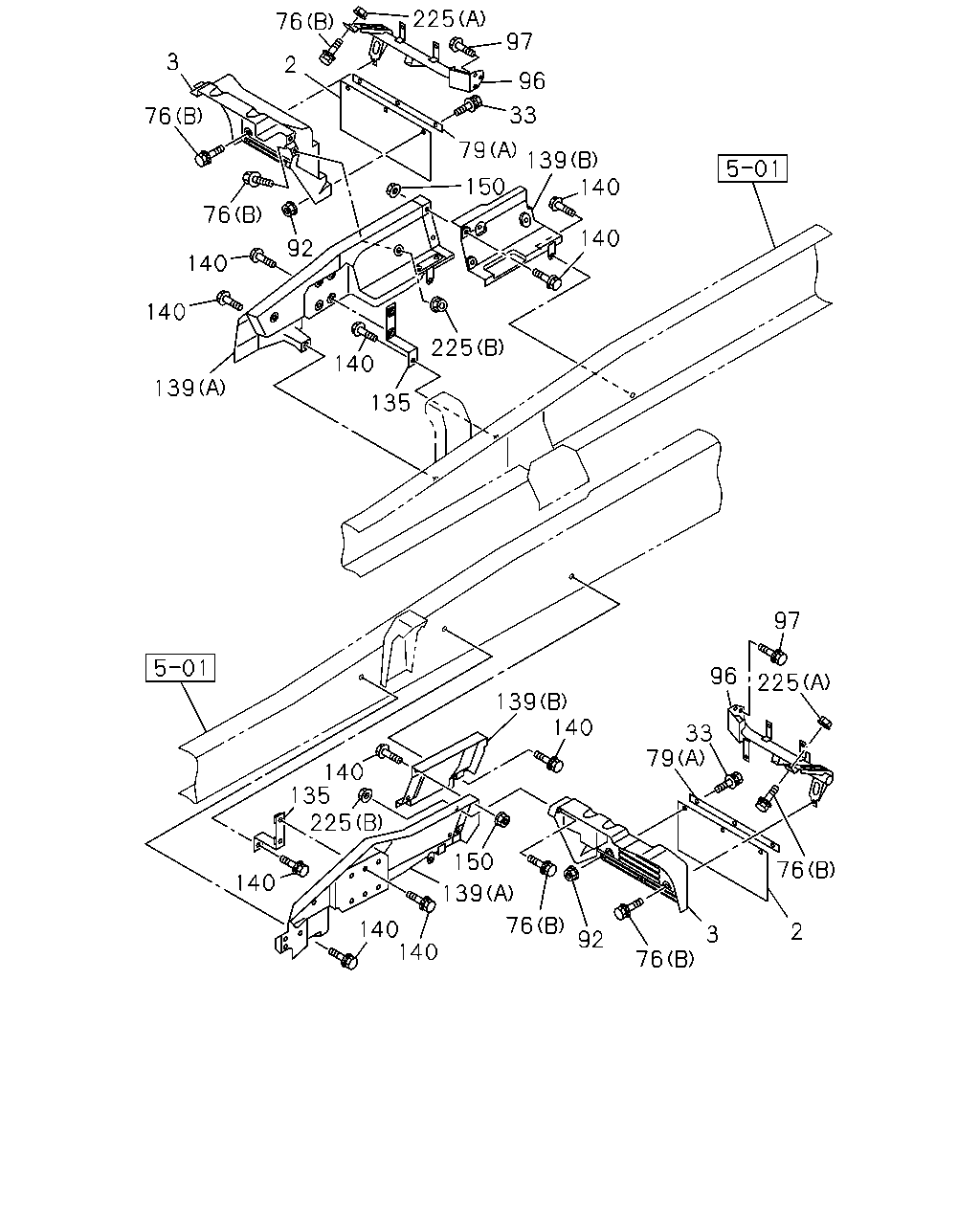

[647A] MUD GUARD;REAR AND SIDE PANEL (31 parça)

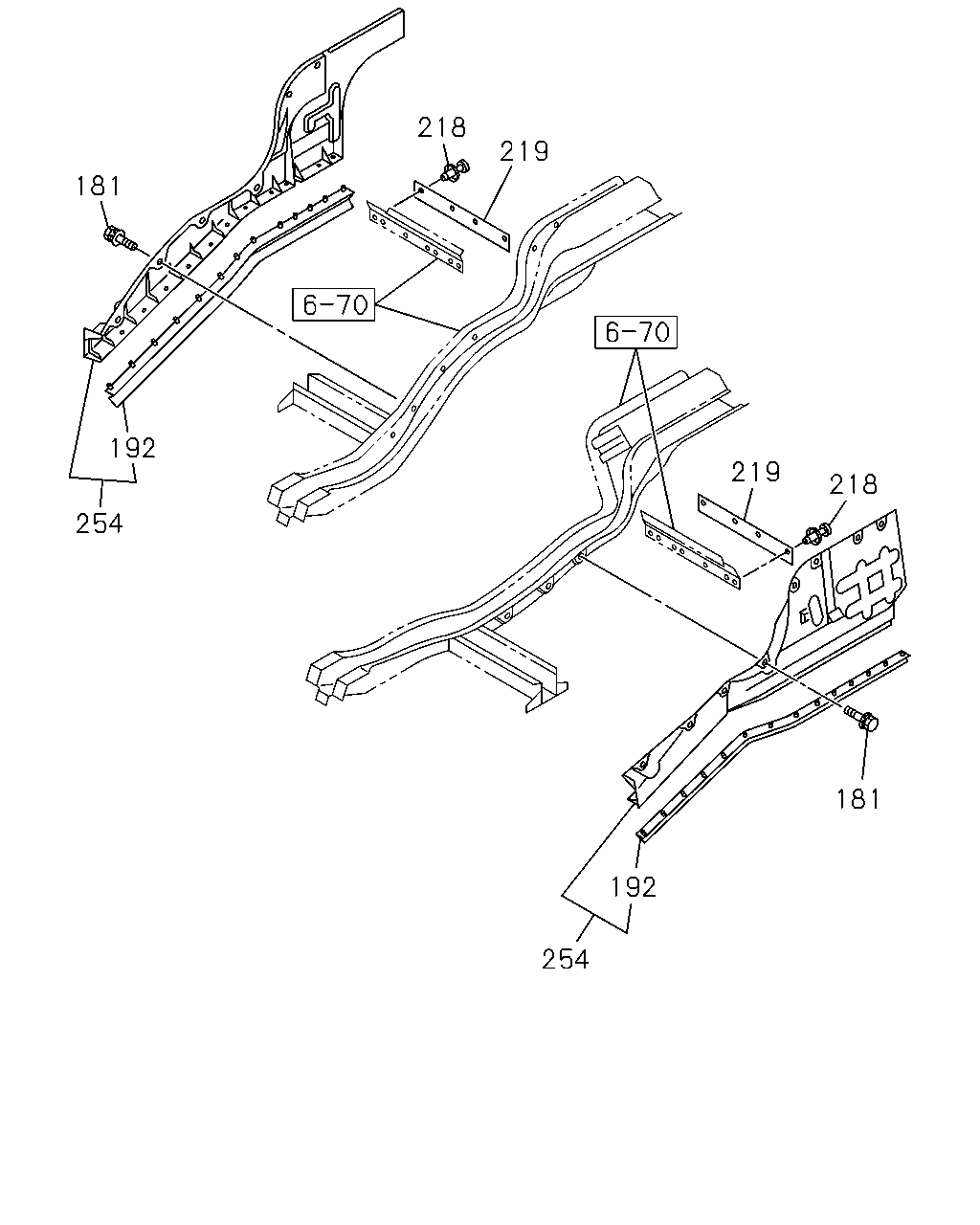

[647A] MUD COVER AND SEAL (13 parça)
▶
76
1
23
76
91
23
6
304
305
1
79
76
76
23
91
23
76
79
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
(A)
8-98152-647-0
01
1
1212-
1
GUARD; MUD,FRT
(A)
8-98152-646-0
01
1
1212-
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98075-191-0
01
1
1212-
6
NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE
8-94197-199-0
02
1
1212-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
08
1
1212-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1212-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1212-1212
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1212-
79
RETAINER; MUD COVER
(A)
1-79931-484-0
02
1
1212-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1212-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1301-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1301-
91
COVER; MUD,FRT
8-98057-430-2
01
1
1212-
91
COVER; MUD,FRT
8-98057-432-2
01
1
1212-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1301-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1301-
304
BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
1212-
305
FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5
1-09987-248-1
02
1
1212-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1301-
306
BRACKET; MUD GUARD
8-98196-126-0
01
1
1301-
76
225
97
96
33
79
139
140
140
150
225
135
140
92
76
76
2
3
140
140
139
97
225
96
33
79
76
2
3
76
92
76
139
140
139
140
135
225
140
140
140
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
1-79931-482-0
02
1
1212-
3
GUARD; MUD,RR
1-79931-471-0
01
1
1212-1212
3
GUARD; MUD,RR
8-98196-103-0
01
1
1301-
3
GUARD; MUD,RR
1-79931-475-0
01
1
1212-1212
3
GUARD; MUD,RR
8-98196-111-0
01
1
1301-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
06
1
1212-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1212-1212
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1212-
79
RETAINER; MUD COVER
(A)
1-79931-484-0
02
1
1212-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1212-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1301-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1301-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
06
1
1212-
96
STAY; MUD GUARD
8-98066-745-2
01
1
1212-
96
STAY; MUD GUARD
1-79931-479-3
01
1
1212-
97
BOLT; STAY TO FRAME
M10X30 FLANGE
0-28651-030-0
07
1
1212-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1212-
139
PANEL; SIDE
(B)
1-53194-591-0
01
1
1212-
139
PANEL; SIDE
(A)
8-98090-078-0
01
1
1212-
139
PANEL; SIDE
(B)
1-53194-590-1
01
1
1212-
139
PANEL; SIDE
(A)
8-98090-077-0
01
1
1212-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
06
1
1212-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
10
1
1212-
150
NUT; SIDE PANEL
M8 W/DISHED WASHER
8-97329-625-0
04
1
1212-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1301-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1301-
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1212-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1212-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1301-
306
BRACKET; MUD GUARD
8-98196-126-0
01
1
1301-
181
218
219
192
254
219
218
181
192
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1301-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1301-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1301-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1301-
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
1212-
192
SEAL; MUD COVER
8-98041-159-2
01
1
1212-
192
SEAL; MUD COVER
8-98041-158-1
01
1
1212-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1212-
219
FLAP; MUD GUARD
8-98041-150-1
02
1
1212-
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
1212-
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
1212-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1301-
306
BRACKET; MUD GUARD
8-98196-126-0
01
1
1301-
