◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11475 - FRR-L EURO5 EXC.SPAC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#111117) — 15 parça

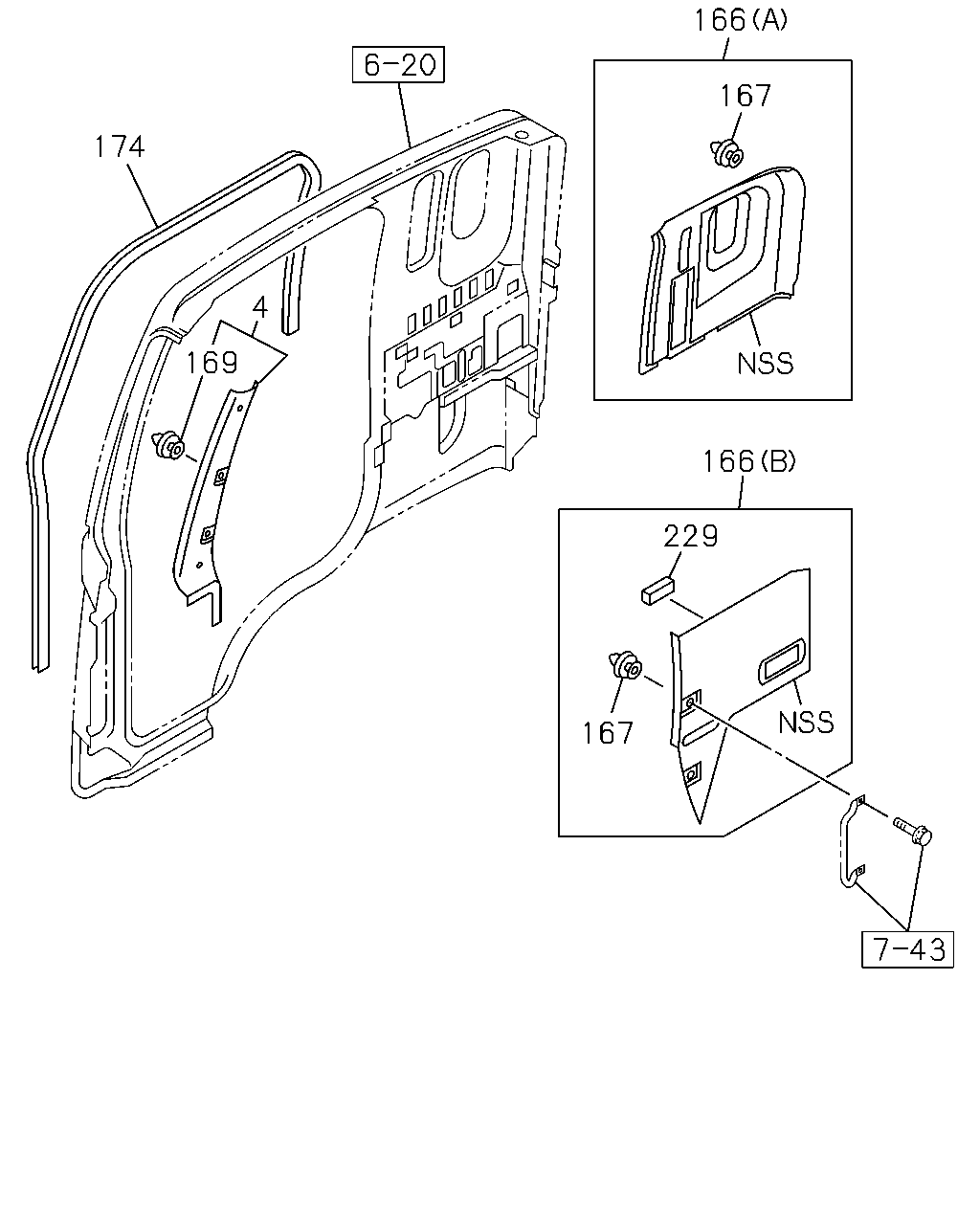

çizim 322143
174 166 167 166 229 167 169 4
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1212-
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1212-
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1212-
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1212-
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-459-1 01 1 1212-
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1212-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 12 1 1212-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1212-
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1212-
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1212-1509
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510-
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1212-1509
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510-
229 SEAL 8-98080-972-0 02 1 1212-
229 SEAL 8-98080-972-0 02 1 1212-
