◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#111108) — 81 parça

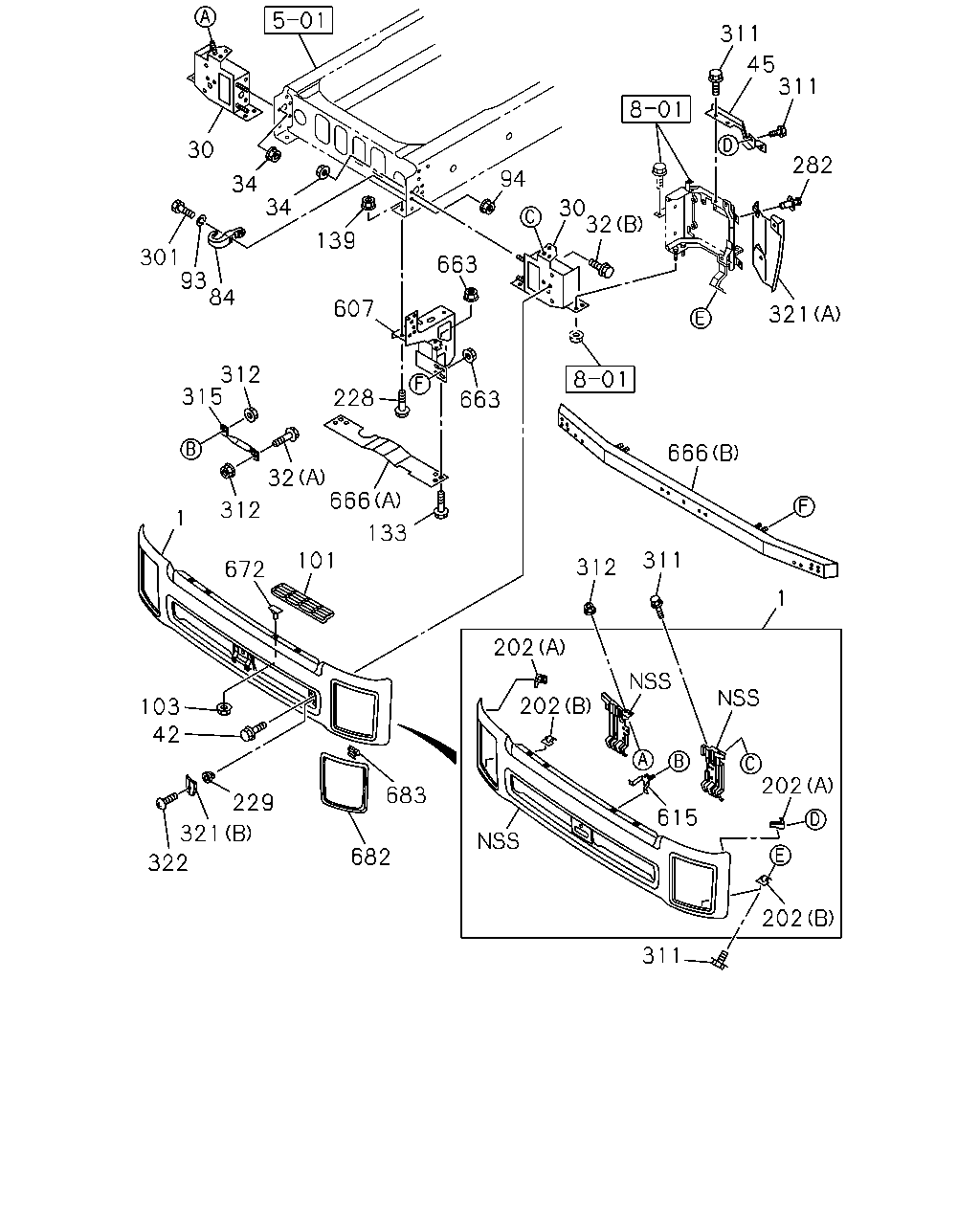

çizim 322396
30 301 34 139 34 663 607 93 312 84 315 312 1 32 228 663 94 32 30 311 311 45 282 321 666 312 311 1 666 133 101 672 103 42 229 321 322 682 683 202 202 615 202 202 311
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 1212- ● ●
30 BRACKET; FRT BUMPER 8-98203-557-2 01 1 1212- ● ●
30 BRACKET; FRT BUMPER 8-98203-556-2 01 1 1212- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 04 1 1212- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 1212- ● ●
34 NUT; BRKT,BUMPER
M12 FLANGE 		0-91180-212-0 04 1 1212- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1212- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 1212- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 1212- ● ●
84 HOOK 8-98099-119-0 01 1 1212- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1212- ● ●
94 NUT; HOOK
M16 		0-91110-516-0 01 1 1212- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 1212- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 1212- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1212- ● ●
133 BOLT; PROTECTOR FIX
M12X30 FLANGE 		0-28661-230-0 06 1 1212- ● ●
139 NUT; BRKT FIX
M16 		0-91110-516-0 01 1 1212- ● ●
139 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 04 1 1212- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 1212- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 1212- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 1212- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 1212- ● ●
228 BOLT; BRKT
M16X50 		0-20851-650-0 05 1 1212- ● ●
228 BOLT; BRKT
M12X30 FLANGE 		0-28051-230-0 04 1 1212- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1212- ● ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 1212- ● ●
301 BOLT; HOOK TO FRAME
M16X80 		0-10861-680-0 01 1 1212- ● ●
301 BOLT; HOOK TO FRAME
M16X40 		0-20851-640-0 01 1 1212- ● ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1212- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 1212- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1212- ● ●
315 STAY; BUMPER 8-97617-115-0 01 1 1212- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 1212- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 1212- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 1212- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 1212- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1212- ● ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98202-490-1 01 1 1212-1302 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		8-98202-490-1 01 1 1212-1302 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) 		8-98202-490-1 01 1 1212-1302 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98202-490-1 01 1 1303-1311 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 		8-98202-490-1 01 1 1303-1311 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) 		8-98202-490-1 01 1 1303-1311 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98202-490-1 01 1 1312-1510 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 		8-98202-490-1 01 1 1312-1510 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) 		8-98202-490-1 01 1 1312-1510 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98202-490-1 01 1 1511- ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98202-490-1 01 1 1511- ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 7300MM(73W) 		8-98202-490-1 01 1 1511- ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98202-491-1 01 1 1212-1302 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		8-98202-491-1 01 1 1212-1302 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) 		8-98202-491-1 01 1 1212-1302 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98202-491-1 01 1 1303-1311 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 		8-98202-491-1 01 1 1303-1311 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) 		8-98202-491-1 01 1 1303-1311 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98202-491-1 01 1 1312-1510 ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 		8-98202-491-1 01 1 1312-1510 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) 		8-98202-491-1 01 1 1312-1510 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6600MM(66W) 		8-98202-491-1 01 1 1511- ●
607 BRACKET
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98202-491-1 01 1 1511- ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 7300MM(73W) 		8-98202-491-1 01 1 1511- ●
607 BRACKET
TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		8-98220-874-0 01 1 1212-1311 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) 		8-98220-874-0 01 1 1212-1311 ●
607 BRACKET
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		8-98220-874-0 01 1 1312-1510 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) 		8-98220-874-0 01 1 1312-1510 ●
607 BRACKET
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) 		8-98220-874-0 01 1 1511- ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) 		8-98220-874-0 01 1 1511- ●
607 BRACKET
TRANSMISSION-FULLER RTO11908(Y5L) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		8-98220-875-0 01 1 1212-1311 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) 		8-98220-875-0 01 1 1212-1311 ●
607 BRACKET
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		8-98220-875-0 01 1 1312-1510 ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) 		8-98220-875-0 01 1 1312-1510 ●
607 BRACKET
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) 		8-98220-875-0 01 1 1511- ●
607 BRACKET
A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) 		8-98220-875-0 01 1 1511- ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 1212- ● ●
663 NUT
M12 FLANGE 		0-91180-212-0 14 1 1212- ● ●
666 PROTECTOR; UNDER
(A) 		8-98203-565-0 01 1 1212- ● ●
666 PROTECTOR; UNDER
(B) 		8-98220-526-0 01 1 1212- ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1212- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 1212- ● ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 1212- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1212- ● ●
