Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#111101) — 38 parça
◀

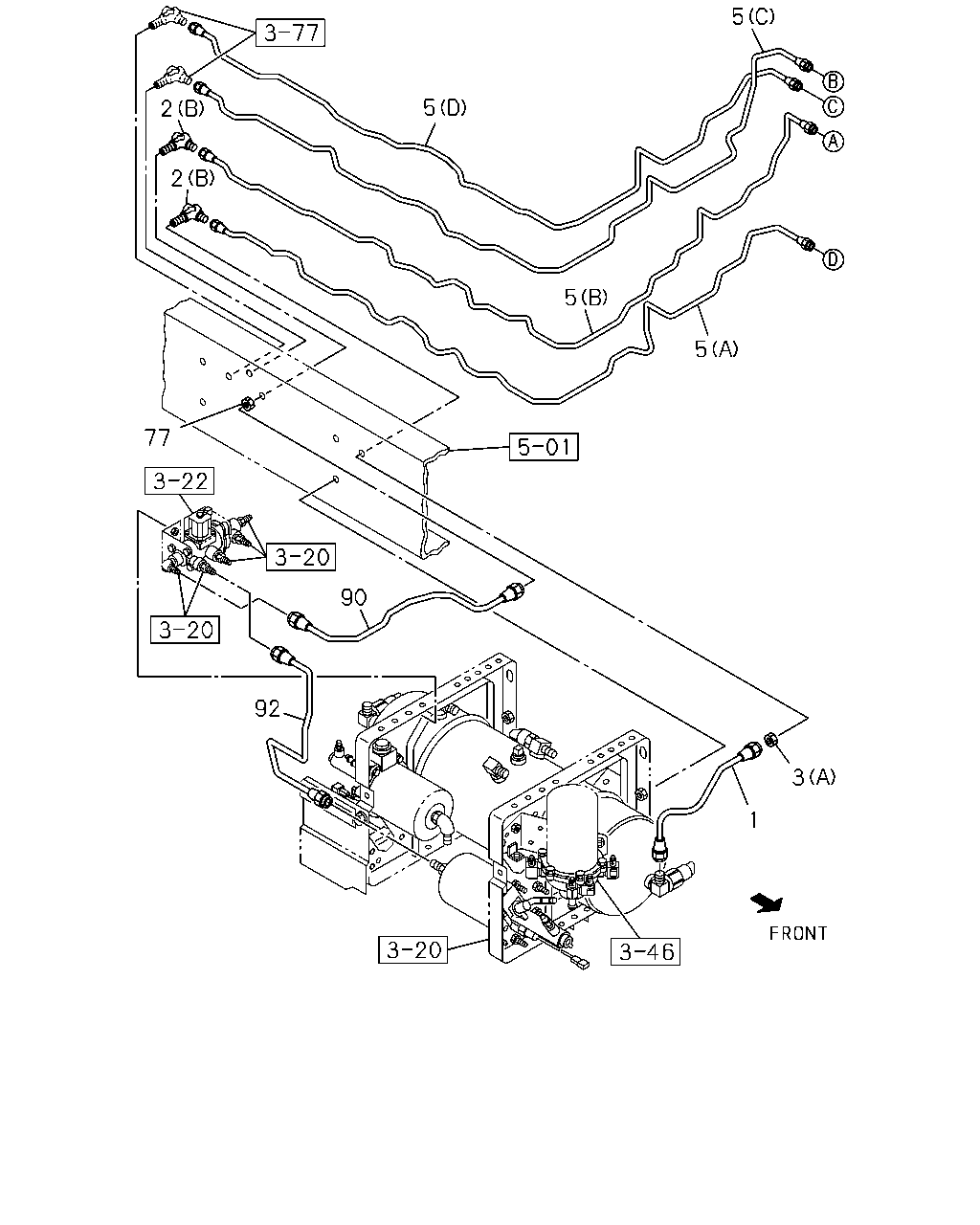

[375A] FRAME SIDE;H.S.A SYSTEM (12 parça)

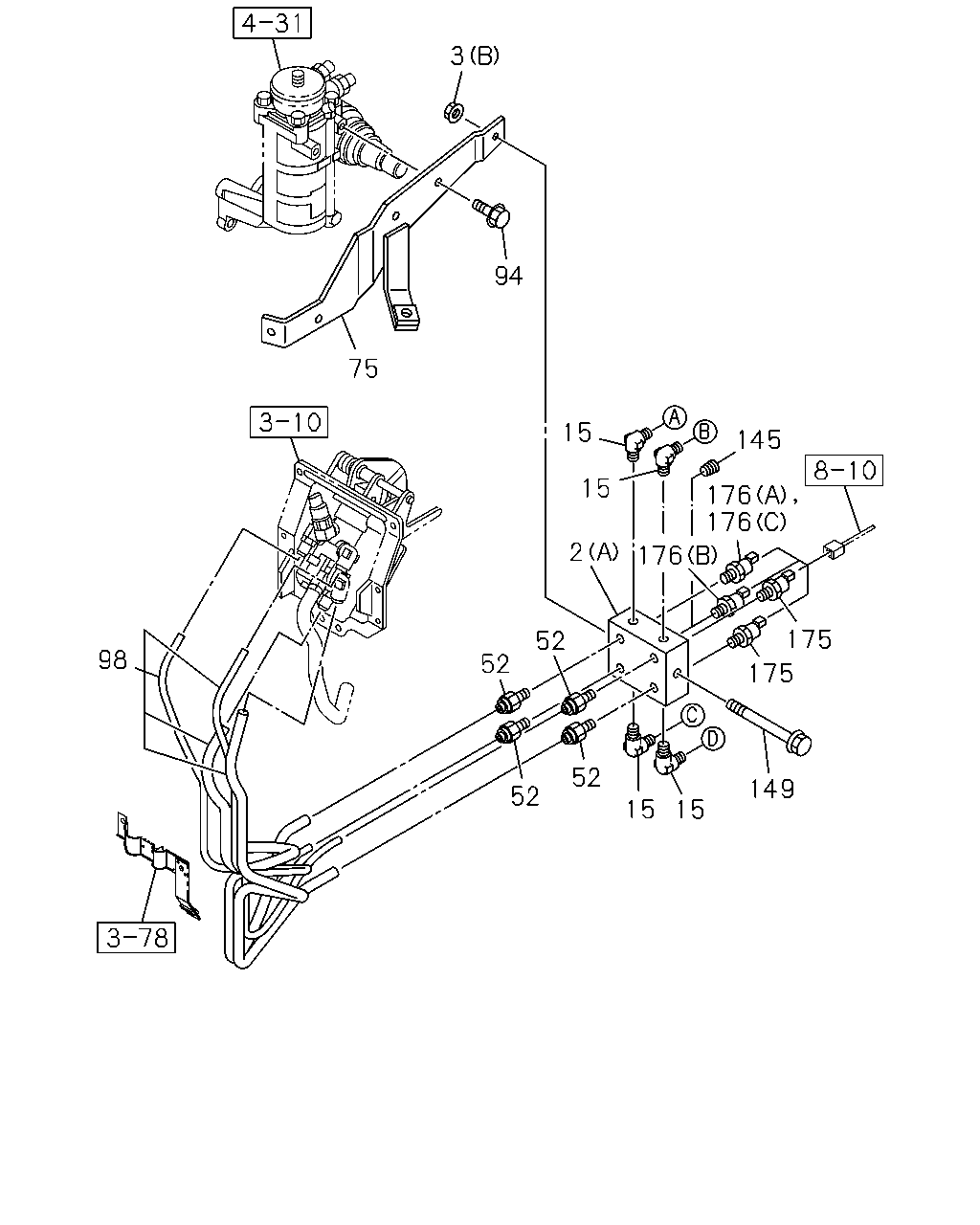

[375A] CAB UNDER (15 parça)

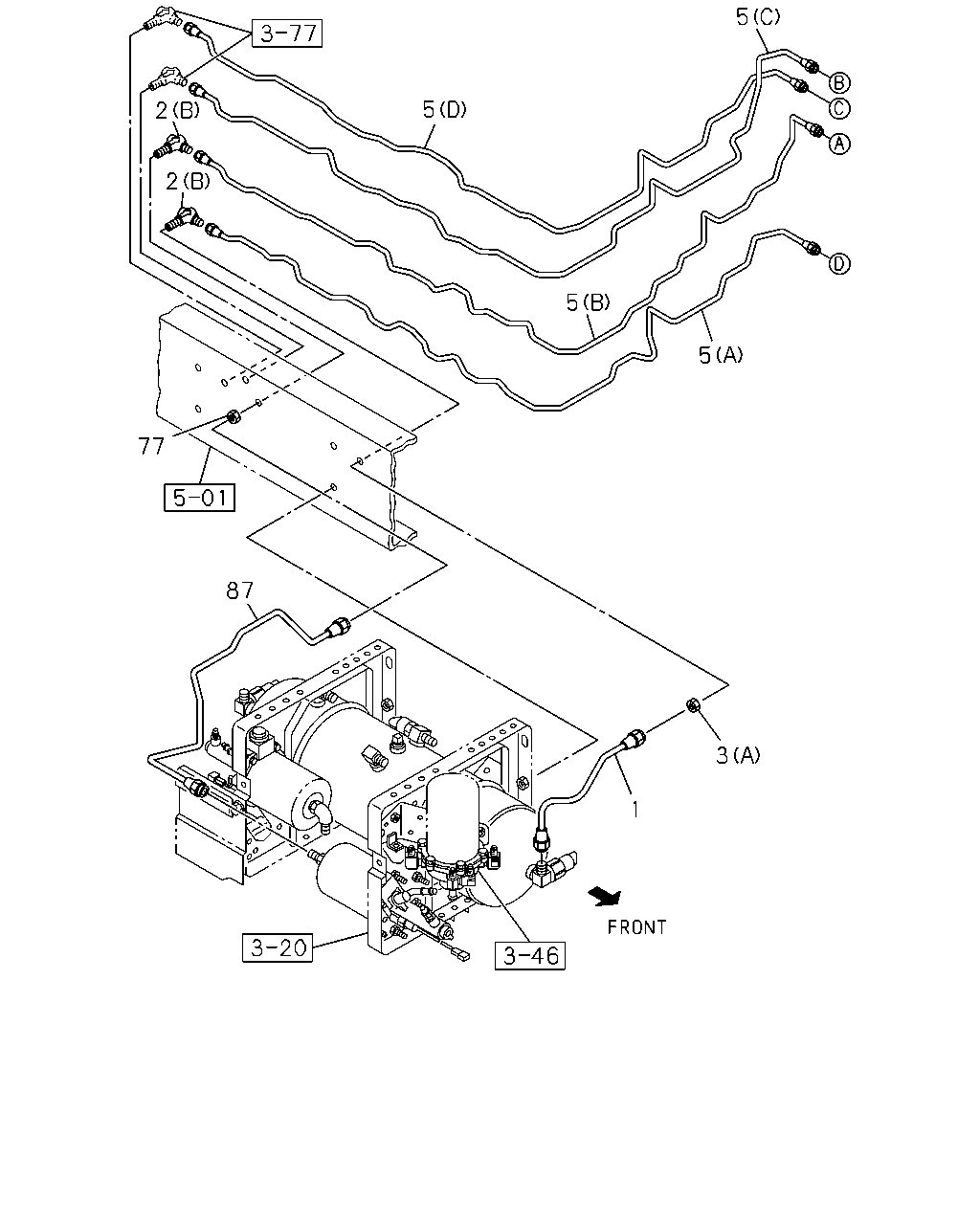

[375A] FRAME SIDE;EXC.H.S.A SYSTEM (11 parça)
▶
5
5
5
5
2
2
77
90
92
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
L=290
8-98044-172-0
01
1
1212-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
1212-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1212-
3
NUT; PIPE UNION
(A) M16
0-91111-516-0
01
1
1212-
3
NUT; PIPE UNION
(B) M8 FLANGE
0-91180-108-0
01
1
1212-
5
PIPE; AIR,UNION TO UNION
(A) L=3051 SERVICED BY L=3300
1-47428-886-0
01
1
1212-
5
PIPE; AIR,UNION TO UNION
(C) L=3489 SERVICED BY L=3500
1-47428-887-0
01
1
1212-
5
PIPE; AIR,UNION TO UNION
(D) L=3493 SERVICED BY L=3500
1-47428-887-0
01
1
1212-
5
PIPE; AIR,UNION TO UNION
(B) L=3352
8-98165-233-0
01
1
1212-
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
1212-
90
PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> L=493
8-98077-878-0
01
1
1212-
92
PIPE; AIR,HSA VLV TO AIR MASTER
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550
1-47428-867-0
01
1
1212-
3
75
94
98
52
52
52
52
15
15
149
175
175
176
2
15
15
145
176
176
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
1212-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1212-
3
NUT; PIPE UNION
(A) M16
0-91111-516-0
01
1
1212-
3
NUT; PIPE UNION
(B) M8 FLANGE
0-91180-108-0
01
1
1212-
15
CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW
0-92134-310-0
04
1
1212-
52
CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT
1-09660-967-0
04
1
1212-
75
BRACKET; UNION
8-98124-802-0
01
1
1212-
94
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
02
1
1212-
98
TUBE; NYLON
8-98123-961-0
01
1
1212-
145
PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4
9-99204-513-0
01
1
1212-
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
1212-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1212-
176
SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> (A) STAMP 0.7
8-97622-710-0
01
1
1212-
176
SWITCH; AIR PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) STAMP 2.2
8-98010-858-0
01
1
1212-
176
SWITCH; AIR PRESS
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) STAMP 0.3
8-98010-857-0
01
1
1212-
2
2
5
5
5
5
77
87
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
L=290
8-98044-172-0
01
1
1212-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
1212-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
1212-
3
NUT; PIPE UNION
(A) M16
0-91111-516-0
01
1
1212-
3
NUT; PIPE UNION
(B) M8 FLANGE
0-91180-108-0
01
1
1212-
5
PIPE; AIR,UNION TO UNION
(A) L=3051 SERVICED BY L=3300
1-47428-886-0
01
1
1212-
5
PIPE; AIR,UNION TO UNION
(C) L=3489 SERVICED BY L=3500
1-47428-887-0
01
1
1212-
5
PIPE; AIR,UNION TO UNION
(D) L=3493 SERVICED BY L=3500
1-47428-887-0
01
1
1212-
5
PIPE; AIR,UNION TO UNION
(B) L=3352
8-98165-233-0
01
1
1212-
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
1212-
87
PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP> L=798 SERVICED BY L=800
1-47428-872-0
01
1
1212-
