Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10872 - EXZ LHD FUEL TANK 400L/400L+400L
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#11110) — 33 parça
◀

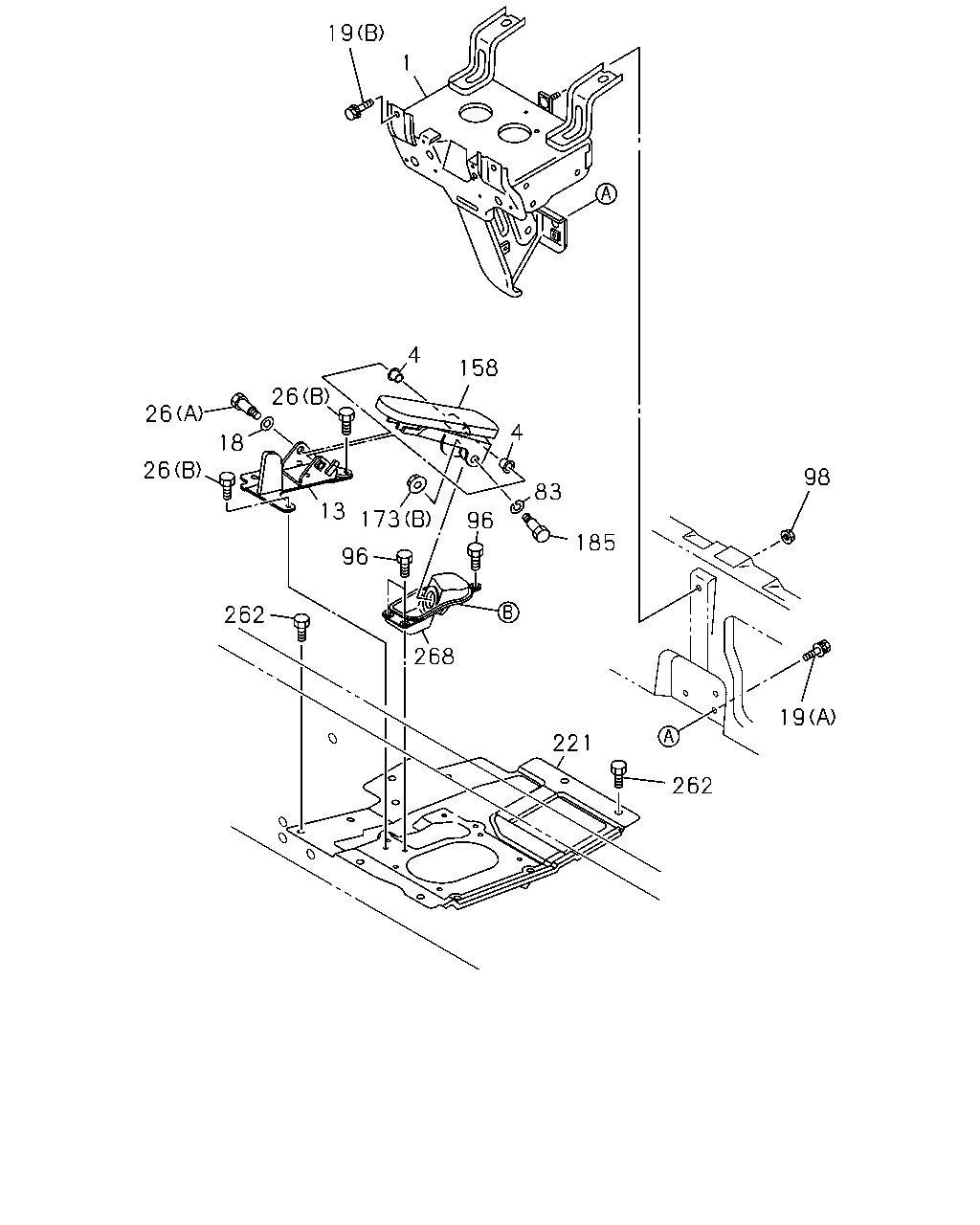

[310A] PEDAL AND BRACKET (20 parça)
[310A] BRAKE VALVE CONNECTOR AND BRACKET (13 parça)
▶
19
1
4
158
26
26
4
18
26
98
83
96
13
173
185
96
262
268
19
221
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
FULLER M/T<X9B>
1-73908-144-7
01
1
0106-
1
BRACKET ASM; PEDAL
ZF M/T<X9E>
1-73907-443-6
01
1
0106-
4
BUSHING; BRK PEDAL
1-73908-201-1
02
1
0106-
13
BRACKET; BRK PEDAL
1-73908-203-1
01
1
0106-
18
WASHER; PL
ID=12.5
9-09164-512-0
01
1
0106-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0106-
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0106-
26
BOLT; PEDAL
(A)
1-09980-614-0
01
1
0106-
26
BOLT; PEDAL
(B) M6X25
8-94279-204-0
02
1
0106-
83
WASHER; LK,BRKT
ID=14.2
9-09150-814-0
01
1
0106-
96
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0106-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0106-
158
PEDAL ASM; BRK
1-73908-068-5
01
1
0106-
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
0106-
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
0106-
185
BOLT; BRKT
1-73996-282-1
01
1
0106-
221
PLATE ASM; SIDE
1-73996-280-4
01
1
0106-
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
10
1
0106-0312
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
08
1
0401-
268
COVER; ROD
1-73908-192-1
01
1
0106-
20
20
191
173
172
183
20
266
34
7
16
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CONNECTOR; BRK VALVE
(A)
1-09656-708-0
02
1
0106-
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0106-
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0106-
7
CONNECTOR; BRK VALVE
(C)
1-09661-285-0
02
1
0106-
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
0106-
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0106-
34
BRACKET ASM; BRK VLV
1-79738-808-3
01
1
0106-
172
JOINT; JAW,BRK PEDAL
1-73908-167-1
01
1
0106-
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
0106-
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
0106-
183
BOLT; BRK VLV
M10X25 W/LK WASHER
1-09980-503-0
03
1
0106-
191
JOINT; BALL,PUSH ROD
1-47355-001-0
01
1
0106-
266
JOINT ROD
1-73908-166-3
01
1
0106-
