3-58 — FIXING PARTS; OIL PIPING
(#111099) — 18 parça
◀

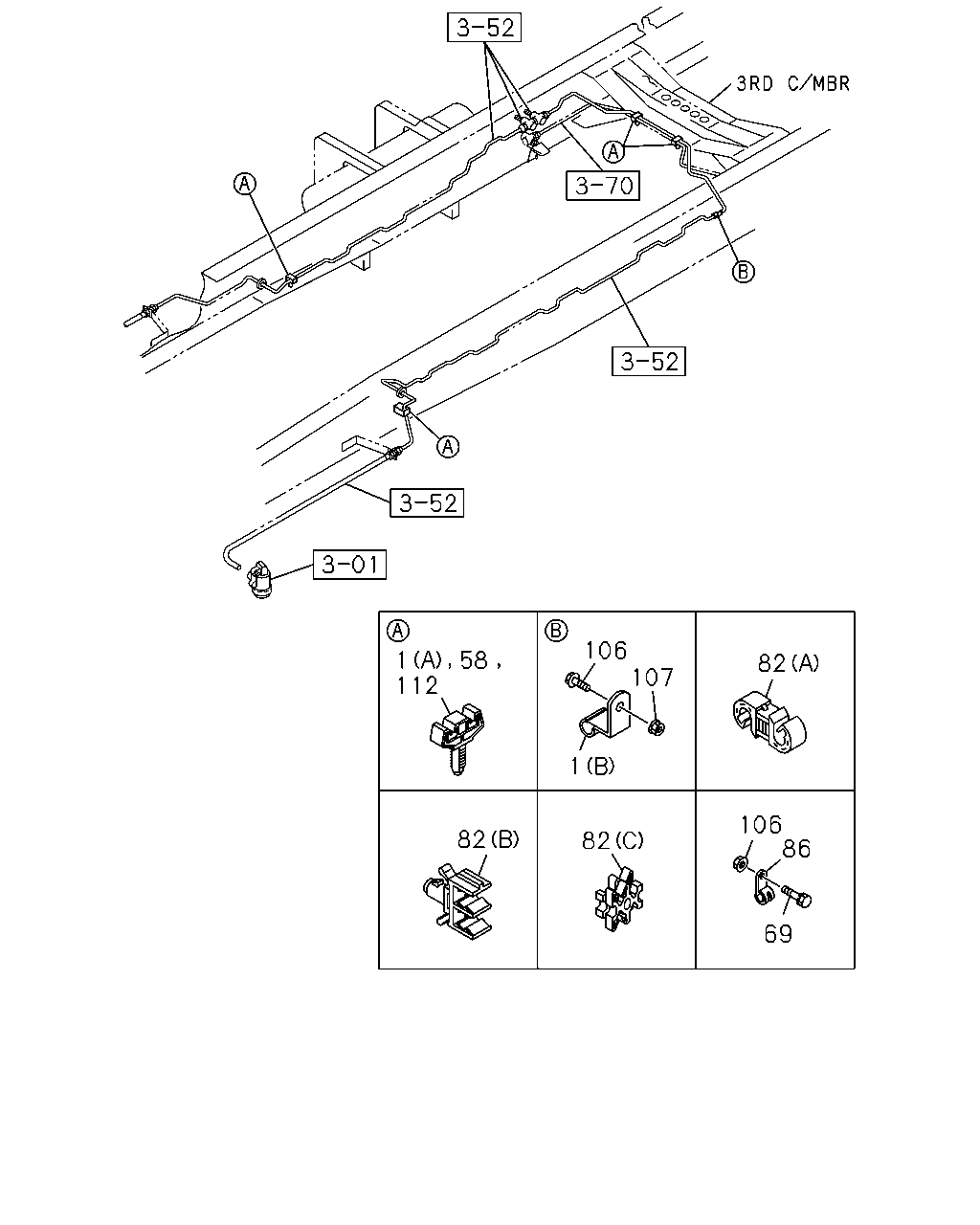

[358A] FRAME SIDE (15 parça)

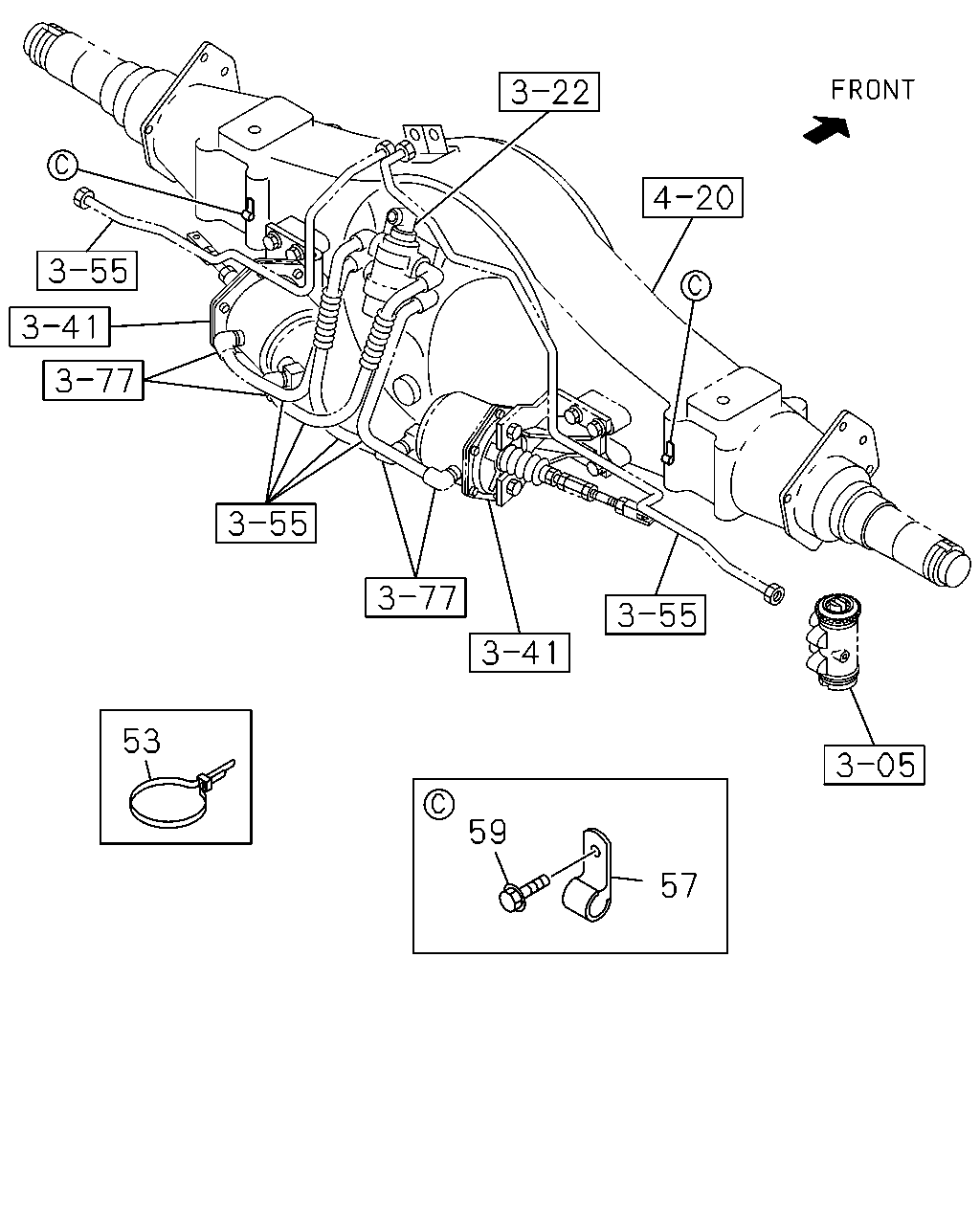

[358A] REAR AXLE SIDE (3 parça)
▶
1
58
112
82
106
107
1
82
82
106
86
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
07
1
1212-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
05
1
1212-
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1212-
69
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1212-
82
CLIP; OIL PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
1212-
82
CLIP; OIL PIPE
(C) ID=4.7X4
1-09701-304-0
03
1
1212-
82
CLIP; OIL PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
03
1
1212-
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
1212-
86
CLIP; OIL PIPE
8-98085-372-0
02
1
1212-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
05
1
1212-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
05
1
1212-
112
CLIP; OIL PIPE
WHEEL BASE 3700MM(37W)
8-98012-254-1
02
1
1212-
112
CLIP; OIL PIPE
WHEEL BASE 4300MM(43W)
8-98012-254-1
04
1
1212-
112
CLIP; OIL PIPE
WHEEL BASE 4800MM(48W)
8-98012-254-1
05
1
1212-
112
CLIP; OIL PIPE
WHEEL BASE 5500MM(55W)
8-98012-254-1
07
1
1212-
53
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
L=250
1-09707-126-0
05
1
1212-
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
1212-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
1212-
