Sayfa 3-22 - Isuzu EPC

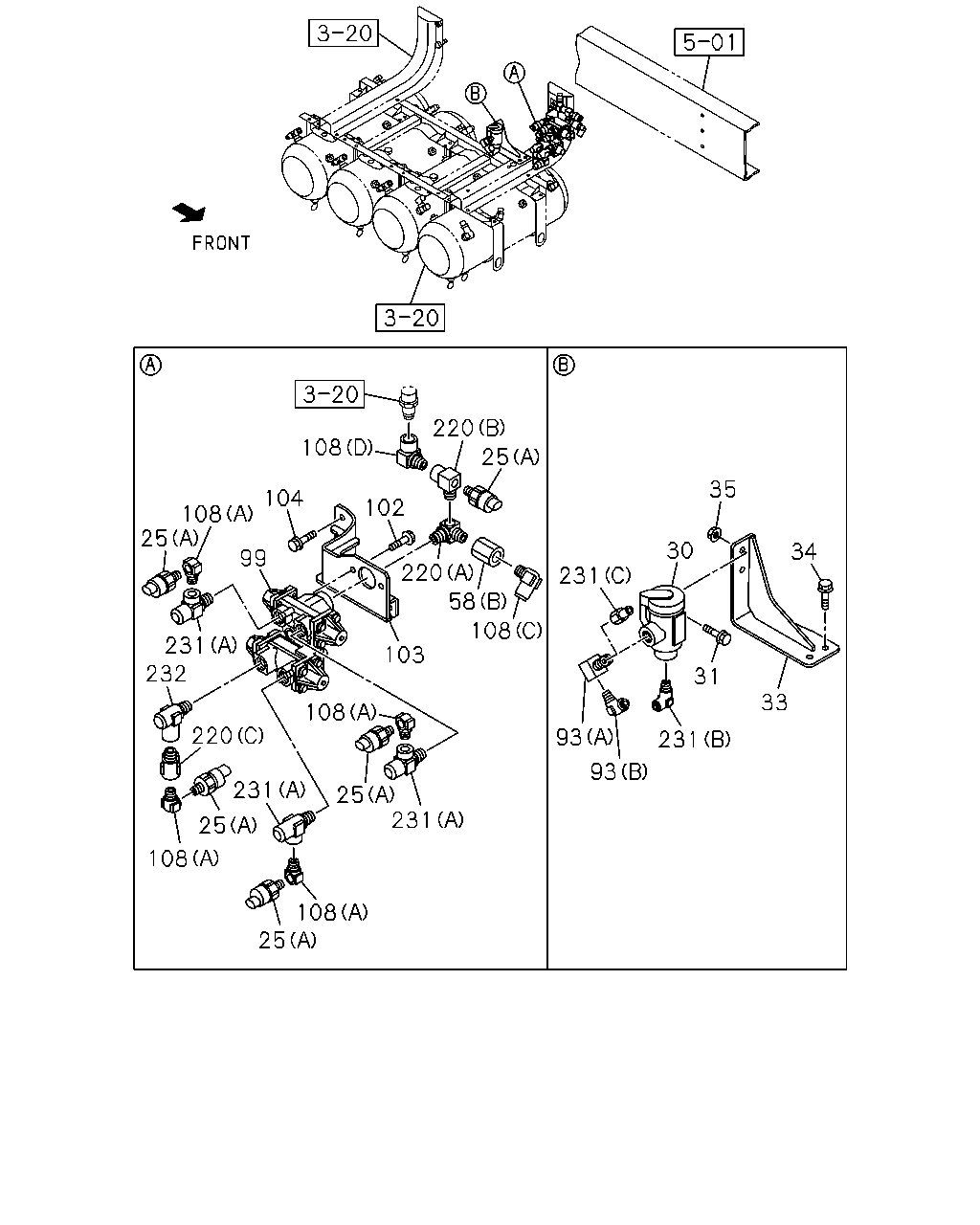

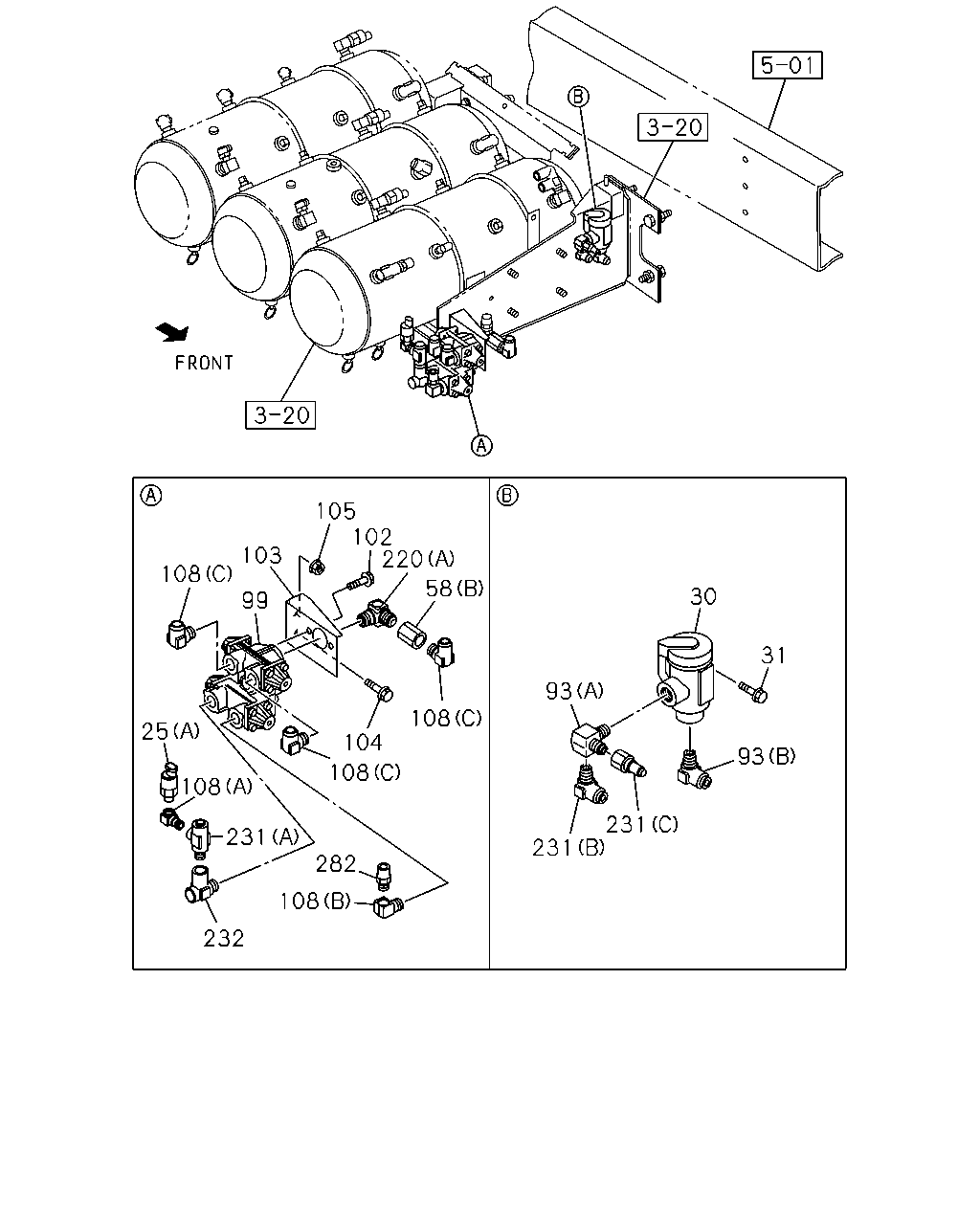

3-22 — AIR CONTROL PARTS (#111096) — 822 parça

108 105 102 220 58 99 30 31 93 93 231 231 231 108 25 103 104 108 108 282 232 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	SWITCH; PRESSURE WHEEL BASE 5700MM(57W) (A) STAMP 5.5	8-97609-249-0	05	1	1512-	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1212-1511	●	●
25	SWITCH; PRESSURE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) STAMP 5.5	8-97609-249-0	01	1	1512-		●
25	SWITCH; PRESSURE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) STAMP 5.5	8-97609-249-0	01	1	1512-	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1212-	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1212-1511	●	●
30	GOVERNOR; AIR CONT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48350-063-2	01	1	1512-		●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1512-	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1212-	●	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 5700MM(57W) (A) INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1512-	●
58	ADAPTER WHEEL BASE 7300MM(73W) (D) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	1303-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1212-	●	●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1212-1511	●	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-		●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-	●
93	CONNECTOR; GOV (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1212-1511	●	●
93	CONNECTOR; GOV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1512-		●
93	CONNECTOR; GOV (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1512-	●
93	CONNECTOR; GOV (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
93	CONNECTOR; GOV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
93	CONNECTOR; GOV (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
99	VALVE; PROTECTION	1-48110-294-3	01	1	1212-1511	●	●
99	VALVE; PROTECTION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48110-294-3	01	1	1512-		●
99	VALVE; PROTECTION	1-48110-294-3	01	1	1512-	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	1212-1511	●	●
102	BOLT; PROTECTION VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X16 FLANGE	0-28050-816-0	02	1	1512-		●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 5700MM(57W)	8-98333-752-0	01	1	1512-	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	1212-1511	●	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	8-98093-563-0	01	1	1512-		●
103	BRACKET; PROTECTION VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	8-98093-563-0	01	1	1512-	●
104	BOLT; BRKT,VALVE WHEEL BASE 5700MM(57W) M10X25 FLANGE	0-28651-025-0	02	1	1512-	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	1212-1511	●	●
104	BOLT; BRKT,VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10X20 FLANGE	0-28651-020-0	01	1	1512-		●
104	BOLT; BRKT,VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10X20 FLANGE	0-28651-020-0	01	1	1512-	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	01	1	1212-1511	●	●
105	NUT; BRKT,VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	01	1	1512-		●
105	NUT; BRKT,VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	01	1	1512-	●
108	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1512-	●
108	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (D) PT3/8 ELBOW	1-09660-694-0	01	1	1512-	●
108	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
108	CONNECTOR; ELBOW (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1212-1511	●	●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1512-		●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1512-	●
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	01	1	1212-1511	●	●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	1512-		●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	1512-	●
108	CONNECTOR; ELBOW (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1212-1511	●	●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-		●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-	●
220	CONNECTOR; 3WAY WHEEL BASE 5700MM(57W) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1512-	●
220	CONNECTOR; 3WAY WHEEL BASE 5700MM(57W) (B) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1512-	●
220	CONNECTOR; 3WAY (A) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1212-1511	●	●
220	CONNECTOR; 3WAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1512-		●
220	CONNECTOR; 3WAY (A) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1512-	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 5700MM(57W) (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	03	1	1512-	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1212-1511	●	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1512-		●
231	CONNECTOR; NYLON TUBE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1512-	●
231	CONNECTOR; NYLON TUBE (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
231	CONNECTOR; NYLON TUBE (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
231	CONNECTOR; NYLON TUBE (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1212-1511	●	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-		●
231	CONNECTOR; NYLON TUBE (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1212-1511	●	●
232	VALVE; CHECK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1512-		●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1512-	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1212-1511	●	●
282	CONNECTOR; STRAIGHT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-		●
282	CONNECTOR; STRAIGHT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●

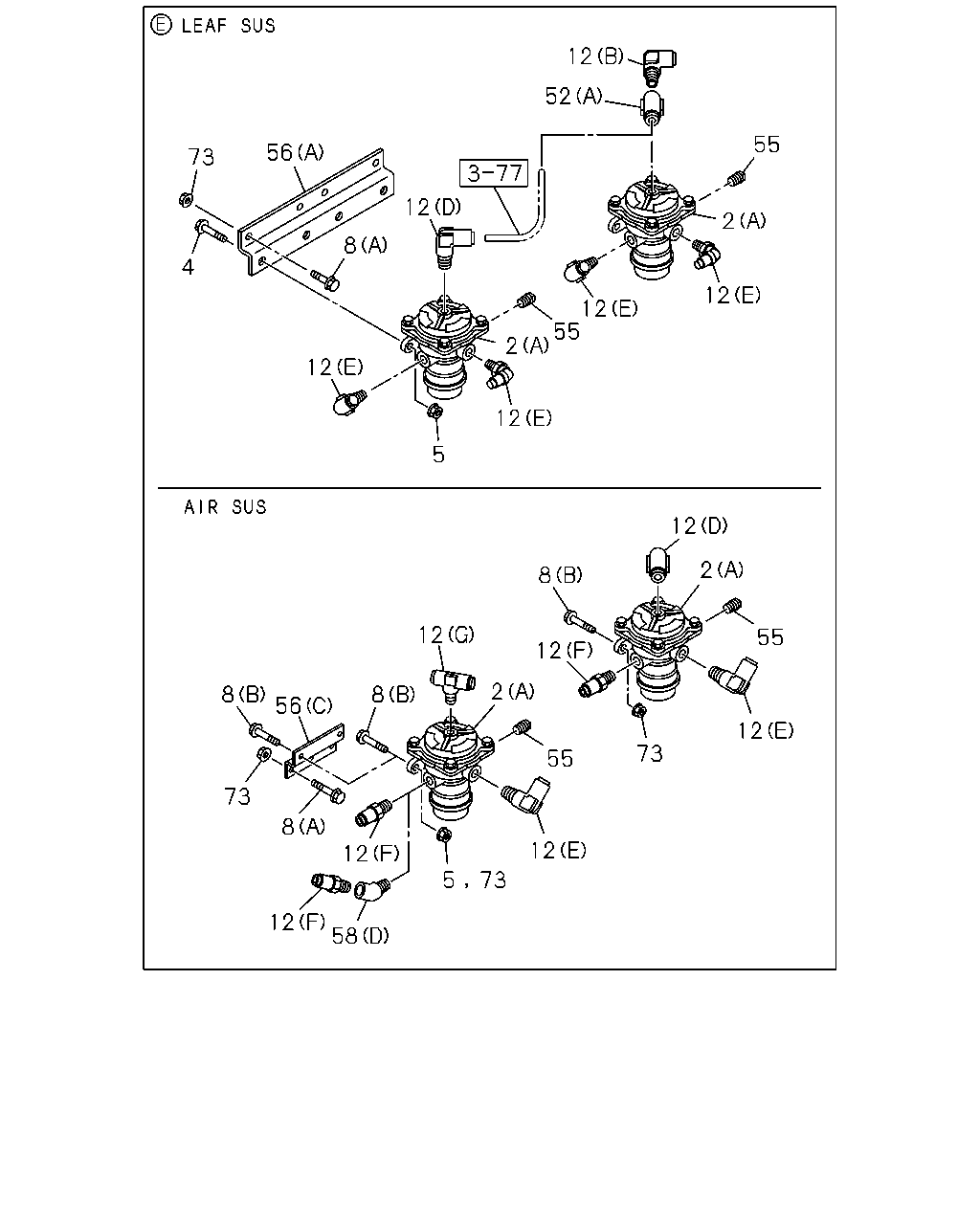

4 9 8 56 55 2 12 12 12 12 5 55 8 9 4 56 2 12 5 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

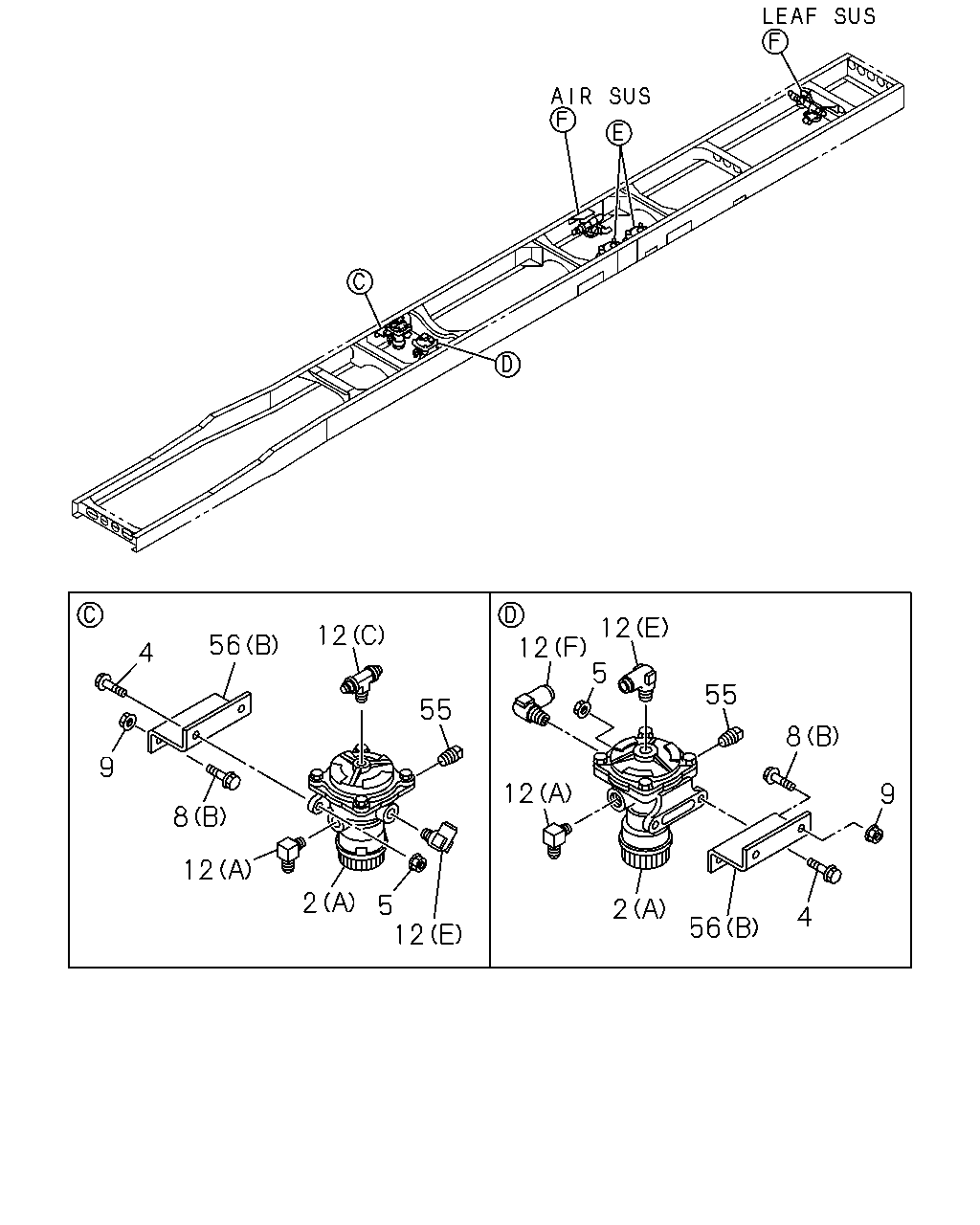

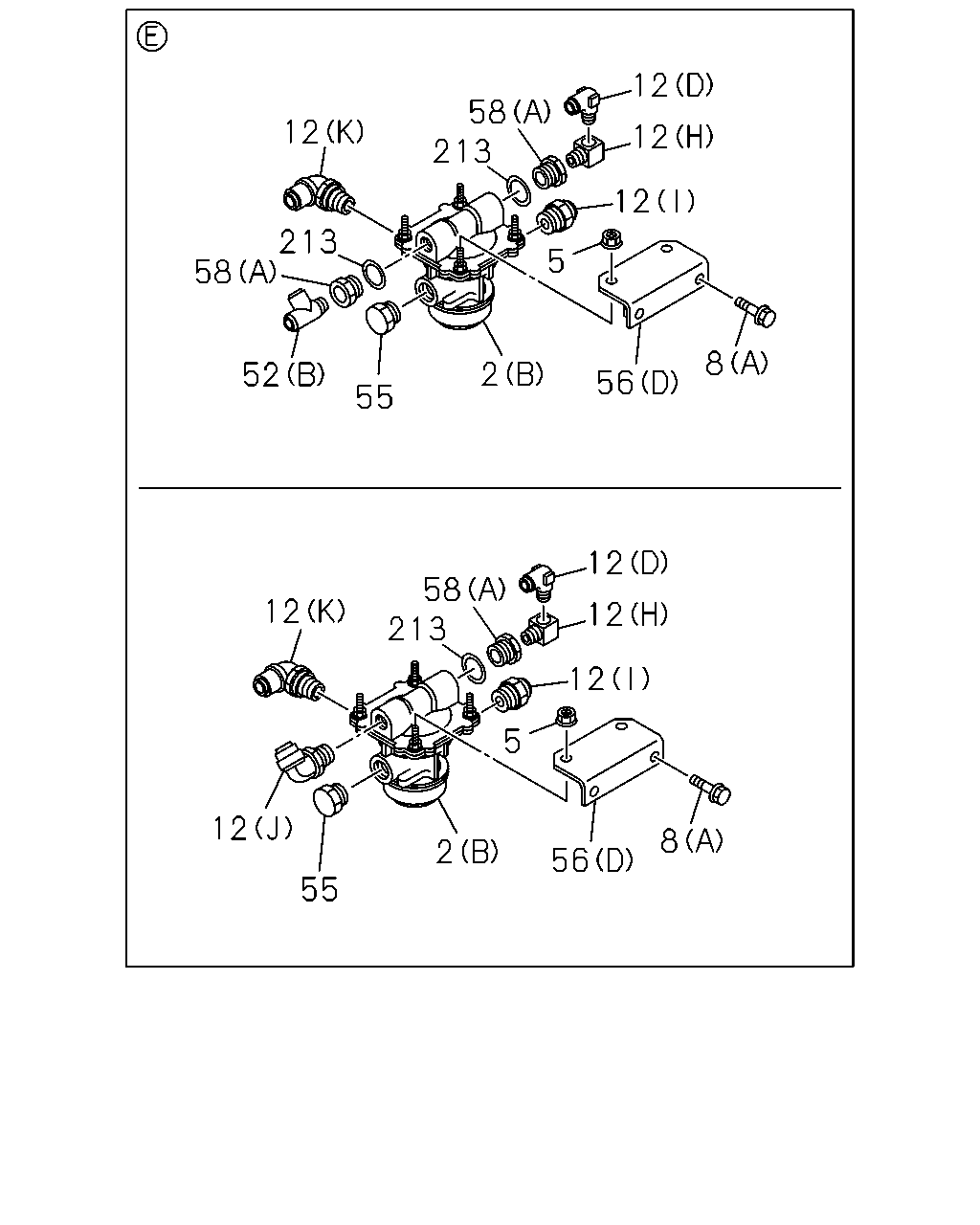

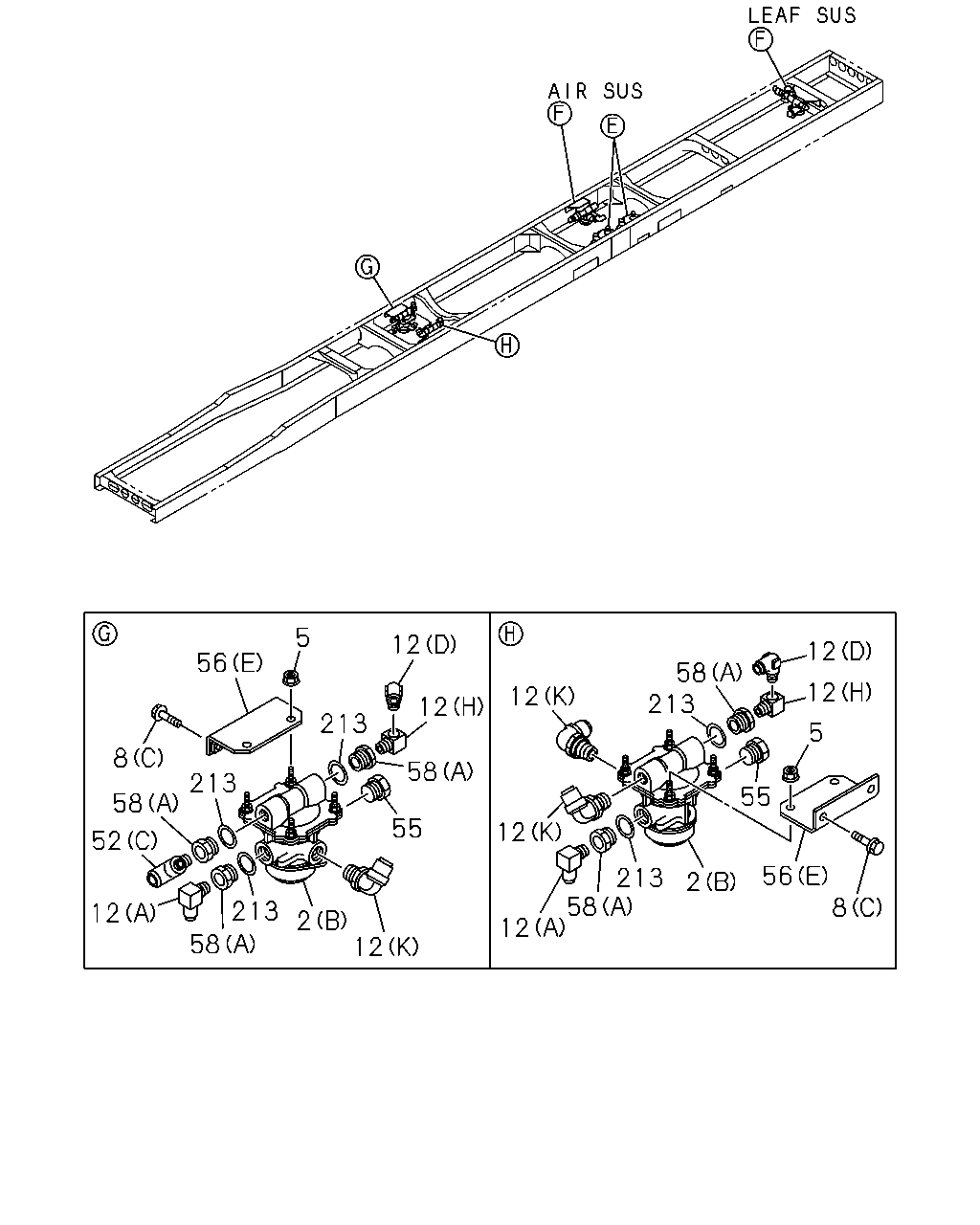

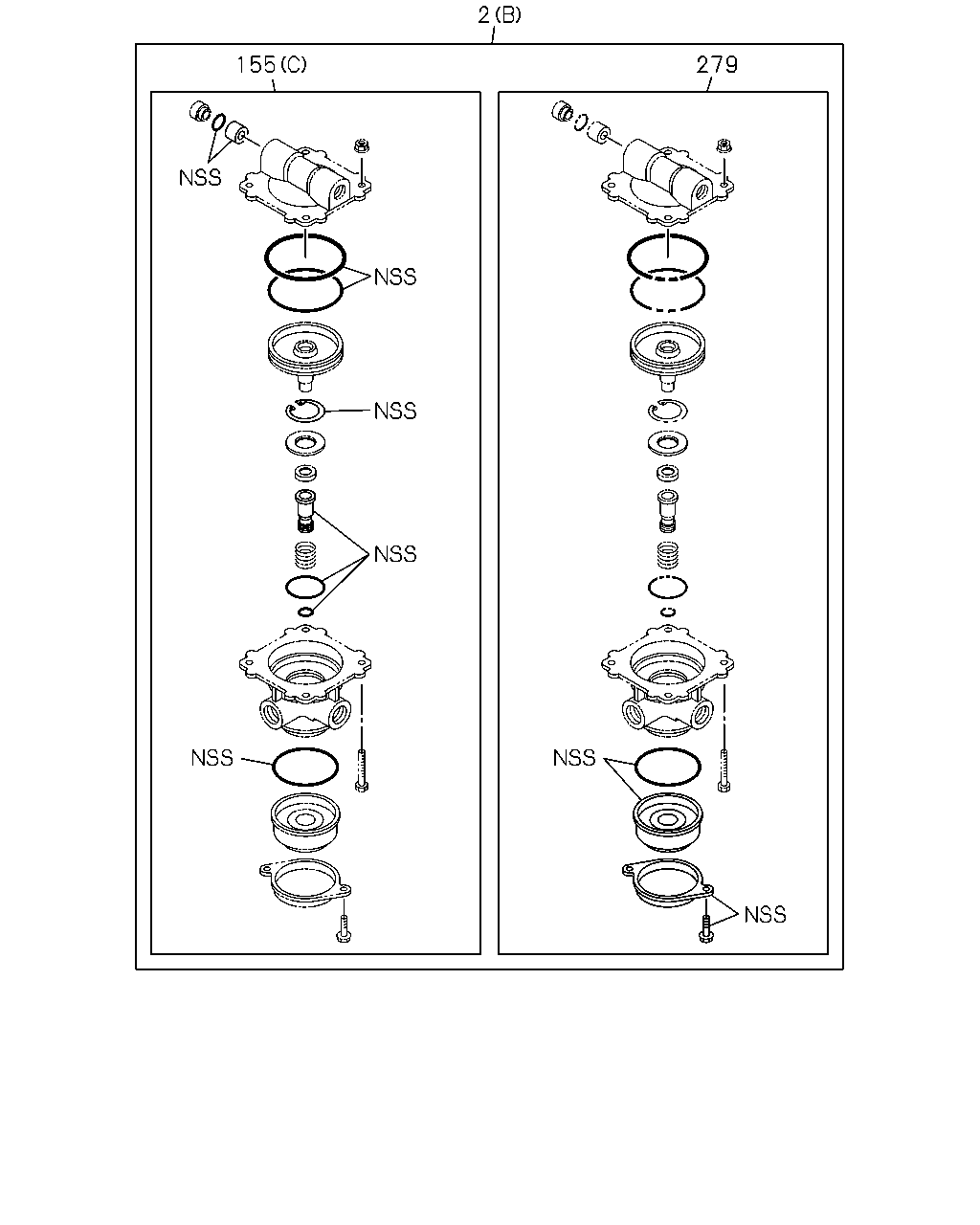

2	VALVE; RELAY WHEEL BASE 5700MM(57W) (B)	8-98292-213-0	04	1	1512-	●

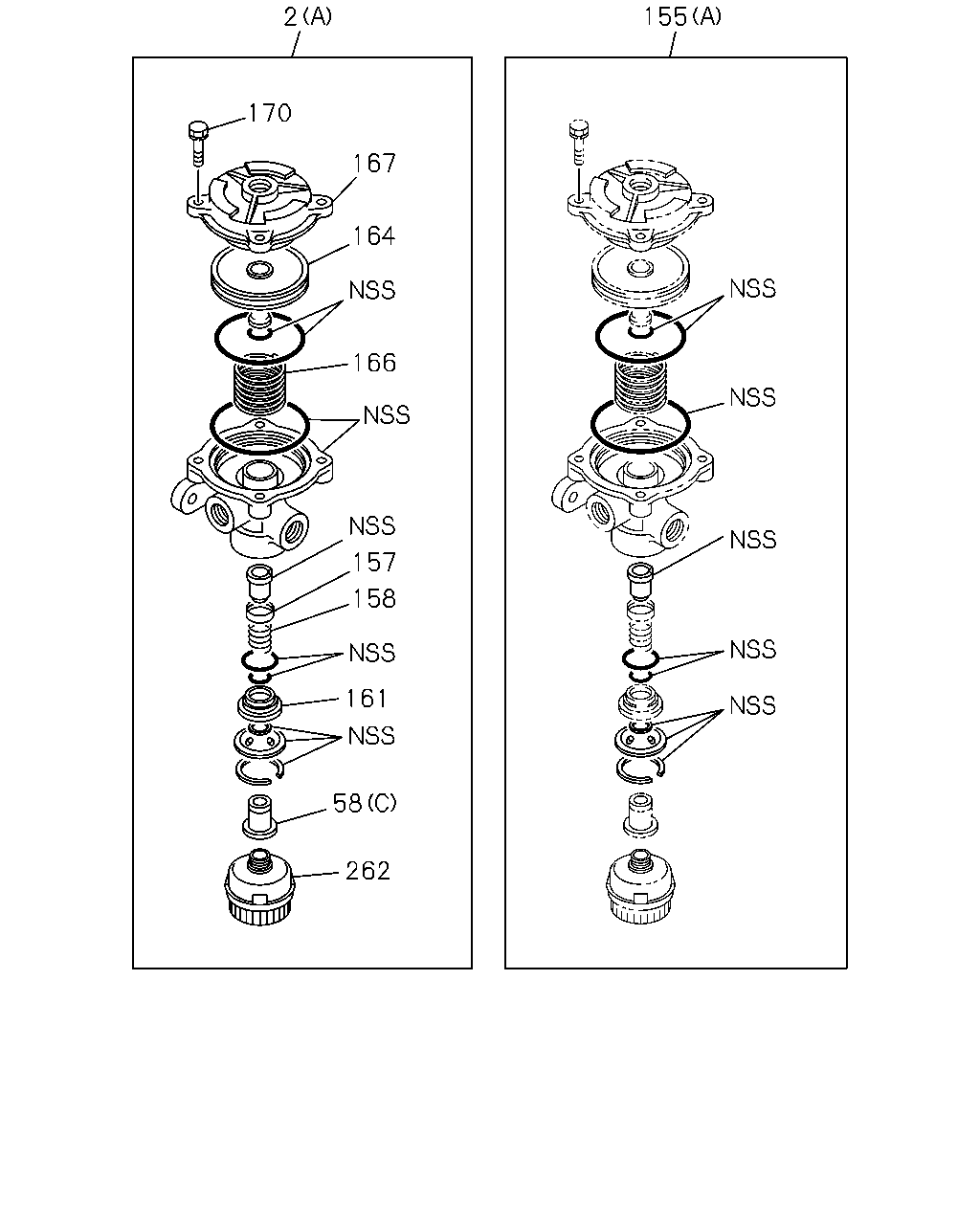

2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	02	1	1512-	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1212-1511	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1212-1511		●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10X35 FLANGE	0-28651-035-0	04	1	1512-		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1512-		●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●
5	NUT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	08	1	1512-	●
5	NUT WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	02	1	1303-	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1212-1511	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1212-1511		●
5	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	04	1	1512-		●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1512-		●
5	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	04	1	1512-	●
8	BOLT; BRKT WHEEL BASE 5700MM(57W) (C) M10X30 FLANGE	0-28651-030-0	04	1	1512-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1303-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1303-	●
8	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1212-1511		●
8	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1512-		●
8	BOLT; BRKT WHEEL BASE 5700MM(57W) (A) M8X30 FLANGE	0-28650-830-0	04	1	1512-	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1212-1302	●	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1212-1302	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1303-1511	●	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1303-1511	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●
9	NUT M10 FLANGE	0-91180-210-0	04	1	1212-1511	●	●
9	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	04	1	1512-		●
9	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (H) PT3/8 ELBOW	1-09660-696-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (I) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (J) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (K) DIN12 & M22 ELBOW	1-09661-497-0	05	1	1512-	●
12	CONNECTOR; RELAY VLV (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1212-		●
12	CONNECTOR; RELAY VLV (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1512-		●
12	CONNECTOR; RELAY VLV (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1512-	●
12	CONNECTOR; RELAY VLV (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-1302	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1212-1302	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1212-1302	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1303-	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
55	PLUG; SUPPLY WHEEL BASE 5700MM(57W) M22	1-09661-502-0	04	1	1512-	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1303-1511	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1303-1511	●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	01	1	1512-	●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	01	1	1512-	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1212-1302	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1212-1302	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1303-1511	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1303-1511		●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) PT3/8	9-09204-517-0	02	1	1512-		●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1512-		●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 5700MM(57W) (D)	8-97629-209-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 5700MM(57W) (E)	8-98297-973-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 7300MM(73W) (C)	1-47479-328-0	01	1	1303-	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	1212-		●
56	BRACKET; RELAY VLV (B)	1-47478-233-0	02	1	1212-1511	●	●
56	BRACKET; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-47478-233-0	02	1	1512-		●
56	BRACKET; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-47478-233-0	02	1	1512-	●

73 4 56 8 12 12 5 12 2 55 12 12 2 55 12 52 8 73 56 8 12 12 58 5 8 12 73 55 2 8 12 73 12 55 2 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY WHEEL BASE 5700MM(57W) (B)	8-98292-213-0	04	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	02	1	1512-	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1212-1511	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1212-1511		●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10X35 FLANGE	0-28651-035-0	04	1	1512-		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	1512-		●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●
5	NUT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	08	1	1512-	●
5	NUT WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	02	1	1303-	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1212-1511	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1212-1511		●
5	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	04	1	1512-		●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1512-		●
5	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	04	1	1512-	●
8	BOLT; BRKT WHEEL BASE 5700MM(57W) (C) M10X30 FLANGE	0-28651-030-0	04	1	1512-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1303-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1303-	●
8	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1212-1511		●
8	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1512-		●
8	BOLT; BRKT WHEEL BASE 5700MM(57W) (A) M8X30 FLANGE	0-28650-830-0	04	1	1512-	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1212-1302	●	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1212-1302	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1303-1511	●	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1303-1511	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (H) PT3/8 ELBOW	1-09660-696-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (I) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (J) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (K) DIN12 & M22 ELBOW	1-09661-497-0	05	1	1512-	●
12	CONNECTOR; RELAY VLV (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1212-		●
12	CONNECTOR; RELAY VLV (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1512-		●
12	CONNECTOR; RELAY VLV (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1512-	●
12	CONNECTOR; RELAY VLV (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-1302	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1212-1302	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1212-1302	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1303-	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
52	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1512-	●
52	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (C) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1512-	●
52	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 & RC1/4 3WAY	8-97620-116-0	01	1	1212-		●
55	PLUG; SUPPLY WHEEL BASE 5700MM(57W) M22	1-09661-502-0	04	1	1512-	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1303-1511	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1303-1511	●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	01	1	1512-	●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	01	1	1512-	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1212-1302	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1212-1302	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1303-1511	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1303-1511		●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) PT3/8	9-09204-517-0	02	1	1512-		●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1512-		●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 5700MM(57W) (D)	8-97629-209-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 5700MM(57W) (E)	8-98297-973-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 7300MM(73W) (C)	1-47479-328-0	01	1	1303-	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	1212-		●
56	BRACKET; RELAY VLV (B)	1-47478-233-0	02	1	1212-1511	●	●
56	BRACKET; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-47478-233-0	02	1	1512-		●
56	BRACKET; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-47478-233-0	02	1	1512-	●
58	ADAPTER WHEEL BASE 5700MM(57W) (A) INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1512-	●
58	ADAPTER WHEEL BASE 7300MM(73W) (D) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	1303-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1212-	●	●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1212-1511	●	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-		●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-	●
73	NUT; BRKT WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	02	1	1303-	●
73	NUT; BRKT WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	02	1	1303-	●
73	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1212-		●
73	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1212-1302	●
73	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	04	1	1303-	●

56 8 58 52 12 58 5 12 213 213 213 2 12 55 58 12 12 12 12 213 58 2 58 213 56 55 12 12 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY WHEEL BASE 5700MM(57W) (B)	8-98292-213-0	04	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	02	1	1512-	●
5	NUT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	08	1	1512-	●
5	NUT WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	02	1	1303-	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1212-1511	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1212-1511		●
5	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	04	1	1512-		●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1512-		●
5	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	04	1	1512-	●
8	BOLT; BRKT WHEEL BASE 5700MM(57W) (C) M10X30 FLANGE	0-28651-030-0	04	1	1512-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1303-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1303-	●
8	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1212-1511		●
8	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1512-		●
8	BOLT; BRKT WHEEL BASE 5700MM(57W) (A) M8X30 FLANGE	0-28650-830-0	04	1	1512-	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1212-1302	●	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1212-1302	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1303-1511	●	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1303-1511	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (H) PT3/8 ELBOW	1-09660-696-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (I) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (J) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (K) DIN12 & M22 ELBOW	1-09661-497-0	05	1	1512-	●
12	CONNECTOR; RELAY VLV (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1212-		●
12	CONNECTOR; RELAY VLV (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1512-		●
12	CONNECTOR; RELAY VLV (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1512-	●
12	CONNECTOR; RELAY VLV (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-1302	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1212-1302	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1212-1302	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1303-	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
52	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1512-	●
52	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (C) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1512-	●
52	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 & RC1/4 3WAY	8-97620-116-0	01	1	1212-		●
55	PLUG; SUPPLY WHEEL BASE 5700MM(57W) M22	1-09661-502-0	04	1	1512-	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1303-1511	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1303-1511	●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	01	1	1512-	●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	01	1	1512-	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1212-1302	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1212-1302	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1303-1511	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1303-1511		●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) PT3/8	9-09204-517-0	02	1	1512-		●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1512-		●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 5700MM(57W) (D)	8-97629-209-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 5700MM(57W) (E)	8-98297-973-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 7300MM(73W) (C)	1-47479-328-0	01	1	1303-	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	1212-		●
56	BRACKET; RELAY VLV (B)	1-47478-233-0	02	1	1212-1511	●	●
56	BRACKET; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-47478-233-0	02	1	1512-		●
56	BRACKET; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-47478-233-0	02	1	1512-	●
58	ADAPTER WHEEL BASE 5700MM(57W) (A) INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1512-	●
58	ADAPTER WHEEL BASE 7300MM(73W) (D) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	1303-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1212-	●	●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1212-1511	●	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-		●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-	●
213	GASKET WHEEL BASE 5700MM(57W) ID=22.5	9-09571-422-0	08	1	1512-	●
213	GASKET ID=22.5	9-09571-422-0	03	1	1212-	●	●

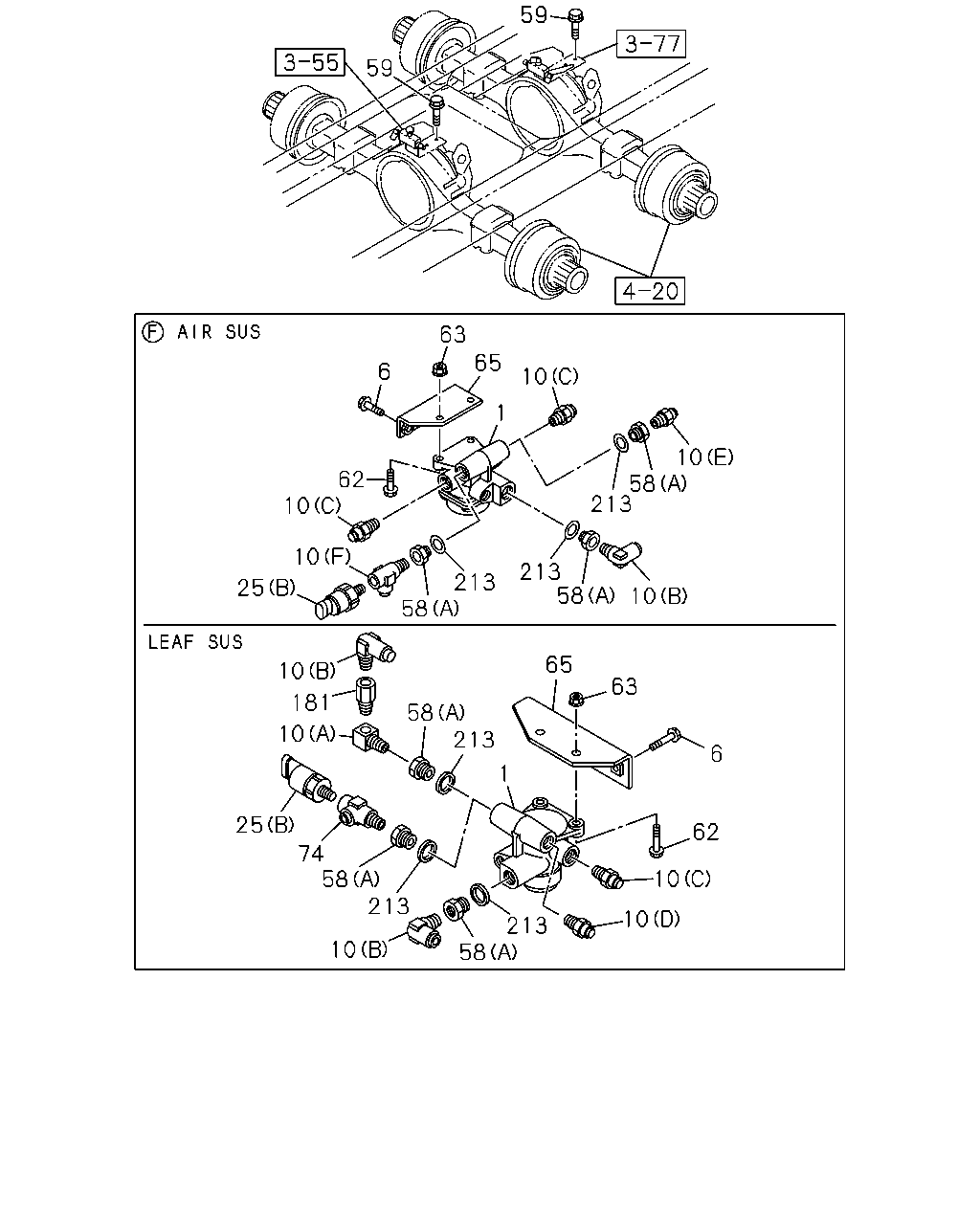

59 59 63 6 62 10 10 25 58 213 213 58 10 213 10 58 10 65 1 10 181 10 25 74 58 213 10 58 10 213 10 62 6 63 65 58 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1212-	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	1212-		●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1212-	●
10	CONNECTOR (A) PT3/8 ELBOW	1-09660-696-0	01	1	1212-		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-		●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	1212-		●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	1212-		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1212-	●
10	CONNECTOR (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1212-	●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1212-	●
10	CONNECTOR (F) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1212-	●
25	SWITCH; PRESSURE WHEEL BASE 5700MM(57W) (A) STAMP 5.5	8-97609-249-0	05	1	1512-	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1212-1511	●	●
25	SWITCH; PRESSURE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) STAMP 5.5	8-97609-249-0	01	1	1512-		●
25	SWITCH; PRESSURE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) STAMP 5.5	8-97609-249-0	01	1	1512-	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1212-	●	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 5700MM(57W) (A) INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1512-	●
58	ADAPTER WHEEL BASE 7300MM(73W) (D) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	1303-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1212-	●	●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1212-1511	●	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-		●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	1212-	●	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1212-	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
65	BRACKET; RELAY VLV RR	8-98105-921-0	01	1	1212-		●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1212-	●
74	CONNECTOR; 3WAY DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1212-		●
181	ADAPTER; PRESSURE SW PT3/8	1-48319-058-0	01	1	1212-		●
213	GASKET WHEEL BASE 5700MM(57W) ID=22.5	9-09571-422-0	08	1	1512-	●
213	GASKET ID=22.5	9-09571-422-0	03	1	1212-	●	●

12 58 213 213 58 12 12 12 5 2 56 8 55 52 12 213 12 58 12 12 5 56 2 8 55 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY WHEEL BASE 5700MM(57W) (B)	8-98292-213-0	04	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	02	1	1512-	●
5	NUT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	08	1	1512-	●
5	NUT WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	02	1	1303-	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1212-1511	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1212-1511		●
5	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	04	1	1512-		●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1512-		●
5	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10 FLANGE	0-91180-210-0	04	1	1512-	●
8	BOLT; BRKT WHEEL BASE 5700MM(57W) (C) M10X30 FLANGE	0-28651-030-0	04	1	1512-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1303-	●
8	BOLT; BRKT WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1303-	●
8	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1212-1511		●
8	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	1512-		●
8	BOLT; BRKT WHEEL BASE 5700MM(57W) (A) M8X30 FLANGE	0-28650-830-0	04	1	1512-	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1212-1302	●	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1212-1302	●
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1303-1511	●	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1303-1511	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●	●
8	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) M10X35 FLANGE	0-28651-035-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (H) PT3/8 ELBOW	1-09660-696-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	04	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (I) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (J) DIN8 & M22 ELBOW	1-09661-495-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (K) DIN12 & M22 ELBOW	1-09661-497-0	05	1	1512-	●
12	CONNECTOR; RELAY VLV (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1212-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1212-		●
12	CONNECTOR; RELAY VLV (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1512-		●
12	CONNECTOR; RELAY VLV (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1512-	●
12	CONNECTOR; RELAY VLV (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) DIN8 & DIN12 & R3/8 3WAY	1-09660-821-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1212-1511	●	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-		●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1212-1302	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1212-1302	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1303-1511	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1512-	●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1212-1302	●
12	CONNECTOR; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1303-	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
52	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1512-	●
52	CONNECTOR; RELAY VLV WHEEL BASE 5700MM(57W) (C) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1512-	●
52	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 & RC1/4 3WAY	8-97620-116-0	01	1	1212-		●
55	PLUG; SUPPLY WHEEL BASE 5700MM(57W) M22	1-09661-502-0	04	1	1512-	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1303-1511	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	01	1	1303-1511	●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	01	1	1512-	●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	01	1	1512-	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1212-1302	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1212-1302	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1303-1511	●	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1303-1511		●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) PT3/8	9-09204-517-0	02	1	1512-		●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1512-		●
55	PLUG; SUPPLY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) PT3/8	9-09204-517-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 5700MM(57W) (D)	8-97629-209-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 5700MM(57W) (E)	8-98297-973-0	02	1	1512-	●
56	BRACKET; RELAY VLV WHEEL BASE 7300MM(73W) (C)	1-47479-328-0	01	1	1303-	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	1212-		●
56	BRACKET; RELAY VLV (B)	1-47478-233-0	02	1	1212-1511	●	●
56	BRACKET; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-47478-233-0	02	1	1512-		●
56	BRACKET; RELAY VLV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B)	1-47478-233-0	02	1	1512-	●
58	ADAPTER WHEEL BASE 5700MM(57W) (A) INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1512-	●
58	ADAPTER WHEEL BASE 7300MM(73W) (D) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	1303-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1212-	●	●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1212-1511	●	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-		●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-	●
213	GASKET WHEEL BASE 5700MM(57W) ID=22.5	9-09571-422-0	08	1	1512-	●
213	GASKET ID=22.5	9-09571-422-0	03	1	1212-	●	●

108 104 108 25 231 232 220 108 231 25 99 102 108 25 108 25 231 103 220 58 108 25 220 231 30 35 34 31 3 231 93 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	SWITCH; PRESSURE WHEEL BASE 5700MM(57W) (A) STAMP 5.5	8-97609-249-0	05	1	1512-	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1212-1511	●	●
25	SWITCH; PRESSURE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) STAMP 5.5	8-97609-249-0	01	1	1512-		●
25	SWITCH; PRESSURE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) STAMP 5.5	8-97609-249-0	01	1	1512-	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1212-	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1212-1511	●	●
30	GOVERNOR; AIR CONT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48350-063-2	01	1	1512-		●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1512-	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1212-	●	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
34	BOLT; BRKT,GOV WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28650-830-0	02	1	1512-	●
35	NUT; GOV TO FRAME WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	02	1	1512-	●
58	ADAPTER WHEEL BASE 5700MM(57W) (A) INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1512-	●
58	ADAPTER WHEEL BASE 7300MM(73W) (D) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	1303-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1212-	●	●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1212-1511	●	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-		●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-	●
93	CONNECTOR; GOV (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1212-1511	●	●
93	CONNECTOR; GOV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1512-		●
93	CONNECTOR; GOV (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1512-	●
93	CONNECTOR; GOV (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
93	CONNECTOR; GOV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
93	CONNECTOR; GOV (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
99	VALVE; PROTECTION	1-48110-294-3	01	1	1212-1511	●	●
99	VALVE; PROTECTION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48110-294-3	01	1	1512-		●
99	VALVE; PROTECTION	1-48110-294-3	01	1	1512-	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	1212-1511	●	●
102	BOLT; PROTECTION VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X16 FLANGE	0-28050-816-0	02	1	1512-		●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 5700MM(57W)	8-98333-752-0	01	1	1512-	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	1212-1511	●	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	8-98093-563-0	01	1	1512-		●
103	BRACKET; PROTECTION VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	8-98093-563-0	01	1	1512-	●
104	BOLT; BRKT,VALVE WHEEL BASE 5700MM(57W) M10X25 FLANGE	0-28651-025-0	02	1	1512-	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	1212-1511	●	●
104	BOLT; BRKT,VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10X20 FLANGE	0-28651-020-0	01	1	1512-		●
104	BOLT; BRKT,VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10X20 FLANGE	0-28651-020-0	01	1	1512-	●
108	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1512-	●
108	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (D) PT3/8 ELBOW	1-09660-694-0	01	1	1512-	●
108	CONNECTOR; ELBOW WHEEL BASE 5700MM(57W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1512-	●
108	CONNECTOR; ELBOW (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1212-1511	●	●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1512-		●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1512-	●
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	01	1	1212-1511	●	●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	1512-		●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	1512-	●
108	CONNECTOR; ELBOW (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1212-1511	●	●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-		●
108	CONNECTOR; ELBOW WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1512-	●
220	CONNECTOR; 3WAY WHEEL BASE 5700MM(57W) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1512-	●
220	CONNECTOR; 3WAY WHEEL BASE 5700MM(57W) (B) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1512-	●
220	CONNECTOR; 3WAY (A) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1212-1511	●	●
220	CONNECTOR; 3WAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1512-		●
220	CONNECTOR; 3WAY (A) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1512-	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 5700MM(57W) (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	03	1	1512-	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1212-1511	●	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1512-		●
231	CONNECTOR; NYLON TUBE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1512-	●
231	CONNECTOR; NYLON TUBE (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1212-1511	●	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-		●
231	CONNECTOR; NYLON TUBE (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1512-	●
231	CONNECTOR; NYLON TUBE (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1212-1511	●	●
231	CONNECTOR; NYLON TUBE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-		●
231	CONNECTOR; NYLON TUBE (C) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1512-	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1212-1511	●	●
232	VALVE; CHECK WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1512-		●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1512-	●

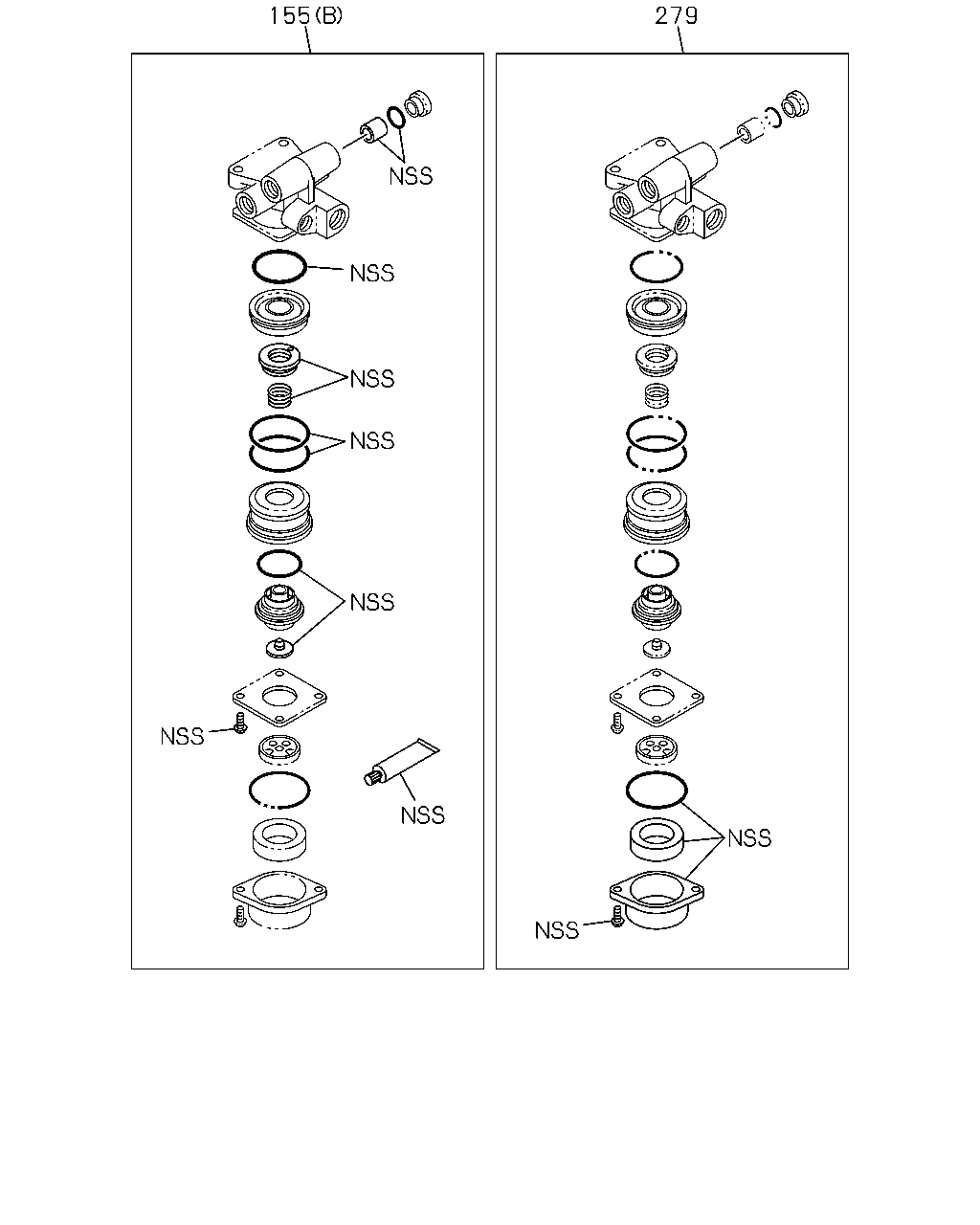

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 5700MM(57W) (C)	8-98165-977-0	04	1	1512-	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1303-1511	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1303-1511	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-85576-294-0	01	1	1512-	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-85576-294-0	01	1	1512-	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1212-1302	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1212-1302	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1303-1511	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1303-1511		●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-85576-294-0	02	1	1512-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1512-		●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-85576-294-0	02	1	1512-	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1212-	●	●
279	REPAIR KIT; SILENCER WHEEL BASE 5700MM(57W)	8-98165-978-0	04	1	1512-	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1212-	●	●

99 167 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
99	VALVE; PROTECTION	1-48110-294-3	01	1	1212-1511	●	●
99	VALVE; PROTECTION WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48110-294-3	01	1	1512-		●
99	VALVE; PROTECTION	1-48110-294-3	01	1	1512-	●
167	COVER; VALVE	1-48119-625-0	04	1	1212-1511	●	●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48119-625-0	04	1	1512-		●
167	COVER; VALVE	1-48119-625-0	04	1	1512-	●
167	COVER; VALVE	1-48219-070-0	01	1	1303-1511	●
167	COVER; VALVE	1-48219-070-0	01	1	1303-1511	●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-070-0	01	1	1512-	●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-070-0	01	1	1512-	●
167	COVER; VALVE	1-48219-070-0	02	1	1212-1302	●	●
167	COVER; VALVE	1-48219-070-0	02	1	1212-1302	●	●
167	COVER; VALVE	1-48219-070-0	02	1	1303-1511	●	●
167	COVER; VALVE	1-48219-070-0	02	1	1303-1511		●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48219-070-0	02	1	1512-		●
167	COVER; VALVE	1-48219-070-0	02	1	1512-		●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-070-0	02	1	1512-	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-451-2	01	1	1212-1511	●	●
241	REPAIR KIT; PROTECTION VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-85576-451-2	01	1	1512-		●
241	REPAIR KIT; PROTECTION VALVE	1-85576-451-2	01	1	1512-	●

155 2 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY WHEEL BASE 5700MM(57W) (B)	8-98292-213-0	04	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	02	1	1512-	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 5700MM(57W) (C)	8-98165-977-0	04	1	1512-	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1303-1511	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1303-1511	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-85576-294-0	01	1	1512-	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-85576-294-0	01	1	1512-	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1212-1302	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1212-1302	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1303-1511	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1303-1511		●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-85576-294-0	02	1	1512-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1512-		●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-85576-294-0	02	1	1512-	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1212-	●	●
279	REPAIR KIT; SILENCER WHEEL BASE 5700MM(57W)	8-98165-978-0	04	1	1512-	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1212-	●	●

2 170 167 164 166 157 158 161 58 262 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY WHEEL BASE 5700MM(57W) (B)	8-98292-213-0	04	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	1303-1511	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	01	1	1512-	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1212-1302	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1303-1511		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	1512-		●
2	VALVE; RELAY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-48210-997-0	02	1	1512-	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 5700MM(57W) (A) INNER PT3/8,OUTER M22	1-09650-494-1	08	1	1512-	●
58	ADAPTER WHEEL BASE 7300MM(73W) (D) R3/8 ELBOW 45 DEGREES	1-09664-209-0	01	1	1303-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	01	1	1303-1511	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	01	1	1512-	●
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1212-	●	●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1212-1511	●	●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-		●
58	ADAPTER (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1512-	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1212-1302	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511	●	●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1303-1511		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER (C) M22 ADAPTER	1-48219-154-0	02	1	1512-		●
58	ADAPTER WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) M22 ADAPTER	1-48219-154-0	02	1	1512-	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 5700MM(57W) (C)	8-98165-977-0	04	1	1512-	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1303-1511	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	1303-1511	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-85576-294-0	01	1	1512-	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-85576-294-0	01	1	1512-	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1212-1302	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1212-1302	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1303-1511	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1303-1511		●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-85576-294-0	02	1	1512-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	1512-		●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-85576-294-0	02	1	1512-	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1212-	●	●
157	RETAINER; VALVE	1-48213-002-0	01	1	1303-1511	●
157	RETAINER; VALVE	1-48213-002-0	01	1	1303-1511	●
157	RETAINER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48213-002-0	01	1	1512-	●
157	RETAINER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48213-002-0	01	1	1512-	●
157	RETAINER; VALVE	1-48213-002-0	02	1	1212-1302	●	●
157	RETAINER; VALVE	1-48213-002-0	02	1	1212-1302	●	●
157	RETAINER; VALVE	1-48213-002-0	02	1	1303-1511	●	●
157	RETAINER; VALVE	1-48213-002-0	02	1	1303-1511		●
157	RETAINER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48213-002-0	02	1	1512-		●
157	RETAINER; VALVE	1-48213-002-0	02	1	1512-		●
157	RETAINER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48213-002-0	02	1	1512-	●
158	SPRING; VALVE	1-47819-089-0	01	1	1303-1511	●
158	SPRING; VALVE	1-47819-089-0	01	1	1303-1511	●
158	SPRING; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-47819-089-0	01	1	1512-	●
158	SPRING; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-47819-089-0	01	1	1512-	●
158	SPRING; VALVE	1-47819-089-0	02	1	1212-1302	●	●
158	SPRING; VALVE	1-47819-089-0	02	1	1212-1302	●	●
158	SPRING; VALVE	1-47819-089-0	02	1	1303-1511	●	●
158	SPRING; VALVE	1-47819-089-0	02	1	1303-1511		●
158	SPRING; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-47819-089-0	02	1	1512-		●
158	SPRING; VALVE	1-47819-089-0	02	1	1512-		●
158	SPRING; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-47819-089-0	02	1	1512-	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1303-1511	●
161	GUIDE; VALVE	1-48129-014-0	01	1	1303-1511	●
161	GUIDE; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48129-014-0	01	1	1512-	●
161	GUIDE; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48129-014-0	01	1	1512-	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1212-1302	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1212-1302	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1303-1511	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1303-1511		●
161	GUIDE; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48129-014-0	02	1	1512-		●
161	GUIDE; VALVE	1-48129-014-0	02	1	1512-		●
161	GUIDE; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48129-014-0	02	1	1512-	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1303-1511	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1303-1511	●
164	PISTON; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-071-0	01	1	1512-	●
164	PISTON; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-071-0	01	1	1512-	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	1212-1302	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	1212-1302	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	1303-1511	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	1303-1511		●
164	PISTON; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48219-071-0	02	1	1512-		●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	1512-		●
164	PISTON; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-071-0	02	1	1512-	●
166	SPRING; PISTON	1-47819-090-0	01	1	1303-1511	●
166	SPRING; PISTON	1-47819-090-0	01	1	1303-1511	●
166	SPRING; PISTON WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-47819-090-0	01	1	1512-	●
166	SPRING; PISTON WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-47819-090-0	01	1	1512-	●
166	SPRING; PISTON	1-47819-090-0	02	1	1212-1302	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	1212-1302	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	1303-1511	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	1303-1511		●
166	SPRING; PISTON WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-47819-090-0	02	1	1512-		●
166	SPRING; PISTON	1-47819-090-0	02	1	1512-		●
166	SPRING; PISTON WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-47819-090-0	02	1	1512-	●
167	COVER; VALVE	1-48119-625-0	04	1	1212-1511	●	●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48119-625-0	04	1	1512-		●
167	COVER; VALVE	1-48119-625-0	04	1	1512-	●
167	COVER; VALVE	1-48219-070-0	01	1	1303-1511	●
167	COVER; VALVE	1-48219-070-0	01	1	1303-1511	●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-070-0	01	1	1512-	●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-070-0	01	1	1512-	●
167	COVER; VALVE	1-48219-070-0	02	1	1212-1302	●	●
167	COVER; VALVE	1-48219-070-0	02	1	1212-1302	●	●
167	COVER; VALVE	1-48219-070-0	02	1	1303-1511	●	●
167	COVER; VALVE	1-48219-070-0	02	1	1303-1511		●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48219-070-0	02	1	1512-		●
167	COVER; VALVE	1-48219-070-0	02	1	1512-		●
167	COVER; VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-070-0	02	1	1512-	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1303-1511	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1303-1511	●
170	SCREW; COVER TO BODY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-039-0	04	1	1512-	●
170	SCREW; COVER TO BODY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-039-0	04	1	1512-	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	1212-1302	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	1212-1302	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	1303-1511	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	1303-1511		●
170	SCREW; COVER TO BODY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48219-039-0	08	1	1512-		●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	1512-		●
170	SCREW; COVER TO BODY WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-039-0	08	1	1512-	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1303-1511	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1303-1511	●
262	SILENCER; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-149-0	01	1	1512-	●
262	SILENCER; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-149-0	01	1	1512-	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1212-1302	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1212-1302	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1303-1511	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1303-1511		●
262	SILENCER; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-48219-149-0	02	1	1512-		●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	1512-		●
262	SILENCER; RELAY VALVE WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W)	1-48219-149-0	02	1	1512-	●

240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BRACKET; GOV,AIR CONT WHEEL BASE 5700MM(57W)	8-98333-715-0	01	1	1512-	●
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1212-1511	●	●
240	REPAIR KIT; AIR CONT GOV WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W)	1-85576-467-0	01	1	1512-		●
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
