Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#111095) — 104 parça
◀

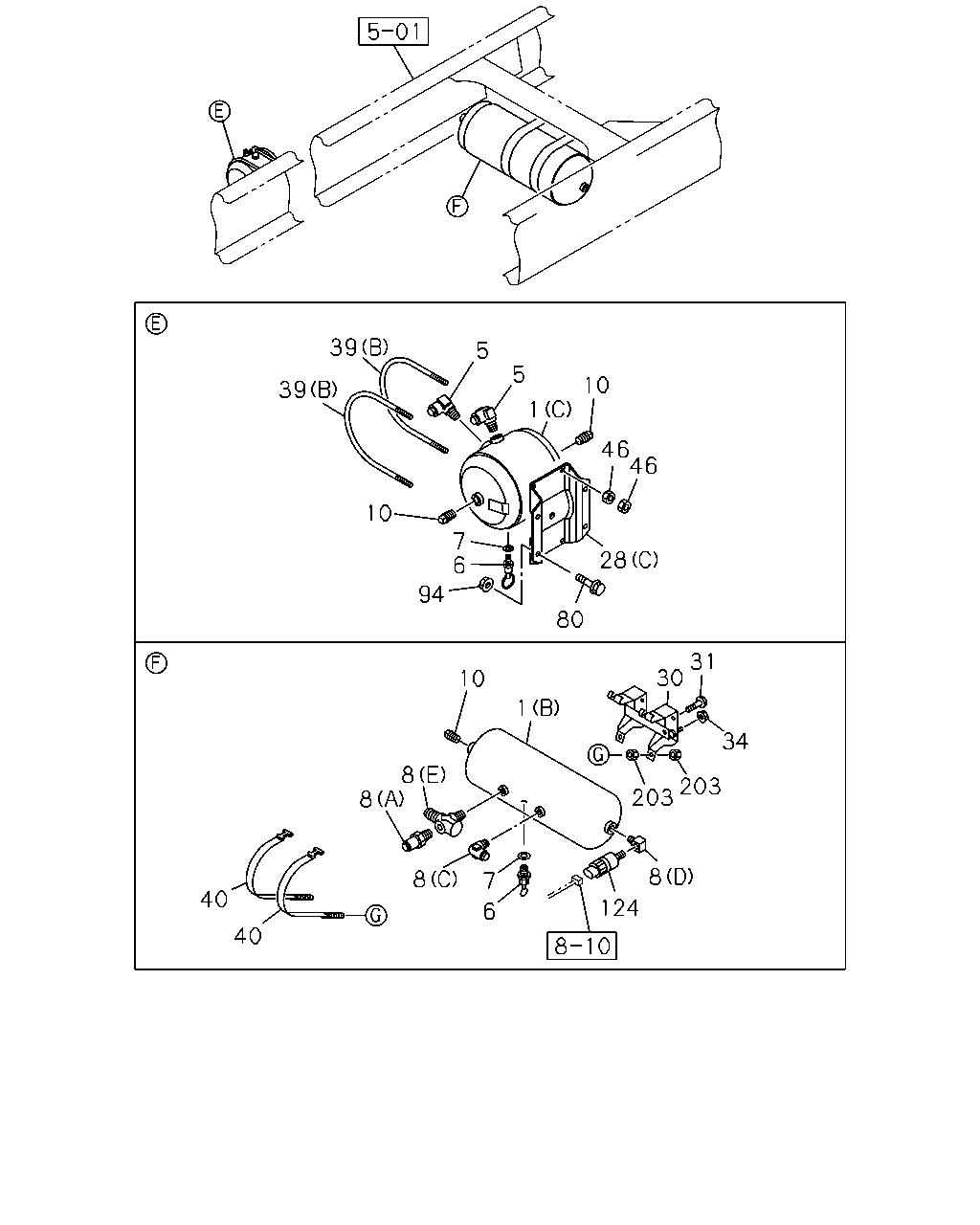

[320A] FRAME SIDE (34 parça)
[320A] COMPONENT;AIR TANK (38 parça)
[320A] CAB SIDE (1 parça)
[320A] FIXING (31 parça)
▶
39
39
5
1
10
5
46
28
80
46
10
7
6
94
10
1
31
30
34
203
203
8
124
6
8
7
8
8
40
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A)
8-98018-785-3
01
1
1212-
1
TANK ASM; AIR
(C)
8-98081-870-1
01
1
1212-
1
TANK ASM; AIR
(B)
8-98166-972-0
01
1
1212-
5
UNION; AIR TANK
DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1212-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
03
1
1212-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1212-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1212-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
03
1
1212-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1212-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1212-
8
CONNECTOR; AIR TANK
(E) DIN1/8 & M16X2 3WAY
1-09656-462-1
01
1
1212-
8
CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY
1-09656-759-0
01
1
1212-
8
CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1212-
8
CONNECTOR; AIR TANK
(C) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1212-
8
CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
1212-
8
CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1212-
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
02
1
1212-
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
01
1
1212-
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
01
1
1212-
28
BRACKET; AIR TANK
(A)
8-98021-918-5
01
1
1212-
28
BRACKET; AIR TANK
(B)
8-98044-509-5
01
1
1212-
28
BRACKET; AIR TANK
(C)
8-98100-165-3
01
1
1212-
30
BRACKET; AIR TANK,SUB
1-48317-894-1
01
1
1212-
31
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28651-030-0
02
1
1212-
34
NUT; BRKT,AIR TANK
M10 FLANGE
0-91180-210-0
02
1
1212-
39
U-BOLT; AIR TANK
(B) L=210
1-48317-458-1
02
1
1212-
39
U-BOLT; AIR TANK
(A)
8-98022-041-0
02
1
1212-
40
BAND ASM; AIR TANK
1-48317-893-1
02
1
1212-
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
1212-
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
1212-
80
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
03
1
1212-
94
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
04
1
1212-
124
SWITCH; AIR PRESSURE
STAMP 5.5
8-97609-249-0
01
1
1212-
203
NUT
M8
0-91110-508-0
04
1
1212-

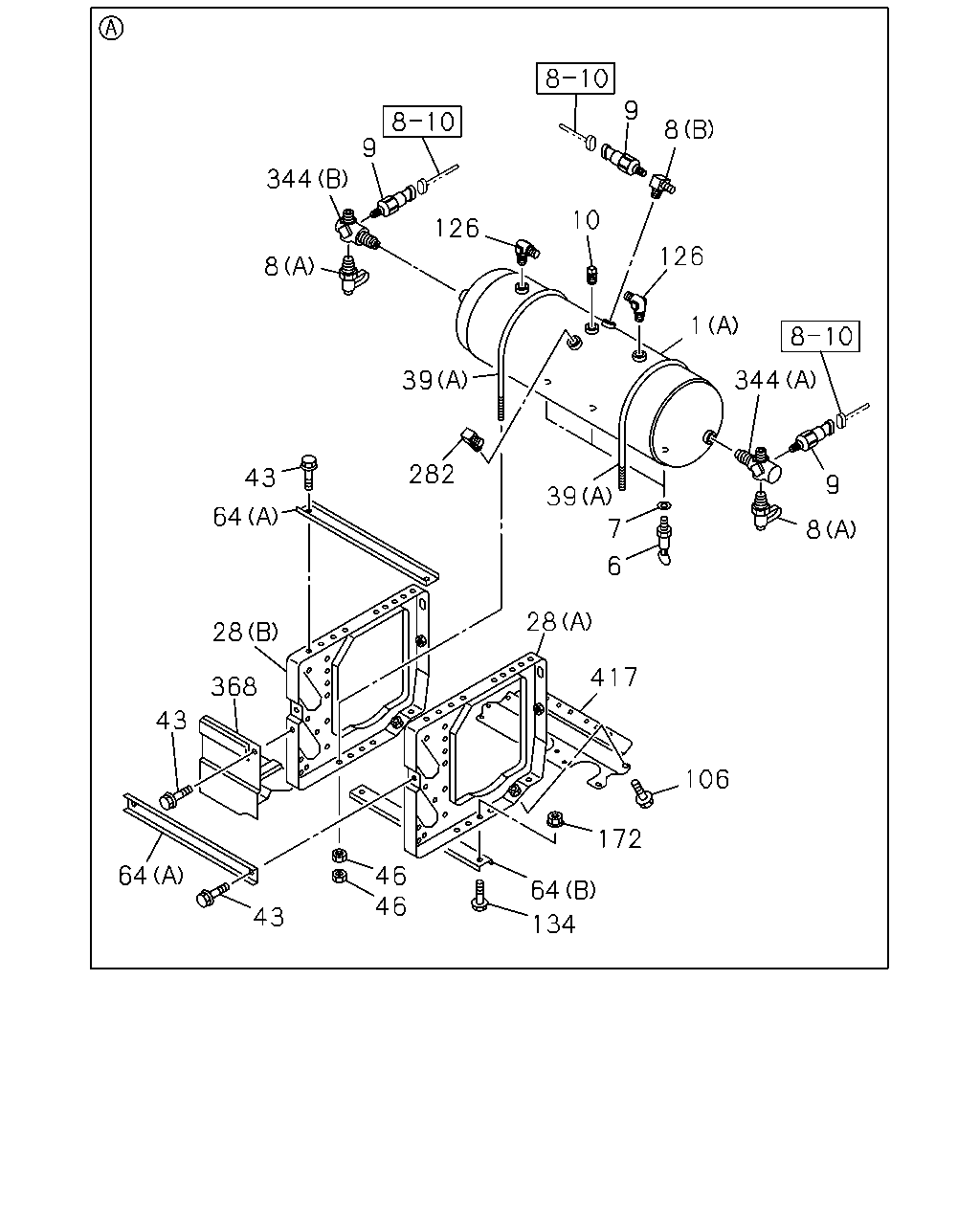

43
64
28
368
43
64
43
46
46
134
64
172
106
417
28
6
7
39
282
39
8
344
9
126
10
9
8
126
1
344
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A)
8-98018-785-3
01
1
1212-
1
TANK ASM; AIR
(C)
8-98081-870-1
01
1
1212-
1
TANK ASM; AIR
(B)
8-98166-972-0
01
1
1212-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
03
1
1212-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1212-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1212-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
03
1
1212-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1212-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1212-
8
CONNECTOR; AIR TANK
(E) DIN1/8 & M16X2 3WAY
1-09656-462-1
01
1
1212-
8
CONNECTOR; AIR TANK
(B) DIN8X2 & PT1/4 3WAY
1-09656-759-0
01
1
1212-
8
CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
1212-
8
CONNECTOR; AIR TANK
(C) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1212-
8
CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
1212-
8
CONNECTOR; AIR TANK
(A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1212-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5
8-97609-249-0
03
1
1212-
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
02
1
1212-
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
01
1
1212-
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
01
1
1212-
28
BRACKET; AIR TANK
(A)
8-98021-918-5
01
1
1212-
28
BRACKET; AIR TANK
(B)
8-98044-509-5
01
1
1212-
28
BRACKET; AIR TANK
(C)
8-98100-165-3
01
1
1212-
39
U-BOLT; AIR TANK
(B) L=210
1-48317-458-1
02
1
1212-
39
U-BOLT; AIR TANK
(A)
8-98022-041-0
02
1
1212-
43
BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE
0-28050-816-0
06
1
1212-
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
1212-
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
1212-
64
STAY; AIR TANK,MAIN
(A)
8-98044-510-3
02
1
1212-
64
STAY; AIR TANK,MAIN
(B)
8-98044-511-2
01
1
1212-
106
BOLT; COVER
M8X16 FLANGE
0-28050-816-0
04
1
1212-
126
CONNECTOR; ELBOW
M16 & PT3/8 ELBOW
1-09650-438-0
02
1
1212-
134
BOLT; COVER FIX
M8X16 FLANGE
0-28050-816-0
04
1
1212-
172
NUT; STAY,AIR TANK,MAIN
M8 FLANGE
0-91180-108-0
02
1
1212-
282
UNION; 2 WAY
M20 & PT3/4 ELBOW
8-98067-083-1
01
1
1212-
344
CONNECTOR; 4WAY
(A)
1-09656-726-0
01
1
1212-
344
CONNECTOR; 4WAY
(B)
1-09656-767-0
01
1
1212-
368
COVER; AIR TANK
8-98061-625-3
01
1
1212-
417
COVER; HARNESS
8-98111-401-0
01
1
1212-

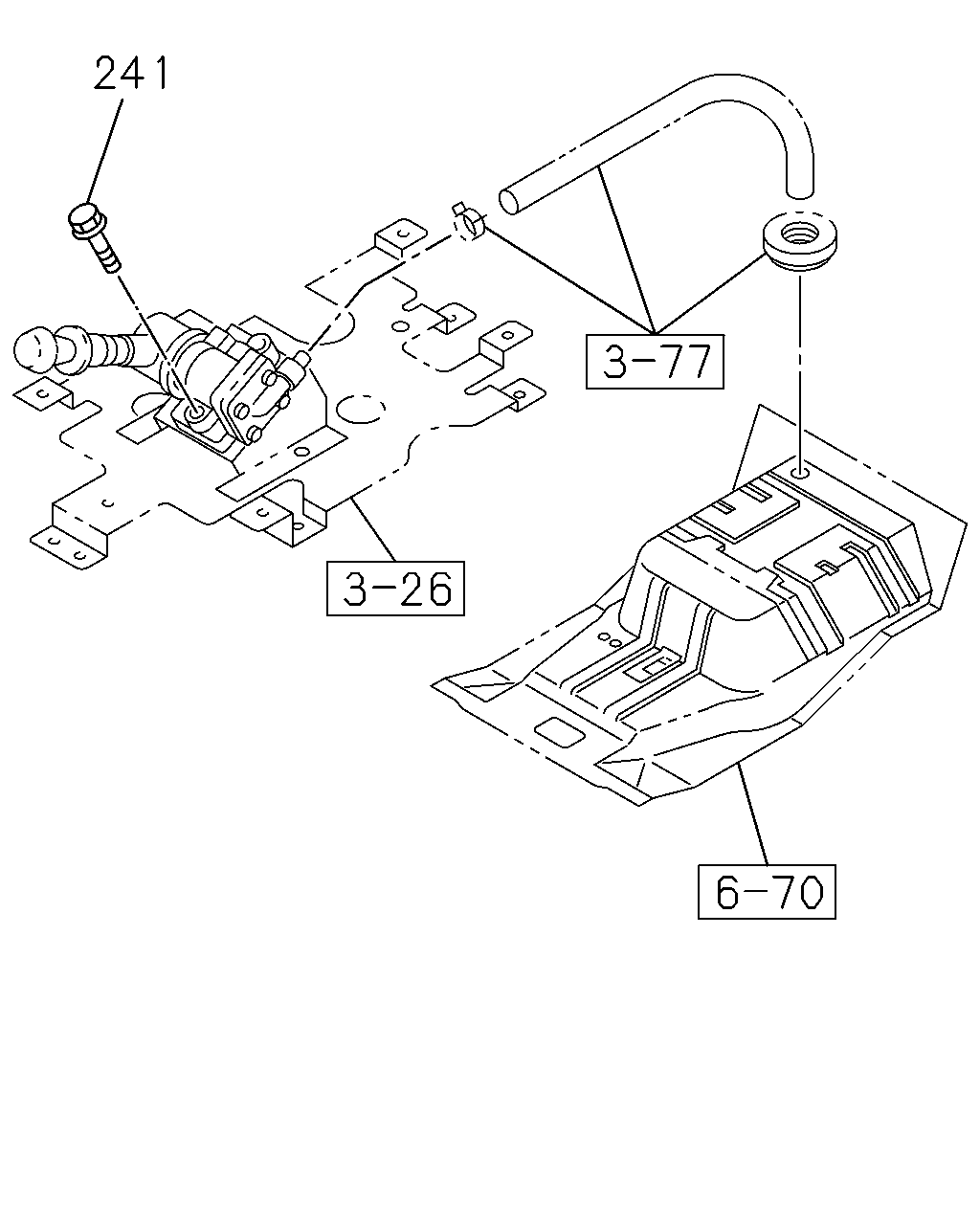

241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
M8X70 FLANGE
0-28050-870-0
02
1
1212-
81
94
148
274
83
81
274
178
177
178
148
271
217
271
217
217
83
178
138
145
125
125
145
153
151
140
152
139
151
145
145
86
240
239
238
237

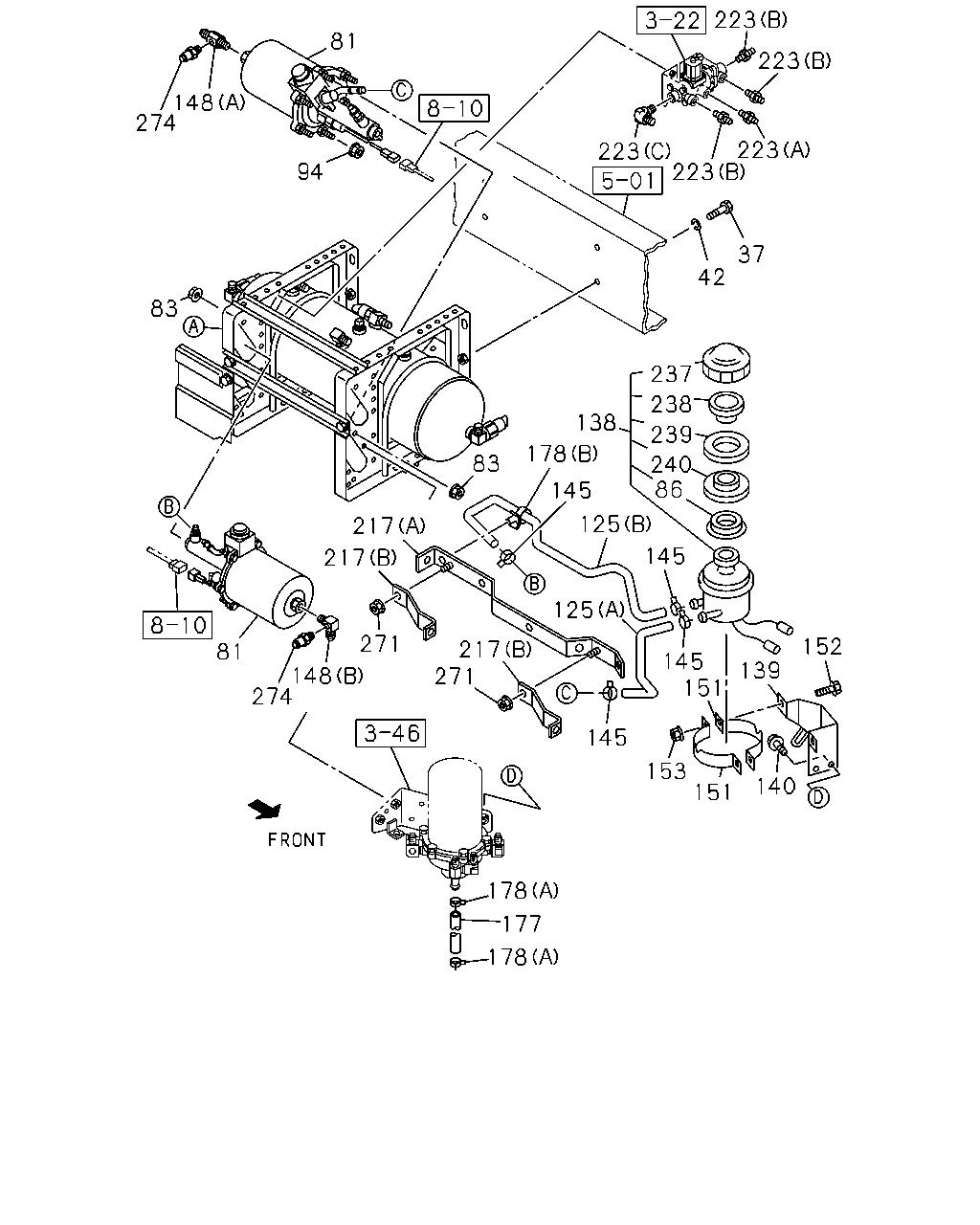

42
37
223
223
223
223
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
04
1
1212-
42
WASHER; PL
ID=12.5 OD=32
0-91614-712-0
04
1
1212-
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT.
1-47800-826-0
02
1
1212-
83
NUT; AIR MASTER
M8 FLANGE
0-91180-108-0
09
1
1212-
86
SEAL; DUST
1-47529-019-0
01
1
1212-
94
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
04
1
1212-
125
HOSE; OIL TANK TO AIR MASTER
(A)
8-98051-217-0
01
1
1212-
125
HOSE; OIL TANK TO AIR MASTER
(B)
8-98051-218-1
01
1
1212-
138
TANK ASM; OIL,AIR MASTER
1-47530-186-0
01
1
1212-
139
BRACKET; OIL TANK
8-98051-105-0
01
1
1212-
140
BOLT; OIL TANK TO BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1212-
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=14
1-09704-102-0
04
1
1212-
148
CONNECTOR; AIR MASTER
(A) M16 & PT3/8 STRAIGHT
1-09656-643-1
01
1
1212-
148
CONNECTOR; AIR MASTER
(B) M16 & PT1/4 & PT3/8 3WAY
1-09656-671-0
01
1
1212-
151
BAND; OIL TANK,AIR MASTER
1-47537-056-2
02
1
1212-
152
BOLT; OIL TANK TO BAND
M8X20 FLANGE
0-28650-820-0
02
1
1212-
153
NUT; OIL TANK TO BAND
M8 FLANGE
0-91180-108-0
02
1
1212-
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000
0-03566-300-0
01
1
1212-
178
CLIP; HOSE
(B) ID=13-18 L=14.5
1-09709-290-0
08
1
1212-
178
CLIP; HOSE
(A) ID=21
8-94242-034-0
02
1
1212-
217
BRACKET; RUBBER HOSE
(A)
8-98082-871-0
01
1
1212-
217
BRACKET; RUBBER HOSE
(B)
8-98085-273-1
02
1
1212-
223
UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1212-
223
UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT
1-09650-179-1
03
1
1212-
223
UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1212-
237
CAP; OIL TANK
1-47525-030-0
01
1
1212-
238
PLATE; BAFFLE
1-47529-022-0
01
1
1212-
239
FILTER; DUST
1-47529-017-0
01
1
1212-
240
HOLDER; FILTER
1-47529-018-0
01
1
1212-
271
NUT; BRKT,HOSE
M8 FLANGE
0-91180-108-0
02
1
1212-
274
CONNECTOR; VLV
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1212-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
