Isuzu WW
▶
TRUCKS
▶
FYH
▶
11499 - FYH(AUST)EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶

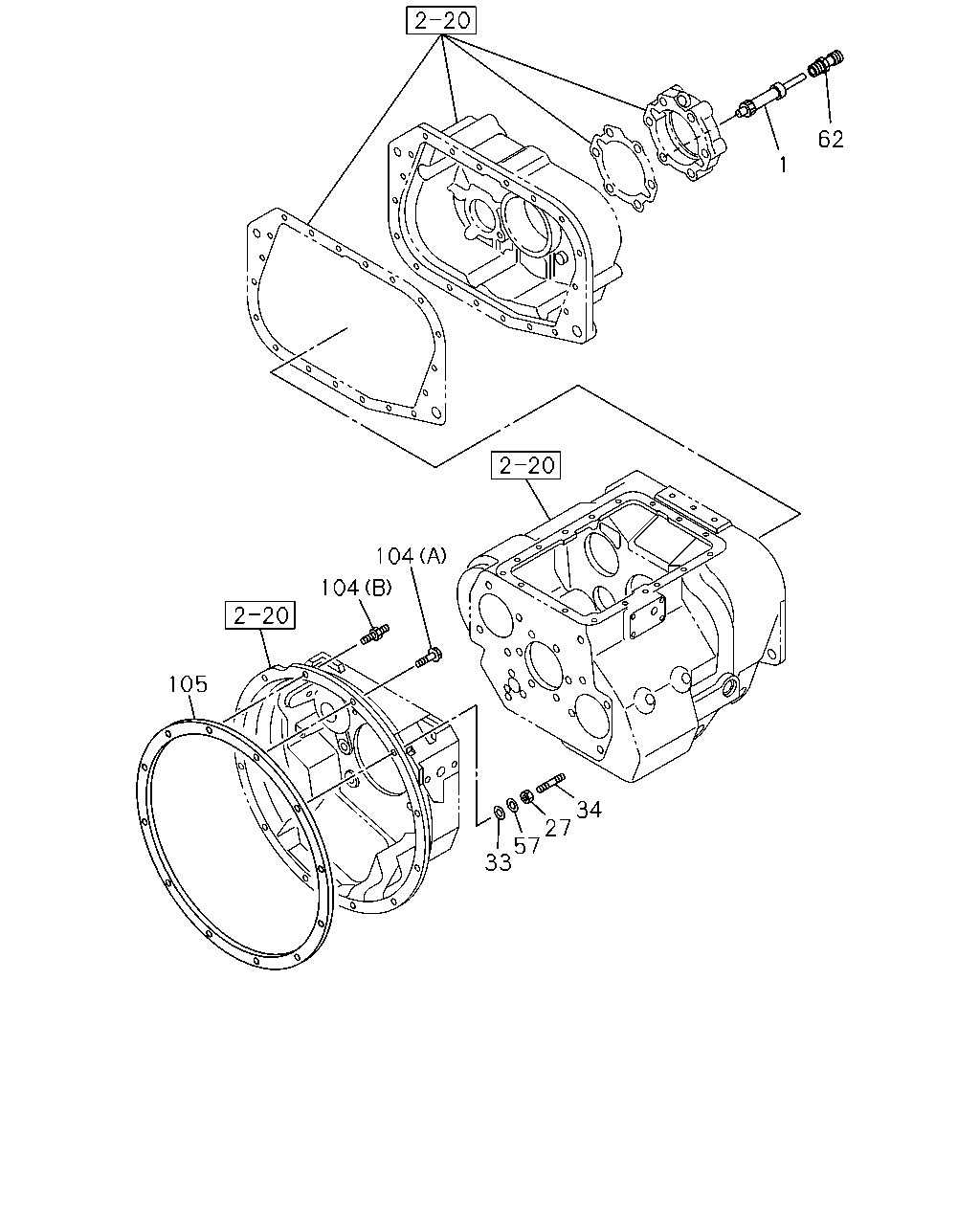

2-25B - SPEEDOMETER DRIVEN GEAR
▶
2-25B — SPEEDOMETER DRIVEN GEAR
(#111087) — 18 parça
Tümü
A - TRANSMISSION-FULLER RTO11909
B - TRANSMISSION-FULLER RTO11908
1
62
104
104
105
33
57
27
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
1-87061-212-0
01
1
1312-1508
●
1
GEAR; DRIVEN,SPD
1-87061-212-0
01
1
1509-
●
●
27
NUT; CLU HSG TO TRANS
M12
0-91110-512-0
02
1
1212-1311
●
27
NUT; CLU HSG TO TRANS
M12
0-91110-512-0
02
1
1312-
●
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
02
1
1212-1311
●
33
WASHER; LK,CLU HSG
ID=12.2
0-91510-612-0
02
1
1312-
●
●
34
STUD; CLU HSG
M12X77 L=95
9-09831-161-0
02
1
1212-1311
●
34
STUD; CLU HSG
M12X77 L=95
9-09831-161-0
02
1
1312-
●
●
57
WASHER; PL,CLU HSG
ID=12.5
0-91614-512-0
02
1
1212-1311
●
57
WASHER; PL,CLU HSG
ID=12.5
0-91614-512-0
02
1
1312-
●
●
62
SLEEVE; DRIVEN GEAR
1-87061-234-0
01
1
1312-1508
●
62
SLEEVE; DRIVEN GEAR
1-87061-234-0
01
1
1509-
●
●
104
BOLT; CLU HSG
(A) M12X70 FLANGE
0-28151-270-0
07
1
1212-1311
●
104
BOLT; CLU HSG
(A) M12X70 FLANGE
0-28151-270-0
07
1
1312-
●
●
104
BOLT; CLU HSG
(B) M10X16,M12X70 L=97.7
1-09049-038-1
03
1
1212-1311
●
104
BOLT; CLU HSG
(B) M10X16,M12X70 L=97.7
1-09049-038-1
03
1
1312-
●
●
105
ADAPTER; FLYWHEEL HSG
8-98080-557-1
01
1
1212-1311
●
105
ADAPTER; FLYWHEEL HSG
8-98080-557-1
01
1
1312-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
