Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#111086) — 225 parça

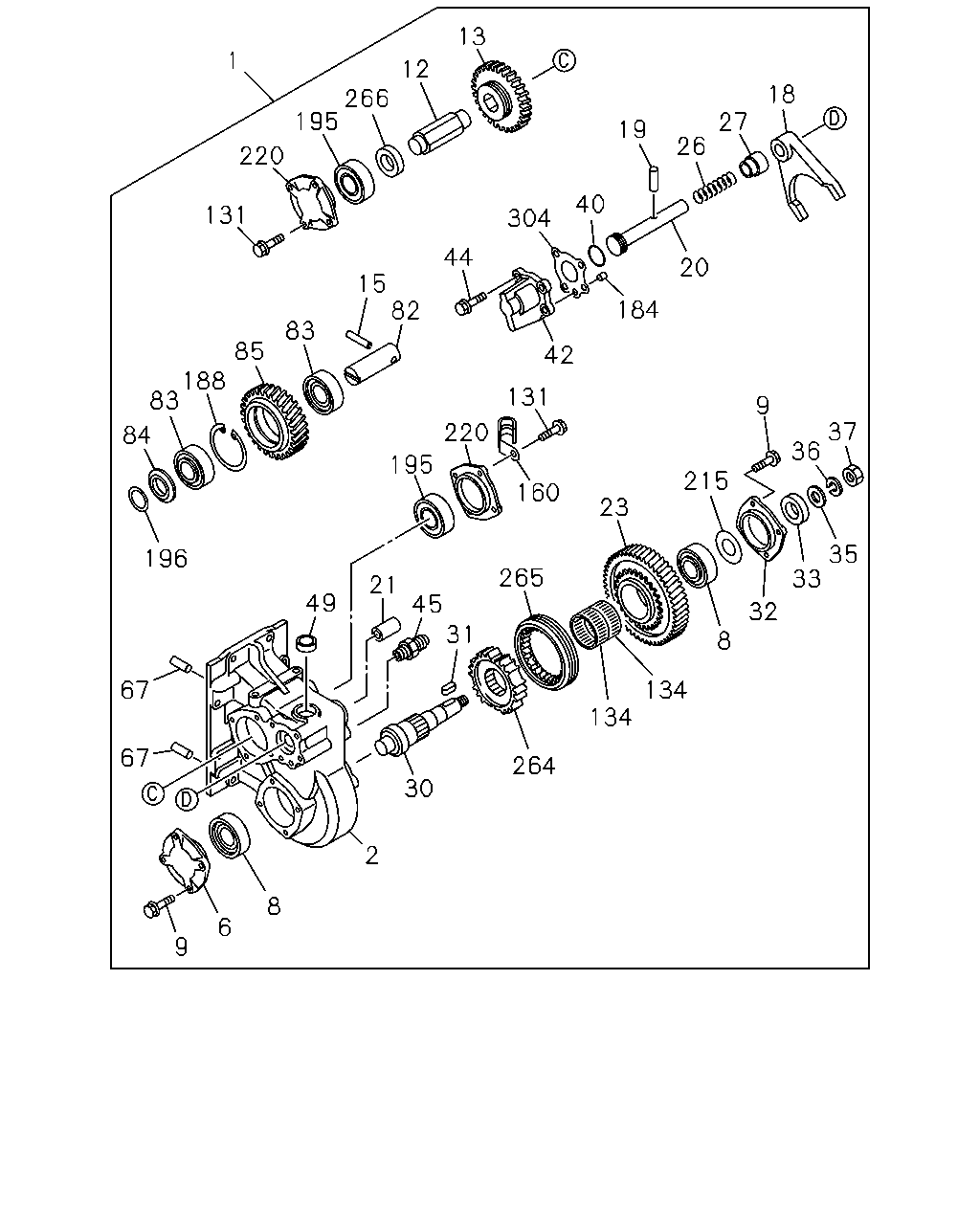

1 131 220 195 12 13 27 26 20 40 44 42 184 15 82 83 83 85 188 84 196 19 18 131 220 195 160 9 36 37 35 33 32 8 23 31 45 21 215 49 30 2 8 6 9 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98113-702-0	01	1	1212-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-443-3	01	1	1212-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-632-0	01	1	1212-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	1212-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	1212-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	1212-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	1212-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1212-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	10	1	1212-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1212-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	1212-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	1212-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	1212-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	1212-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	1212-	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1212-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	1212-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1212-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	1212-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1212-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	1212-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	1212-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1212-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=29	8-98116-634-0	01	1	1212-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	1212-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1212-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	1212-1312		●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-1	01	1	1212-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1212-1312		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	1212-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=30	9-08011-030-0	01	1	1212-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1212-		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	1212-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	1212-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	1212-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	1212-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	1212-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1212-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	1212-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	1212-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1212-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1212-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1212-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	1212-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	1212-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1212-		●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1212-		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	1212-1312		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	1212-1312		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1212-		●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1212-		●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1212-		●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1212-		●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	1212-		●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	1212-		●

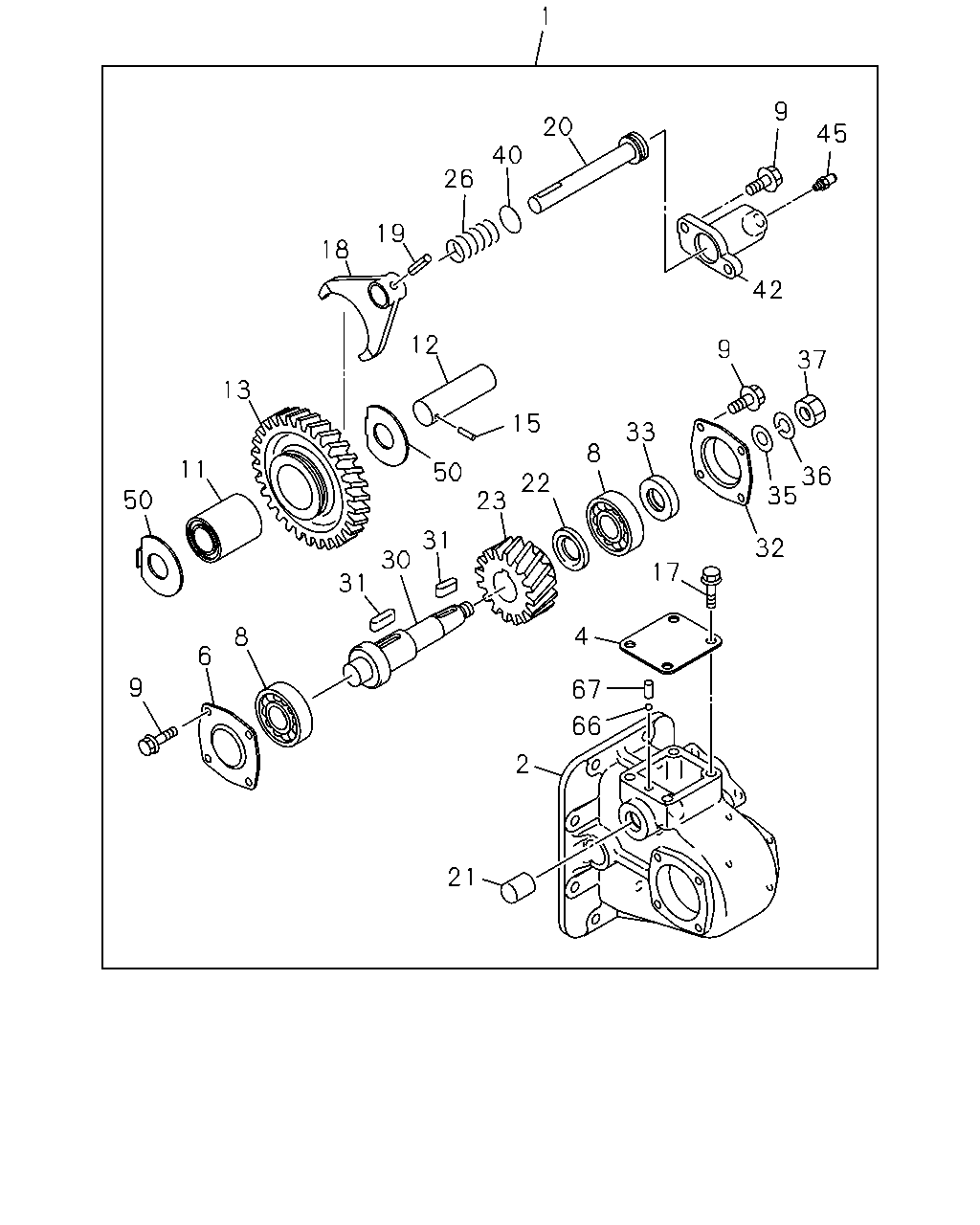

1 20 40 26 19 18 13 11 50 9 45 42 12 9 6 8 31 30 31 50 23 22 15 8 33 9 37 36 35 32 17 4 67 66 2 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98113-702-0	01	1	1212-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-443-3	01	1	1212-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-632-0	01	1	1212-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	1212-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-		●
4	COVER; UPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38131-008-1	01	1	1212-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	1212-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	1212-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	1212-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1212-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	10	1	1212-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1212-		●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	1212-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	1212-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	1212-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	1212-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	1212-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	1212-	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1212-		●
17	BOLT; UPR COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	04	1	1212-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	1212-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1212-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	1212-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1212-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	1212-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	1212-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1212-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-044-0	01	1	1212-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=29	8-98116-634-0	01	1	1212-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	1212-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1212-	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-1	01	1	1212-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1212-1312		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	1212-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=30	9-08011-030-0	01	1	1212-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1212-		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	1212-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	1212-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	1212-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	1212-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	1212-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1212-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	1212-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	1212-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1212-	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-043-0	02	1	1212-	●
66	BALL; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-00097-009-0	01	1	1212-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	1212-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	1212-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-		●

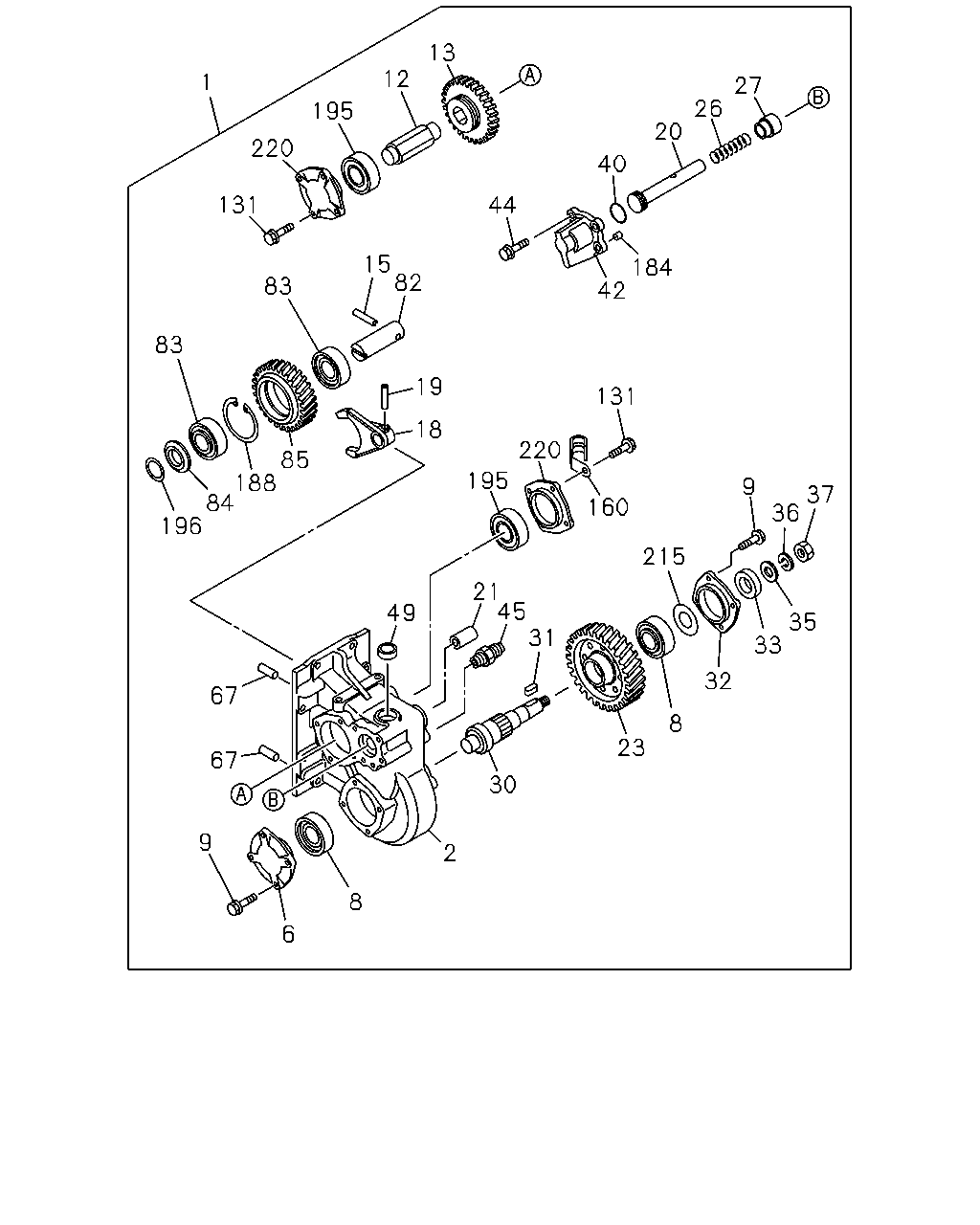

30 264 134 8 2 6 9 67 67 196 84 83 188 85 83 15 82 195 220 131 42 184 20 215 23 160 265 31 45 21 49 26 19 40 304 44 27 18 37 36 9 35 33 32 8 134 1 131 220 195 266 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98113-702-0	01	1	1212-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-443-3	01	1	1212-1312		●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-577-0	01	1	1401-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-632-0	01	1	1212-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	1212-1312		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	1212-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	1212-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09800-121-0	02	1	1212-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1212-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	10	1	1212-	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1212-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	1212-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	1212-1312		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=32	1-38241-063-0	01	1	1212-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	1212-1312		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	1212-	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1212-		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-029-0	01	1	1212-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1212-1312		●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	1212-	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1212-		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-033-1	01	1	1212-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	1212-1312		●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1212-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=29	8-98116-634-0	01	1	1212-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	1212-1312		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1212-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	1212-1312		●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-009-1	01	1	1212-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1212-1312		●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	1-09735-024-0	01	1	1212-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=30	9-08011-030-0	01	1	1212-	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1212-		●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	1212-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	1212-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	1212-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	1212-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	1212-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1212-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	1212-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	1212-1312		●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1212-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1212-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1212-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=8 L=16	9-08160-816-0	01	1	1212-	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	1212-1312		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-		●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1212-		●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1212-		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	1212-1312		●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	1212-1312		●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-		●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1212-		●
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-803-0	02	1	1401-		●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1212-		●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1212-		●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1212-		●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	1212-		●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	1212-		●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	1212-		●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	1212-		●
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-804-0	01	1	1401-		●
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-802-0	01	1	1401-		●
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-806-0	01	1	1401-		●
304	PACKING; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98328-479-0	01	1	1401-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
