2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#111081) — 140 parça

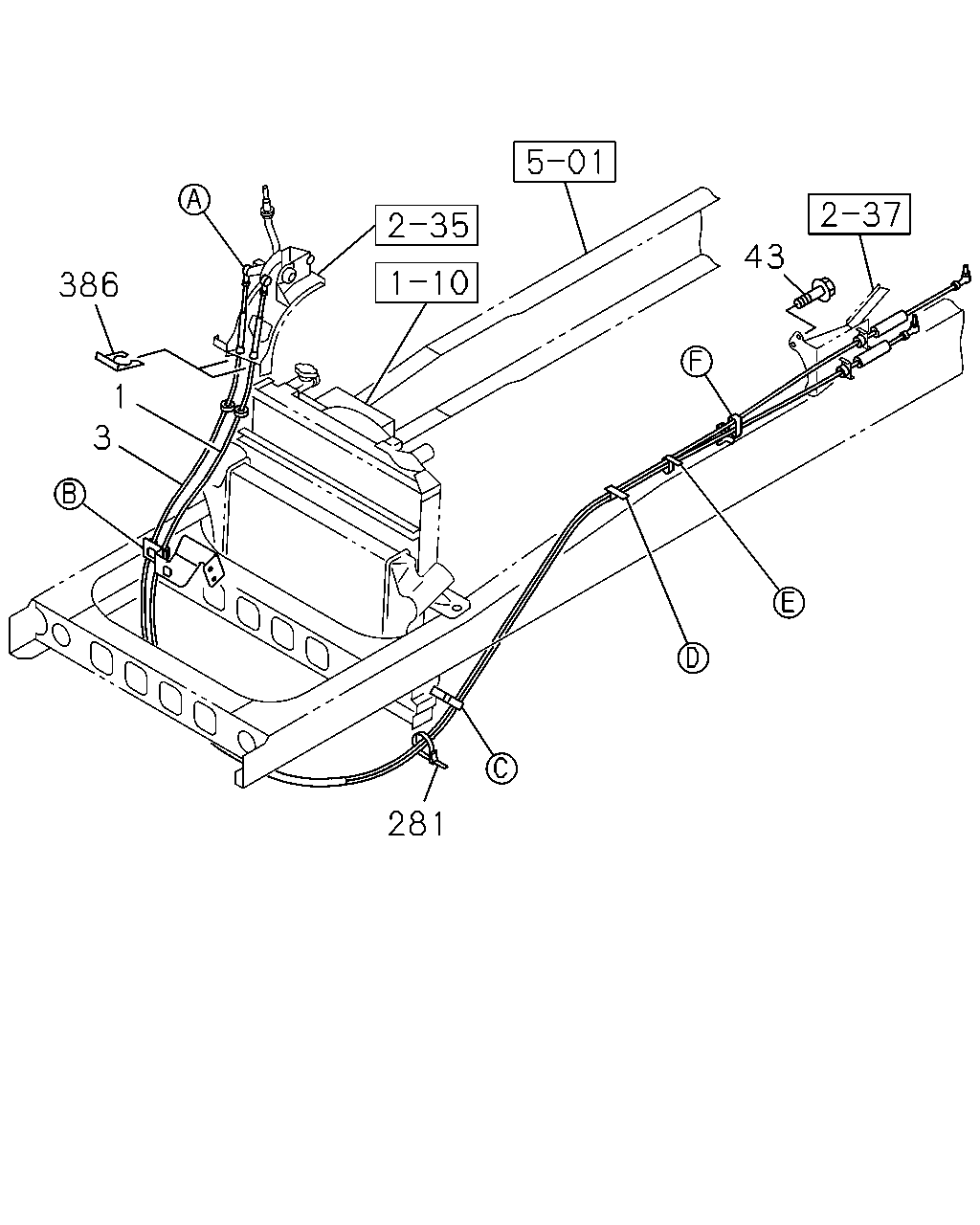

çizim 321351
43 281 3 1 386
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3420 		8-98047-806-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3400 		8-98121-079-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3455 		8-98145-494-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3360 		8-98017-472-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3425 		8-98069-369-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3415 		8-98047-809-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3595 		8-98047-820-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3505 		8-98121-080-2 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98151-813-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3620 		8-98151-812-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3565 		8-98017-492-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3485 		8-98047-823-4 01 1 1212-
43 NUT; BRKT
MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10 FLANGE 		0-91180-210-0 02 1 1212-
281 CLIP; BAND
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=300 		1-09707-001-1 01 1 1212-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1212-

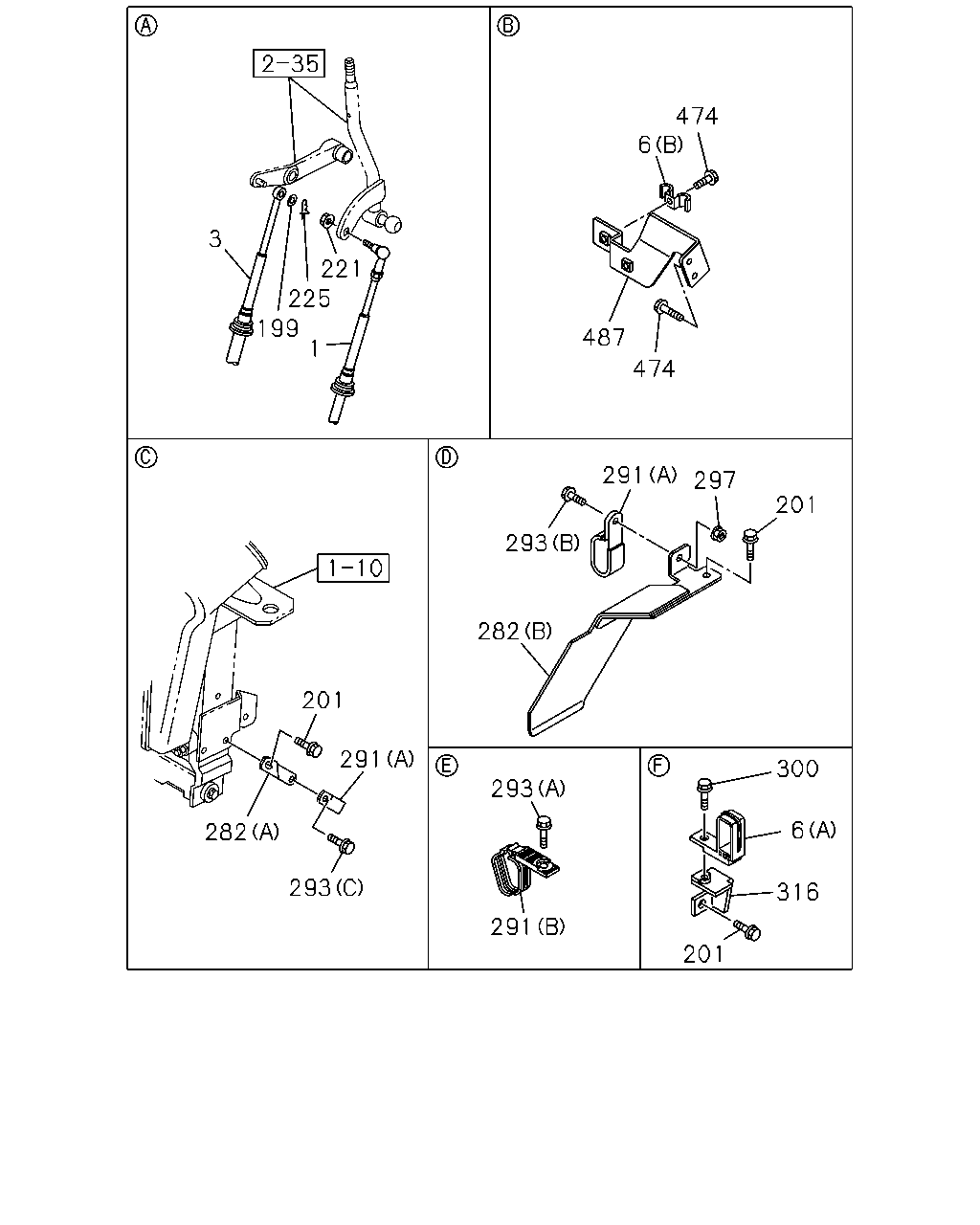

çizim 321365
3 221 225 199 1 474 6 487 474 201 297 291 293 282 293 291 300 6 316 201 293 282 291 201
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3420 		8-98047-806-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3400 		8-98121-079-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3455 		8-98145-494-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3360 		8-98017-472-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3425 		8-98069-369-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3415 		8-98047-809-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3595 		8-98047-820-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3505 		8-98121-080-2 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98151-813-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3620 		8-98151-812-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3565 		8-98017-492-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3485 		8-98047-823-4 01 1 1212-
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1212-
6 CLIP; CABLE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1212-
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1212-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1212-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1212-
201 BOLT; BRKT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1212-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 1212-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1212-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1212-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1212-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1212-
282 BRACKET; TRANS SIDE
(A) 		8-98010-418-0 01 1 1212-
282 BRACKET; TRANS SIDE
(B) 		8-98171-762-0 01 1 1212-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1212-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1212-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1212-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1212-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1212-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212-
300 BOLT; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1212-
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 1212-
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 1212-
316 BRACKET; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1212-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1212-
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 1212-

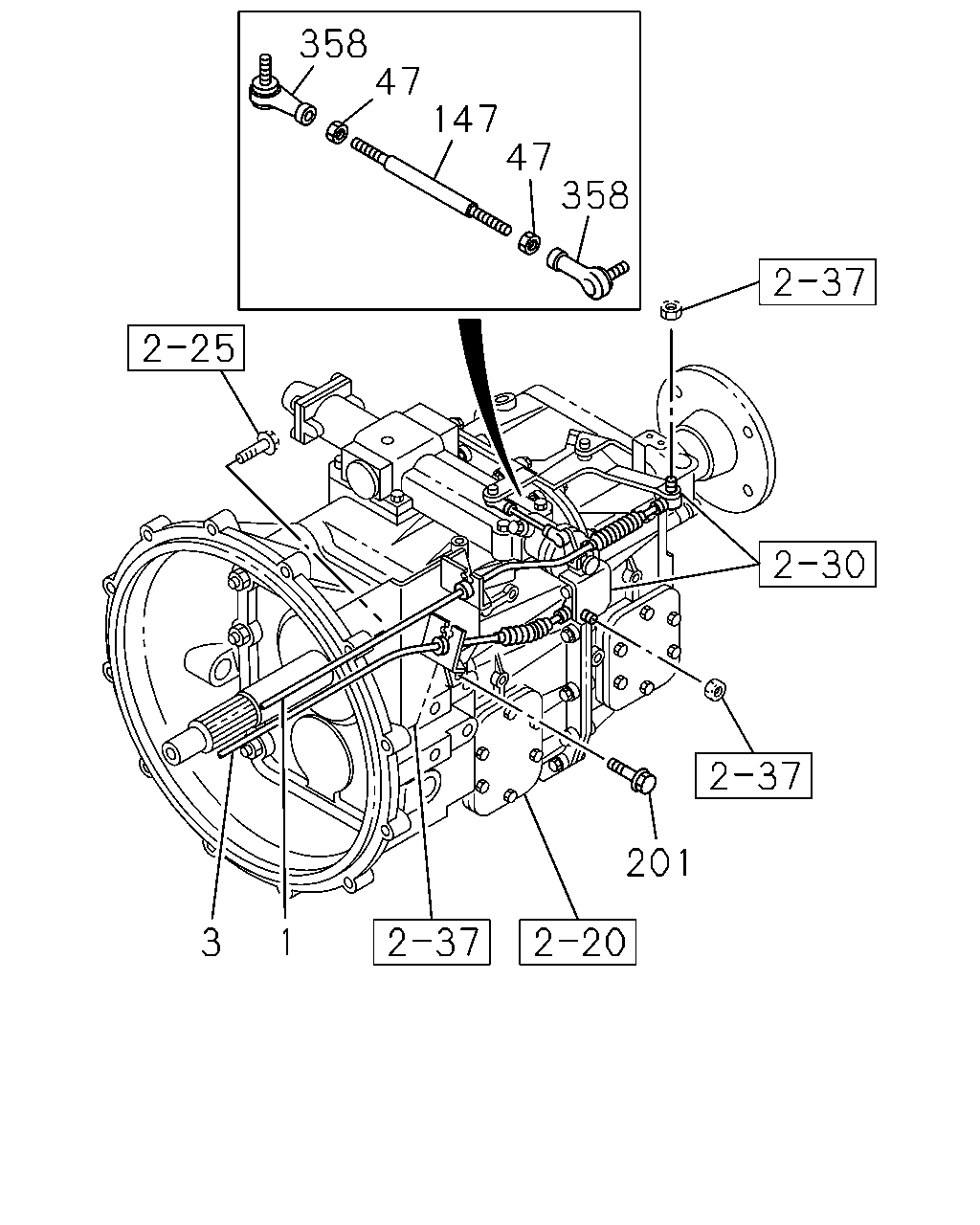

çizim 321366
358 47 147 47 358 201 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3420 		8-98047-806-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3400 		8-98121-079-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3455 		8-98145-494-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3360 		8-98017-472-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3425 		8-98069-369-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3415 		8-98047-809-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3595 		8-98047-820-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3505 		8-98121-080-2 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98151-813-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3620 		8-98151-812-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3565 		8-98017-492-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3485 		8-98047-823-4 01 1 1212-
47 NUT; LK,LINK ROD
FULLER FSO5206B OD M/T(Y4V) M8 		0-91111-508-0 02 1 1212-
147 ROD; LINK
FULLER FSO5206B OD M/T(Y4V) 		0-84000-808-0 01 1 1212-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1212-
201 BOLT; BRKT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1212-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 1212-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1212-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1212-
358 ROD END; SCREW
FULLER FSO5206B OD M/T(Y4V) L=45.5 		1-09760-118-1 02 1 1212-

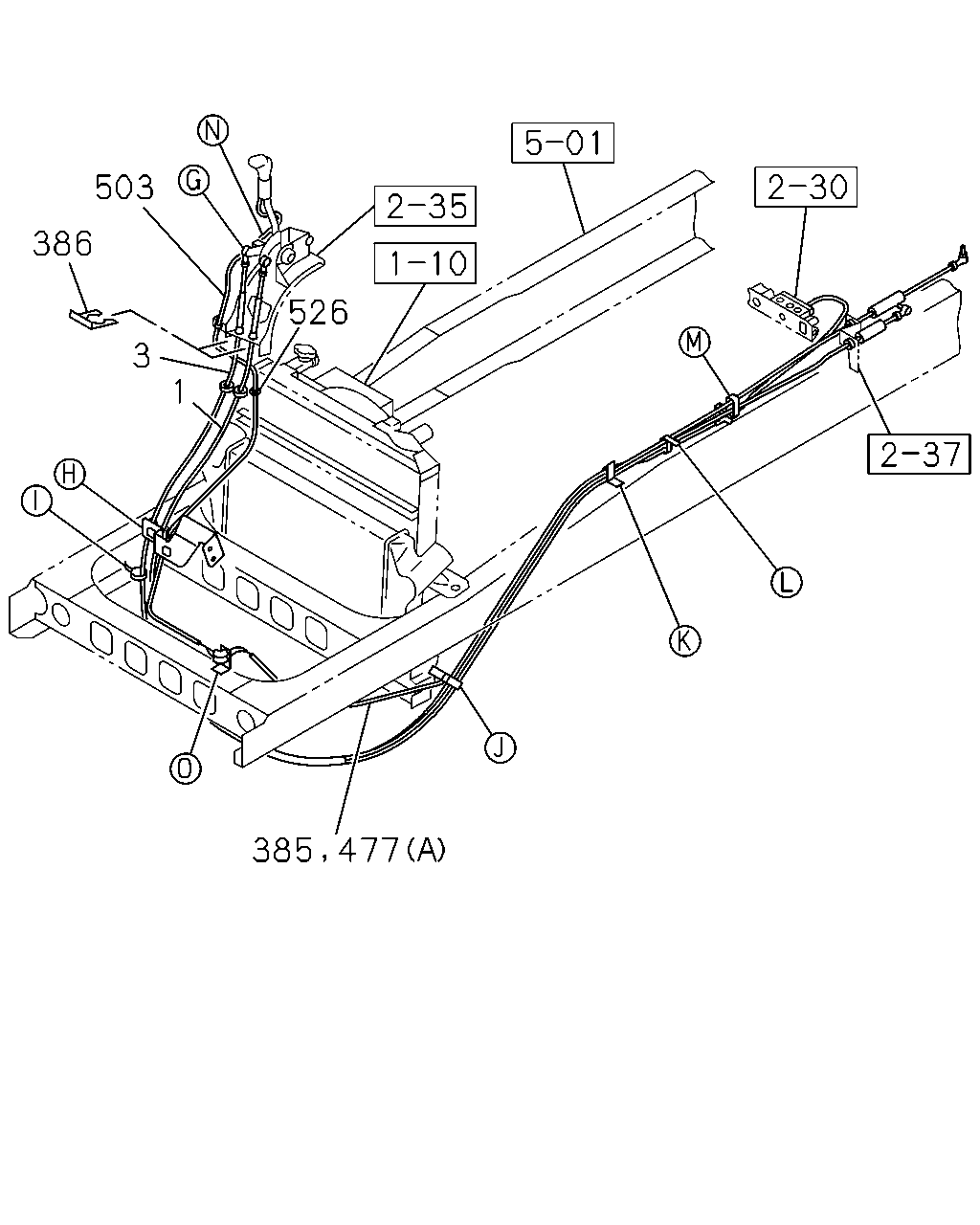

çizim 322258
503 386 3 1 526 385 477
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3420 		8-98047-806-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3400 		8-98121-079-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3455 		8-98145-494-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3360 		8-98017-472-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3425 		8-98069-369-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3415 		8-98047-809-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3595 		8-98047-820-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3505 		8-98121-080-2 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98151-813-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3620 		8-98151-812-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3565 		8-98017-492-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3485 		8-98047-823-4 01 1 1212-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1212-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1212-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1212-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1212-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1212-
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1212-

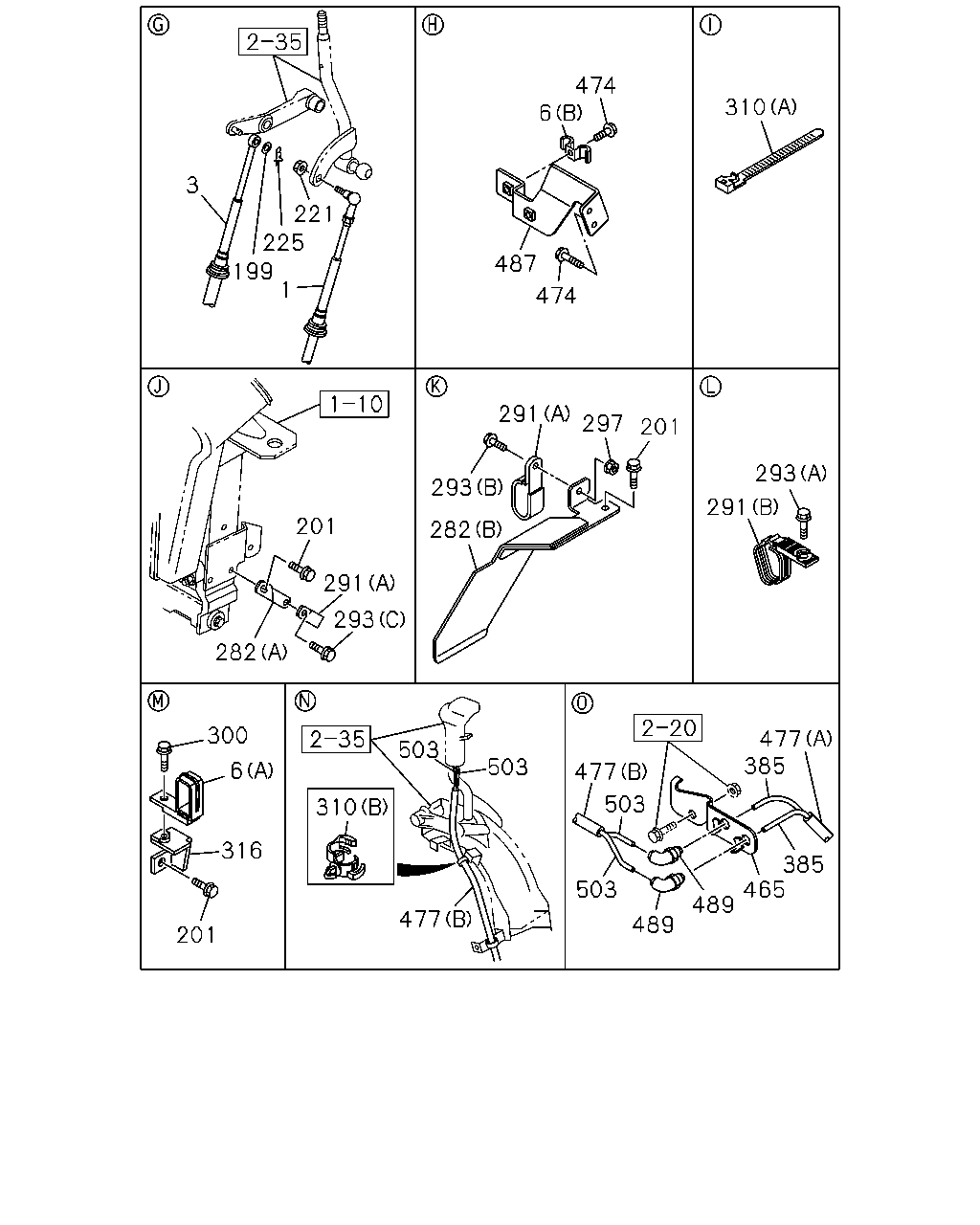

çizim 322603
3 221 225 199 1 474 6 487 474 310 293 291 201 297 291 293 282 201 291 293 282 300 6 316 201 310 503 503 477 477 503 503 489 489 465 385 385 477
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3420 		8-98047-806-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3400 		8-98121-079-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3455 		8-98145-494-2 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3360 		8-98017-472-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3425 		8-98069-369-6 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 1212-
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3415 		8-98047-809-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3595 		8-98047-820-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3505 		8-98121-080-2 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> L=3560 		8-98151-813-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3620 		8-98151-812-0 01 1 1212-
3 CABLE; SELECT,TRANS CONT
MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3565 		8-98017-492-5 01 1 1212-
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=3485 		8-98047-823-4 01 1 1212-
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1212-
6 CLIP; CABLE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1212-
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1212-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1212-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1212-
201 BOLT; BRKT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1212-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 1212-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1212-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 1212-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1212-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1212-
282 BRACKET; TRANS SIDE
(A) 		8-98010-418-0 01 1 1212-
282 BRACKET; TRANS SIDE
(B) 		8-98171-762-0 01 1 1212-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1212-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1212-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1212-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1212-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1212-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212-
300 BOLT; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1212-
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 1212-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 1212-
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 1212-
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 1212-
316 BRACKET; CLIP
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1212-
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1212-
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98208-198-0 01 1 1212-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1212-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1212-
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1212-
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 1212-
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 1212-
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
