1 |

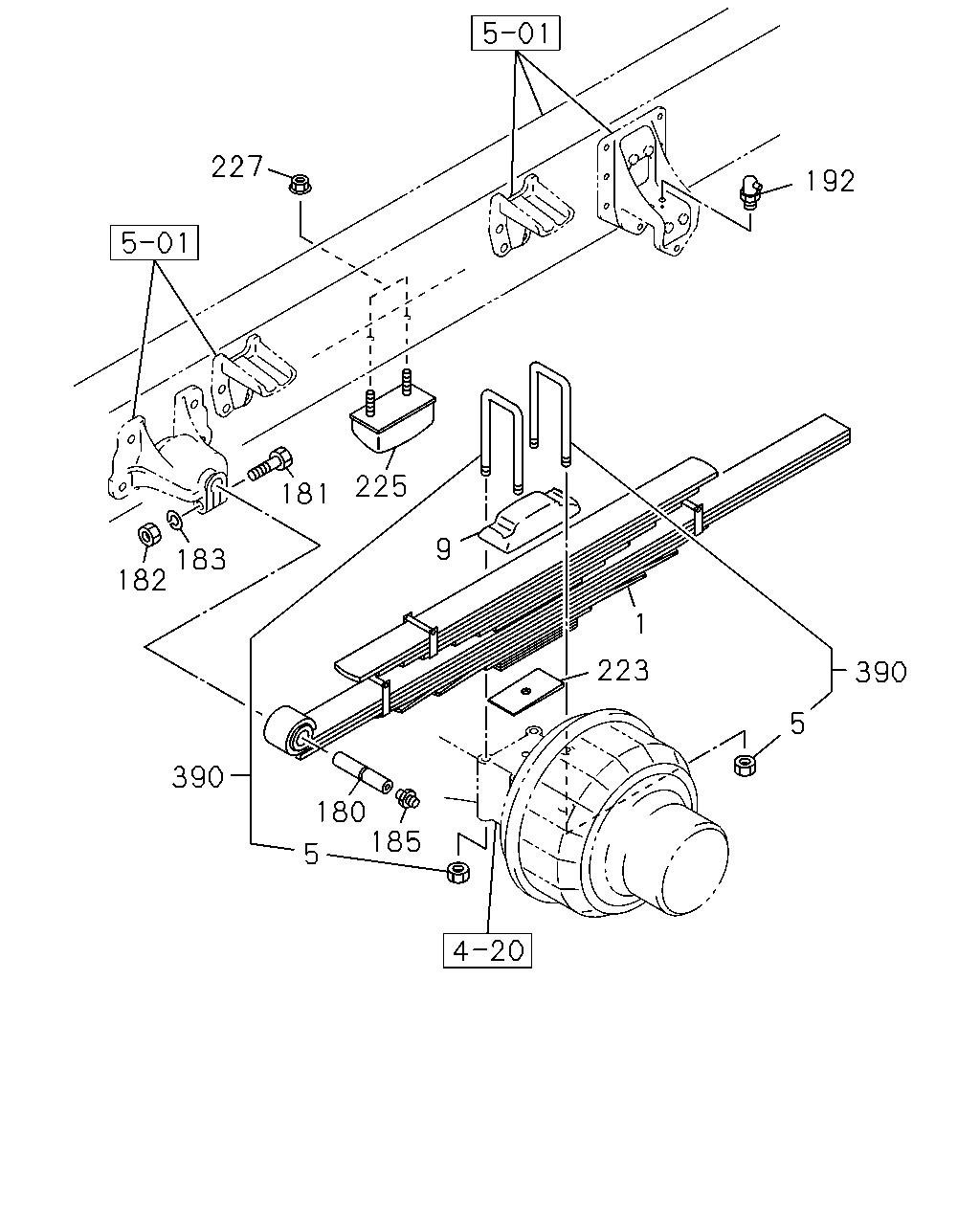

SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98017-566-1 |
02 |
1 |
1212- |
| |
1 |
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98017-565-0 |
02 |
1 |
1212- |
| |
5 |
NUT; U-BOLT,RR SPR
M24
|
0-91112-824-0 |
08 |
1 |
1212- |
| |
9 |
PAD; U BOLT,RR SPR
|
1-51372-030-0 |
02 |
1 |
1212- |
| |
180 |
PIN; RR SPR
|
1-51361-020-0 |
02 |
1 |
1212- |
| |
181 |
BOLT; SPR & SHACKLE
M14X80
|
0-10856-480-0 |
02 |
1 |
1212- |
| |
182 |
NUT; PIN,RR SPR
M14
|
0-91110-514-0 |
02 |
1 |
1212- |
| |
183 |
WASHER; LK,PIN,RR SPR
ID=14.2
|
0-91510-514-0 |
02 |
1 |
1212- |
| |
185 |
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
1212- |
| |
192 |
NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
02 |
1 |
1212- |
| |
223 |
SPACER; U BOLT,RR SPR
MZW6P M/T(RSZ)
WHEEL BASE 4600MM(46W)
P60 PROP SHAFT(C2M)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
8-98091-873-0 |
02 |
1 |
1212- |
| |
223 |
SPACER; U BOLT,RR SPR
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51377-371-1 |
02 |
1 |
1212- |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W),
WHEELBASE 6500MM(65W)
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51377-371-1 |
02 |
1 |
1212- |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W)
P60 PROP SHAFT(C2M)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51377-371-1 |
02 |
1 |
1212- |
| |
223 |
SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W)
P60 PROP SHAFT(C2M)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51377-371-1 |
02 |
1 |
1212- |
| |
223 |
SPACER; U BOLT,RR SPR
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),
ZF9S1110M/T(Y5E)
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W),
WHEELBASE 6500MM(65W)
P60 PROP SHAFT(C2M)
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51377-371-1 |
02 |
1 |
1212- |
| |
223 |
SPACER; U BOLT,RR SPR
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),
ZF9S1110M/T(Y5E)
WHEEL BASE 6500MM(65W)
P60 PROP SHAFT(C2M)
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-51377-371-1 |
02 |
1 |
1212- |
| |
225 |
RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-53366-045-1 |
02 |
1 |
1212- |
| |
225 |
RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
|
1-53366-081-1 |
02 |
1 |
1212- |
| |
227 |
NUT; CUSHION RUBBER
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
1212- |
| |
390 |
U-BOLT SET; RR SPRING
L=490
|
1-87870-036-4 |
04 |
1 |
1212- |
