Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#11107) — 241 parça

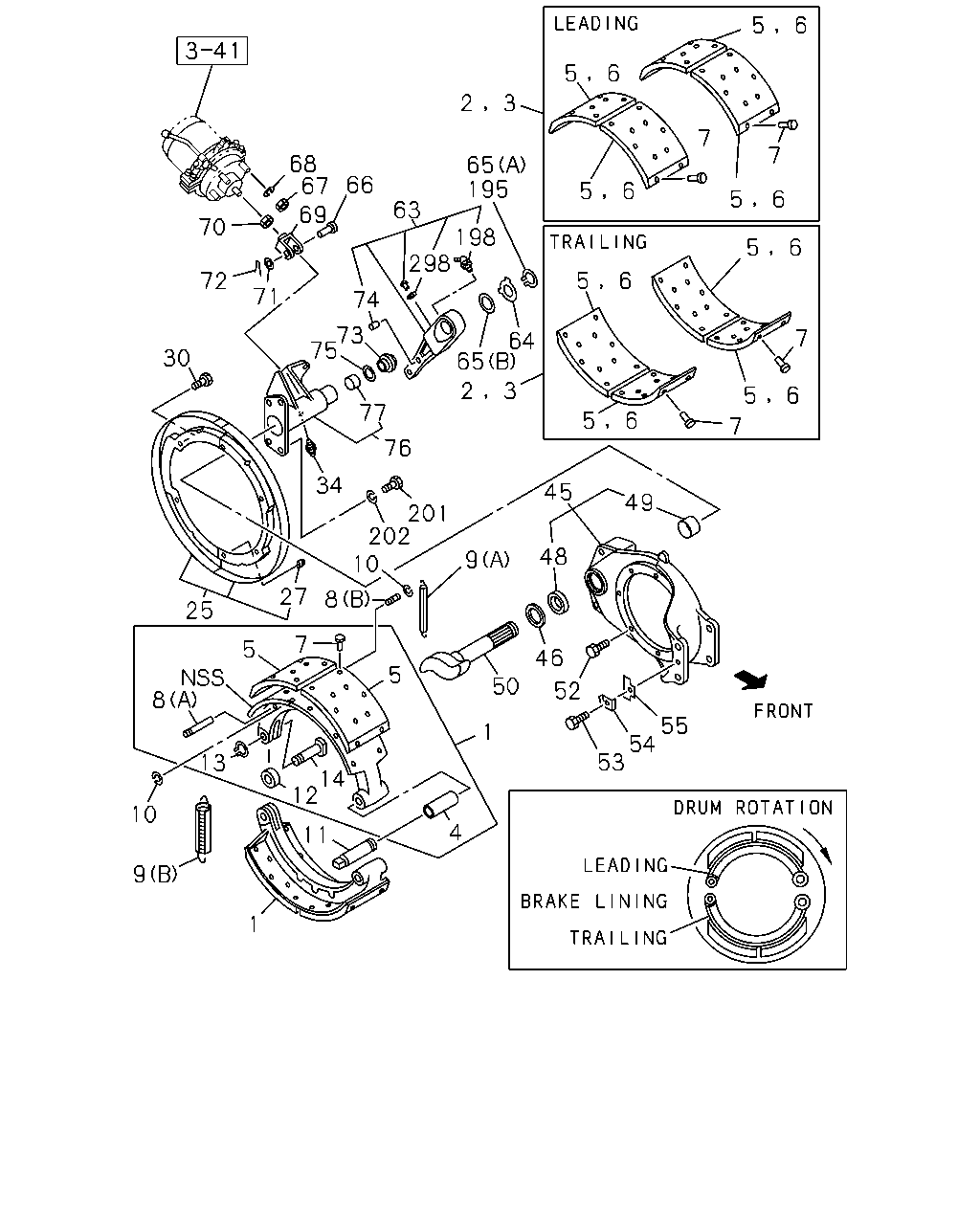

5 6 5 6 2 3 7 7 68 67 69 65 195 66 5 6 5 6 63 70 198 298 71 5 6 5 6 72 74 73 75 7 64 65 30 2 3 5 6 77 5 6 7 76 34 45 49 201 202 10 48 9 27 8 25 7 5 46 5 8 50 52 55 54 53 1 13 14 12 10 4 11 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0106-
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0106-
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0106-
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0106-
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0106-
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0106-
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0106-
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0106-
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0106-
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0106-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0106-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0106-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0106-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0106-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0106-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0106-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0106-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0106-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0106-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0106-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0106-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0106-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0106-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0106-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0106-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0106-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0106-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0106-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0106-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0106-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0106-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0106-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0106-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0106-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0106-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0106-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0106-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0106-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0106-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0106-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0106-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0106-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0106-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0106-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0106-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0106-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0106-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0106-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0106-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0106-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0106-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0106-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	0106-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	0106-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	0106-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	0106-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0106-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0106-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0106-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0106-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	0106-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	0106-
50	CAMSHAFT; BRK,RR BRK FORWARD LH,REARWARD RH	1-47141-053-0	01	1	0106-
50	CAMSHAFT; BRK,RR BRK FORWARD LH,REARWARD RH	1-47141-053-0	01	1	0106-
50	CAMSHAFT; BRK,RR BRK FORWARD RH,REARWARD LH	1-47141-054-0	01	1	0106-
50	CAMSHAFT; BRK,RR BRK FORWARD RH,REARWARD LH	1-47141-054-0	01	1	0106-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0106-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0106-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0106-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0106-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0106-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0106-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0106-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0106-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0106-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0106-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD RH,REARWARD LH	1-48270-046-0	01	1	0106-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD RH,REARWARD LH	1-48270-046-0	01	1	0106-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	0106-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	0106-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0106-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0106-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	0106-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	0106-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0106-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0106-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0106-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0106-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0106-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0106-
69	JOINT; JAW	1-09768-060-1	02	1	0106-
69	JOINT; JAW	1-09768-060-1	02	1	0106-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0106-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0106-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0106-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0106-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0106-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0106-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0106-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0106-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0106-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0106-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0106-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0106-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-083-0	01	1	0106-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-083-0	01	1	0106-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-084-0	01	1	0106-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-084-0	01	1	0106-
77	BUSHING	1-47146-003-1	02	1	0106-
77	BUSHING	1-47146-003-1	02	1	0106-
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0106-
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0106-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0106-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0106-
201	BOLT; BRKT,POWER CHAMBER M14X35	0-28081-435-0	08	1	0202-
202	WASHER; LK,BRKT ID=14.2	9-09150-514-0	08	1	0202-
298	GASKET ID=23.3	9-09561-223-0	02	1	0106-
298	GASKET ID=23.3	9-09561-223-0	02	1	0106-

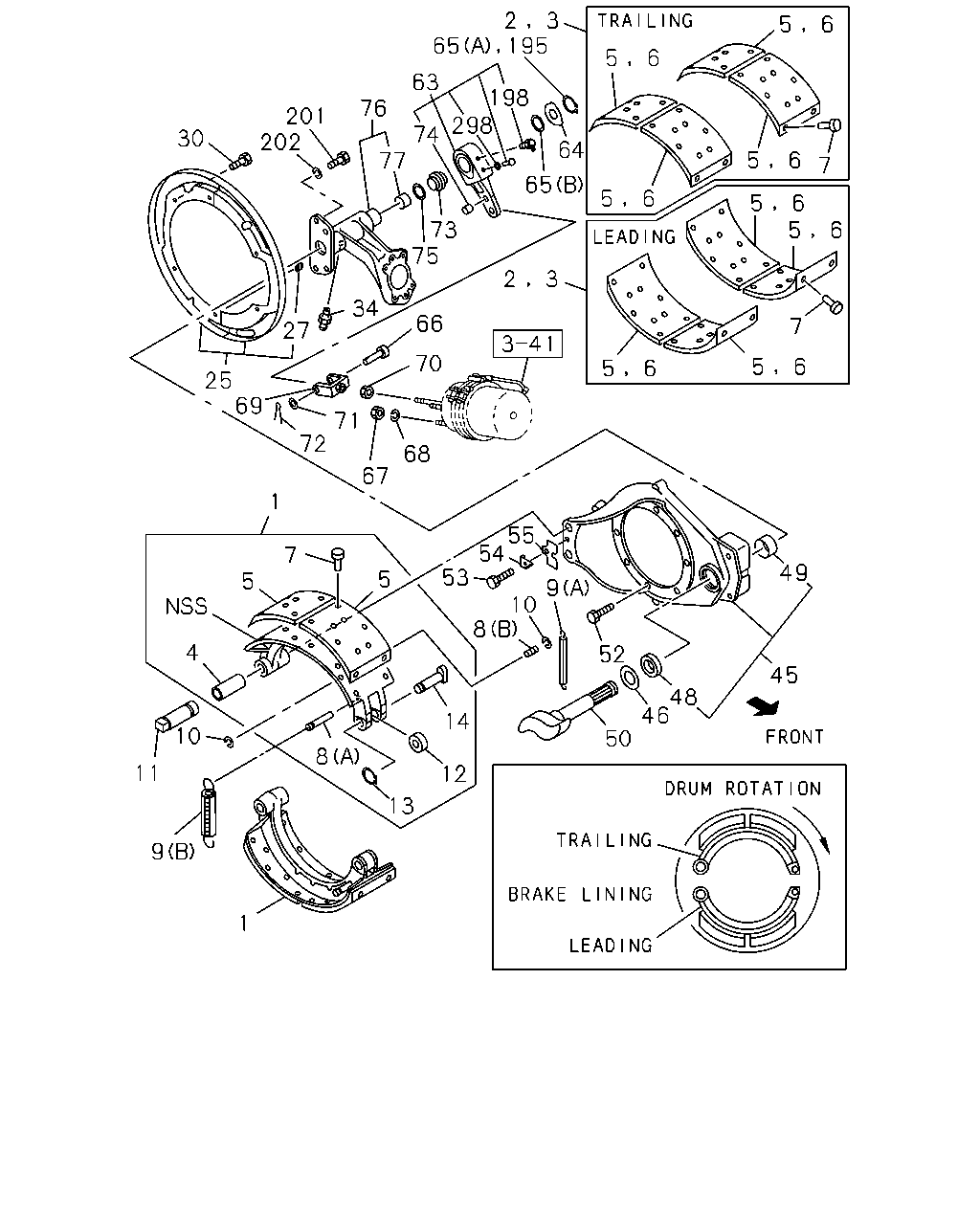

195 5 6 65 5 6 63 198 298 76 201 202 74 77 30 64 5 6 7 65 5 6 5 6 5 73 75 6 3 2 34 66 7 27 70 5 6 5 6 25 69 71 72 68 67 1 55 54 7 53 49 5 5 9 10 8 4 52 45 48 46 50 14 10 8 11 12 13 9 1 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0106-
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0106-
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0106-
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0106-
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0106-
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0106-
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0106-
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0106-
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0106-
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0106-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0106-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0106-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0106-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0106-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0106-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0106-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0106-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0106-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0106-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0106-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0106-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0106-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0106-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0106-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0106-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0106-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0106-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0106-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0106-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0106-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0106-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0106-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0106-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0106-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0106-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0106-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0106-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0106-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0106-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0106-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0106-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0106-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0106-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0106-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0106-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0106-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0106-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0106-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0106-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0106-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0106-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0106-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	0106-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	0106-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	0106-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	0106-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0106-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0106-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0106-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0106-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	0106-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	0106-
50	CAMSHAFT; BRK,RR BRK FORWARD LH,REARWARD RH	1-47141-053-0	01	1	0106-
50	CAMSHAFT; BRK,RR BRK FORWARD LH,REARWARD RH	1-47141-053-0	01	1	0106-
50	CAMSHAFT; BRK,RR BRK FORWARD RH,REARWARD LH	1-47141-054-0	01	1	0106-
50	CAMSHAFT; BRK,RR BRK FORWARD RH,REARWARD LH	1-47141-054-0	01	1	0106-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0106-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0106-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0106-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0106-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0106-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0106-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0106-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0106-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0106-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	01	1	0106-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD RH,REARWARD LH	1-48270-046-0	01	1	0106-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD RH,REARWARD LH	1-48270-046-0	01	1	0106-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	0106-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	0106-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0106-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0106-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	0106-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	0106-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0106-
66	PIN; JAW JOINT	1-09744-088-0	02	1	0106-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0106-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0106-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0106-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0106-
69	JOINT; JAW	1-09768-060-1	02	1	0106-
69	JOINT; JAW	1-09768-060-1	02	1	0106-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0106-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0106-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0106-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0106-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0106-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0106-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0106-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0106-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0106-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0106-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0106-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0106-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-083-0	01	1	0106-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-083-0	01	1	0106-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-084-0	01	1	0106-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-084-0	01	1	0106-
77	BUSHING	1-47146-003-1	02	1	0106-
77	BUSHING	1-47146-003-1	02	1	0106-
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0106-
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0106-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0106-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0106-
201	BOLT; BRKT,POWER CHAMBER M14X35	0-28081-435-0	08	1	0202-
202	WASHER; LK,BRKT ID=14.2	9-09150-514-0	08	1	0202-
298	GASKET ID=23.3	9-09561-223-0	02	1	0106-
298	GASKET ID=23.3	9-09561-223-0	02	1	0106-

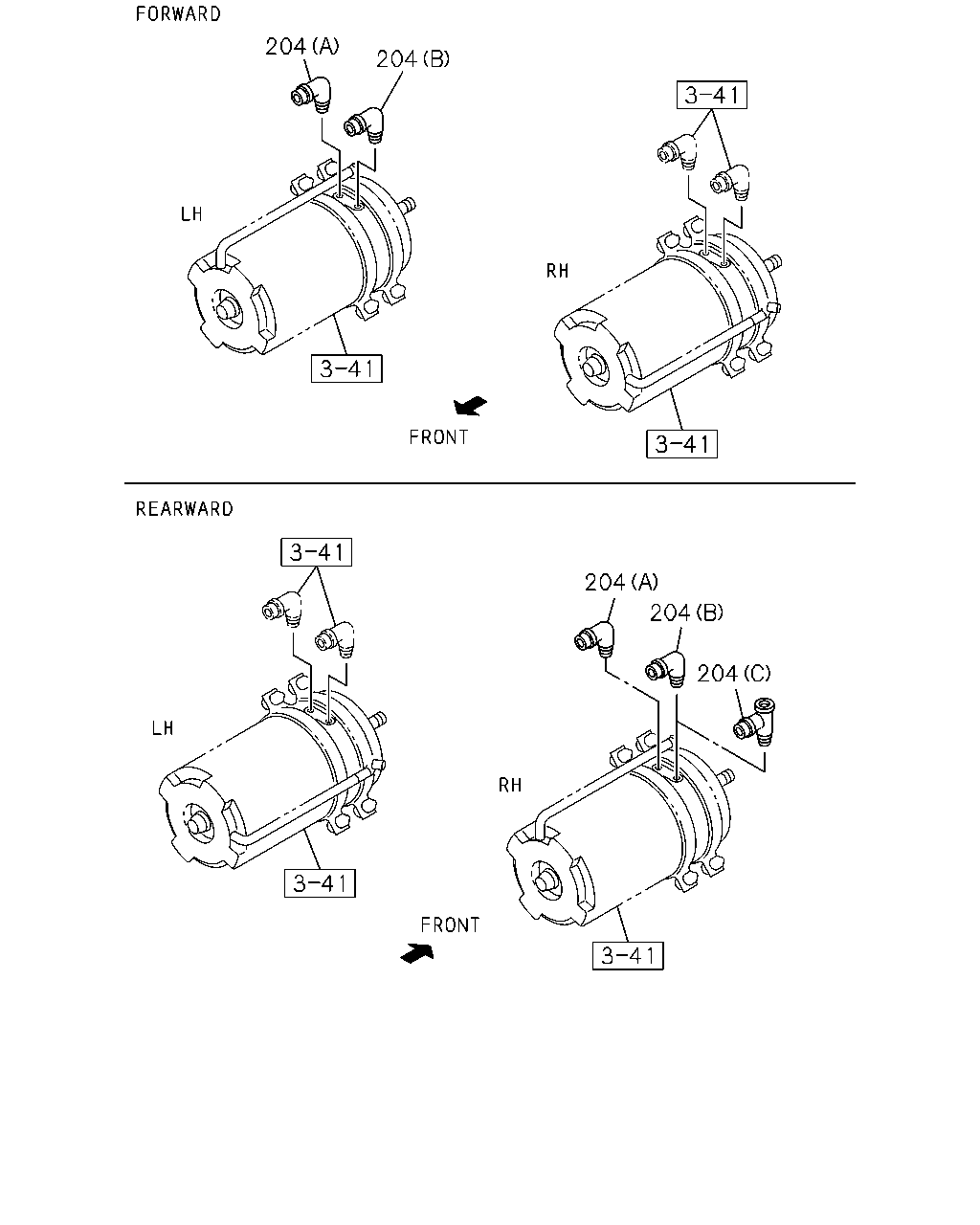

204 204 204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
204	CONNECTOR; SPR CHAMBER (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0106-
204	CONNECTOR; SPR CHAMBER (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0106-
204	CONNECTOR; SPR CHAMBER P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0106-
204	CONNECTOR; SPR CHAMBER P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0106-
204	CONNECTOR; SPR CHAMBER REAR AXLE RT210<C2A> EXC. P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X>, BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
