Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#111064) — 262 parça

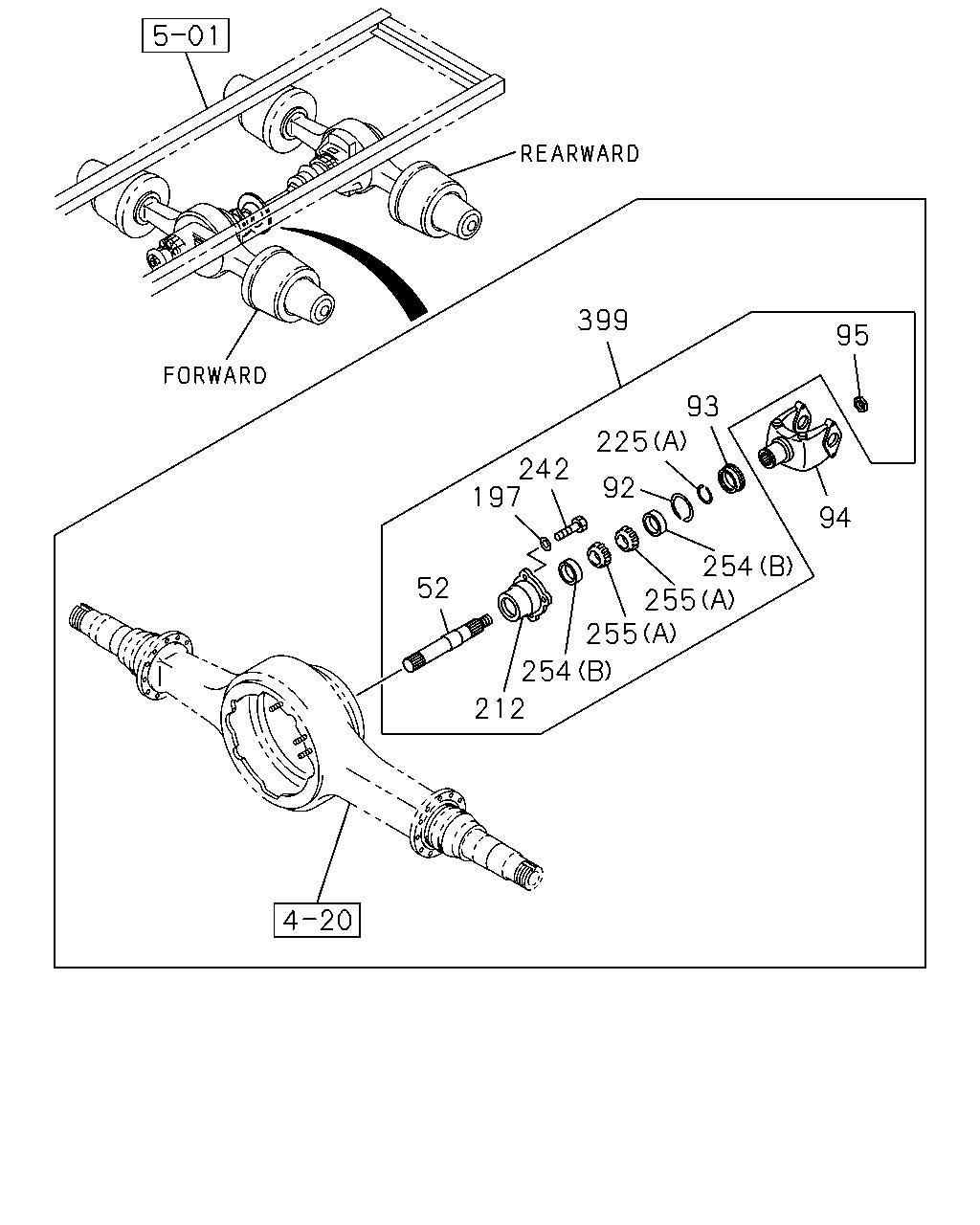

399 95 94 254 255 255 254 212 52 197 242 225 93 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
52	SHAFT; OUTPUT	1-41343-025-0	01	1	1212-	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT	1-41349-161-0	01	1	1212-	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-41349-191-0	01	1	1212-	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-362-0	01	1	1212-	●	●	●
95	NUT; OUTPUT SHAFT	1-41349-164-0	01	1	1212-	●	●	●
197	COVER; HELICAL GEAR CASE	1-41329-037-0	04	1	1212-	●	●	●
212	COVER	1-41519-049-0	01	1	1212-	●	●	●
225	WASHER; THRUST (B)	1-41349-160-0	01	1	1212-	●	●	●
225	WASHER; THRUST (A)	1-41349-162-0	01	1	1212-	●	●	●
232	SPRING; PISTON	1-41329-023-0	01	1	1212-	●	●	●
242	BOLT; COVER	1-42119-226-0	04	1	1212-	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1212-	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (A)	1-41519-051-0	02	1	1212-	●	●	●
255	CONE; DIFF BRG (B)	1-41519-108-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (B)	1-41519-108-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1212-	●	●	●
399	SHAFT ASM; OUTPUT	1-41343-024-0	01	1	1212-	●	●	●

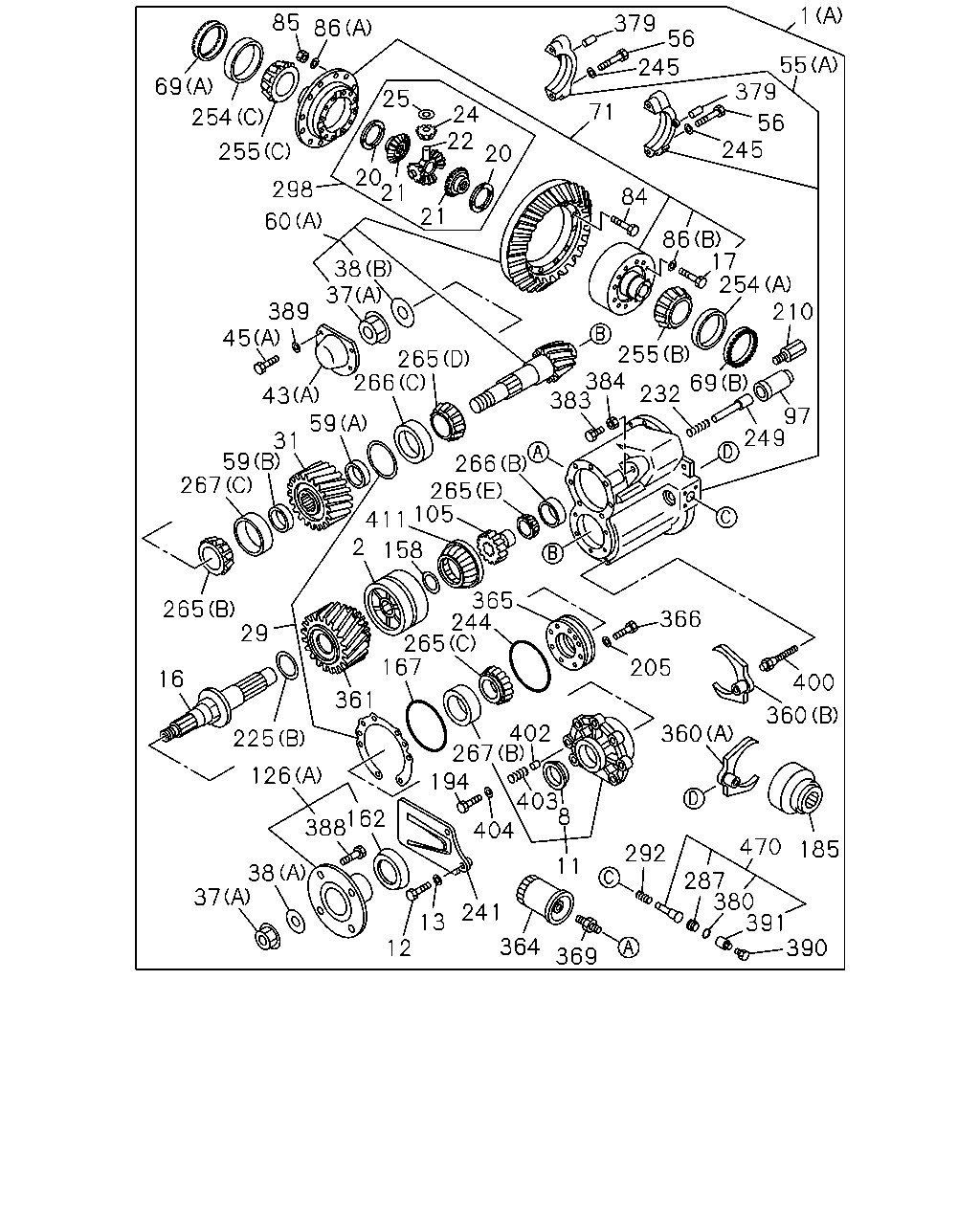

69 85 254 86 255 60 298 20 24 25 20 22 21 38 37 389 45 267 265 16 31 43 2 59 266 265 411 158 29 225 126 388 361 265 167 162 21 265 71 379 245 379 245 56 1 55 56 84 86 254 255 210 384 383 323 69 249 97 17 266 105 365 244 267 194 404 402 205 366 360 400 360 470 185 403 8 11 38 37 13 292 287 380 391 241 12 364 369 390 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR (B) 39/8	1-41003-350-0	01	1	1212-	●
1	DRIVE ASM; FINAL,RR (A) 39/8	1-41003-355-0	01	1	1212-	●
1	DRIVE ASM; FINAL,RR (B) 37/7	1-41003-351-0	01	1	1212-		●
1	DRIVE ASM; FINAL,RR (A) 37/7	1-41003-356-0	01	1	1212-		●
1	DRIVE ASM; FINAL,RR (B) 37/8	1-41003-349-0	01	1	1212-			●
1	DRIVE ASM; FINAL,RR (A) 37/8	1-41003-354-0	01	1	1212-			●
2	DIFF ASM; INTER,FINAL	1-41510-264-0	01	1	1212-	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-41349-190-0	01	1	1212-	●	●	●
11	COVER; INTER AXLE DIFF	1-41151-090-0	01	1	1212-	●	●	●
12	BOLT; COVER TO CASE	1-41159-008-0	07	1	1212-	●	●	●
13	WASHER; COVER TO CASE	1-41329-084-0	07	1	1212-	●	●	●
16	SHAFT ASM; INPUT	1-41341-032-0	01	1	1212-	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1212-	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1212-	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41559-003-0	02	1	1212-	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41559-003-0	02	1	1212-	●	●	●
21	GEAR; SIDE,DIFF	1-41561-118-0	02	1	1212-	●	●	●
21	GEAR; SIDE,DIFF	1-41561-118-0	02	1	1212-	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1212-	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1212-	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1212-	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1212-	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1212-	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1212-	●	●	●
29	SHIM; BRG RET	1-41154-091-0	02	1	1212-	●	●	●
31	GEAR; DRIVEN,HELICAL	1-41251-423-0	01	1	1212-	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1212-	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1212-	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41219-048-0	01	1	1212-	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41349-058-0	01	1	1212-	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-077-0	01	1	1212-	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	1212-	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	1212-	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	1212-	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1212-	●	●	●
55	CARRIER; DIFF (A)	1-41310-064-0	01	1	1212-	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1212-	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1212-	●	●	●
59	SPACER; FINAL PINION (A)	1-41219-049-0	01	1	1212-	●	●	●
59	SPACER; FINAL PINION (B)	1-41229-296-0	01	1	1212-	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-590-0	01	1	1212-	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-595-0	01	1	1212-	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/7	1-41210-591-0	01	1	1212-		●
60	GEAR SET; FINAL DRIVE,RR (A) 37/7	1-41210-596-0	01	1	1212-		●
60	GEAR SET; FINAL DRIVE,RR (B) 37/8	1-41210-732-0	01	1	1212-			●
60	GEAR SET; FINAL DRIVE,RR (A) 37/8	1-41210-737-0	01	1	1212-			●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1212-	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1212-	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1212-	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1212-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-263-0	01	1	1212-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-263-0	01	1	1212-	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	12	1	1212-	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	12	1	1212-	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1212-	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1212-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1212-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1212-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1212-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1212-	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-41329-067-0	01	1	1212-	●	●	●
105	GEAR; SIDE	1-41561-119-0	01	1	1212-	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	1212-	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-424-0	01	1	1212-	●	●	●
158	RING; SNAP	1-41519-043-0	01	1	1212-	●	●	●
162	COVER; DUST,INPUT FLANGE	1-37249-190-0	01	1	1212-	●	●	●
162	COVER; DUST,INPUT FLANGE	1-37249-190-0	01	1	1212-	●	●	●
167	GASKET; FINAL PINION CAGE	1-41349-155-0	01	1	1212-	●	●	●
185	COLLAR; SHIFT FORK	1-41379-003-0	01	1	1212-	●	●	●
185	COLLAR; SHIFT FORK	1-41379-003-0	01	1	1212-	●	●	●
194	PLUG	1-41329-077-0	01	1	1212-	●	●	●
205	WASHER; PL	1-41329-016-0	06	1	1212-	●	●	●
210	CONNECTOR; SHIFT UNIT	1-41329-083-0	01	1	1212-	●	●	●
225	WASHER; THRUST (B)	1-41349-160-0	01	1	1212-	●	●	●
225	WASHER; THRUST (A)	1-41349-162-0	01	1	1212-	●	●	●
232	SPRING; PISTON	1-41329-023-0	01	1	1212-	●	●	●
241	COVER; SHIFT HSG	1-41329-080-0	01	1	1212-	●	●	●
244	GASKET; COVER	1-41349-155-0	01	1	1212-	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1212-	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1212-	●	●	●
249	SHAFT; SHIFT FORK	1-41329-066-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1212-	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (A)	1-41519-051-0	02	1	1212-	●	●	●
255	CONE; DIFF BRG (B)	1-41519-108-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (B)	1-41519-108-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-042-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-044-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-044-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41349-157-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-047-0	01	1	1212-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	1212-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-045-0	01	1	1212-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41519-048-0	01	1	1212-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1212-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1212-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1212-	●	●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	01	1	1212-	●	●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	01	1	1212-	●	●	●
292	SPRING; PISTON	1-48265-008-0	01	1	1212-	●	●	●
292	SPRING; PISTON	1-48265-008-0	01	1	1212-	●	●	●
298	GEAR KIT; DIFF,RR AXLE	1-41550-031-0	01	1	1212-	●	●	●
298	GEAR KIT; DIFF,RR AXLE	1-41550-031-0	01	1	1212-	●	●	●
360	FORK; SHIFT (A)	1-41371-007-0	01	1	1212-	●	●	●
360	FORK; SHIFT (A)	1-41371-007-0	01	1	1212-	●	●	●
360	FORK; SHIFT (B)	1-41519-046-0	01	1	1212-	●	●	●
361	GEAR; DRIVE	1-41251-423-0	01	1	1212-	●	●	●
364	FILTER; OIL PUMP	1-41383-004-0	01	1	1212-	●	●	●
365	PUMP ASM; OIL	1-41381-010-0	01	1	1212-	●	●	●
366	BOLT; PUMP	1-41389-018-0	06	1	1212-	●	●	●
369	PLUG; STRAINER	1-41389-020-0	01	1	1212-	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1212-	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1212-	●	●	●
380	GASKET; PISTON	1-48269-075-0	01	1	1212-	●	●	●
380	GASKET; PISTON	1-48269-075-0	01	1	1212-	●	●	●
383	BOLT; SET,SHIFT UNIT	1-41329-064-0	01	1	1212-	●	●	●
384	NUT; LK,SHIFT UNIT	1-41329-065-0	01	1	1212-	●	●	●
388	BOLT; COUPLING	1-37249-204-0	04	1	1212-	●	●	●
389	WASHER; FINAL PINION CAGE	1-41329-069-0	05	1	1212-	●	●	●
390	BOLT; CAGING	1-48269-071-0	01	1	1212-	●	●	●
390	BOLT; CAGING	1-48269-071-0	01	1	1212-	●	●	●
391	CYLINDER; SHIFT	1-48269-070-0	01	1	1212-	●	●	●
391	CYLINDER; SHIFT	1-48269-070-0	01	1	1212-	●	●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	1212-	●	●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	1212-	●	●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	1212-	●	●	●
404	WASHER; RELIEF VALVE	1-41329-076-0	01	1	1212-	●	●	●
411	SLEEVE; CLU	1-41519-082-0	01	1	1212-	●	●	●
470	SHIFT KIT	1-48269-258-0	01	1	1212-	●	●	●
470	SHIFT KIT	1-48269-258-0	01	1	1212-	●	●	●

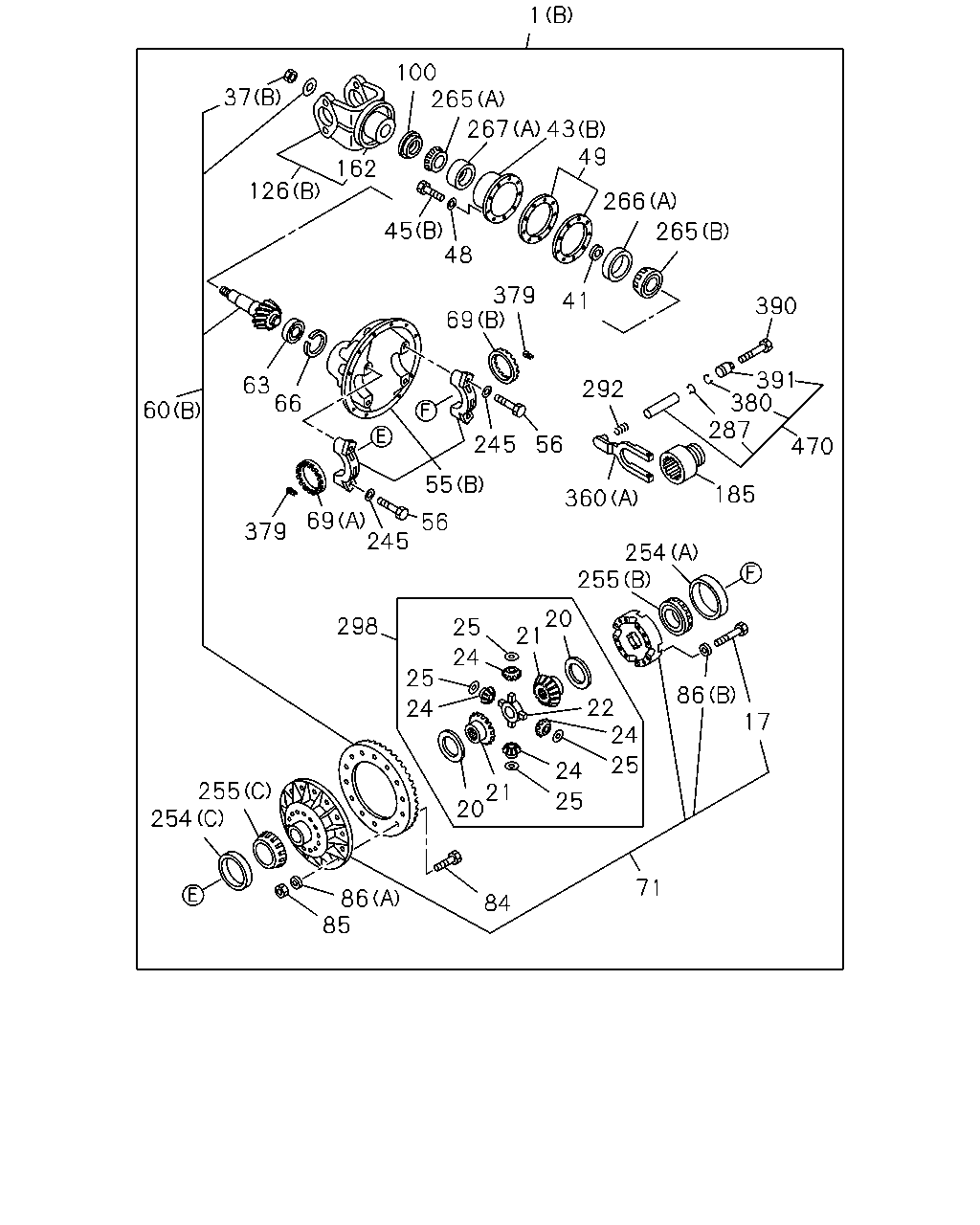

1 100 267 265 37 162 126 45 48 379 69 41 43 49 266 265 390 60 63 66 379 69 245 56 55 245 56 292 391 380 287 470 185 360 254 255 86 17 71 84 86 85 254 255 20 21 25 24 25 24 22 20 21 25 24 25 24 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR (B) 39/8	1-41003-350-0	01	1	1212-	●
1	DRIVE ASM; FINAL,RR (A) 39/8	1-41003-355-0	01	1	1212-	●
1	DRIVE ASM; FINAL,RR (B) 37/7	1-41003-351-0	01	1	1212-		●
1	DRIVE ASM; FINAL,RR (A) 37/7	1-41003-356-0	01	1	1212-		●
1	DRIVE ASM; FINAL,RR (B) 37/8	1-41003-349-0	01	1	1212-			●
1	DRIVE ASM; FINAL,RR (A) 37/8	1-41003-354-0	01	1	1212-			●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1212-	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1212-	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41559-003-0	02	1	1212-	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41559-003-0	02	1	1212-	●	●	●
21	GEAR; SIDE,DIFF	1-41561-118-0	02	1	1212-	●	●	●
21	GEAR; SIDE,DIFF	1-41561-118-0	02	1	1212-	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1212-	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1212-	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1212-	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1212-	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1212-	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1212-	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1212-	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1212-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-341-0	01	1	1212-	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-077-0	01	1	1212-	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	1212-	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	1212-	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	1212-	●	●	●
48	WASHER; LK,FINAL PINION	1-41329-034-0	08	1	1212-	●	●	●
49	SHIM; FINAL PINION CAGE	1-41154-090-0	01	1	1212-	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1212-	●	●	●
55	CARRIER; DIFF (A)	1-41310-064-0	01	1	1212-	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1212-	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1212-	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-590-0	01	1	1212-	●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-595-0	01	1	1212-	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/7	1-41210-591-0	01	1	1212-		●
60	GEAR SET; FINAL DRIVE,RR (A) 37/7	1-41210-596-0	01	1	1212-		●
60	GEAR SET; FINAL DRIVE,RR (B) 37/8	1-41210-732-0	01	1	1212-			●
60	GEAR SET; FINAL DRIVE,RR (A) 37/8	1-41210-737-0	01	1	1212-			●
63	BEARING; PINION PILOT	1-41219-046-0	01	1	1212-	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-047-0	01	1	1212-	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1212-	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1212-	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1212-	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1212-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-263-0	01	1	1212-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-263-0	01	1	1212-	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	12	1	1212-	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	12	1	1212-	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1212-	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1212-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1212-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1212-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1212-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1212-	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-185-0	01	1	1212-	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	1212-	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-424-0	01	1	1212-	●	●	●
162	COVER; DUST,INPUT FLANGE	1-37249-190-0	01	1	1212-	●	●	●
162	COVER; DUST,INPUT FLANGE	1-37249-190-0	01	1	1212-	●	●	●
185	COLLAR; SHIFT FORK	1-41379-003-0	01	1	1212-	●	●	●
185	COLLAR; SHIFT FORK	1-41379-003-0	01	1	1212-	●	●	●
232	SPRING; PISTON	1-41329-023-0	01	1	1212-	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1212-	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1212-	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1212-	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1212-	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (A)	1-41519-051-0	02	1	1212-	●	●	●
255	CONE; DIFF BRG (B)	1-41519-108-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (B)	1-41519-108-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1212-	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41219-030-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-042-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-044-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-044-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41349-157-0	01	1	1212-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-047-0	01	1	1212-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41219-031-0	01	1	1212-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-045-0	01	1	1212-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41519-048-0	01	1	1212-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1212-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1212-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1212-	●	●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	01	1	1212-	●	●	●
287	PISTON; SHIFT UNIT	1-48262-013-0	01	1	1212-	●	●	●
292	SPRING; PISTON	1-48265-008-0	01	1	1212-	●	●	●
292	SPRING; PISTON	1-48265-008-0	01	1	1212-	●	●	●
298	GEAR KIT; DIFF,RR AXLE	1-41550-031-0	01	1	1212-	●	●	●
298	GEAR KIT; DIFF,RR AXLE	1-41550-031-0	01	1	1212-	●	●	●
360	FORK; SHIFT (A)	1-41371-007-0	01	1	1212-	●	●	●
360	FORK; SHIFT (A)	1-41371-007-0	01	1	1212-	●	●	●
360	FORK; SHIFT (B)	1-41519-046-0	01	1	1212-	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1212-	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1212-	●	●	●
380	GASKET; PISTON	1-48269-075-0	01	1	1212-	●	●	●
380	GASKET; PISTON	1-48269-075-0	01	1	1212-	●	●	●
390	BOLT; CAGING	1-48269-071-0	01	1	1212-	●	●	●
390	BOLT; CAGING	1-48269-071-0	01	1	1212-	●	●	●
391	CYLINDER; SHIFT	1-48269-070-0	01	1	1212-	●	●	●
391	CYLINDER; SHIFT	1-48269-070-0	01	1	1212-	●	●	●
470	SHIFT KIT	1-48269-258-0	01	1	1212-	●	●	●
470	SHIFT KIT	1-48269-258-0	01	1	1212-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
