Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#111057) — 231 parça

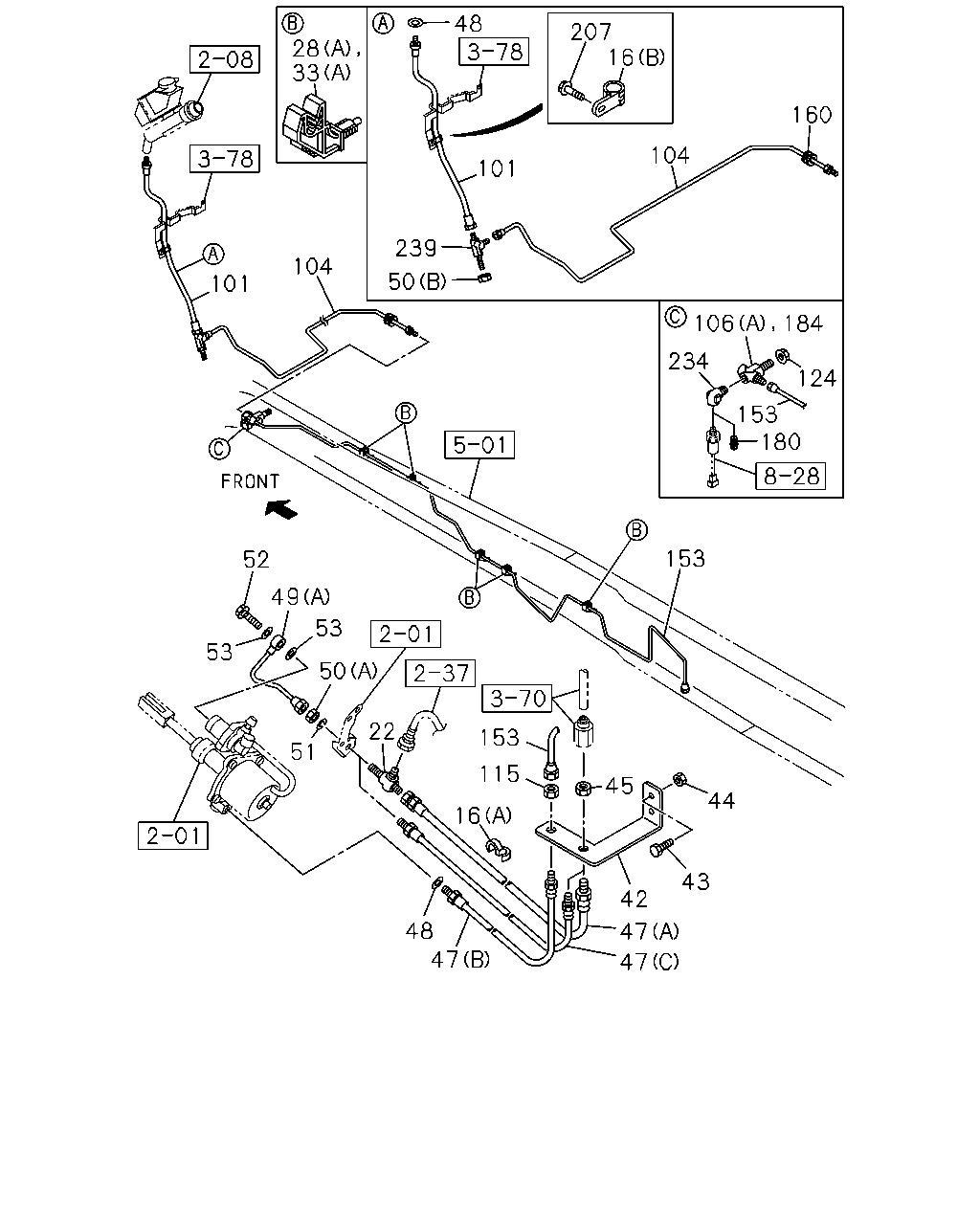

48 207 16 101 50 239 234 160 104 106 180 124 109 106 33 282 33 29 34 26 35 52 53 49 53 115 48 47 16 47 48 153 131 45 47 115 44 43 42 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	1212-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	1212-
26	NUT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	1212-
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	1212-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1212-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1212-
33	CLIP; OIL PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	05	1	1212-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1212-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1212-
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	1212-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1212-
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	1212-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98077-571-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98105-654-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1212-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1212-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1212-
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	1212-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1212-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1212-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=340	1-09363-622-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1212-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	1212-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1212-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1212-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1212-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) L=239	1-49117-401-0	01	1	1212-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (C) L=232	1-49124-795-0	01	1	1212-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1212-
50	NUT; UNION MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	1212-
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1212-
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	1212-1312
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1212-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1212-
106	UNION; OIL PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1212-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	1212-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1212-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1212-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1212-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2796	8-98152-244-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1212-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1212-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1212-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1212-
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1212-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1212-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	1212-
239	UNION; CLU HOSE MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	1212-

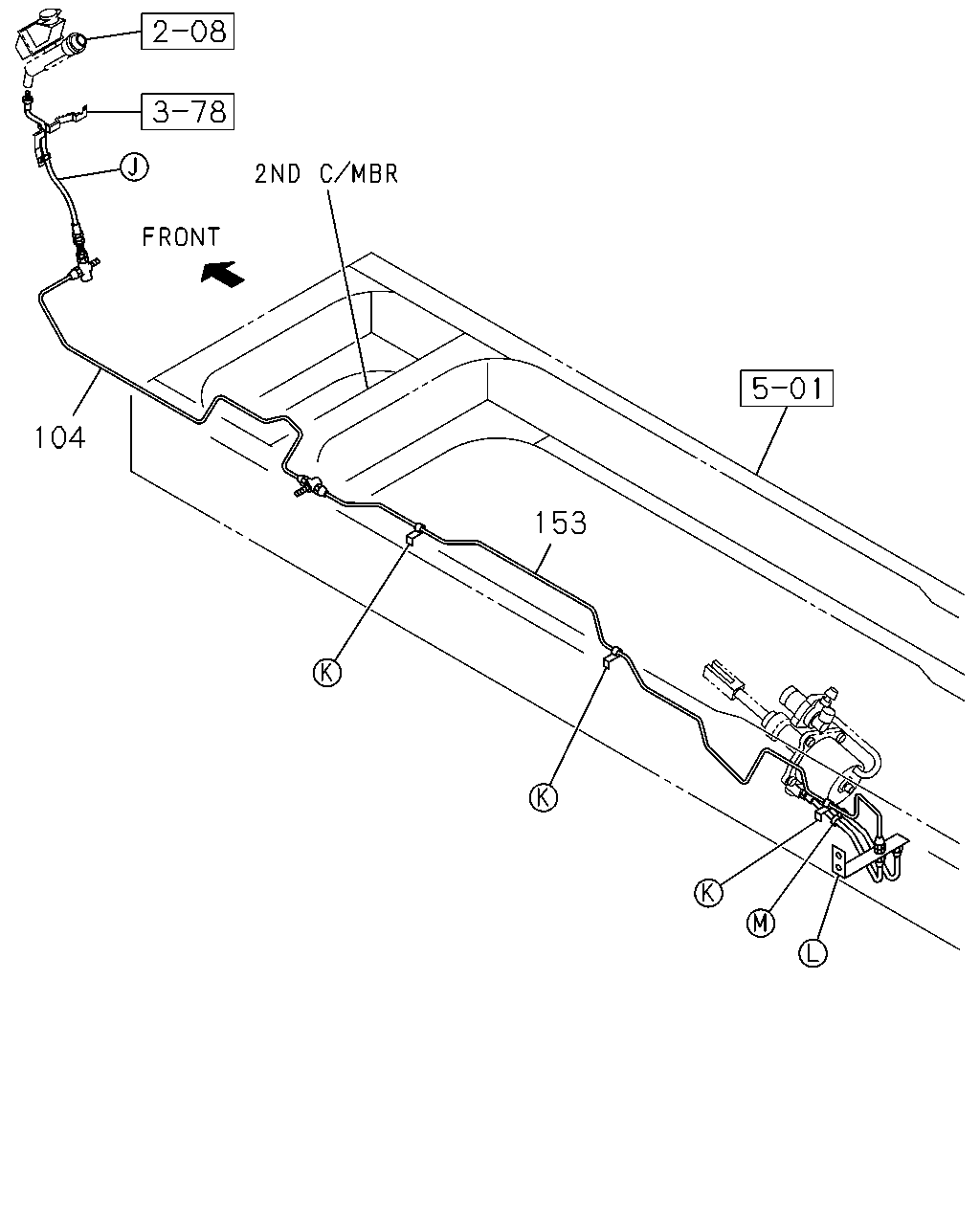

109 47 131 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1212-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=340	1-09363-622-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1212-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	1212-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1212-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	1212-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2796	8-98152-244-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1212-

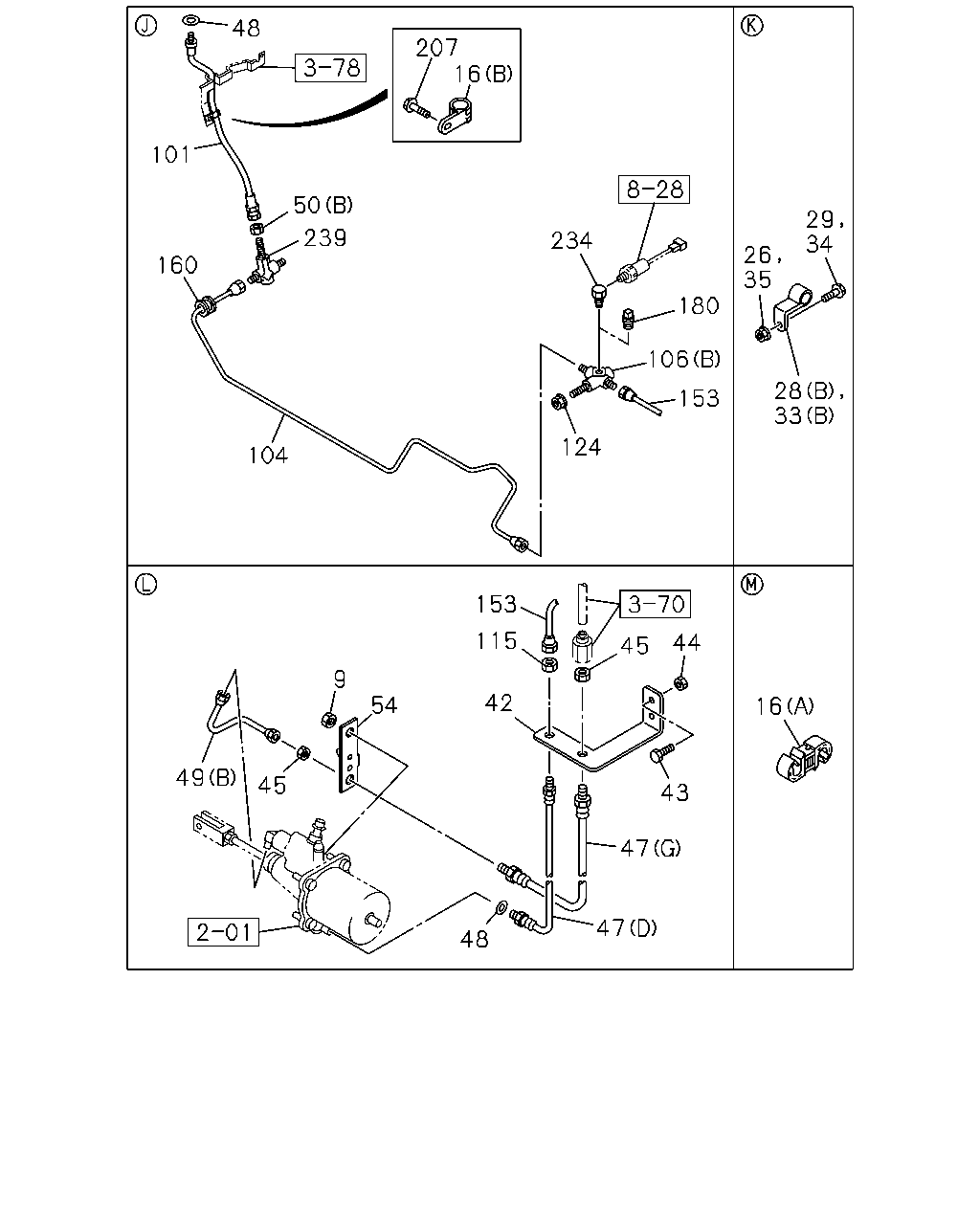

48 207 16 50 239 101 160 104 234 180 106 153 124 26 35 29 34 28 33 16 45 44 43 47 47 48 42 115 153 9 54 49 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	1212-
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	1212-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	1212-
26	NUT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	1212-
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1212-
28	CLIP; OIL PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	01	1	1212-
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	1212-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1212-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1212-
33	CLIP; OIL PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	05	1	1212-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1212-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1212-
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	1212-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1212-
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	1212-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98077-571-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98105-654-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1212-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1212-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1212-
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	1212-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1212-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1212-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=340	1-09363-622-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1212-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	1212-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1212-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1212-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1212-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) L=239	1-49117-401-0	01	1	1212-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (C) L=232	1-49124-795-0	01	1	1212-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1212-
50	NUT; UNION MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	1212-
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	1212-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1212-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1212-
106	UNION; OIL PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1212-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	1212-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1212-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1212-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2796	8-98152-244-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1212-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1212-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1212-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1212-
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1212-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1212-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	1212-
239	UNION; CLU HOSE MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	1212-

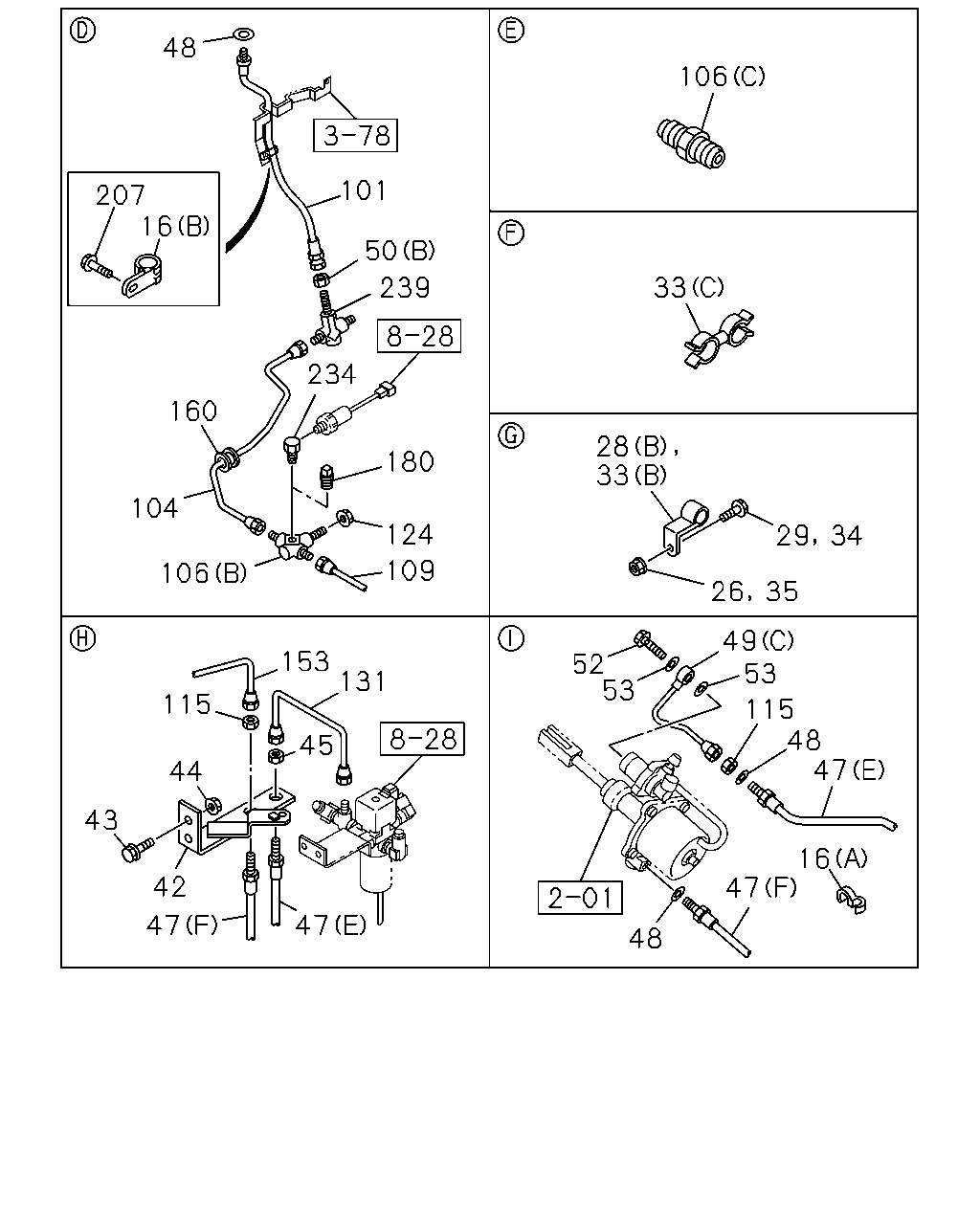

28 48 101 104 160 239 50 207 106 184 180 234 16 153 153 52 49 53 50 53 115 16 45 44 42 47 51 153 124 104 101 22 43 33 48 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	1212-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	1212-
22	UNION; CLU PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1212-
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1212-
28	CLIP; OIL PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	01	1	1212-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1212-
33	CLIP; OIL PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	05	1	1212-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1212-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8.3 & 10	8-94176-792-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98077-571-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ)	8-98105-654-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98105-654-0	01	1	1212-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1212-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	1212-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1212-
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	1212-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1212-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	1212-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=340	1-09363-622-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	1212-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1212-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	1212-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1212-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	1212-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	1212-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) L=239	1-49117-401-0	01	1	1212-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (C) L=232	1-49124-795-0	01	1	1212-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1212-
50	NUT; UNION MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	1212-
51	WASHER; LK MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	1212-
51	WASHER; LK MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-812-0	01	1	1212-
51	WASHER; LK FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1212-
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1212-
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	1212-1312
53	GASKET; JOINT BOLT MZW6P M/T(RSZ),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1212-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1212-
106	UNION; OIL PIPE MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	1212-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	1212-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	1212-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1212-
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2796	8-98152-244-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1212-
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1212-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1212-
184	UNION; FLEX HOSE MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1212-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1212-
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1212-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1212-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	1212-
239	UNION; CLU HOSE MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	1212-

104 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	1212-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2796	8-98152-244-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	1212-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
