◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#111056) — 57 parça

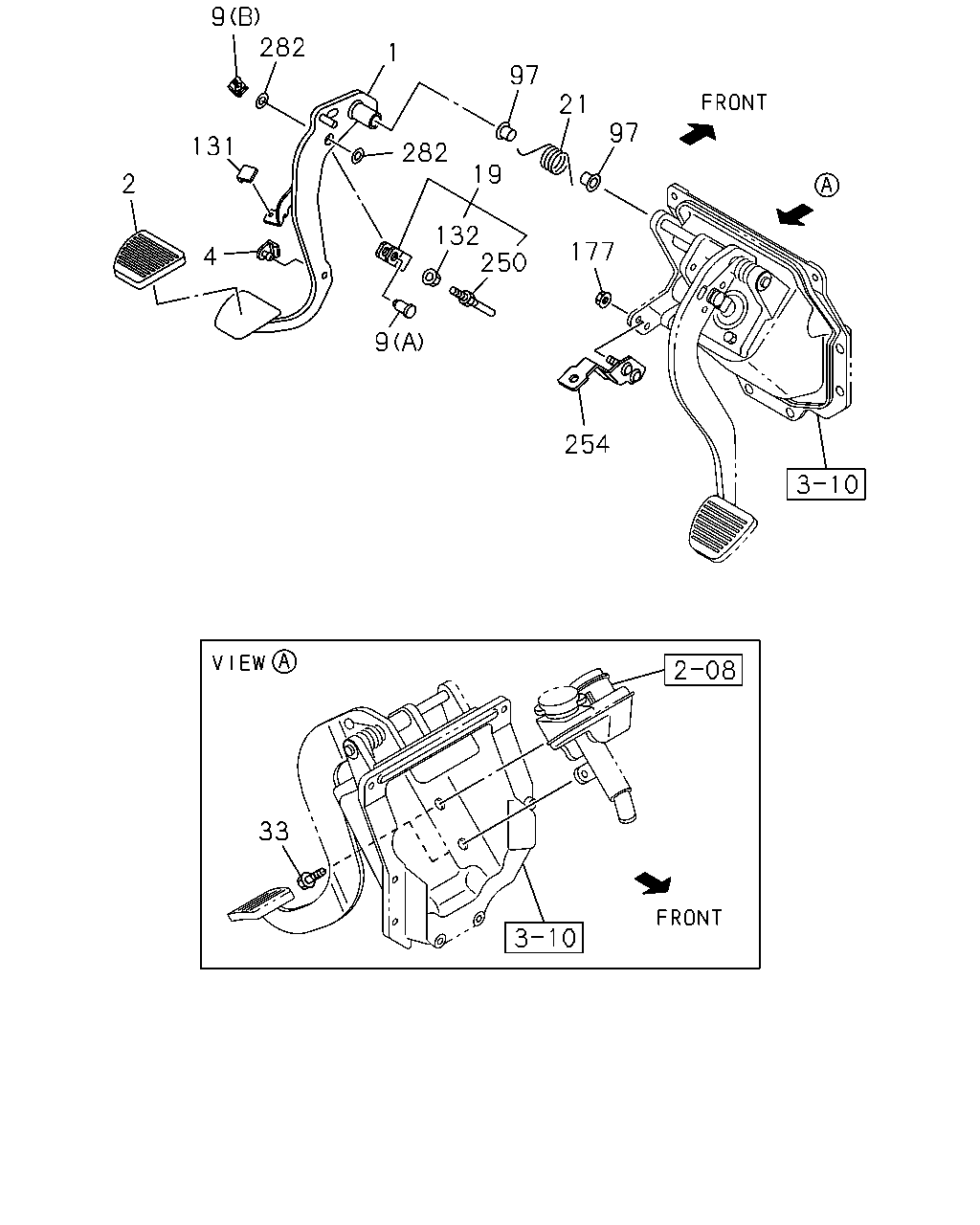

çizim 321257
254 177 97 21 97 1 282 282 132 250 9 4 2 131 33 19 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
TRANSMISSION-FULLER RTO11908(Y5L) 		8-97613-941-1 01 1 1212-1311 ● ●
1 PEDAL; CLU
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-97613-941-1 01 1 1312- ● ●
1 PEDAL; CLU
ZF9S1310 M/T(Y5K) 		8-98099-809-0 01 1 1212- ●
2 COVER; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98056-865-0 01 1 1212-1311 ●
2 COVER; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98056-865-0 01 1 1212-1311 ●
2 COVER; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98056-865-0 01 1 1312- ●
2 COVER; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98056-865-0 01 1 1312- ●
4 STOPPER; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-251-0 01 1 1212-1311 ●
4 STOPPER; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-251-0 01 1 1212-1311 ●
4 STOPPER; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98079-251-0 01 1 1312- ●
4 STOPPER; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98079-251-0 01 1 1312- ●
9 PIN; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98007-161-0 01 1 1212-1311 ●
9 PIN; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98007-161-0 01 1 1212-1311 ●
9 PIN; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		8-98007-161-0 01 1 1312- ●
9 PIN; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		8-98007-161-0 01 1 1312- ●
9 PIN; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		8-98147-657-0 01 1 1212-1311 ●
9 PIN; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) 		8-98147-657-0 01 1 1212-1311 ●
9 PIN; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		8-98147-657-0 01 1 1312- ●
9 PIN; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		8-98147-657-0 01 1 1312- ●
19 ROD ASM; PUSH,CLU
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98021-406-1 01 1 1212-1311 ●
19 ROD ASM; PUSH,CLU
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98021-406-1 01 1 1212-1311 ●
19 ROD ASM; PUSH,CLU
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98021-406-1 01 1 1312- ●
19 ROD ASM; PUSH,CLU
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98021-406-1 01 1 1312- ●
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98021-560-0 01 1 1212-1311 ●
21 SPRING; RETURN,CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98021-560-0 01 1 1212-1311 ●
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98021-560-0 01 1 1312- ●
21 SPRING; RETURN,CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98021-560-0 01 1 1312- ●
33 BOLT; CLU M/CYL TO BRKT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M12X20 FLANGE 		0-28051-220-0 02 1 1212- ●
33 BOLT; CLU M/CYL TO BRKT
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M12X20 FLANGE 		0-28051-220-0 02 1 1212- ●
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION-FULLER RTO11908(Y5L) 		8-94238-596-0 02 1 1212-1311 ●
97 BUSHING; CLU PEDAL SHAFT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-94238-596-0 02 1 1212-1311 ●
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-94238-596-0 02 1 1312- ●
97 BUSHING; CLU PEDAL SHAFT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-94238-596-0 02 1 1312- ●
131 STOPPER; CLU SW
TRANSMISSION-FULLER RTO11908(Y5L) 		8-97302-305-0 01 1 1212-1311 ●
131 STOPPER; CLU SW
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-97302-305-0 01 1 1212-1311 ●
131 STOPPER; CLU SW
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-97302-305-0 01 1 1312- ●
131 STOPPER; CLU SW
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-97302-305-0 01 1 1312- ●
132 NUT; LK,PUSH ROD
TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE 		0-91180-108-0 01 1 1212-1311 ●
132 NUT; LK,PUSH ROD
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE 		0-91180-108-0 01 1 1212-1311 ●
132 NUT; LK,PUSH ROD
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE 		0-91180-108-0 01 1 1312- ●
132 NUT; LK,PUSH ROD
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE 		0-91180-108-0 01 1 1312- ●
177 NUT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE 		0-91180-108-0 02 1 1212-1311 ●
177 NUT; BRKT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE 		0-91180-108-0 02 1 1212-1311 ●
177 NUT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE 		0-91180-108-0 02 1 1312- ●
177 NUT; BRKT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M8 FLANGE 		0-91180-108-0 02 1 1312- ●
250 ROD; PUSH,CLU
TRANSMISSION-FULLER RTO11908(Y5L) 		8-97615-589-0 01 1 1212-1311 ●
250 ROD; PUSH,CLU
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-97615-589-0 01 1 1212-1311 ●
250 ROD; PUSH,CLU
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-97615-589-0 01 1 1312- ●
250 ROD; PUSH,CLU
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-97615-589-0 01 1 1312- ●
254 BRACKET; CLU SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98021-377-1 01 1 1212-1311 ●
254 BRACKET; CLU SENSOR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98021-377-1 01 1 1212-1311 ●
254 BRACKET; CLU SENSOR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98021-377-1 01 1 1312- ●
254 BRACKET; CLU SENSOR
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98021-377-1 01 1 1312- ●
282 SPACER; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98070-329-0 02 1 1212-1311 ●
282 SPACER; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98070-329-0 02 1 1212-1311 ●
282 SPACER; CLU PEDAL
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98070-329-0 02 1 1312- ●
282 SPACER; CLU PEDAL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98070-329-0 02 1 1312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
