◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51238 - NPR LHD EURO5 BUS CHASSIS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#111055) — 38 parça
çizim 321247
302 298 301 306 303 291 298 295 294 293 300 299 299 292 296 297 209 296
BalonParca AdiParca NoAdetTipApplied Date
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-526-3 01 1 1212-1412
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-318-0 01 1 1501-
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98056-709-2 01 1 1212-
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 1212-
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98014-192-1 01 1 1212-
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 1212-
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1212-
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 1212-
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 1212-
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 1212-
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98107-924-1 01 1 1212-
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 1212-
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE 		0-28050-845-0 11 1 1212-
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 1212-
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 1212-
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-265-2 01 1 1212-
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100 		8-94279-939-0 03 1 1212-

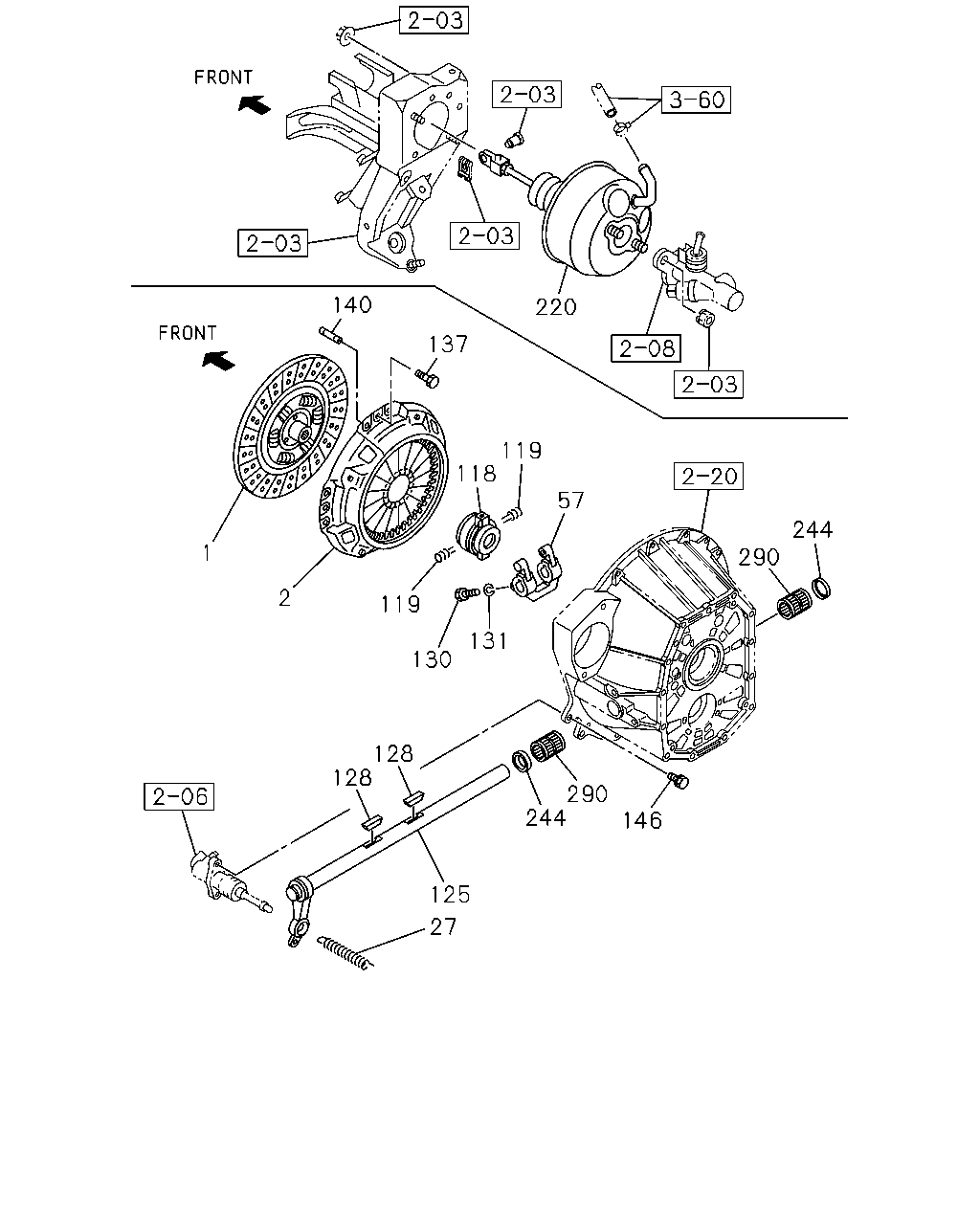

çizim 321249
290 244 57 119 118 119 130 131 290 146 244 125 27 128 128 2 1 140 137 220
BalonParca AdiParca NoAdetTipApplied Date
1 00.886 DISC; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-092-0 01 1 1502-
1 00.886 DISC; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98164-917-1 01 1 1212-
2 00.859 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.859 		8-97351-794-0 01 1 1212-1405
2 00.859 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97038-831-2 01 1 1406-
2 00.859 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-081-0 01 1 1212-1405
2 00.859 PLATE ASM; PRESSURE,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		5-87610-104-0 01 1 1406-
27 00.837 SPRING; RETURN,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98025-314-0 01 1 1212-
57 00.795 FORK; SHIFT,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97310-456-1 01 1 1212-
118 00.799 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31310-012-0 01 1 1212-
118 00.799 BEARING; CLU RELEASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS 		1-87610-110-0 01 1 1212-
119 00.797 SPRING; SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-31329-024-0 02 1 1212-
125 00.805 SHAFT; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97310-435-0 01 1 1212-
128 00.833 KEY; FEATHER,CLU SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09867-008-0 02 1 1212-
130 00.833 SCREW; SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14 		0-61200-814-0 01 1 1212-
131 00.833 WASHER; LK,SHIFT FORK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.439 ID=8.2 		0-91510-508-0 01 1 1212-
137 00.862 BOLT; CLU COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1212-
140 00.862 PIN; STRAIGHT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25 		8-94410-361-0 02 1 1212-
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1212-
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98033-837-0 01 1 1212-
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.797 		1-09625-002-0 02 1 1212-
290 00.862 BEARING; NEEDLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 NTN 		1-09811-002-1 02 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
