◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#111052) — 289 parça

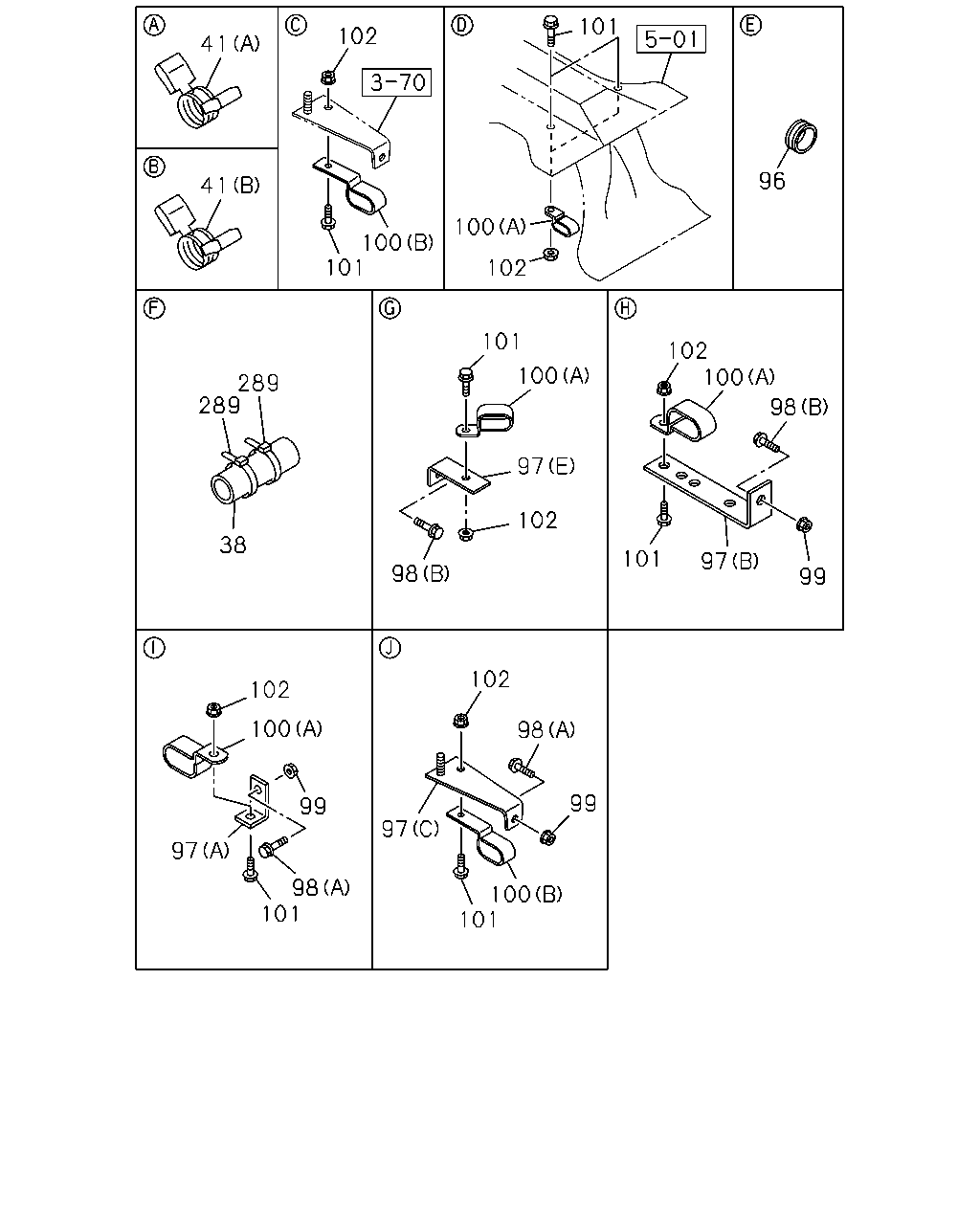

çizim 322383
41 41 289 289 38 102 100 99 97 98 101 100 101 97 102 98 99 102 100 101 100 102 101 100 97 102 98 101 97 99 98 100 102 96 101
BalonParca AdiParca NoAdetTipApplied Date A B
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1512- ●
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1512- ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1212-1511 ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 5700MM(57W) L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1512- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 		8-94238-568-0 04 1 1212- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1212- ● ●
96 GROMMET; PIPE,FUEL TANK
ID=39 OD=45 T=19 		1-09332-077-0 01 1 1212- ● ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (F) 		8-98186-647-0 01 1 1512- ● ●
97 BRACKET; CLIP
(E) L=68 		1-47475-525-0 01 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) L=68 		1-47475-525-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) L=68 		1-47475-525-0 01 1 1512- ●
97 BRACKET; CLIP
(C) 		8-97609-096-0 01 1 1212- ● ●
97 BRACKET; CLIP
(D) 		8-98186-869-0 01 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) 		8-98186-869-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) 		8-98186-869-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1212-1302 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1303-1511 ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) L=55 		1-47475-304-0 01 1 1303-1511 ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 7300MM(73W) (A) L=55 		1-47475-304-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (B) 		1-82698-358-0 04 1 1212-1302 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (B) 		1-82698-358-0 04 1 1303- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (B) 		1-82698-358-0 04 1 1303- ●
97 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) L=55 		1-47475-304-0 02 1 1212- ● ●
97 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (B) 		1-82698-358-0 03 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) (B) 		1-82698-358-0 03 1 1512- ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 5700MM(57W) (B) M8X30 FLANGE 		0-28650-830-0 04 1 1512- ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1212-1302 ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1303-1511 ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1303-1511 ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 7300MM(73W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W) (B) M8X30 FLANGE 		0-28650-830-0 06 1 1212-1302 ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W) (B) M8X30 FLANGE 		0-28650-830-0 06 1 1303- ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (B) M8X30 FLANGE 		0-28650-830-0 06 1 1303- ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6600MM(66W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1212- ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6600MM(66W) (B) M8X30 FLANGE 		0-28650-830-0 05 1 1212- ● ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 06 1 1212-1302 ● ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 06 1 1303- ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 06 1 1303- ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1212-1511 ● ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1512- ● ●
100 CLIP; FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 09 1 1512- ●
100 CLIP; FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 09 1 1512- ●
100 CLIP; FUEL PIPE
(A) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 09 1 1212-1511 ● ●
100 CLIP; FUEL PIPE
WHEEL BASE 5700MM(57W) (A) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 11 1 1512- ● ●
100 CLIP; FUEL PIPE
(B) ID=19X35 H=17.5 L=47.5 		8-98202-741-0 04 1 1212-1511 ● ●
100 CLIP; FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=19X35 H=17.5 L=47.5 		8-98202-741-0 04 1 1512- ●
100 CLIP; FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=19X35 H=17.5 L=47.5 		8-98202-741-0 04 1 1512- ●
101 BOLT; CLIP,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 10 1 1512- ●
101 BOLT; CLIP,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X20 FLANGE 		0-28650-820-0 10 1 1512- ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 10 1 1212-1511 ● ●
101 BOLT; CLIP,FUEL PIPE
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28650-820-0 08 1 1512- ● ●
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1212- ● ●
102 NUT; CLIP,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 13 1 1512- ●
102 NUT; CLIP,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 13 1 1512- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 13 1 1212-1511 ● ●
102 NUT; CLIP,FUEL PIPE
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 11 1 1512- ● ●
289 CLIP; BAND,HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=250 		5-09707-030-1 04 1 1512- ●
289 CLIP; BAND,HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=250 		5-09707-030-1 04 1 1512- ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 1212-1511 ● ●
289 CLIP; BAND,HOSE
WHEEL BASE 5700MM(57W) L=250 		5-09707-030-1 06 1 1512- ● ●

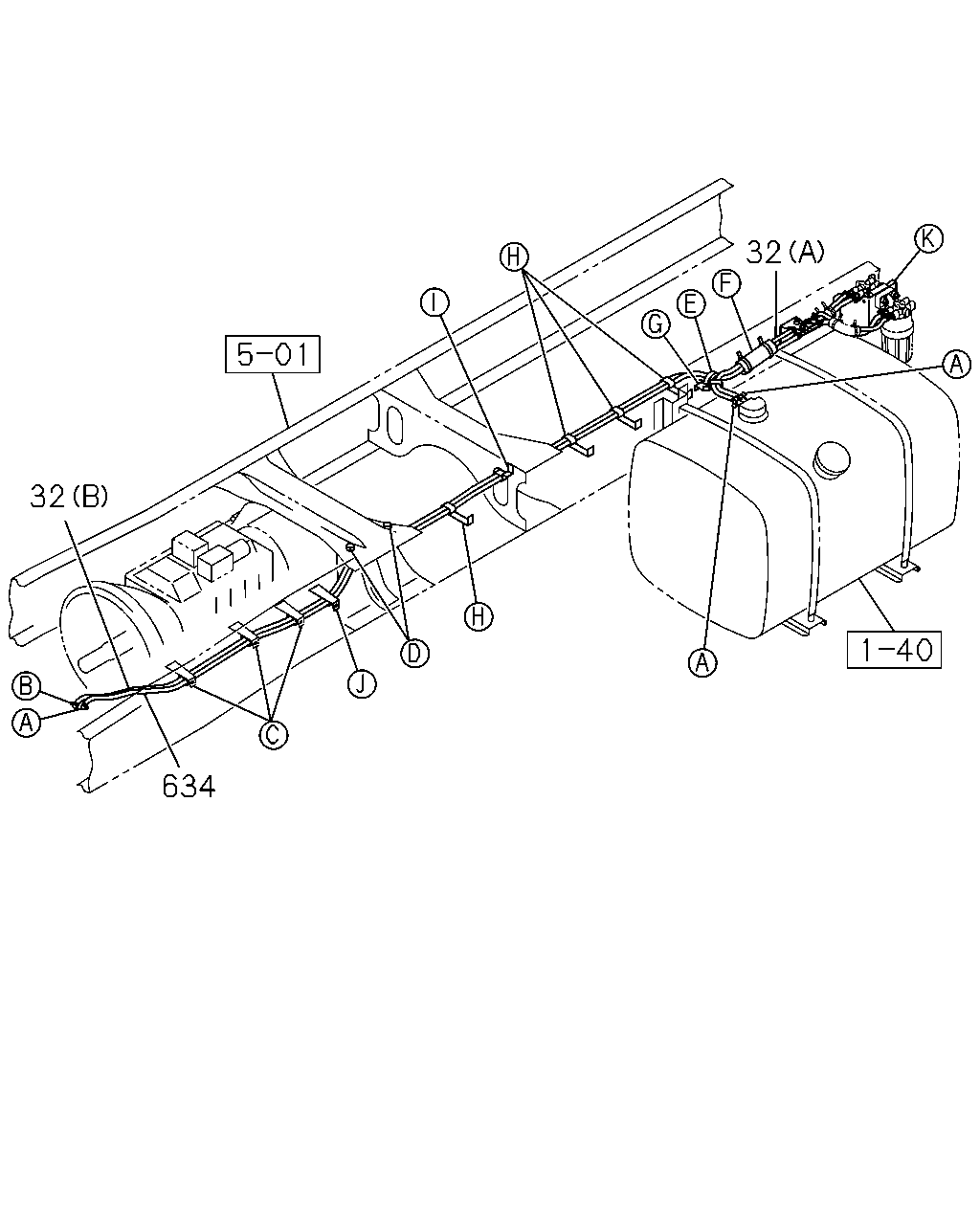

çizim 322472
32 634 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5700MM(57W) (D) 		8-98333-562-0 01 1 1512- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5700MM(57W) (C) 		8-98333-662-0 01 1 1512- ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1212-1511 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=3200 		8-98203-010-0 01 1 1212-1511 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=3200 		8-98203-010-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) L=3200 		8-98203-010-0 01 1 1512- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5700MM(57W) 		0-01859-340-0 01 1 1512- ● ●
634 HOSE; RUBBER RETURN 0-01859-365-0 01 1 1212-1511 ● ●
634 HOSE; RUBBER RETURN
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		0-01859-365-0 01 1 1512- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 		0-01859-365-0 01 1 1512- ●

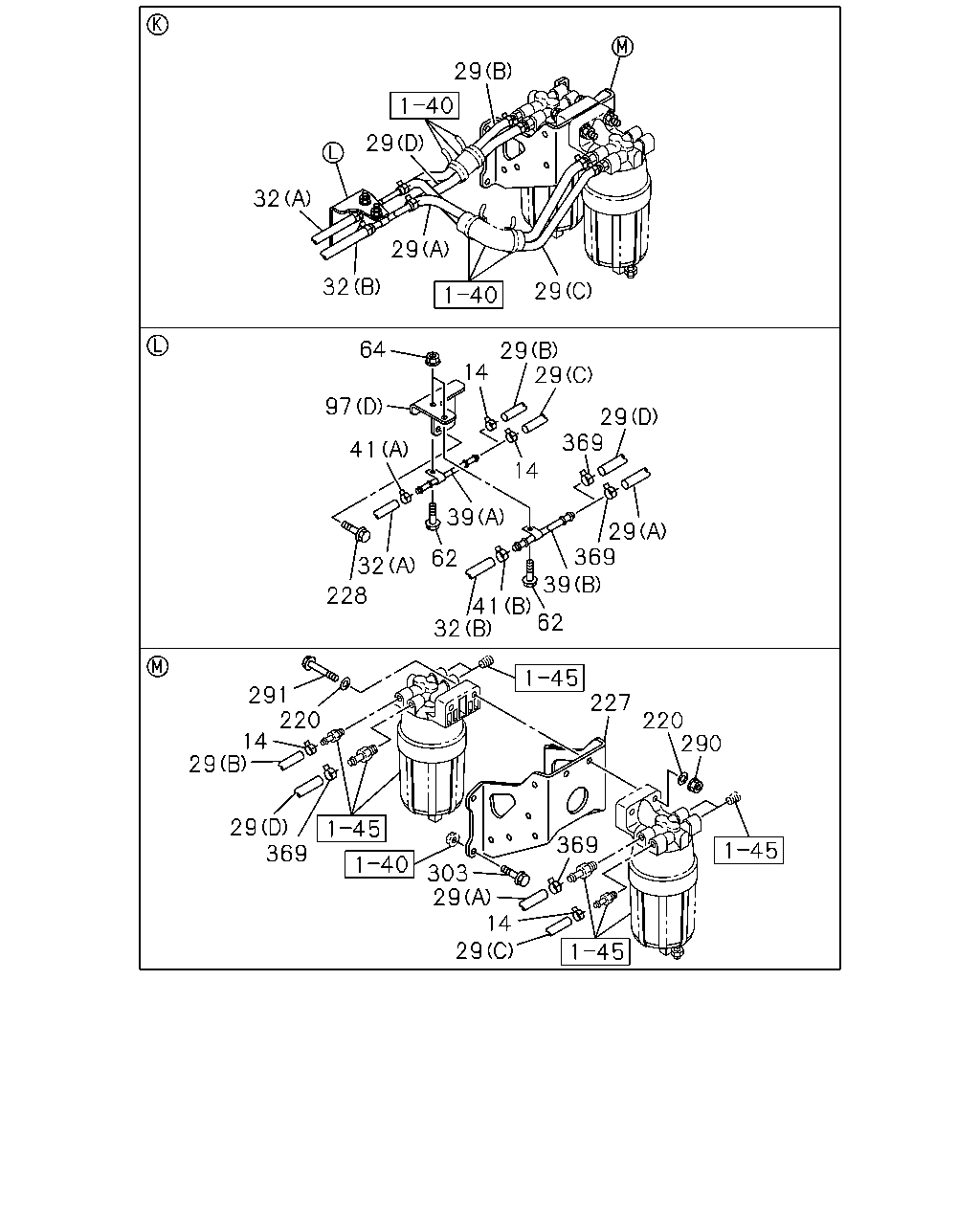

çizim 322547
29 29 32 32 29 29 64 97 41 14 29 29 29 369 29 369 14 39 62 32 228 41 32 62 39 291 220 14 29 29 369 303 29 14 29 369 227 220 290
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; HOSE
ID=16 		8-94238-568-0 04 1 1212- ● ●
29 HOSE; FUEL
WHEEL BASE 5700MM(57W) (E) 		8-98202-627-0 01 1 1512- ● ●
29 HOSE; FUEL
WHEEL BASE 5700MM(57W) (G) 		8-98202-628-0 01 1 1512- ● ●
29 HOSE; FUEL
WHEEL BASE 5700MM(57W) (F) 		8-98202-629-0 01 1 1512- ● ●
29 HOSE; FUEL
WHEEL BASE 5700MM(57W) (H) 		8-98202-630-0 01 1 1512- ● ●
29 HOSE; FUEL
(B) 		8-98202-997-0 01 1 1212-1511 ● ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) 		8-98202-997-0 01 1 1512- ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) 		8-98202-997-0 01 1 1512- ●
29 HOSE; FUEL
(C) 		8-98203-000-0 01 1 1212-1511 ● ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) 		8-98203-000-0 01 1 1512- ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) 		8-98203-000-0 01 1 1512- ●
29 HOSE; FUEL
(D) 		8-98203-004-0 01 1 1212-1511 ● ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) 		8-98203-004-0 01 1 1512- ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) 		8-98203-004-0 01 1 1512- ●
29 HOSE; FUEL
(A) 		8-98203-005-0 01 1 1212-1511 ● ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) 		8-98203-005-0 01 1 1512- ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) 		8-98203-005-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5700MM(57W) (D) 		8-98333-562-0 01 1 1512- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5700MM(57W) (C) 		8-98333-662-0 01 1 1512- ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1212-1511 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=3200 		8-98203-010-0 01 1 1212-1511 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=3200 		8-98203-010-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) L=3200 		8-98203-010-0 01 1 1512- ●
39 PIPE; FUEL
(A) 		8-98186-862-1 01 1 1212- ● ●
39 PIPE; FUEL
(B) 		8-98186-864-1 01 1 1212- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 		8-94238-568-0 04 1 1212- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1212- ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1212- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (F) 		8-98186-647-0 01 1 1512- ● ●
97 BRACKET; CLIP
(E) L=68 		1-47475-525-0 01 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) L=68 		1-47475-525-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) L=68 		1-47475-525-0 01 1 1512- ●
97 BRACKET; CLIP
(C) 		8-97609-096-0 01 1 1212- ● ●
97 BRACKET; CLIP
(D) 		8-98186-869-0 01 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) 		8-98186-869-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) 		8-98186-869-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1212-1302 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1303-1511 ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) L=55 		1-47475-304-0 01 1 1303-1511 ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 7300MM(73W) (A) L=55 		1-47475-304-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (B) 		1-82698-358-0 04 1 1212-1302 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (B) 		1-82698-358-0 04 1 1303- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (B) 		1-82698-358-0 04 1 1303- ●
97 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) L=55 		1-47475-304-0 02 1 1212- ● ●
97 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (B) 		1-82698-358-0 03 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) (B) 		1-82698-358-0 03 1 1512- ● ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 04 1 1212- ● ●
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 5700MM(57W) 		8-98331-075-0 01 1 1512- ● ●
227 BRACKET; FUEL SEDIMENTER 8-98184-812-0 01 1 1212-1511 ● ●
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		8-98184-812-0 01 1 1512- ●
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 		8-98184-812-0 01 1 1512- ●
228 BOLT; BRKT,SEDIMENTER
M8X30 FLANGE 		0-28650-830-0 02 1 1212- ● ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1212- ● ●
291 BOLT; FILER TO BRKT
M10X90 FLANGE 		0-28051-090-0 02 1 1212- ● ●
303 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10X40 FLANGE 		0-28051-040-0 04 1 1512- ●
303 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10X40 FLANGE 		0-28051-040-0 04 1 1512- ●
303 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 04 1 1212-1511 ● ●
303 BOLT; BRKT
WHEEL BASE 5700MM(57W) M10X40 FLANGE 		0-28051-040-0 02 1 1512- ● ●
369 CLAMP; HOSE,FUEL
ID=19 		8-94238-569-0 04 1 1212- ● ●

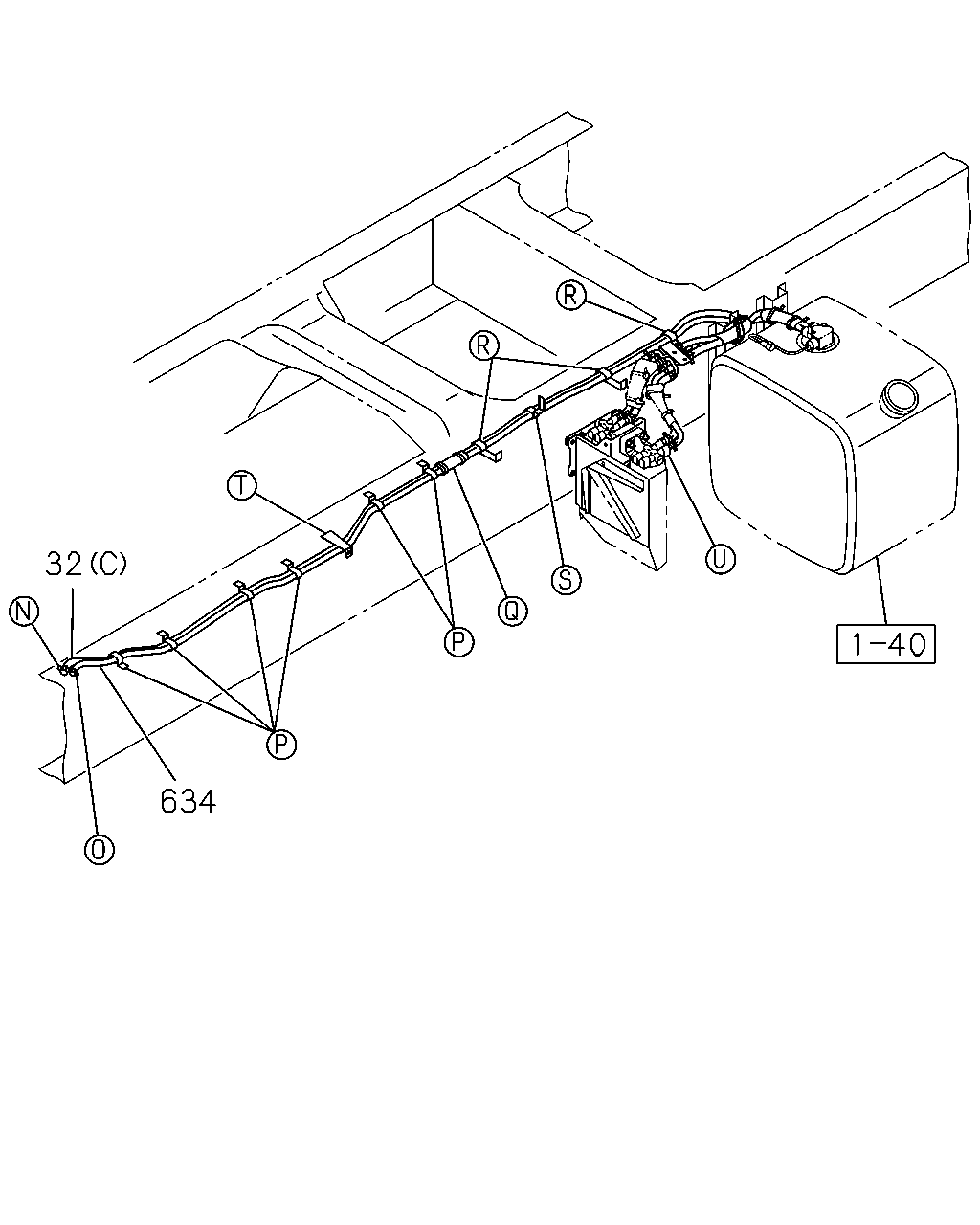

çizim 512473
32 634
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5700MM(57W) (D) 		8-98333-562-0 01 1 1512- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5700MM(57W) (C) 		8-98333-662-0 01 1 1512- ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1212-1511 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=3200 		8-98203-010-0 01 1 1212-1511 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=3200 		8-98203-010-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) L=3200 		8-98203-010-0 01 1 1512- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5700MM(57W) 		0-01859-340-0 01 1 1512- ● ●
634 HOSE; RUBBER RETURN 0-01859-365-0 01 1 1212-1511 ● ●
634 HOSE; RUBBER RETURN
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		0-01859-365-0 01 1 1512- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 		0-01859-365-0 01 1 1512- ●

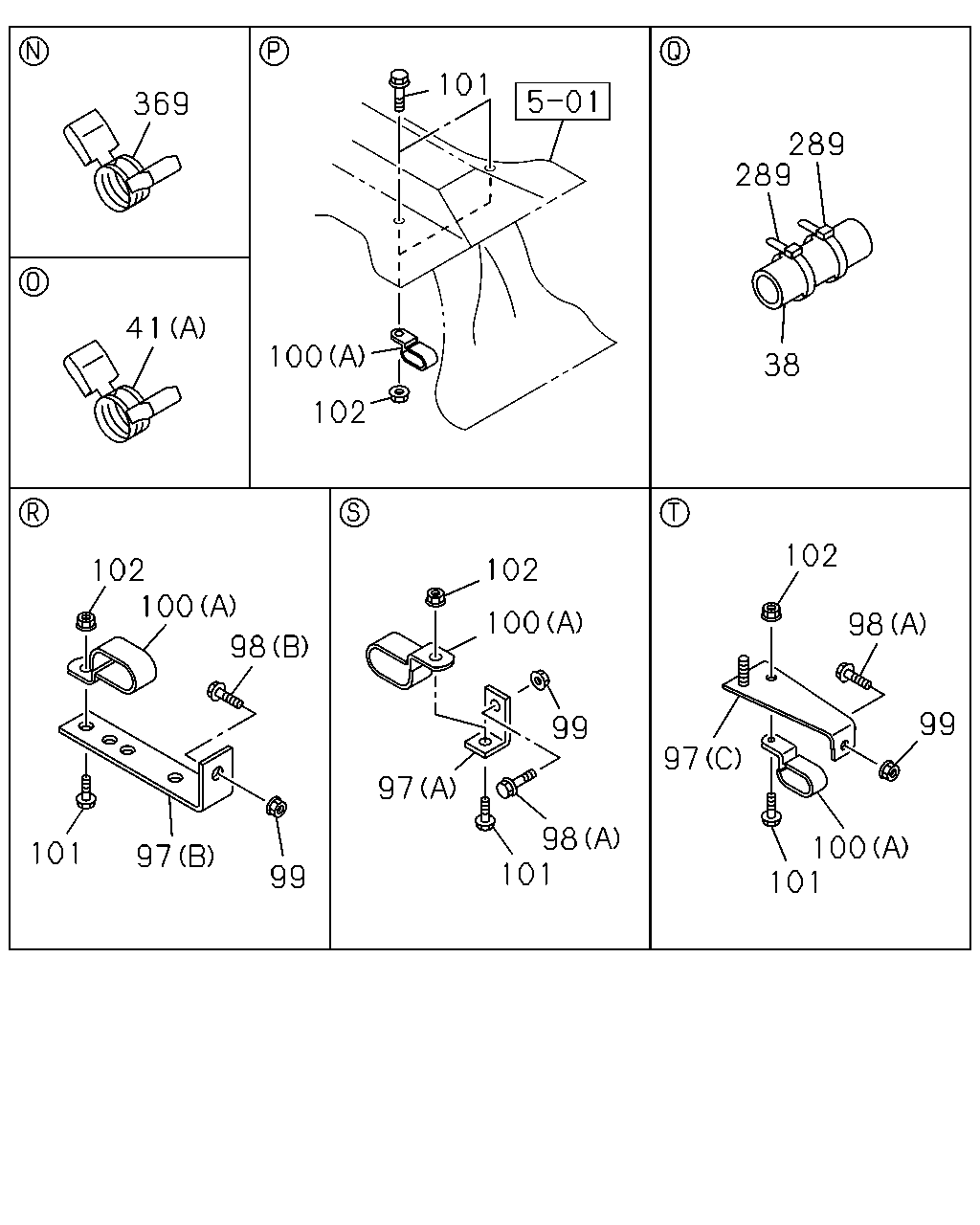

çizim 512552
369 41 102 100 98 99 97 101 102 100 99 97 98 101 100 102 101 289 289 38 102 98 99 100 101 97
BalonParca AdiParca NoAdetTipApplied Date A B
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1512- ●
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1512- ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1212-1511 ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 5700MM(57W) L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1512- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 		8-94238-568-0 04 1 1212- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1212- ● ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (F) 		8-98186-647-0 01 1 1512- ● ●
97 BRACKET; CLIP
(E) L=68 		1-47475-525-0 01 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) L=68 		1-47475-525-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) L=68 		1-47475-525-0 01 1 1512- ●
97 BRACKET; CLIP
(C) 		8-97609-096-0 01 1 1212- ● ●
97 BRACKET; CLIP
(D) 		8-98186-869-0 01 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) 		8-98186-869-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) 		8-98186-869-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1212-1302 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1303-1511 ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) L=55 		1-47475-304-0 01 1 1303-1511 ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 7300MM(73W) (A) L=55 		1-47475-304-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (B) 		1-82698-358-0 04 1 1212-1302 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (B) 		1-82698-358-0 04 1 1303- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (B) 		1-82698-358-0 04 1 1303- ●
97 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) L=55 		1-47475-304-0 02 1 1212- ● ●
97 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (B) 		1-82698-358-0 03 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) (B) 		1-82698-358-0 03 1 1512- ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 5700MM(57W) (B) M8X30 FLANGE 		0-28650-830-0 04 1 1512- ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1212-1302 ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1303-1511 ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1303-1511 ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 7300MM(73W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1512- ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W) (B) M8X30 FLANGE 		0-28650-830-0 06 1 1212-1302 ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W) (B) M8X30 FLANGE 		0-28650-830-0 06 1 1303- ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (B) M8X30 FLANGE 		0-28650-830-0 06 1 1303- ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6600MM(66W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1212- ● ●
98 BOLT; BRKT,FUEL PIPE
WHEEL BASE 6600MM(66W) (B) M8X30 FLANGE 		0-28650-830-0 05 1 1212- ● ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 06 1 1212-1302 ● ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 6400MM(64W) M8 FLANGE 		0-91180-108-0 06 1 1303- ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 06 1 1303- ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1212-1511 ● ●
99 NUT; BRKT,CLIP,FUEL TANK
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 05 1 1512- ● ●
100 CLIP; FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 09 1 1512- ●
100 CLIP; FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 09 1 1512- ●
100 CLIP; FUEL PIPE
(A) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 09 1 1212-1511 ● ●
100 CLIP; FUEL PIPE
WHEEL BASE 5700MM(57W) (A) ID=19X35 H=17.5 L=22.5 		8-98202-740-0 11 1 1512- ● ●
100 CLIP; FUEL PIPE
(B) ID=19X35 H=17.5 L=47.5 		8-98202-741-0 04 1 1212-1511 ● ●
100 CLIP; FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=19X35 H=17.5 L=47.5 		8-98202-741-0 04 1 1512- ●
100 CLIP; FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=19X35 H=17.5 L=47.5 		8-98202-741-0 04 1 1512- ●
101 BOLT; CLIP,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 10 1 1512- ●
101 BOLT; CLIP,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X20 FLANGE 		0-28650-820-0 10 1 1512- ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 10 1 1212-1511 ● ●
101 BOLT; CLIP,FUEL PIPE
WHEEL BASE 5700MM(57W) M8X20 FLANGE 		0-28650-820-0 08 1 1512- ● ●
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1212- ● ●
102 NUT; CLIP,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 13 1 1512- ●
102 NUT; CLIP,FUEL PIPE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE 		0-91180-108-0 13 1 1512- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 13 1 1212-1511 ● ●
102 NUT; CLIP,FUEL PIPE
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 11 1 1512- ● ●
289 CLIP; BAND,HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=250 		5-09707-030-1 04 1 1512- ●
289 CLIP; BAND,HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=250 		5-09707-030-1 04 1 1512- ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 1212-1511 ● ●
289 CLIP; BAND,HOSE
WHEEL BASE 5700MM(57W) L=250 		5-09707-030-1 06 1 1512- ● ●
369 CLAMP; HOSE,FUEL
ID=19 		8-94238-569-0 04 1 1212- ● ●

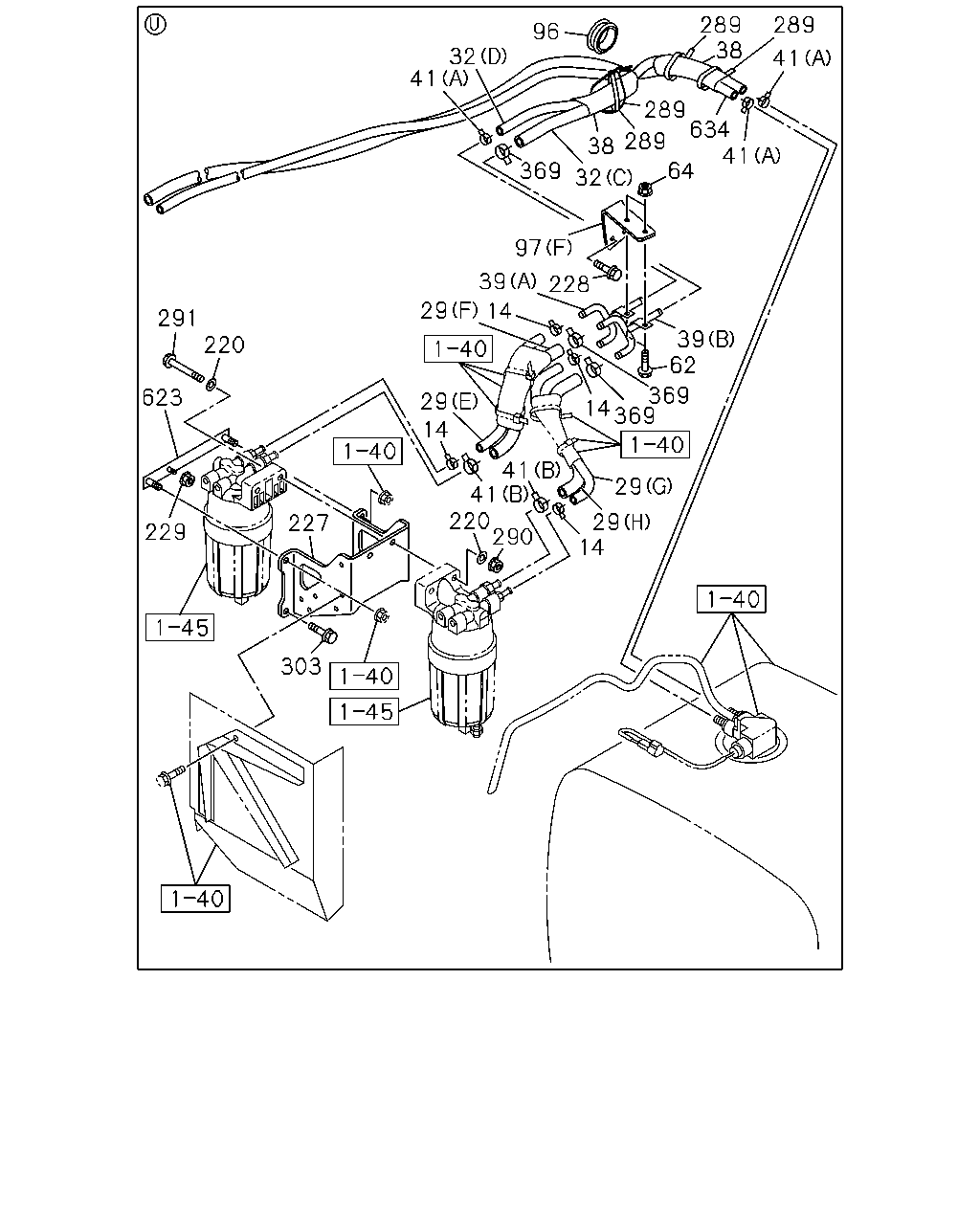

çizim 513320
291 623 220 229 303 227 29 41 14 220 290 14 41 29 29 369 14 369 62 39 29 14 39 97 228 32 96 41 369 38 289 64 289 32 41 634 41 289 289 38
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; HOSE
ID=16 		8-94238-568-0 04 1 1212- ● ●
29 HOSE; FUEL
WHEEL BASE 5700MM(57W) (E) 		8-98202-627-0 01 1 1512- ● ●
29 HOSE; FUEL
WHEEL BASE 5700MM(57W) (G) 		8-98202-628-0 01 1 1512- ● ●
29 HOSE; FUEL
WHEEL BASE 5700MM(57W) (F) 		8-98202-629-0 01 1 1512- ● ●
29 HOSE; FUEL
WHEEL BASE 5700MM(57W) (H) 		8-98202-630-0 01 1 1512- ● ●
29 HOSE; FUEL
(B) 		8-98202-997-0 01 1 1212-1511 ● ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) 		8-98202-997-0 01 1 1512- ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) 		8-98202-997-0 01 1 1512- ●
29 HOSE; FUEL
(C) 		8-98203-000-0 01 1 1212-1511 ● ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) 		8-98203-000-0 01 1 1512- ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) 		8-98203-000-0 01 1 1512- ●
29 HOSE; FUEL
(D) 		8-98203-004-0 01 1 1212-1511 ● ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) 		8-98203-004-0 01 1 1512- ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) 		8-98203-004-0 01 1 1512- ●
29 HOSE; FUEL
(A) 		8-98203-005-0 01 1 1212-1511 ● ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) 		8-98203-005-0 01 1 1512- ●
29 HOSE; FUEL
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) 		8-98203-005-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5700MM(57W) (D) 		8-98333-562-0 01 1 1512- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 5700MM(57W) (C) 		8-98333-662-0 01 1 1512- ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1212-1511 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=580 SERVICED BY L=3000 		0-01859-300-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=3200 		8-98203-010-0 01 1 1212-1511 ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=3200 		8-98203-010-0 01 1 1512- ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) L=3200 		8-98203-010-0 01 1 1512- ●
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1512- ●
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1512- ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1212-1511 ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
WHEEL BASE 5700MM(57W) L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1512- ● ●
39 PIPE; FUEL
(A) 		8-98186-862-1 01 1 1212- ● ●
39 PIPE; FUEL
(B) 		8-98186-864-1 01 1 1212- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=16 		8-94238-568-0 04 1 1212- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1212- ● ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1212- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
96 GROMMET; PIPE,FUEL TANK
ID=39 OD=45 T=19 		1-09332-077-0 01 1 1212- ● ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W) (F) 		8-98186-647-0 01 1 1512- ● ●
97 BRACKET; CLIP
(E) L=68 		1-47475-525-0 01 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) L=68 		1-47475-525-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) L=68 		1-47475-525-0 01 1 1512- ●
97 BRACKET; CLIP
(C) 		8-97609-096-0 01 1 1212- ● ●
97 BRACKET; CLIP
(D) 		8-98186-869-0 01 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) 		8-98186-869-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) 		8-98186-869-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1212-1302 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1303-1511 ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) L=55 		1-47475-304-0 01 1 1303-1511 ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W) (A) L=55 		1-47475-304-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 7300MM(73W) (A) L=55 		1-47475-304-0 01 1 1512- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (B) 		1-82698-358-0 04 1 1212-1302 ● ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W) (B) 		1-82698-358-0 04 1 1303- ●
97 BRACKET; CLIP
WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (B) 		1-82698-358-0 04 1 1303- ●
97 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (A) L=55 		1-47475-304-0 02 1 1212- ● ●
97 BRACKET; CLIP
WHEEL BASE 6600MM(66W) (B) 		1-82698-358-0 03 1 1212-1511 ● ●
97 BRACKET; CLIP
WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) (B) 		1-82698-358-0 03 1 1512- ● ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 04 1 1212- ● ●
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 5700MM(57W) 		8-98331-075-0 01 1 1512- ● ●
227 BRACKET; FUEL SEDIMENTER 8-98184-812-0 01 1 1212-1511 ● ●
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		8-98184-812-0 01 1 1512- ●
227 BRACKET; FUEL SEDIMENTER
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 		8-98184-812-0 01 1 1512- ●
228 BOLT; BRKT,SEDIMENTER
M8X30 FLANGE 		0-28650-830-0 02 1 1212- ● ●
229 NUT; BRKT,FUEL FILTER
WHEEL BASE 5700MM(57W) M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
289 CLIP; BAND,HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) L=250 		5-09707-030-1 04 1 1512- ●
289 CLIP; BAND,HOSE
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) L=250 		5-09707-030-1 04 1 1512- ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 1212-1511 ● ●
289 CLIP; BAND,HOSE
WHEEL BASE 5700MM(57W) L=250 		5-09707-030-1 06 1 1512- ● ●
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1212- ● ●
291 BOLT; FILER TO BRKT
M10X90 FLANGE 		0-28051-090-0 02 1 1212- ● ●
303 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M10X40 FLANGE 		0-28051-040-0 04 1 1512- ●
303 BOLT; BRKT
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M10X40 FLANGE 		0-28051-040-0 04 1 1512- ●
303 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 04 1 1212-1511 ● ●
303 BOLT; BRKT
WHEEL BASE 5700MM(57W) M10X40 FLANGE 		0-28051-040-0 02 1 1512- ● ●
369 CLAMP; HOSE,FUEL
ID=19 		8-94238-569-0 04 1 1212- ● ●
623 PLATE; STUD BOLT
WHEEL BASE 5700MM(57W) 		8-98331-078-0 01 1 1512- ● ●
634 HOSE; RUBBER RETURN
WHEEL BASE 5700MM(57W) 		0-01859-340-0 01 1 1512- ● ●
634 HOSE; RUBBER RETURN 0-01859-365-0 01 1 1212-1511 ● ●
634 HOSE; RUBBER RETURN
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 		0-01859-365-0 01 1 1512- ●
634 HOSE; RUBBER RETURN
WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 		0-01859-365-0 01 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
