2-85 — POWER TAKE OFF CONTROL (#11105) — 18 parça

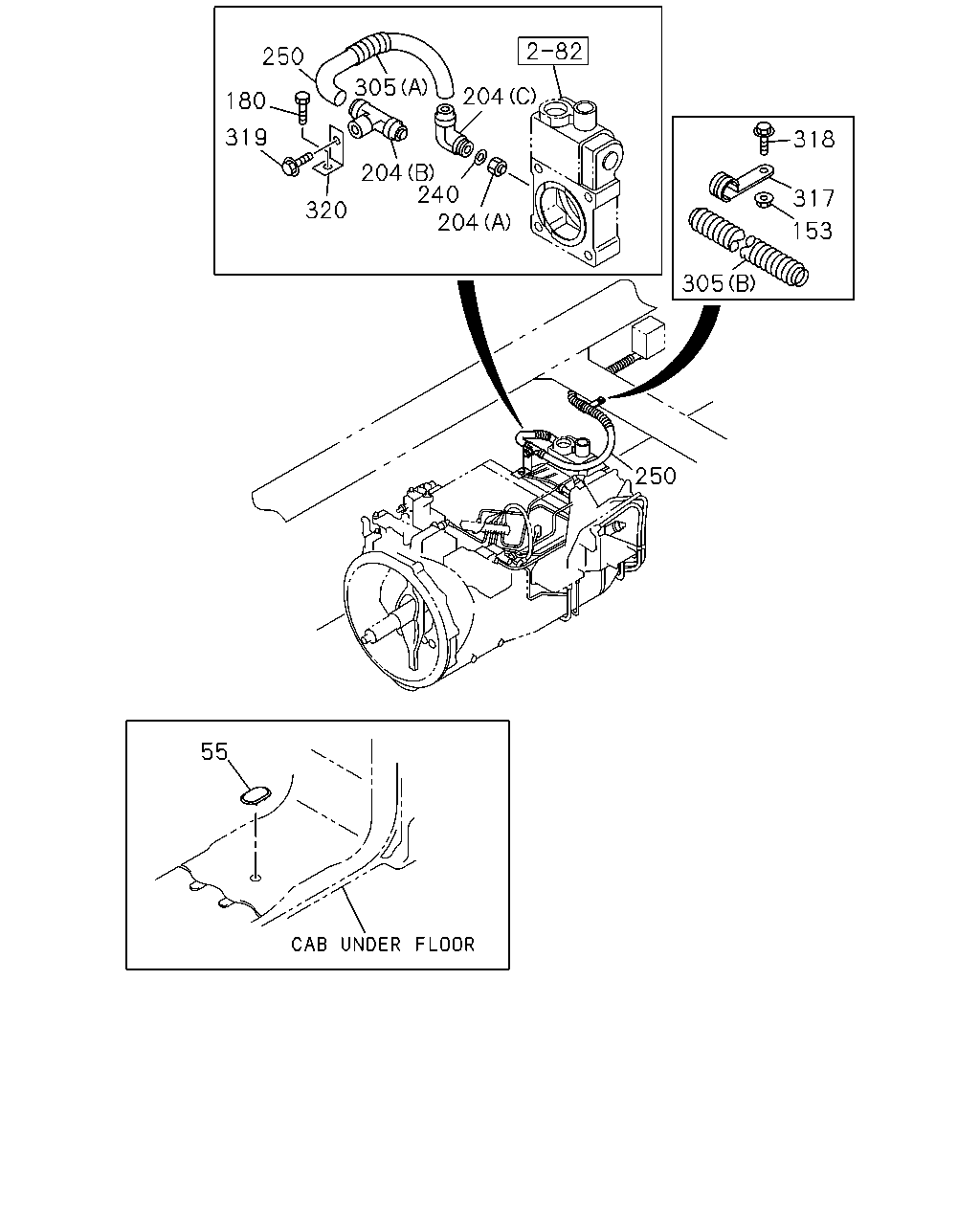

çizim 75615
250 305 180 319 318 204 240 204 317 320 153 305 250 55 204
BalonParca AdiParca NoAdetTipApplied Date
55 GROMMET; CABLE 1-09983-068-0 01 1 0106-
153 NUT; CLIP
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91150-108-0 01 1 0106-
180 BOLT; BRKT
PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28881-625-0 01 1 0106-
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (A) 		1-09654-396-0 01 1 0106-
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (B) 		1-09660-788-0 01 1 0106-
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0106-
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 0106-
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0106-0108
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) L=2000 OD=8 		1-87410-073-0 01 1 0106-0108
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0109-0212
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
250 TUBE; NYLON
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0109-
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) (A) L=150 SERVICED BY L=800 		1-83129-031-1 01 1 0106-
305 TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) L=2000 ID=10 		1-87410-088-0 01 1 0106-
317 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ID=14.5 L=40 		1-09701-014-0 01 1 0106-
318 BOLT; CLIP
PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28680-825-0 01 1 0106-
319 BOLT; CONNECTOR
PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28080-816-0 01 1 0106-
320 BRACKET; UNION
PTO ZF TRANS RR(BDM) 		1-47478-250-0 01 1 0106-
