Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10872 - EXZ LHD FUEL TANK 400L/400L+400L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53B - TRANSMISSION OIL COOLER SYSTEM
▶
2-53B — TRANSMISSION OIL COOLER SYSTEM
(#11103) — 43 parça
Tümü
A - TRANSMISSION-FULLER RTLO149 13
B - TRANSMISSION-FULLER RTLO169 13
◀

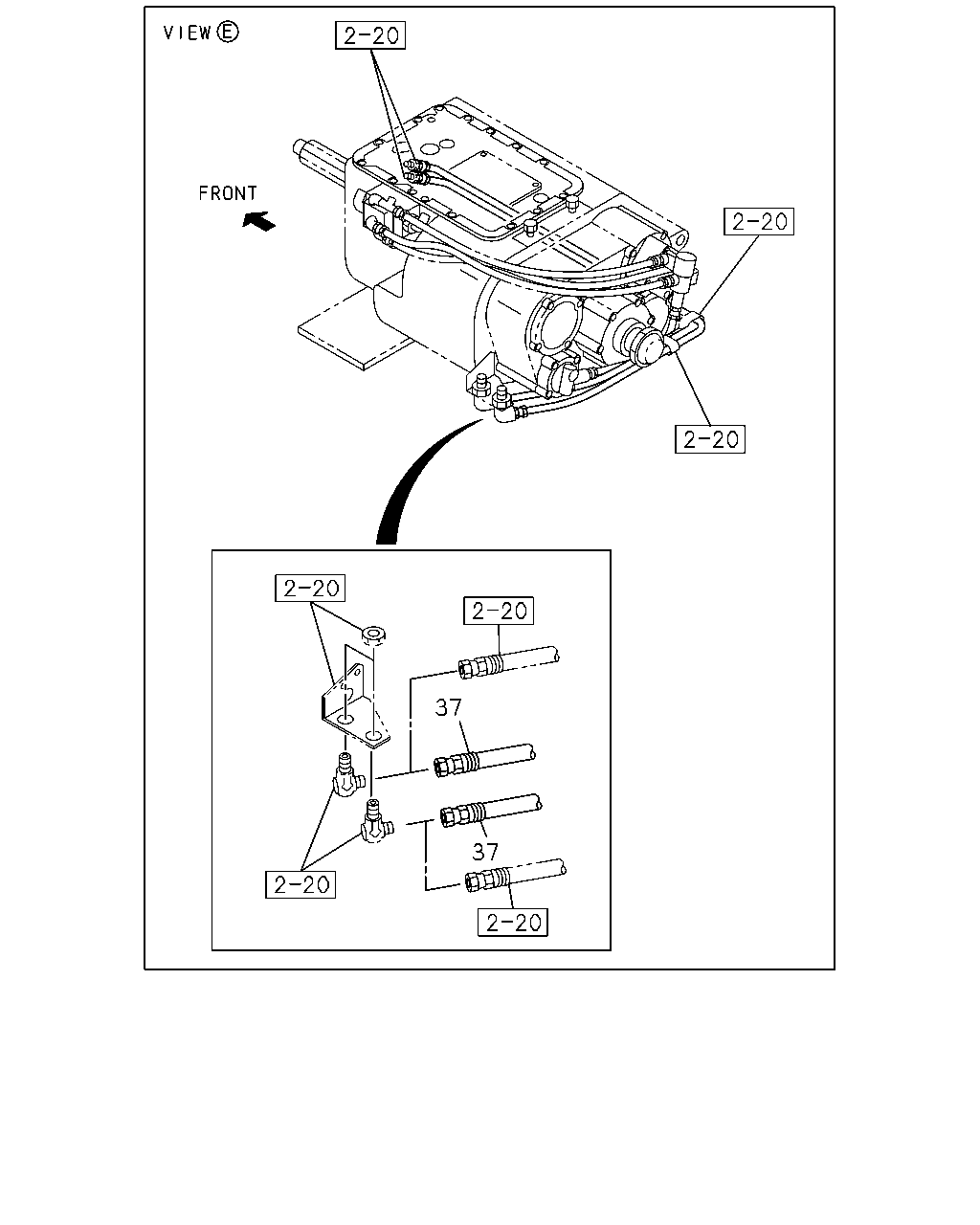

[253B] TRANSMISSION SIDE (1 parça)

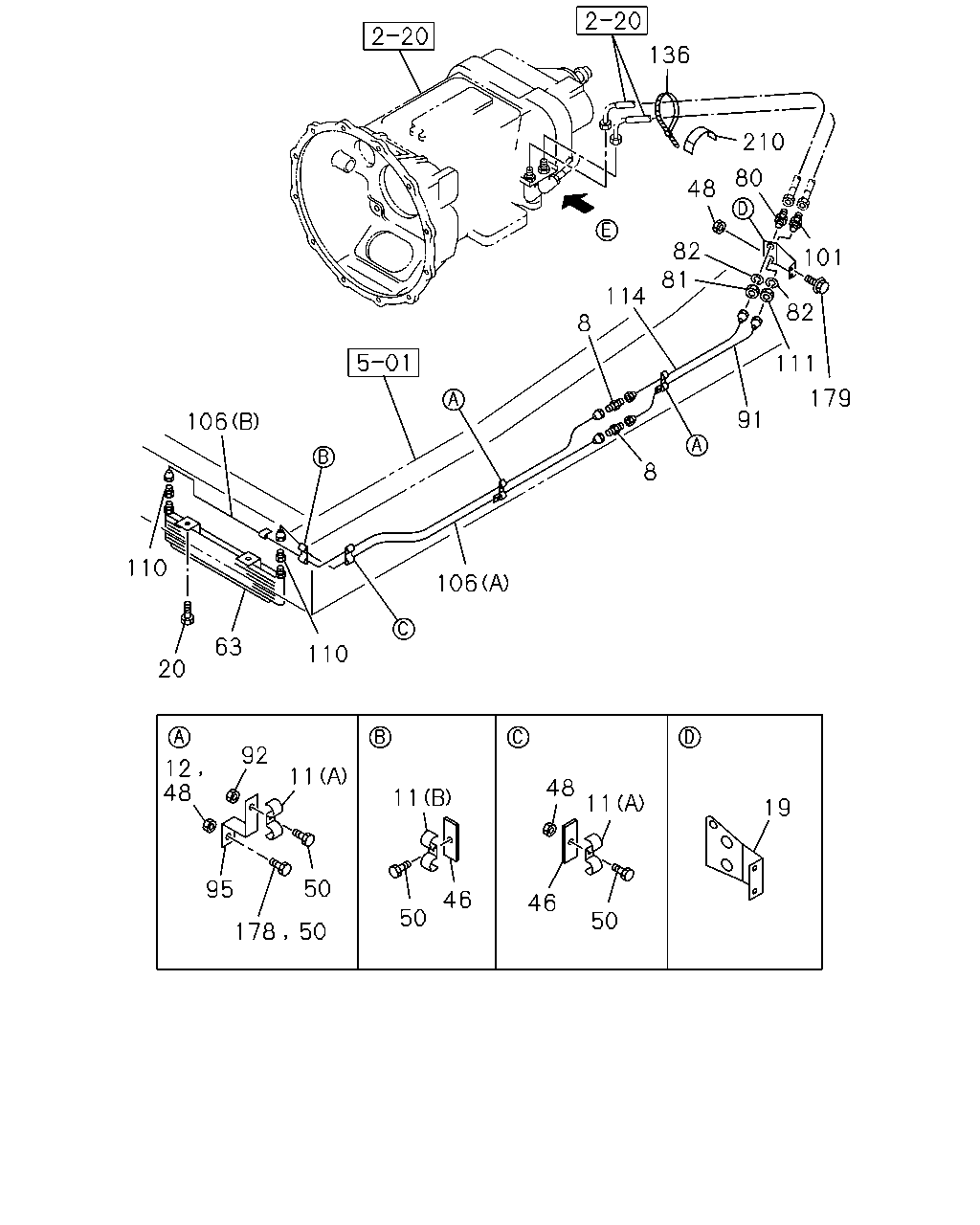

[253B] FRAME SIDE (42 parça)
▶
37
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
HOSE; FLEX,OIL COOLER PIPE TO A/T
L=1120
1-09365-010-0
02
1
0106-0309
●
●
136
210
80
48
82
81
101
114
82
8
111
179
91
106
8
110
106
63
110
20
92
12
48
11
48
11
11
19
50
95
46
46
50
50
178
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
UNION
M22
9-09233-015-1
02
1
0106-
●
●
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0106-
●
●
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
02
1
0106-
●
●
11
CLIP; PIPE
(B) ID=16 & 9 L=21 & 18
1-09700-676-0
01
1
0106-
●
●
12
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0106-
●
●
19
BRACKET; FLEX HOSE
1-47478-566-0
01
1
0106-
●
●
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28081-020-0
02
1
0106-
●
●
46
BRACKET; OIL PIPE
L=50
1-47475-299-2
02
1
0106-
●
●
48
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0106-
●
●
50
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
02
1
0106-
●
●
50
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0106-0106
●
●
50
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0106-0106
●
●
50
BOLT; CLIP
M8X30 FLANGE
0-28680-830-0
01
1
0106-
●
●
63
COOLER; OIL
1-21700-290-0
01
1
0106-
●
●
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-1
01
1
0106-
●
●
81
NUT; UNION
M22
9-09111-422-0
01
1
0106-
●
●
82
WASHER; LK,UNION
ID=22.5
9-09150-522-0
01
1
0106-
●
●
82
WASHER; LK,UNION
ID=22.5
9-09150-522-0
01
1
0106-
●
●
91
PIPE; OIL,FLEX HOSE TO UNION
L=837
1-49163-182-0
01
1
0106-0106
●
●
91
PIPE; OIL,FLEX HOSE TO UNION
L=832
1-49166-225-0
01
1
0107-
●
●
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0106-0106
●
●
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0106-0106
●
●
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0107-
●
●
92
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0107-
●
●
95
BRACKET; CLIP
1-47475-881-0
01
1
0106-0106
●
●
95
BRACKET; CLIP
1-47475-881-0
01
1
0106-0106
●
●
95
BRACKET; CLIP
1-47477-669-1
01
1
0107-
●
●
95
BRACKET; CLIP
1-47477-669-1
01
1
0107-
●
●
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-1
01
1
0106-
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=2317
1-49164-311-0
01
1
0106-0106
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=2324
1-49166-216-0
01
1
0107-0206
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=2305
1-49166-669-0
01
1
0207-
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=1703
1-49164-312-0
01
1
0106-0106
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=1695
1-49166-217-0
01
1
0107-
●
●
110
UNION; OIL PIPE
1-09654-398-0
02
1
0106-
●
●
111
NUT; UNION
M22
9-09111-422-0
01
1
0106-
●
●
114
PIPE; OIL,UNION TO FLEX HOSE
L=998
1-49163-183-0
01
1
0106-0106
●
●
114
PIPE; OIL,UNION TO FLEX HOSE
L=998
1-49166-226-0
01
1
0107-
●
●
136
CLIP; FLEX HOSE
L=250
1-09707-126-0
01
1
0106-
●
●
178
BOLT; BRKT,CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0106-
●
●
179
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0106-
●
●
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0106-
●
●
