2-53A — TRANSMISSION OIL COOLER SYSTEM (#11102) — 35 parça

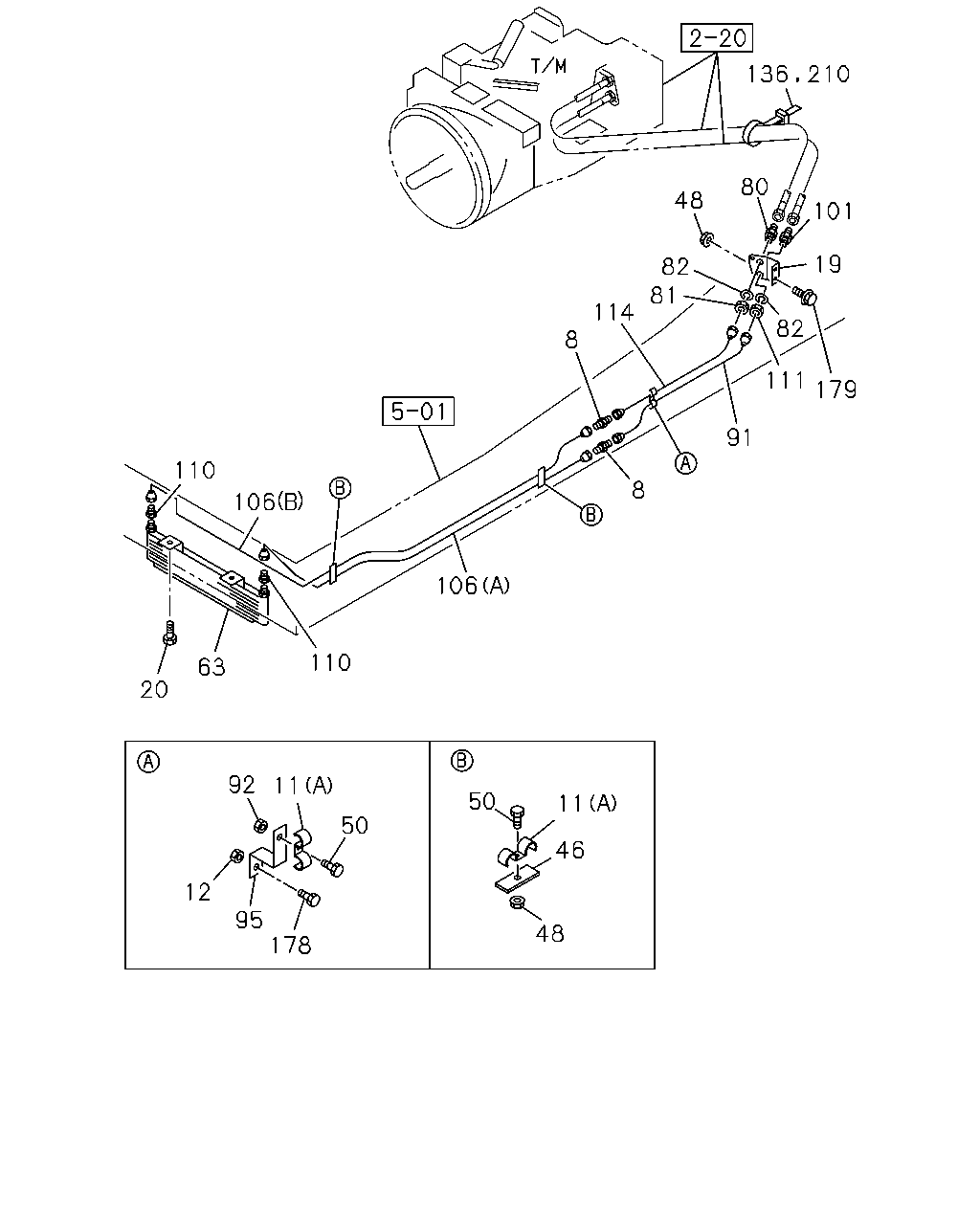

çizim 75738
80 48 101 19 82 81 114 82 8 111 179 91 110 8 106 106 110 63 20 92 11 50 11 50 46 12 95 178 48 136 210
BalonParca AdiParca NoAdetTipApplied Date A B
8 UNION
M22 		9-09233-015-1 02 1 0106- ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0106- ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0106- ● ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0106- ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0106- ● ●
46 BRACKET; OIL PIPE
L=50 		1-47475-299-2 02 1 0106- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0106- ● ●
50 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0106- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106 ● ●
63 COOLER; OIL 1-21700-290-0 01 1 0106- ● ●
80 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0106- ● ●
81 NUT; UNION
M22 		9-09111-422-0 01 1 0106- ● ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0106- ● ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0106- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=911 		1-49163-072-0 01 1 0106-0106 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION 1-49166-215-0 01 1 0107- ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107- ● ●
95 BRACKET; CLIP 1-47475-881-0 01 1 0106-0106 ● ●
95 BRACKET; CLIP 1-47477-669-1 01 1 0107- ● ●
101 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0106- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=2317 		1-49164-311-0 01 1 0106-0106 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=2324 		1-49166-216-0 01 1 0107-0206 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=2305 		1-49166-669-0 01 1 0207- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1703 		1-49164-312-0 01 1 0106-0106 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1695 		1-49166-217-0 01 1 0107- ● ●
110 UNION; OIL PIPE 1-09654-398-0 02 1 0106- ● ●
111 NUT; UNION
M22 		9-09111-422-0 01 1 0106- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=1071 		1-49163-073-0 01 1 0106-0106 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=1073 		1-49166-218-0 01 1 0107- ● ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0106- ● ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0106- ● ●
