Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#111010) — 72 parça
◀
[801A] FIXING;FRONT LAMP (19 parça)
[801A] OTHER LAMP (13 parça)
[801A] COMPONENT;HEAD LAMP (21 parça)
[801A] COMPONENT;TURN SIGNAL,FOG LAMP (19 parça)
▶

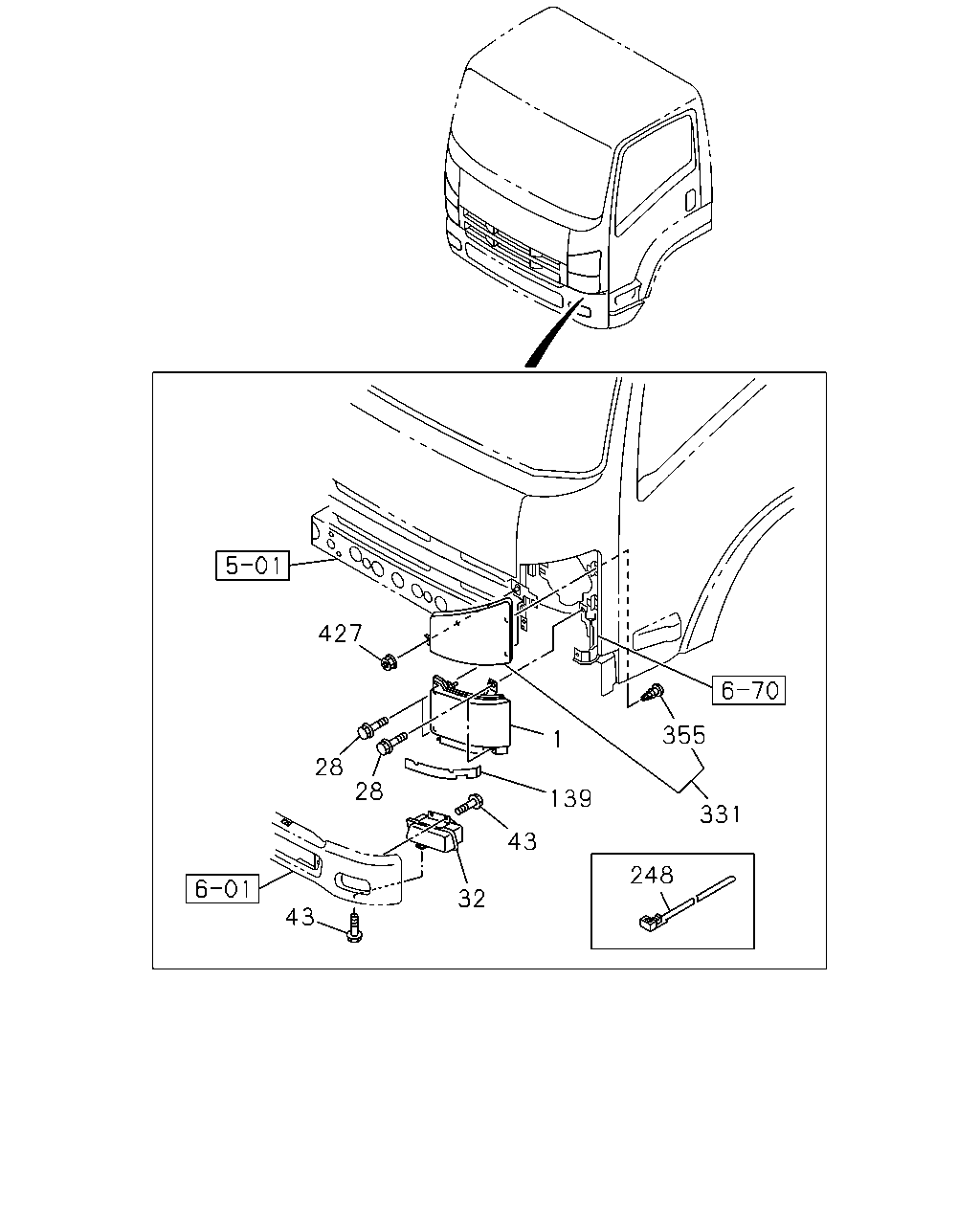

1
139
355
331
248
43
32
28
28
427
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98225-598-0
01
1
1212-1301
1
LAMP ASM; HEAD
8-98225-639-0
01
1
1302-1305
1
LAMP ASM; HEAD
8-98241-324-0
01
1
1306-
1
LAMP ASM; HEAD
8-98225-597-0
01
1
1212-1301
1
LAMP ASM; HEAD
8-98225-638-0
01
1
1302-1305
1
LAMP ASM; HEAD
8-98241-323-0
01
1
1306-
28
BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1212-
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98149-144-1
01
1
1212-1301
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-059-1
01
1
1302-
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98149-143-1
01
1
1212-1301
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-058-1
01
1
1302-
43
BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER
8-97360-226-0
06
1
1212-
139
COVER; HEADLAMP
8-98054-342-0
02
1
1212-
248
CLIP; HARNESS
EXC. FOG LAMP<T96> L=140
5-09707-031-1
02
1
1212-
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1212-
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1212-
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1212-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1212-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1212-

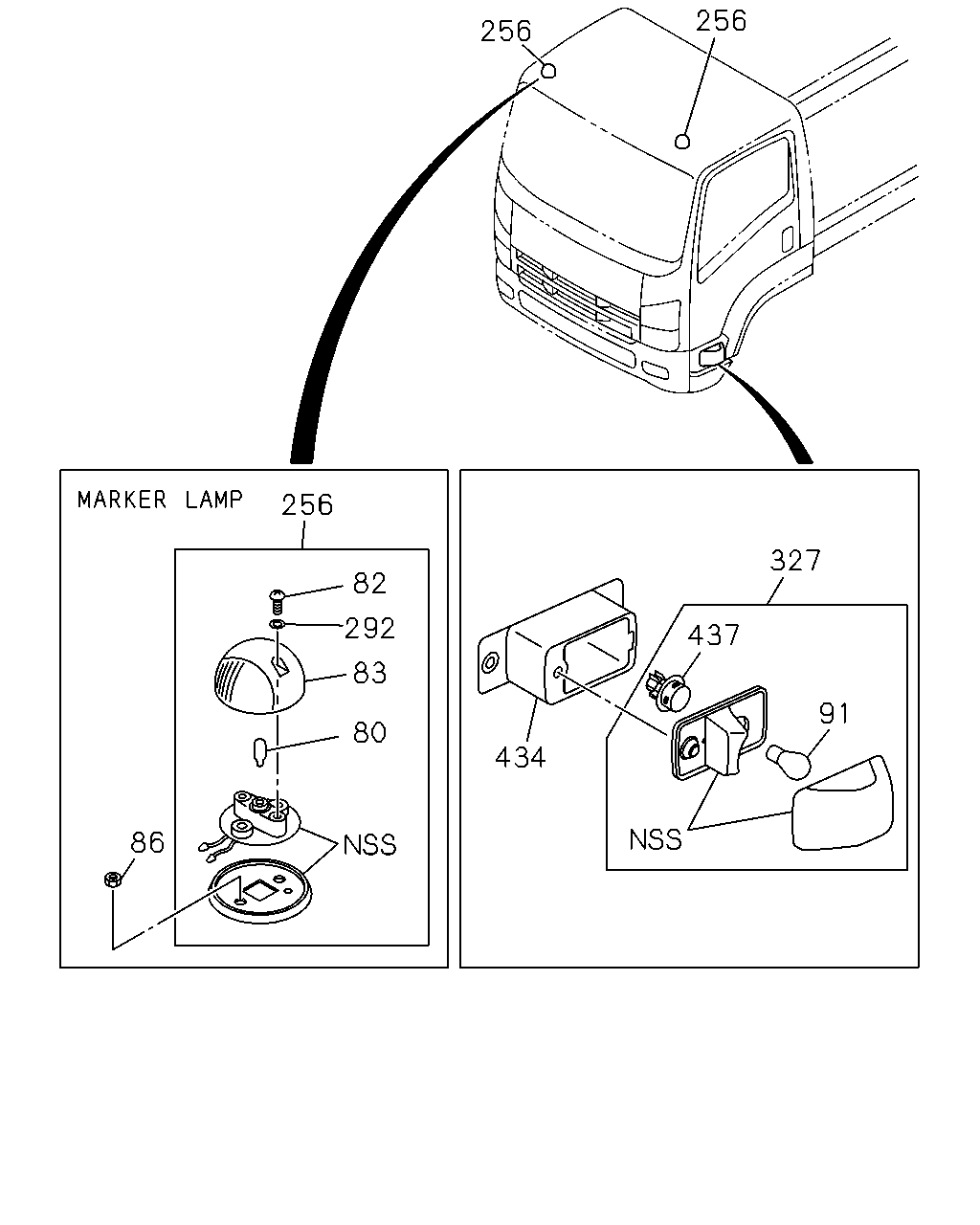

256
256
327
437
91
434
256
82
292
83
80
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
BULB; MARKER LAMP
24V 5W
8-94135-397-0
02
1
1212-
82
SCREW; MARKER LAMP
1-82219-011-0
04
1
1212-
83
LENS; MARKER LAMP
8-98057-958-0
02
1
1212-
86
NUT; MARKER LAMP
M6 FLANGE
0-91180-106-0
04
1
1212-
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1212-
256
LAMP; MARKER
8-98097-467-3
01
1
1212-
256
LAMP; MARKER
8-98097-466-3
01
1
1212-
292
WASHER; MARKER LAMP
1-82219-012-0
04
1
1212-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1212-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1212-
434
BASE; LAMP,SIDE TURN SIGNAL
8-98063-727-1
01
1
1212-
434
BASE; LAMP,SIDE TURN SIGNAL
8-98063-726-1
01
1
1212-
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1212-
1
4
338
20
420
408
339
23
5
457
382
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98225-598-0
01
1
1212-1301
1
LAMP ASM; HEAD
8-98225-639-0
01
1
1302-1305
1
LAMP ASM; HEAD
8-98241-324-0
01
1
1306-
1
LAMP ASM; HEAD
8-98225-597-0
01
1
1212-1301
1
LAMP ASM; HEAD
8-98225-638-0
01
1
1302-1305
1
LAMP ASM; HEAD
8-98241-323-0
01
1
1306-
4
HEADLAMP UNIT
8-98051-405-0
01
1
1212-1301
4
HEADLAMP UNIT
8-98226-185-0
01
1
1302-
4
HEADLAMP UNIT
8-98051-404-0
01
1
1212-1301
4
HEADLAMP UNIT
8-98226-184-0
01
1
1302-
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1212-
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1212-
20
SCREW; HEADLAMP
8-97378-871-0
06
1
1212-
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1212-
338
LEVELING; HEADLAMP
8-98010-256-0
02
1
1212-
339
GASKET; LEVELING
1-86830-158-0
02
1
1212-
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1212-
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1212-
420
SPRING; BULB,HEADLAMP
8-97378-875-0
02
1
1212-1301
420
SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1302-
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1306-
331
431
357
399
355
432
32
36
448
15
44
47
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BULB; FOG LAMP
FOG LAMP<T96> 24V 70W
1-82194-106-0
02
1
1212-
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98149-144-1
01
1
1212-1301
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-059-1
01
1
1302-
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98149-143-1
01
1
1212-1301
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-058-1
01
1
1302-
36
CORD; FOG LAMP
FOG LAMP<T96>
1-82118-016-0
01
1
1212-
36
CORD; FOG LAMP
FOG LAMP<T96>
1-82118-015-0
01
1
1212-
44
NUT; FOG LAMP
FOG LAMP<T96> M6
8-98217-430-0
02
1
1212-
47
WASHER; PL,FOG LAMP
FOG LAMP<T96>
8-98217-429-0
02
1
1212-
49
BRACKET; LAMP
FOG LAMP<T96>
8-98051-435-0
01
1
1212-
49
BRACKET; LAMP
FOG LAMP<T96>
8-98051-436-0
01
1
1212-
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1212-
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1212-
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1212-
357
BULB; TURN SIGNAL
24V 21W AMBER
8-97323-806-0
02
1
1212-
399
SOCKET; TURN SIGNAL
8-98051-387-0
02
1
1212-
431
CAP; TURN SIGNAL,LAMP
8-97378-874-0
02
1
1212-
432
FASTENER; TURN SIGNAL,LAMP
8-98051-431-0
04
1
1212-
448
CAP ASM; LAMP
FOG LAMP<T96>
8-97378-874-0
02
1
1212-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
