2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#11101) — 85 parça

24 22 25 112 15 25 22 25 15 28 22 24 25 28 32 30 35 5 32 35 30 45 49 121 47 47 49 8 36 44 38 36 44 45 38 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0106-
6	ROD; LINK,3RD SELECT FULLER M/T<X9B> (C) L=1637	1-33652-980-1	01	1	0106-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0106-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (A) L=1454	1-33671-700-1	01	1	0106-
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> L=480	1-33652-730-0	01	1	0106-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=485	1-33652-859-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0106-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (A) L=423	1-33652-804-2	01	1	0106-
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-109-0	02	1	0106-
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-125-0	01	1	0106-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0106-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	02	1	0106-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	9-99111-412-0	02	1	0106-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0106-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0106-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0106-
36	JOINT; BALL,RIGHT SCREW,LINK ROD FULLER M/T<X9B>	1-09760-124-0	02	1	0106-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0106-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0106-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
44	NUT; LK,RIGHT SCREW,LINK ROD FULLER M/T<X9B> M10	9-09111-410-0	02	1	0106-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0106-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0106-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0106-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
121	BOLT; LINK ROD ZF M/T<X9E>	1-09044-103-0	02	1	0106-

24 112 22 25 15 25 22 25 15 28 24 22 25 28 32 30 35 5 32 35 30 45 49 8 47 47 36 44 49 45 6 38 38 36 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0106-
6	ROD; LINK,3RD SELECT FULLER M/T<X9B> (C) L=1637	1-33652-980-1	01	1	0106-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0106-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (A) L=1454	1-33671-700-1	01	1	0106-
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> L=480	1-33652-730-0	01	1	0106-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=485	1-33652-859-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0106-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (A) L=423	1-33652-804-2	01	1	0106-
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-109-0	02	1	0106-
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-125-0	01	1	0106-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0106-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M10	9-09111-410-0	02	1	0106-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M12	9-99111-412-0	02	1	0106-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0106-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0106-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0106-
36	JOINT; BALL,RIGHT SCREW,LINK ROD FULLER M/T<X9B>	1-09760-124-0	02	1	0106-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0106-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0106-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
44	NUT; LK,RIGHT SCREW,LINK ROD FULLER M/T<X9B> M10	9-09111-410-0	02	1	0106-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0106-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0106-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0106-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0106-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-

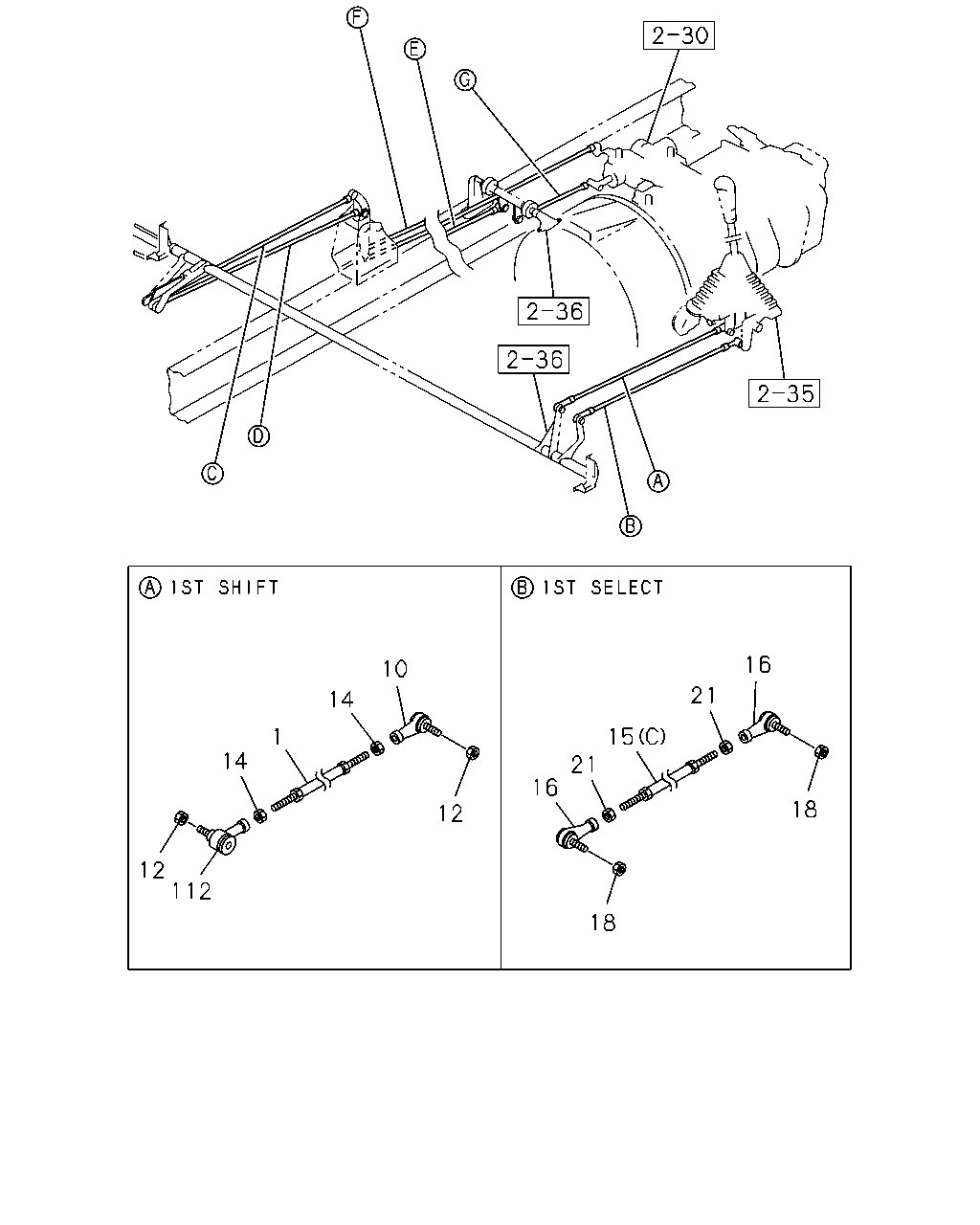

16 10 21 14 15 1 14 21 16 18 12 12 112 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0106-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0106-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0106-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0106-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0106-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (A) L=423	1-33652-804-2	01	1	0106-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0106-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0106-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-

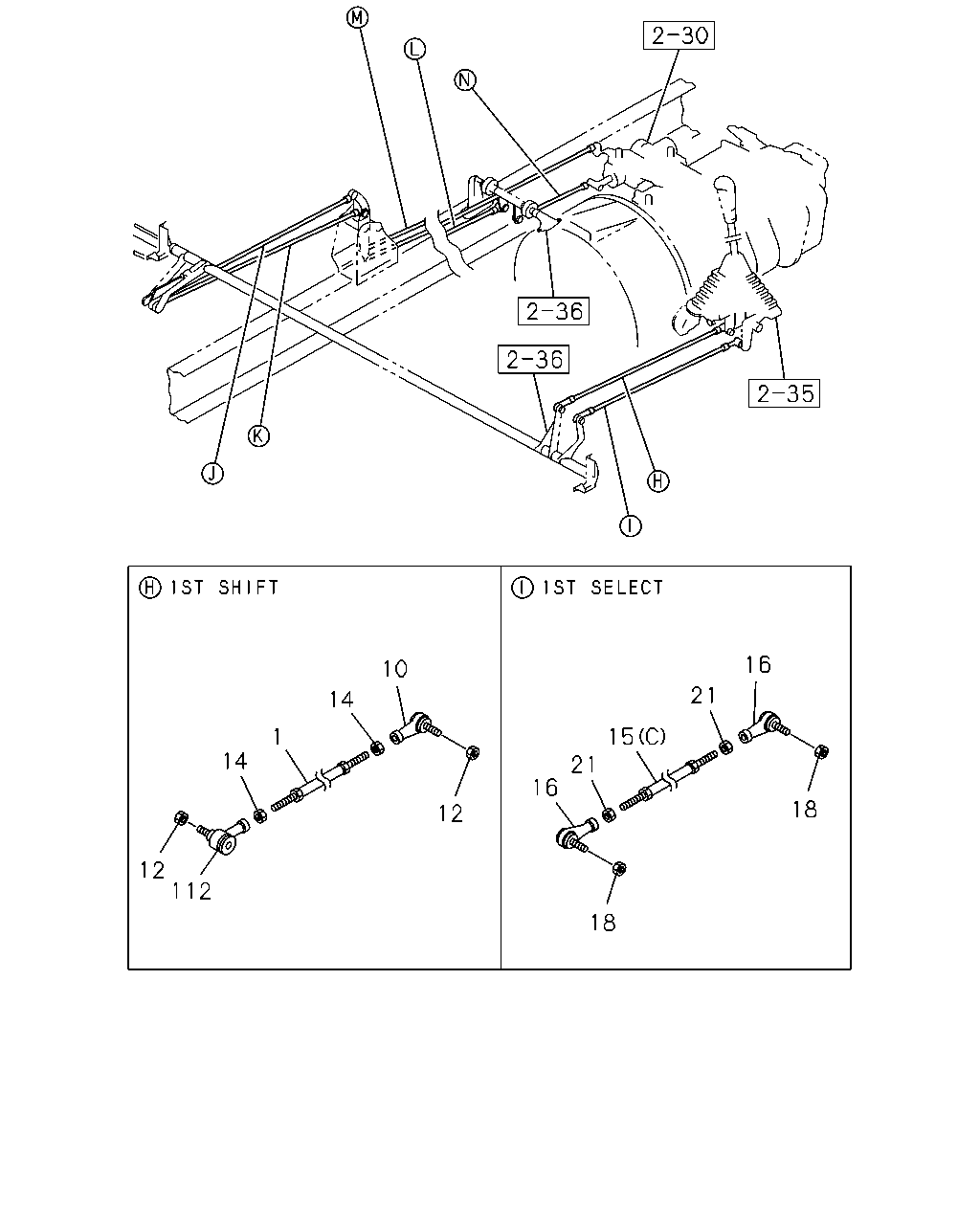

16 10 21 14 15 1 14 21 16 18 12 12 112 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0106-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0106-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0106-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0106-
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0106-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-1	01	1	0106-
15	ROD; LINK 1ST SHIFT (A) L=423	1-33652-804-2	01	1	0106-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0106-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0106-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
112	JOINT; RUBBER	1-33670-413-1	01	1	0106-
