Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

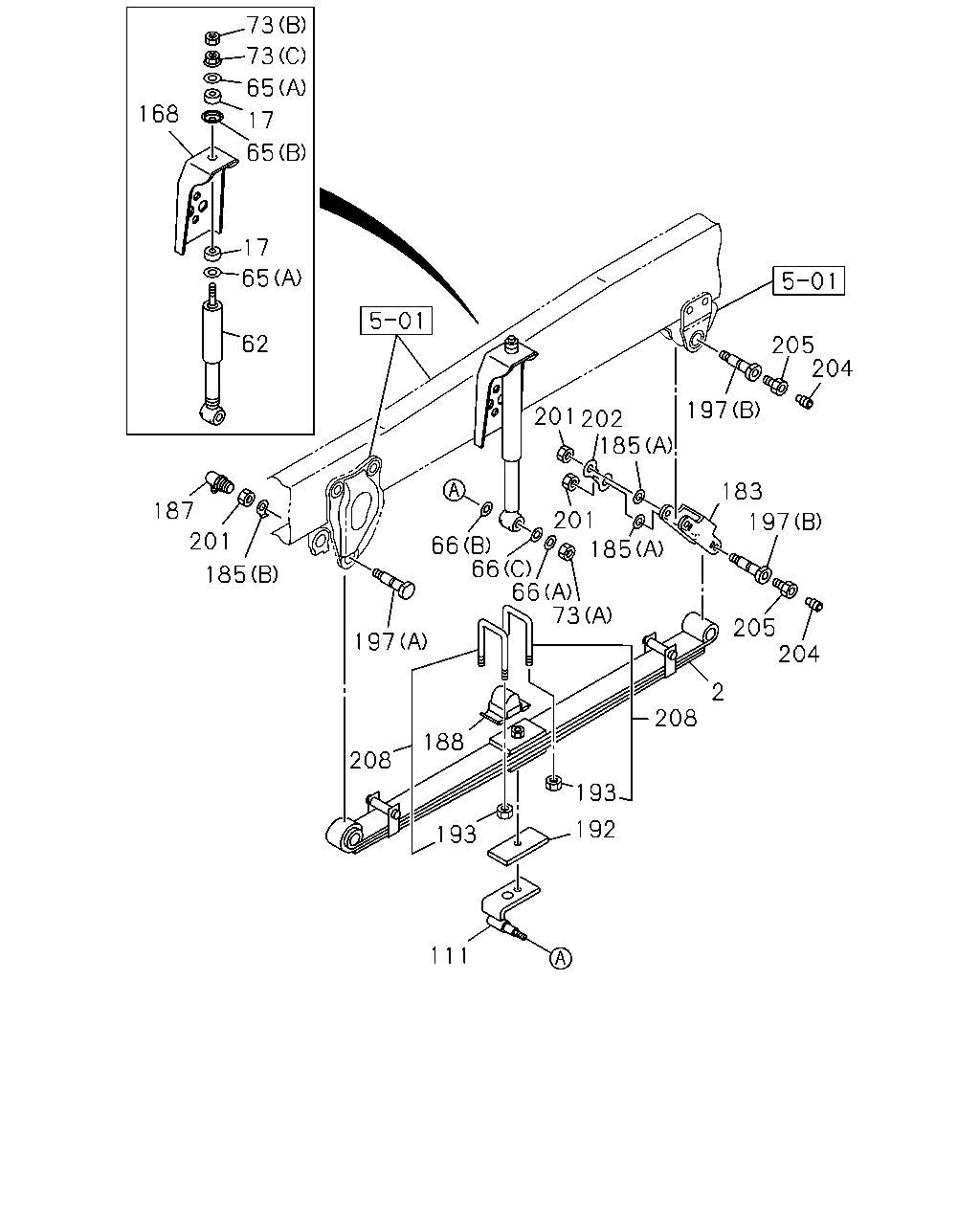

4-50 — FRONT SUSPENSION
(#111003) — 31 parça
111
193
188
208
192
193
208
2
204
205
197
183
204
205
197
201
202
185
201
185
73
66
66
66
197
185
20
187
62
65
17
168
65
17
65
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF
8-98111-361-0
01
1
1212-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF
8-98111-360-0
01
1
1212-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF
8-98017-555-0
01
1
1212-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF
8-98017-554-0
01
1
1212-
17
BUSHING; RUBBER,S/ABS
1-51631-004-0
04
1
1212-
62
ABSORBER ASM; SHOCK,FRT
8-98060-332-0
02
1
1212-
65
WASHER; S/ABS
(B)
1-51631-023-0
02
1
1212-
65
WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2
8-98010-405-0
04
1
1212-
66
WASHER; LK,S/ABS SETTING
(A) ID=12.2
0-91510-812-0
02
1
1212-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1212-
66
WASHER; LK,S/ABS SETTING
(C) ID=12.5
1-09503-171-0
02
1
1212-
73
NUT; BRKT,SHOCK
(A) M12
0-91110-512-0
02
1
1212-
73
NUT; BRKT,SHOCK
(B) M10
0-91111-510-0
02
1
1212-
73
NUT; BRKT,SHOCK
(C) M10 FLANGE
0-91180-210-0
02
1
1212-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-587-4
01
1
1212-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-586-4
01
1
1212-
168
BRACKET; S/ABS,FRT SUSP
8-98060-258-0
02
1
1212-
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
1212-
185
WASHER; LK,PIN
(A) ID=25.5
8-98010-404-0
04
1
1212-
185
WASHER; LK,PIN
(B) ID=23
8-98010-411-0
02
1
1212-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1212-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-112-0
02
1
1212-
192
PIECE; DIST
T=4.5
1-51177-149-0
AR
1
1212-
193
NUT; U BOLT
M16
8-97360-121-0
08
1
1212-
197
PIN; FRT SPR,FRT
(B)
8-98060-333-0
04
1
1212-
197
PIN; FRT SPR,FRT
(A)
8-98060-335-0
02
1
1212-
201
NUT; PIN LK
M22
0-91111-522-0
06
1
1212-
202
PLATE; LK,SPR PIN
8-98010-648-0
02
1
1212-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1212-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
1212-
208
U-BOLT SET; FRT SPRING
L=150
1-87870-466-0
04
1
1212-
