Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#11100) — 223 parça

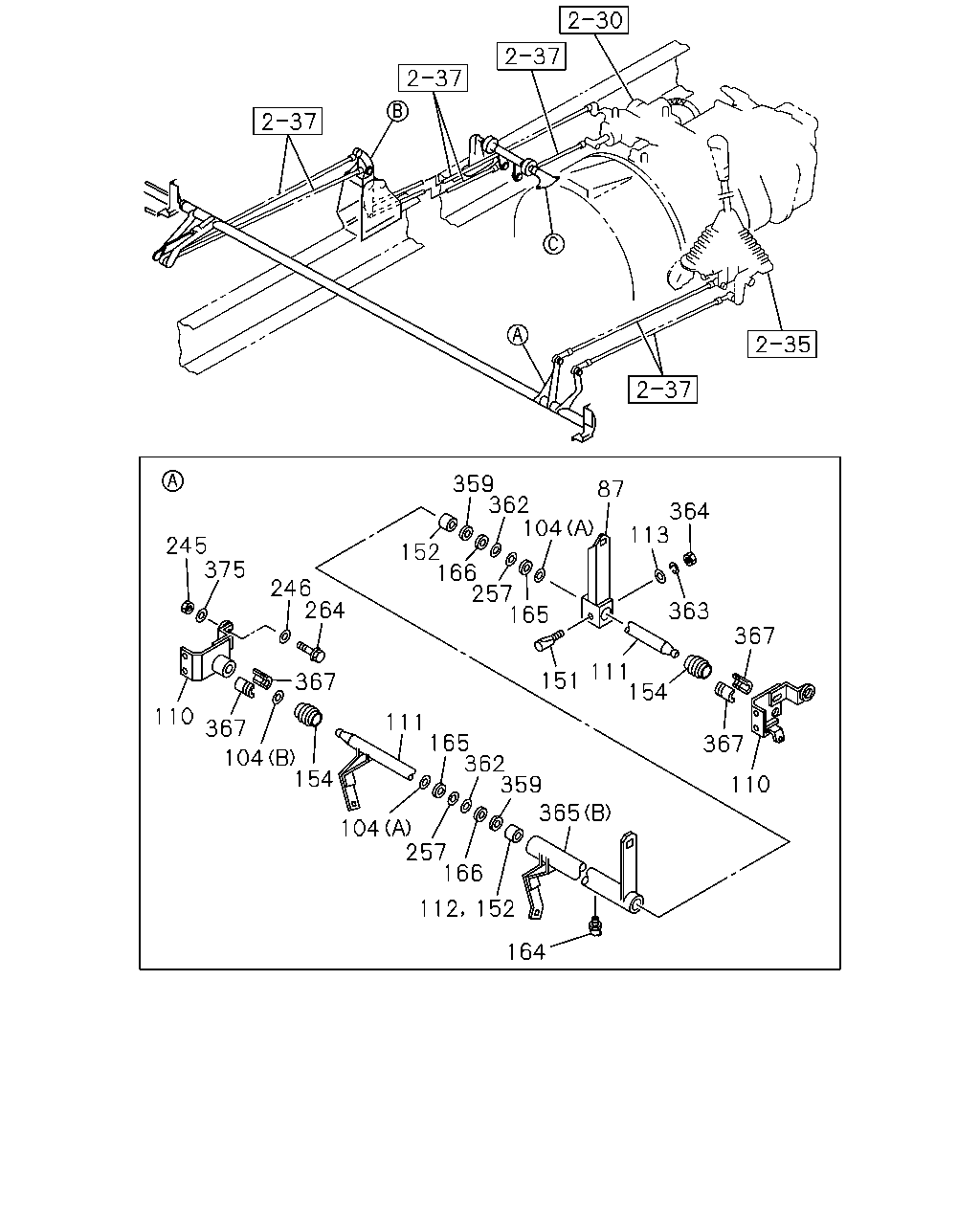

359 362 104 87 364 113 245 375 152 166 257 165 246 264 363 367 111 154 151 367 110 367 111 367 165 362 359 365 104 154 110 104 257 166 112 152 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	0106-
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	0106-
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	0106-
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	0106-
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	0106-
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	0106-0307
111	SHAFT; RELAY LEVER,1ST	1-33659-239-0	01	1	0308-
112	BUSHING; RELAY LEVER	1-09330-143-0	02	1	0308-
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0106-
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	0106-
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	0106-0307
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	0106-
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0106-
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	0106-
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	0106-
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	0106-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	0106-
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	0106-
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	0106-
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	0106-0301
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	02	1	0302-
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	0106-
362	SHIM	1-09503-172-0	AR	1	0106-
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	0106-
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	0106-
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0106-0307
365	LEVER; RELAY,SELECT (B)	1-33651-819-1	01	1	0308-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0106-
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	0106-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-

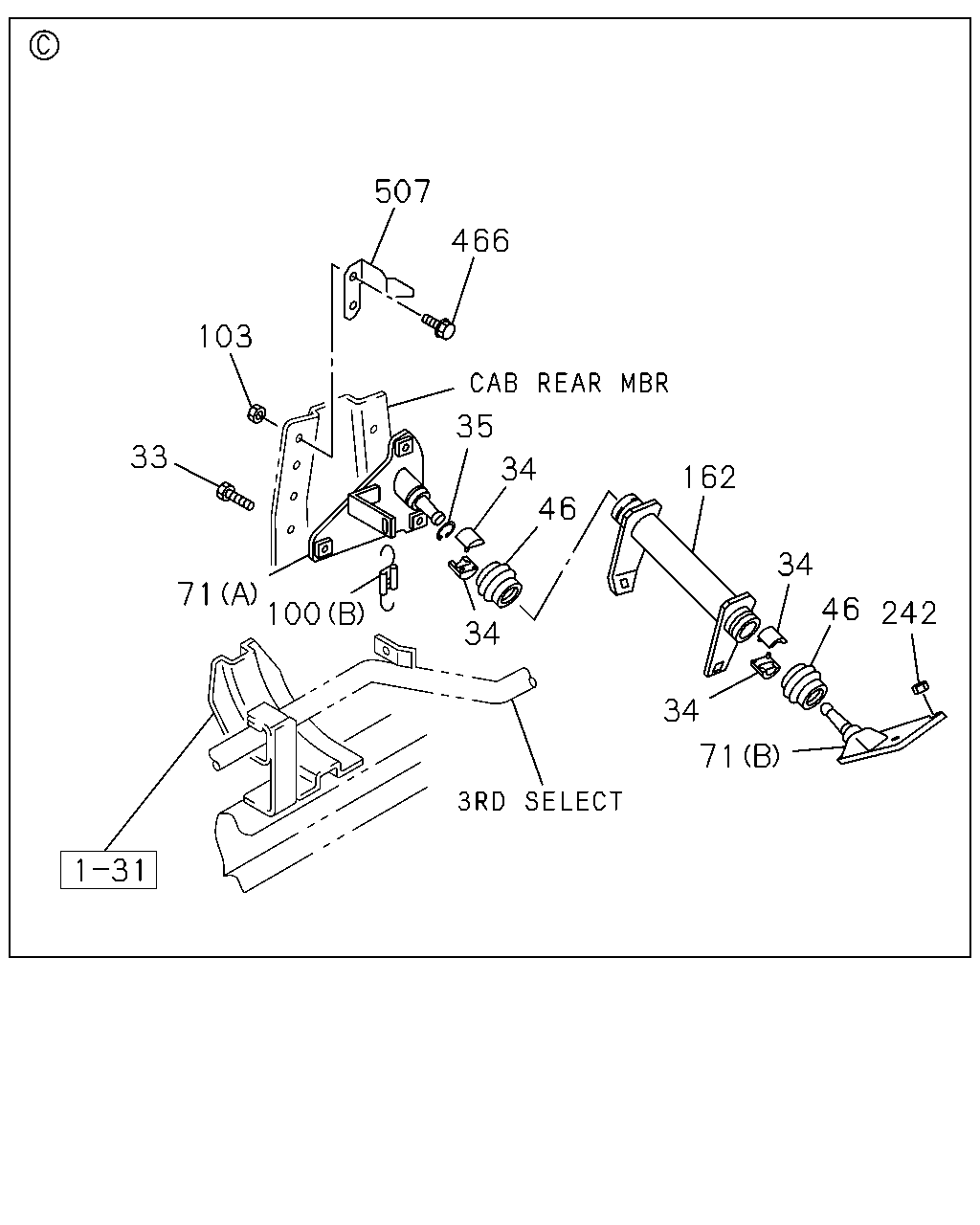

507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0106-
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0106-
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0106-
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0106-0503
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	0504-
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0106-
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-657-1	01	1	0106-
100	SPRING (B)	1-09583-319-0	01	1	0106-
100	SPRING (A)	1-09583-351-0	01	1	0106-
103	NUT M8 FLANGE	0-91150-108-0	01	1	0106-
162	LEVER; RELAY FULLER M/T<X9B>	1-33651-625-1	01	1	0106-
162	LEVER; RELAY ZF M/T<X9E>	1-33651-679-1	01	1	0106-
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0106-
466	BOLT; FIX M8X20 FLANGE	0-28680-820-0	02	1	0106-
507	PROTECTOR; HEAT	1-14181-315-0	01	1	0106-

385 385 385 385 385 385 460 387 460 460 501 325 300 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; CLIP FULLER M/T<X9B> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0203-
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0106-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0203-
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0106-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=3550 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3550 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) L=4250 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) L=4250 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3900 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=4000 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=4400 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=4000 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0106-
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0106-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0106-
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0106-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=3250 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=3250 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) L=250 SERVICED BY L=800	1-83129-031-1	02	1	0106-
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-0204
460	TUBE; CORRUGATE (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0205-
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1030 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0106-
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=3250 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=3250 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (D) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0108-
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-0	04	1	0504-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0106-0503
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0106-0503
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0504-

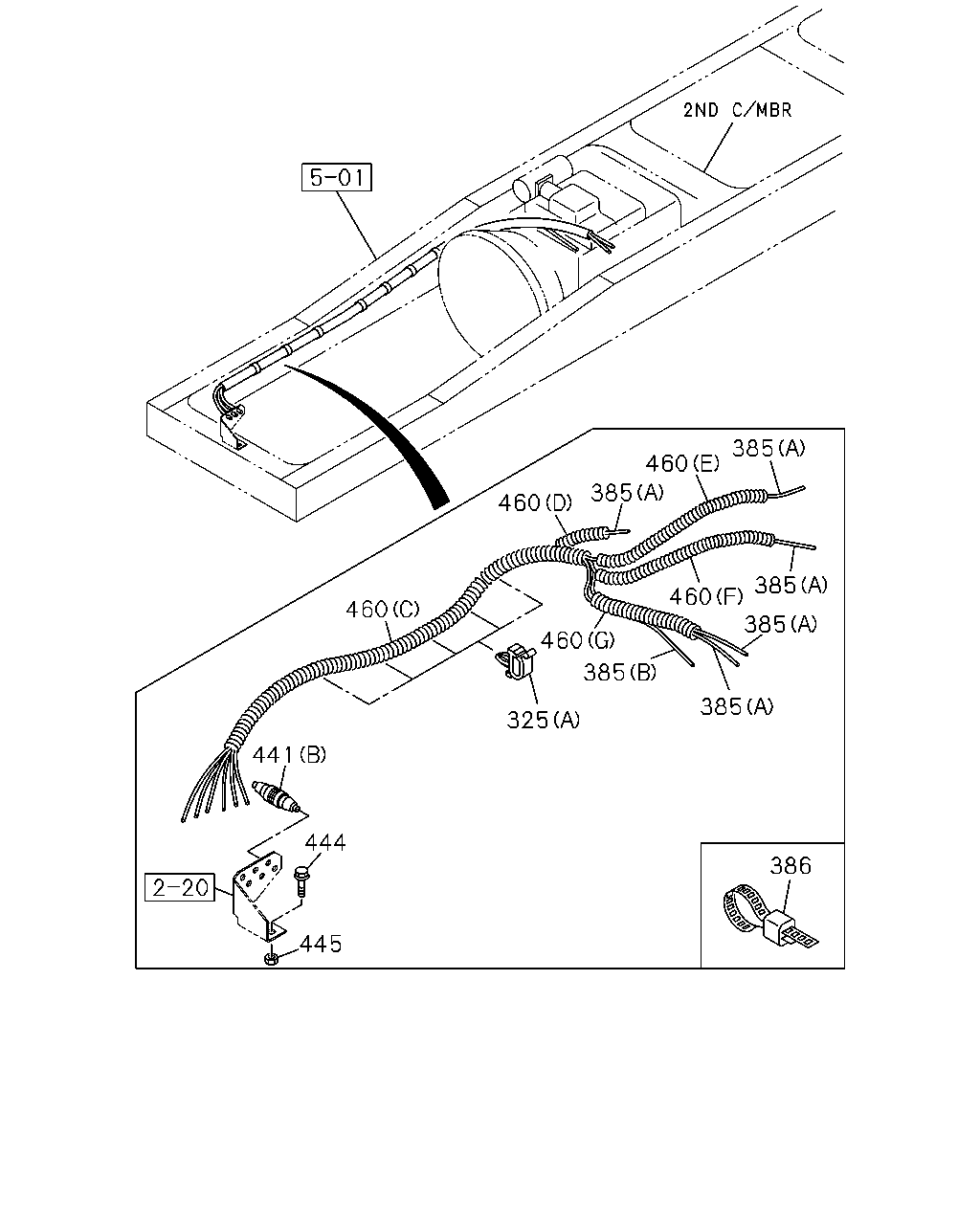

385 460 385 460 385 460 385 460 460 385 385 325 441 444 386 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0106-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0203-
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0106-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=3550 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3550 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) L=4250 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) L=4250 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3900 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=4000 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=4400 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=4000 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0106-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=8.3 & 8.3	8-94426-175-0	01	1	0309-
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	0303-
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=250	1-09707-126-0	11	1	0106-0302
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=250	1-09707-126-0	16	1	0303-
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0106-
444	BOLT; BRKT,NIPPLE FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	01	1	0106-
445	NUT; BRKT,NIPPLE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0106-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=3250 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=3250 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) L=250 SERVICED BY L=800	1-83129-031-1	02	1	0106-
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-0204
460	TUBE; CORRUGATE (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0205-
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1030 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0106-
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=3250 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0106-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=3250 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (D) L=50 SERVICED BY L=800	1-83129-031-1	01	1	0108-

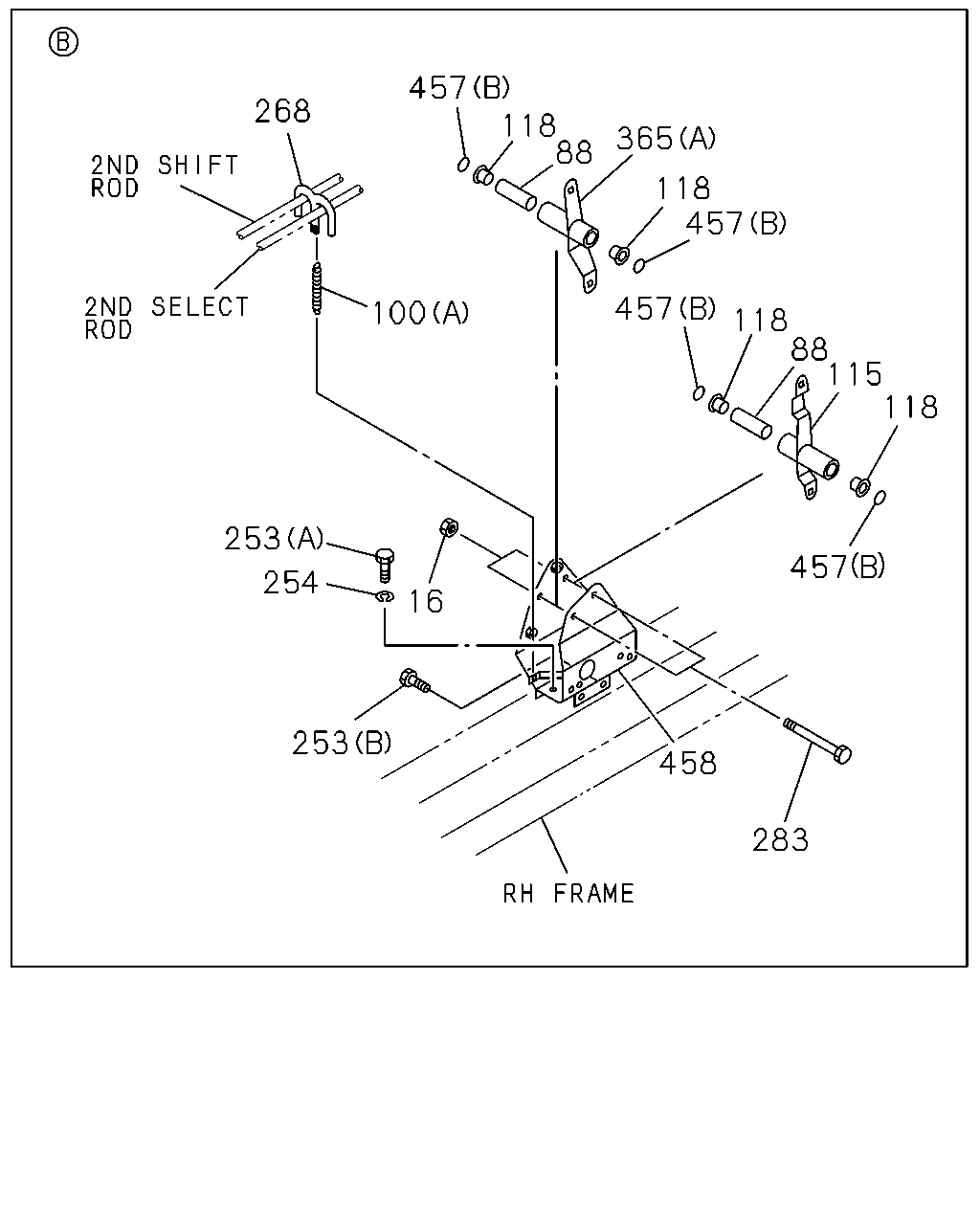

457 118 88 268 365 118 457 457 100 118 88 115 118 253 457 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	0106-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0106-
100	SPRING (B)	1-09583-319-0	01	1	0106-
100	SPRING (A)	1-09583-351-0	01	1	0106-
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	0106-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0106-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0106-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0106-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0106-
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0106-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0106-
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0106-0307
365	LEVER; RELAY,SELECT (B)	1-33651-819-1	01	1	0308-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0106-
457	GASKET (B)	1-09623-594-0	04	1	0106-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0106-
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	0106-

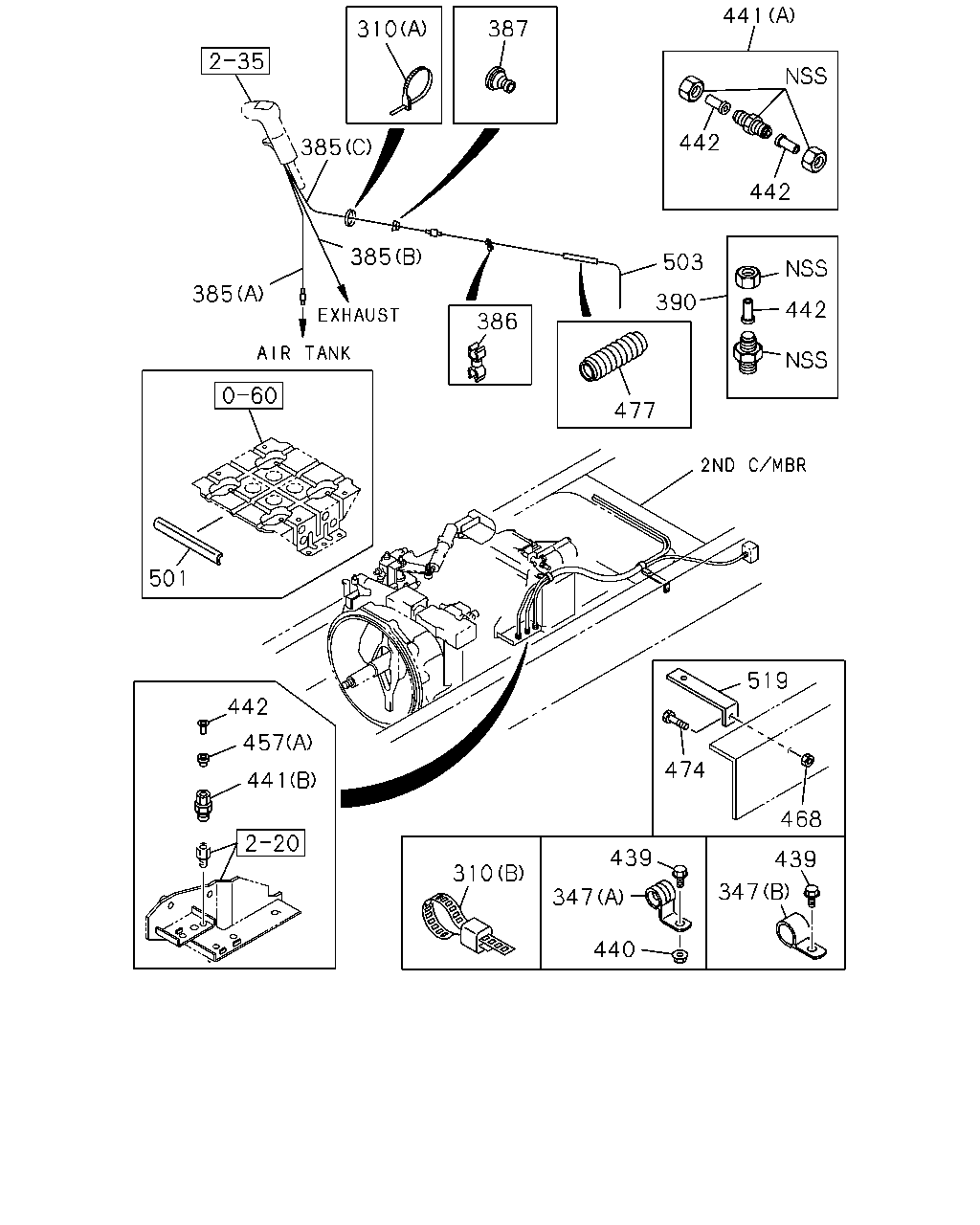

441 387 310 385 442 442 385 503 385 390 442 386 477 501 519 442 457 474 441 468 439 439 310 347 347 440

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=250	1-09707-126-0	17	1	0106-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=140	5-09707-031-1	05	1	0106-
347	CLIP; AIR PIPE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0106-
347	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) ID=18 L=28	1-09701-067-0	01	1	0106-
347	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B) ID=28 L=40	1-09701-261-0	01	1	0106-
347	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. PTO ZF TRANS RR(BDM) (B) ID=24 L=27	1-09700-809-0	01	1	0106-
347	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=24 L=27	1-09700-809-0	01	1	0106-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=3550 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3550 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) L=4250 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) L=4250 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3900 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=4000 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=4400 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=4000 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0106-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1580 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0106-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0106-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=8.3 & 8.3	8-94426-175-0	01	1	0309-
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	0303-
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=250	1-09707-126-0	11	1	0106-0302
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> L=250	1-09707-126-0	16	1	0303-
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0106-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0106-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0106-
439	BOLT; CLIP,AIR PIPE PTO ZF TRANS RR(BDM) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	03	1	0106-
439	BOLT; CLIP,AIR PIPE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	02	1	0106-
440	NUT; CLIP,AIR PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0106-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0106-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0106-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0106-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0106-
457	GASKET (B)	1-09623-594-0	04	1	0106-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0106-
468	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-
474	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=2000 ID=7	1-87410-085-0	01	1	0106-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=6000 ID=7	1-87410-087-0	01	1	0106-
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-0	04	1	0504-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0106-0503
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0106-0503
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0504-
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=2000 OD=4	1-87410-077-0	01	1	0106-
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=6000 OD=4	1-87410-079-0	01	1	0106-
519	BRACKET; FRAME ZF M/T<X9E> L=125	1-47475-897-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
