◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#11099) — 65 parça

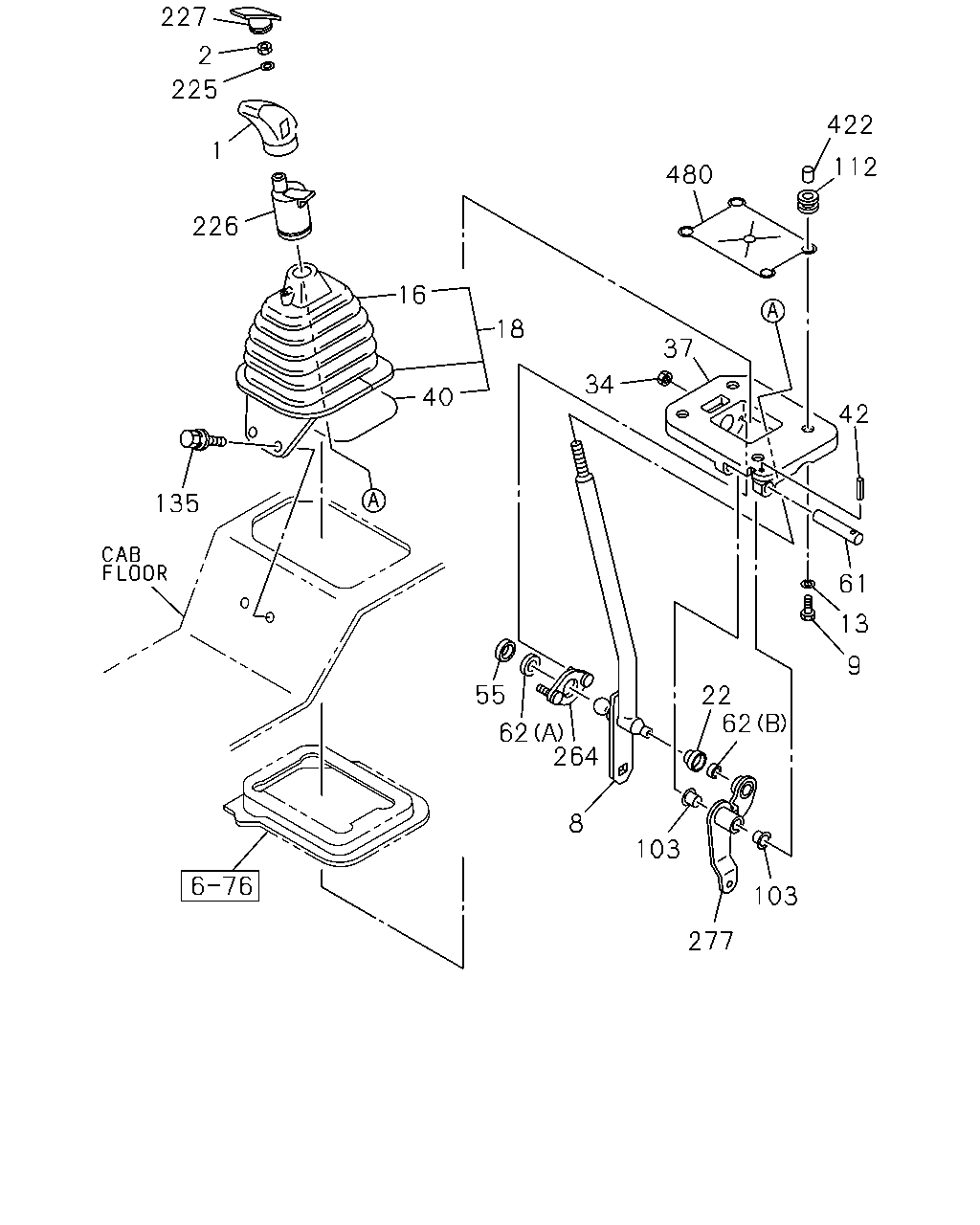

çizim 75930
227 2 225 422 1 112 480 226 16 18 37 34 40 42 135 61 13 9 55 22 62 62 264 8 103 103 277
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> 		1-33611-118-0 01 1 0106-
1 KNOB; CHANGE LEVER
ZF M/T<X9E> 		1-33611-038-0 01 1 0106-
2 NUT; KNOB
FULLER M/T<X9B> 1/2-13UNC 		1-33619-033-0 01 1 0106-
2 NUT; KNOB
ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 01 1 0106-
8 LEVER; CHANGE
FULLER M/T<X9B> 		1-33613-349-0 01 1 0106-
8 LEVER; CHANGE
ZF M/T<X9E> 		1-33613-345-0 01 1 0106-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 0106-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0106-
16 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-367-0 01 1 0106-
16 BOOT; CHANGE LEVER
ZF M/T<X9E> 		1-79996-369-0 01 1 0106-
18 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-435-1 01 1 0106-
18 BOOT; CHANGE LEVER
ZF M/T<X9E> 		1-79996-401-0 01 1 0106-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0106-
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0106-
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0106-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0106-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0106-
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0106-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0106-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0106-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0106-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0106-
112 RUBBER; CUSHION 8-97091-426-0 04 1 0106-
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0106-
225 WASHER; PL,KNOB
ZF M/T<X9E> ID=10.5 OD=22 		9-09160-610-0 01 1 0106-
226 VALVE; SELECTOR
ZF M/T<X9E> 		1-33710-008-0 01 1 0106-
227 COVER; KNOB
ZF M/T<X9E> 		1-33619-219-0 01 1 0106-
264 PLATE; COVER 1-33619-469-0 01 1 0106-
277 LEVER; RELAY 1-33651-636-0 01 1 0106-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0106-
480 RUBBER; COVER 1-33619-554-0 01 1 0106-

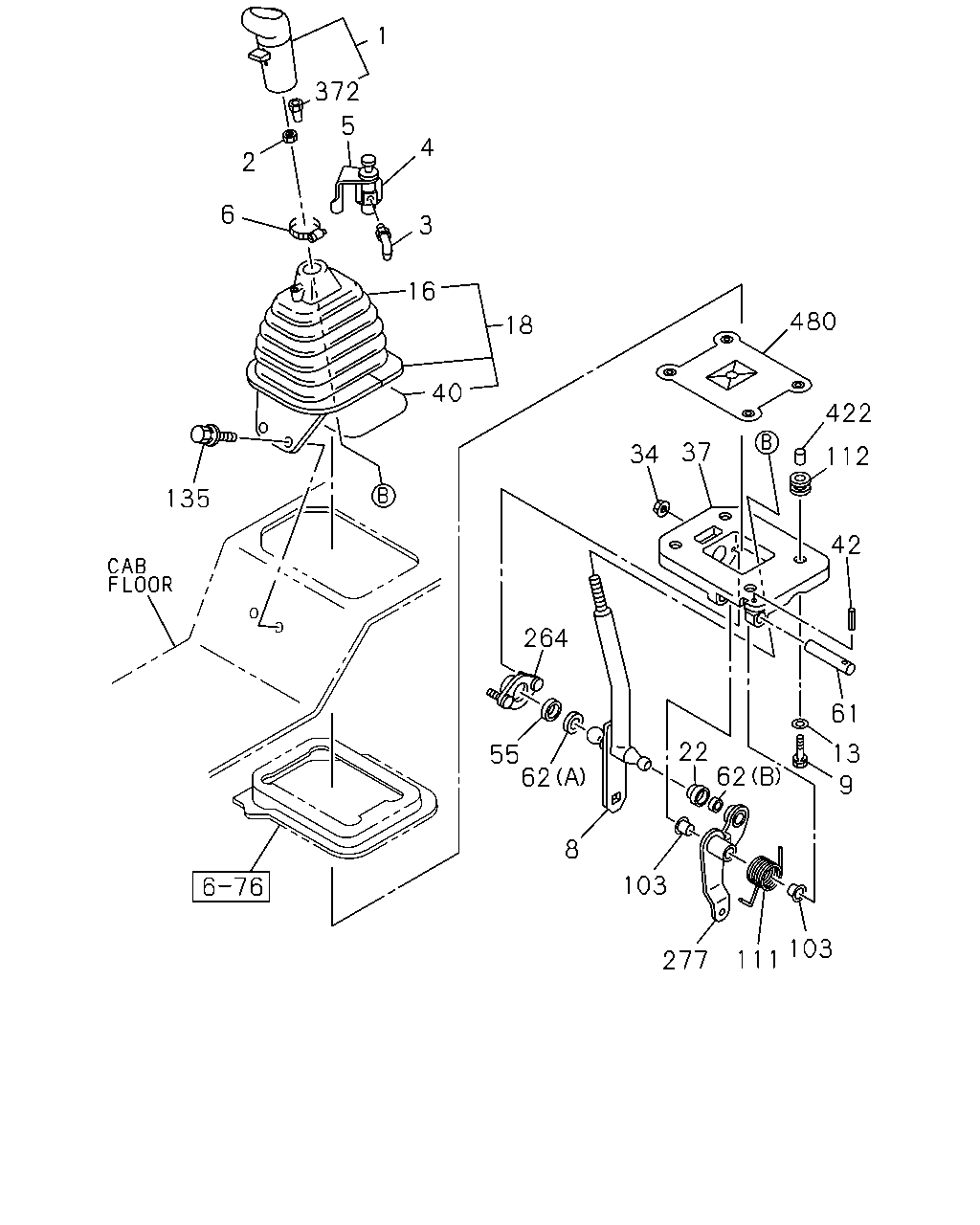

çizim 76656
1 372 5 4 2 6 3 16 480 18 40 422 37 34 112 135 42 264 61 22 62 13 55 62 9 8 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> 		1-33611-118-0 01 1 0106-
1 KNOB; CHANGE LEVER
ZF M/T<X9E> 		1-33611-038-0 01 1 0106-
2 NUT; KNOB
FULLER M/T<X9B> 1/2-13UNC 		1-33619-033-0 01 1 0106-
2 NUT; KNOB
ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 01 1 0106-
3 CONNECTOR; CONT TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33619-533-0 02 1 0106-
4 VALVE; ACTUATOR
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33712-003-0 01 1 0106-
5 BRACKET; ACTUATOR VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-078-0 01 1 0106-
6 CLAMP; BRKT
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-079-0 01 1 0106-
8 LEVER; CHANGE
FULLER M/T<X9B> 		1-33613-349-0 01 1 0106-
8 LEVER; CHANGE
ZF M/T<X9E> 		1-33613-345-0 01 1 0106-
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 0106-
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0106-
16 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-367-0 01 1 0106-
16 BOOT; CHANGE LEVER
ZF M/T<X9E> 		1-79996-369-0 01 1 0106-
18 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-435-1 01 1 0106-
18 BOOT; CHANGE LEVER
ZF M/T<X9E> 		1-79996-401-0 01 1 0106-
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0106-
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0106-
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0106-
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0106-
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0106-
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0106-
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0106-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0106-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0106-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0106-
111 SPRING
FULLER M/T<X9B> 		1-09585-136-0 01 1 0106-
112 RUBBER; CUSHION 8-97091-426-0 04 1 0106-
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0106-
264 PLATE; COVER 1-33619-469-0 01 1 0106-
277 LEVER; RELAY 1-33651-636-0 01 1 0106-
372 CONNECTOR; CHANGE LEVER
FULLER M/T<X9B> 		8-97500-148-0 04 1 0106-
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0106-
480 RUBBER; COVER 1-33619-554-0 01 1 0106-
