◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20A - MANUAL TRANSMISSION ASM AND CASE ▶
2-20A — MANUAL TRANSMISSION ASM AND CASE (#11091) — 390 parça

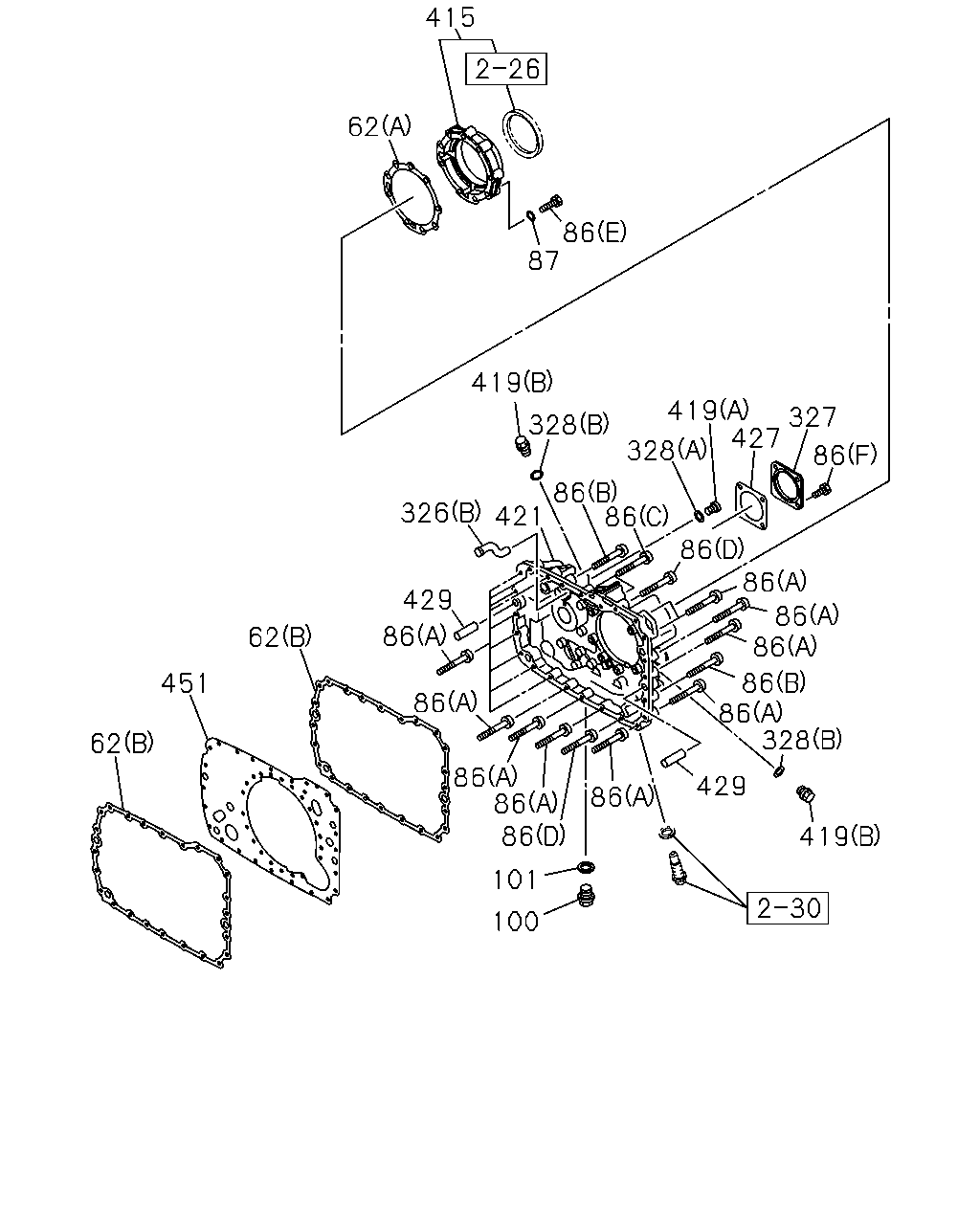

çizim 21614
415 62 86 87 419 419 327 427 328 328 86 86 86 86 86 326 421 429 86 86 86 62 86 86 328 451 86 62 86 86 86 429 86 419 101 100
BalonParca AdiParca NoAdetTipApplied Date A B
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 0106- ● ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 0106- ● ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 0106- ● ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 0106- ● ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 0106- ● ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 0106- ● ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 0106- ● ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 0106- ● ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 0106- ● ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 0106- ● ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0106- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 0106- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0106- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0106- ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 0106- ● ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0106- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0106- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0106- ● ●
415 COVER; BRG 1-33159-039-0 01 1 0106- ● ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 0106- ● ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 0106- ● ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 0106- ● ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0106- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0106- ● ●
451 PLATE; RR COVER 1-33139-055-0 01 1 0106- ● ●

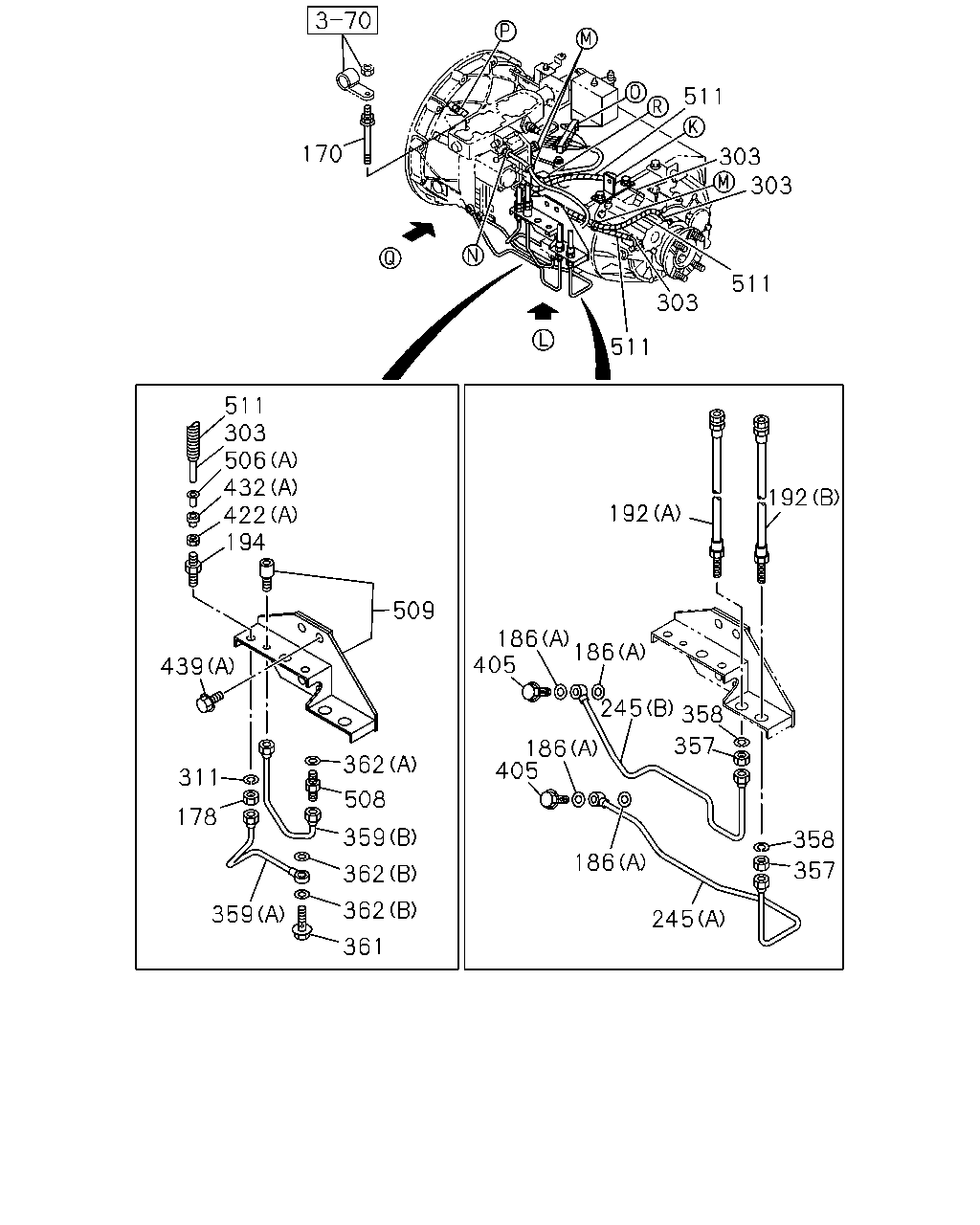

çizim 22415
511 170 303 303 511 303 511 511 303 506 432 422 194 192 192 509 186 405 186 439 245 358 357 186 405 362 311 508 178 359 358 186 357 362 362 359 245 361
BalonParca AdiParca NoAdetTipApplied Date A B
170 STUD; QUAD BOX 1-09052-017-1 01 1 0108- ● ●
178 NUT; UNION
M14 		9-99111-414-0 01 1 0106- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0106- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0106- ● ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0106- ● ●
192 HOSE; FLEX,TRANS
(B) L=535 		1-09364-936-0 01 1 0106- ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0106- ● ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 0106- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 0106- ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0106- ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0106- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0106- ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0106- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0106- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0106- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0106- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0106- ● ●
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0106- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0106- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0106- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0106- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0106- ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0106- ● ●
506 INSERT
(B) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0106- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0106- ● ●
509 BRACKET; PIPE 1-47477-447-2 01 1 0106- ●
509 BRACKET; PIPE 1-47478-215-2 01 1 0106- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0202- ●
511 TUBE; CORRUGATE
L=250 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0107-0201 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106- ● ●

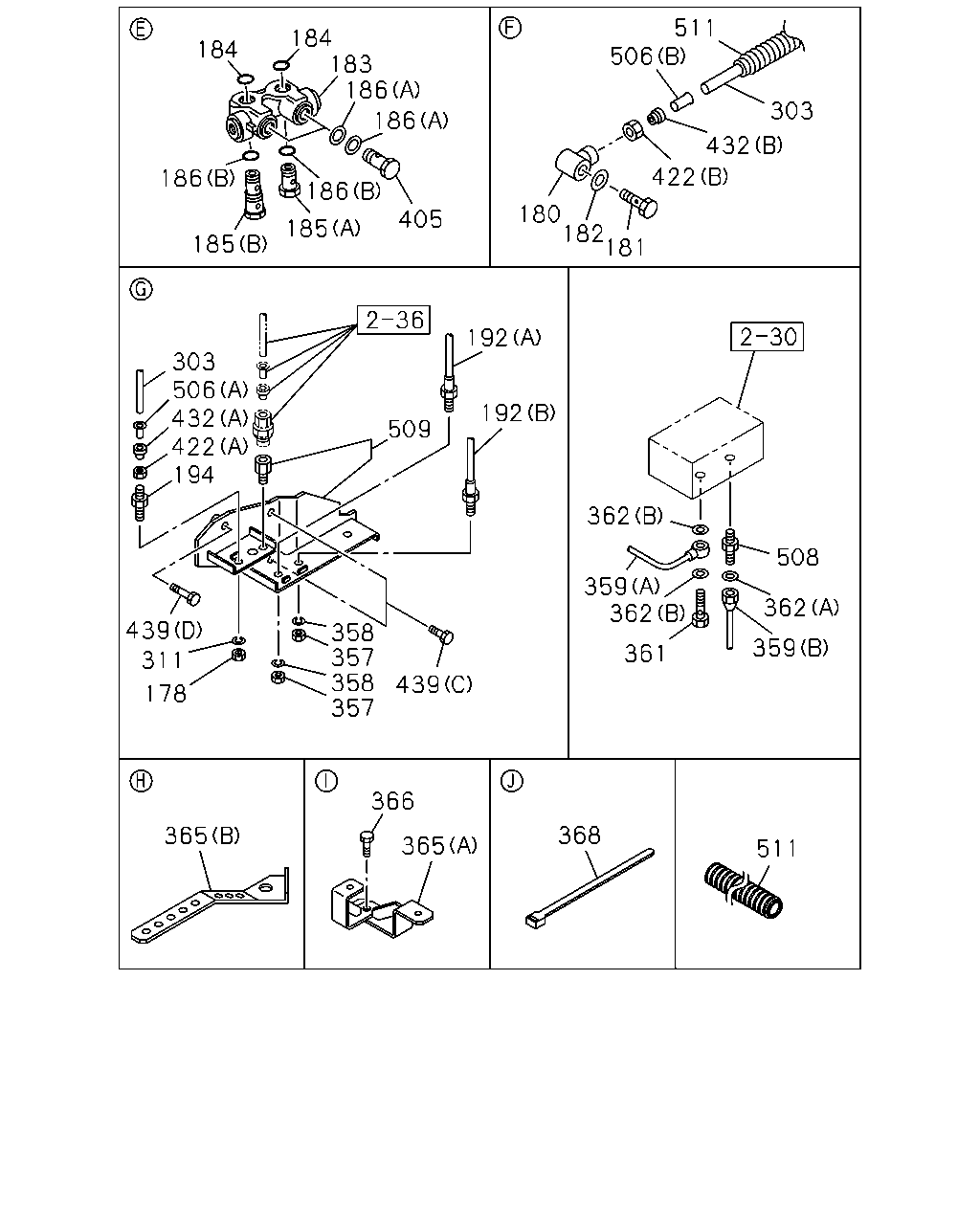

çizim 23262
511 506 184 183 186 184 303 186 432 422 186 186 180 182 181 405 185 185 192 303 506 432 422 194 192 509 362 508 359 362 362 439 358 357 358 357 359 361 311 439 178 366 368 365 365 511
BalonParca AdiParca NoAdetTipApplied Date A B
178 NUT; UNION
M14 		9-99111-414-0 01 1 0106- ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0106- ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0106- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0106- ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0106- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0106- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0106- ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0106- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0106- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0106- ● ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0106- ● ●
192 HOSE; FLEX,TRANS
(B) L=535 		1-09364-936-0 01 1 0106- ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0106- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0106- ● ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0106- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0106- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0106- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0106- ● ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0106- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0106- ● ●
365 BRACKET; HARNESS
(C) 		1-47477-902-0 01 1 0109- ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0106- ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28181-216-0 01 1 0109- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0106- ● ●
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0106- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0106- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0106- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0106- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0106- ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0106- ● ●
506 INSERT
(B) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0106- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0106- ● ●
509 BRACKET; PIPE 1-47477-447-2 01 1 0106- ●
509 BRACKET; PIPE 1-47478-215-2 01 1 0106- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0202- ●
511 TUBE; CORRUGATE
L=250 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0107-0201 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106- ● ●

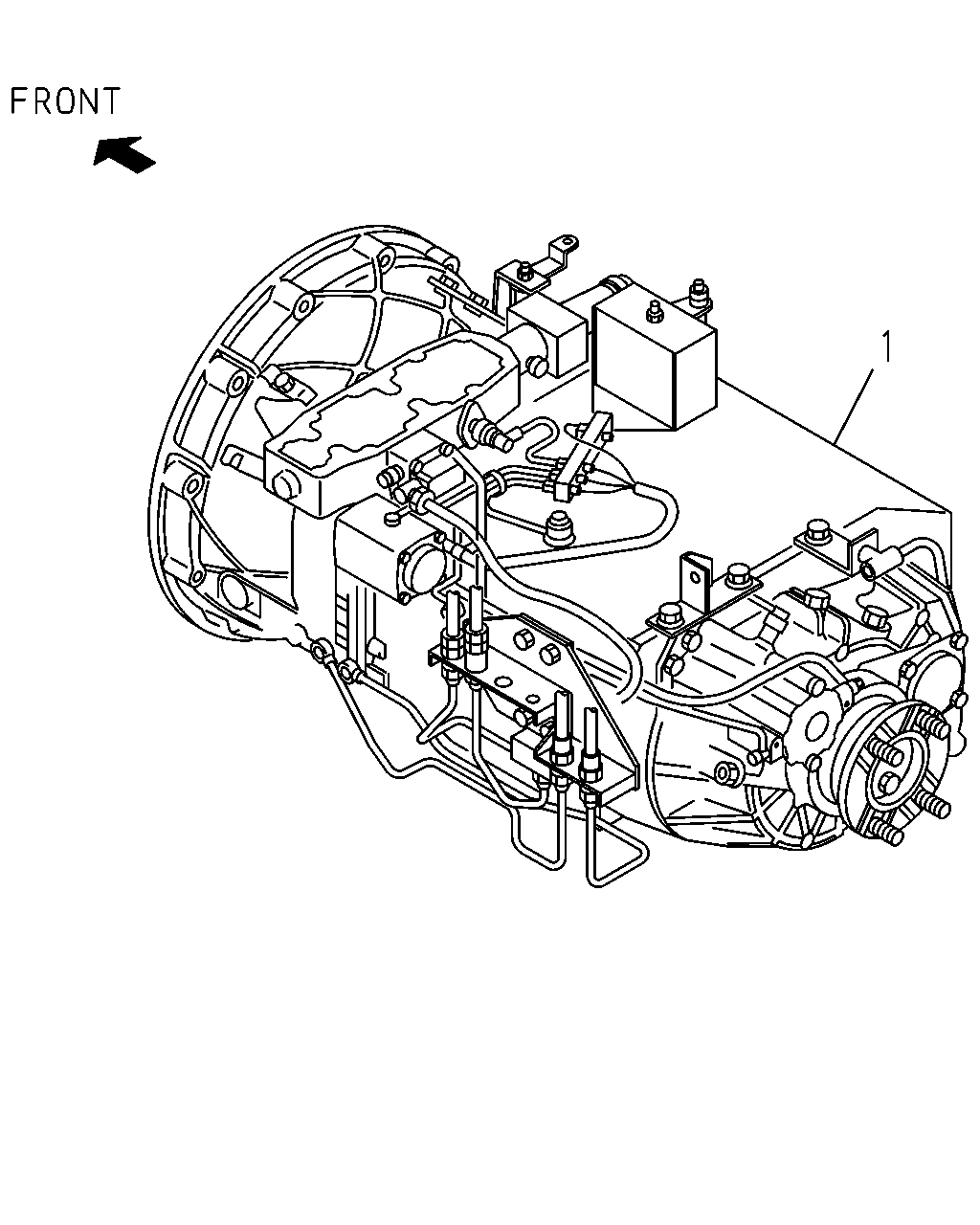

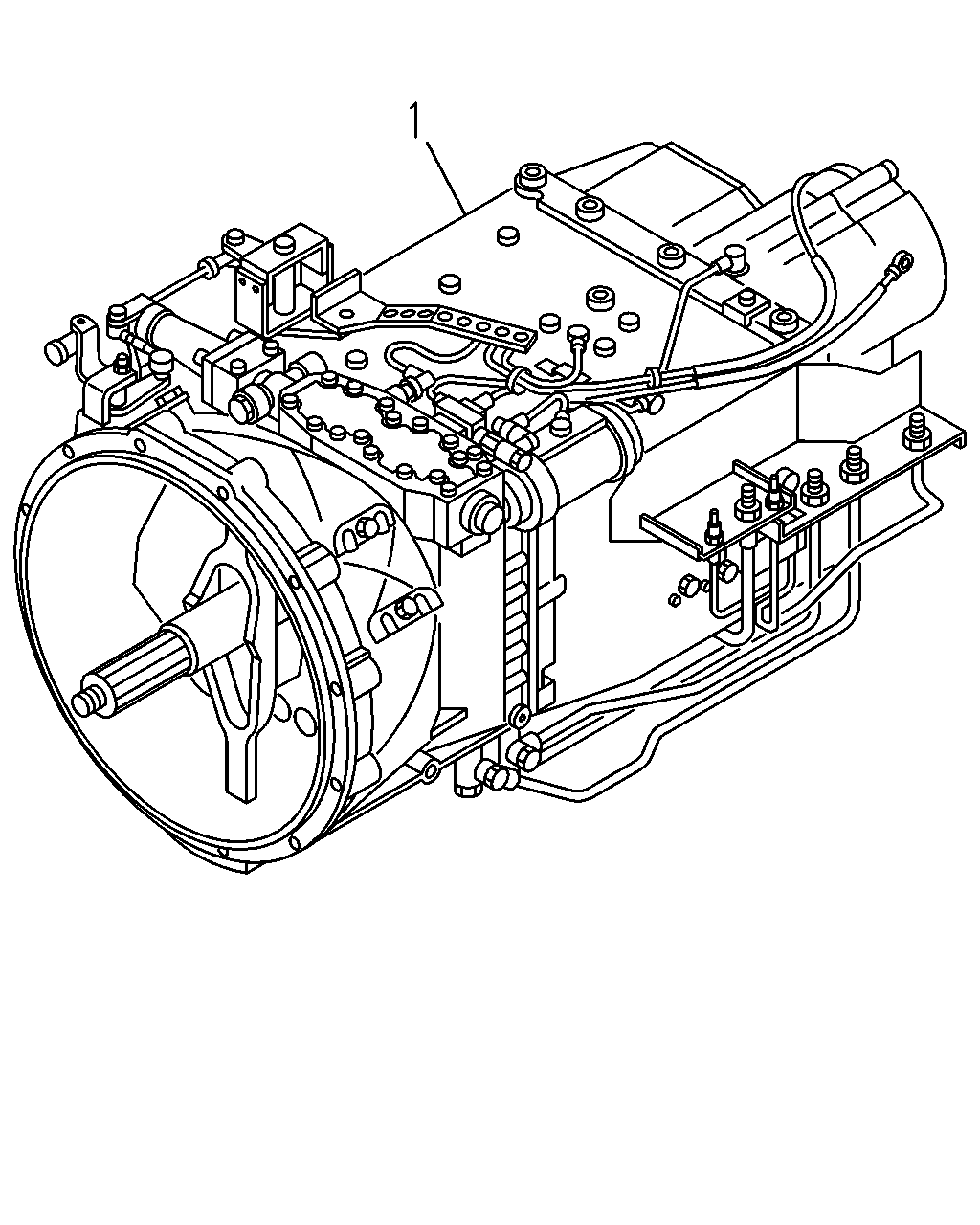

çizim 23263
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-034-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-385-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-018-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-384-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-022-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-386-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-023-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-387-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-033-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-381-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-017-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-380-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-021-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-383-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-382-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-377-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-376-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33042-165-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-379-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-378-0 01 1 0110- ●

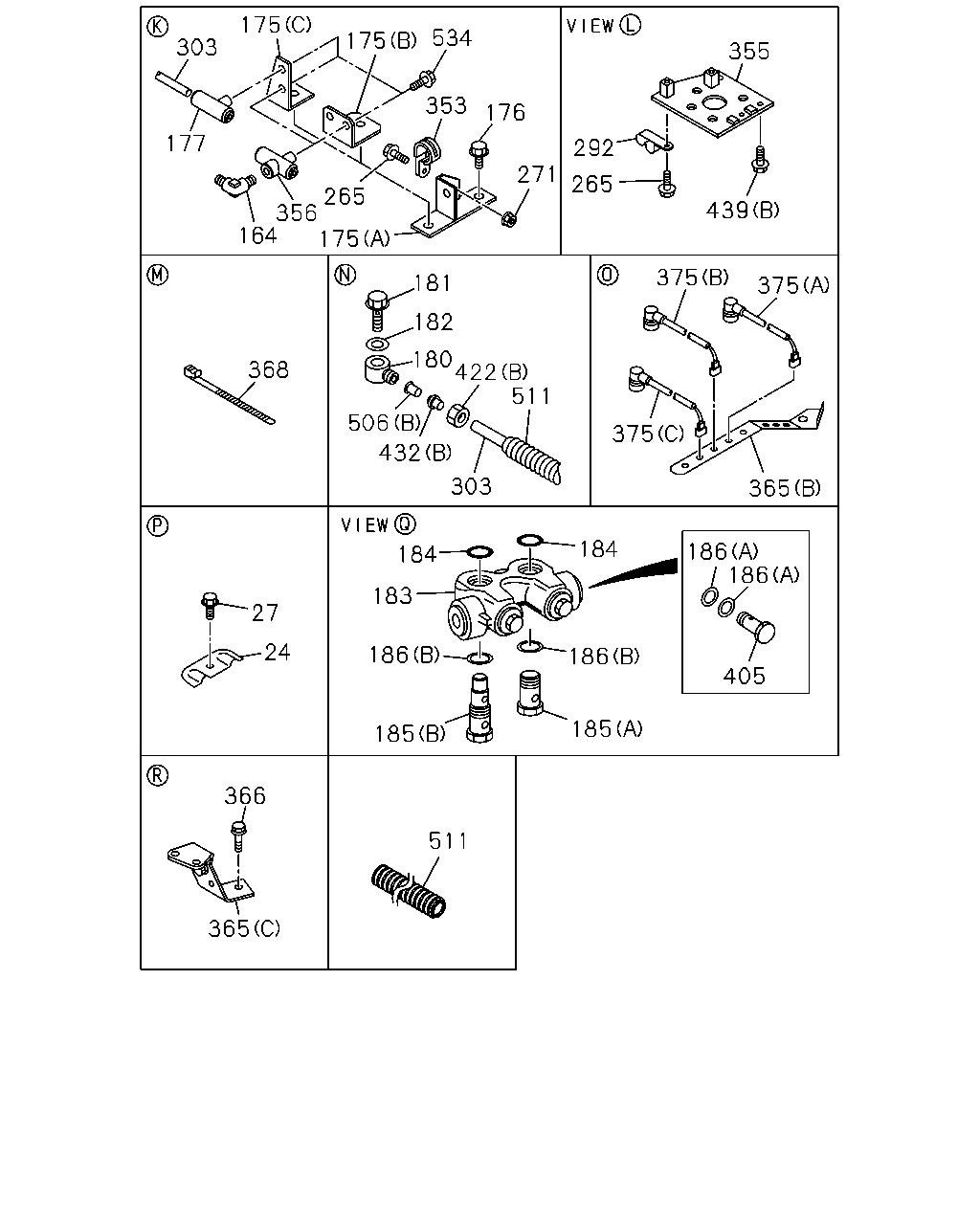

çizim 24160
175 534 175 303 355 353 176 177 292 271 265 265 356 164 175 439 375 181 375 182 180 422 511 368 506 375 432 303 365 184 186 186 184 183 27 24 186 186 405 185 185 366 511 365
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0106- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0106- ● ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106- ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0106- ● ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106 ● ●
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0106- ● ●
177 UNION; NYLON TUBE 1-09661-133-0 01 1 0107- ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0106- ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0106- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0106- ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0106- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0106- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0106- ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0106- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0106- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0106- ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
265 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0106- ●
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0106- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106 ● ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 0106- ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0106- ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106- ● ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0106- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0106- ● ●
365 BRACKET; HARNESS
(C) 		1-47477-902-0 01 1 0109- ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0106- ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28181-216-0 01 1 0109- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106- ● ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0106- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0106- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0106- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0106- ● ●
422 NUT; SLEEVE
(B) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0106- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0106- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0106- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0106- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0106- ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0106- ● ●
506 INSERT
(B) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0106- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0202- ●
511 TUBE; CORRUGATE
L=250 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0107-0201 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106- ● ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107- ● ●
çizim 24562
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-034-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-385-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-018-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-384-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-022-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-386-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-023-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-387-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-033-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-381-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-017-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-380-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-021-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-383-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-382-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-377-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-376-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33042-165-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> PTO ZF TRANS RR(BDM) 		1-33043-379-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-378-0 01 1 0110- ●

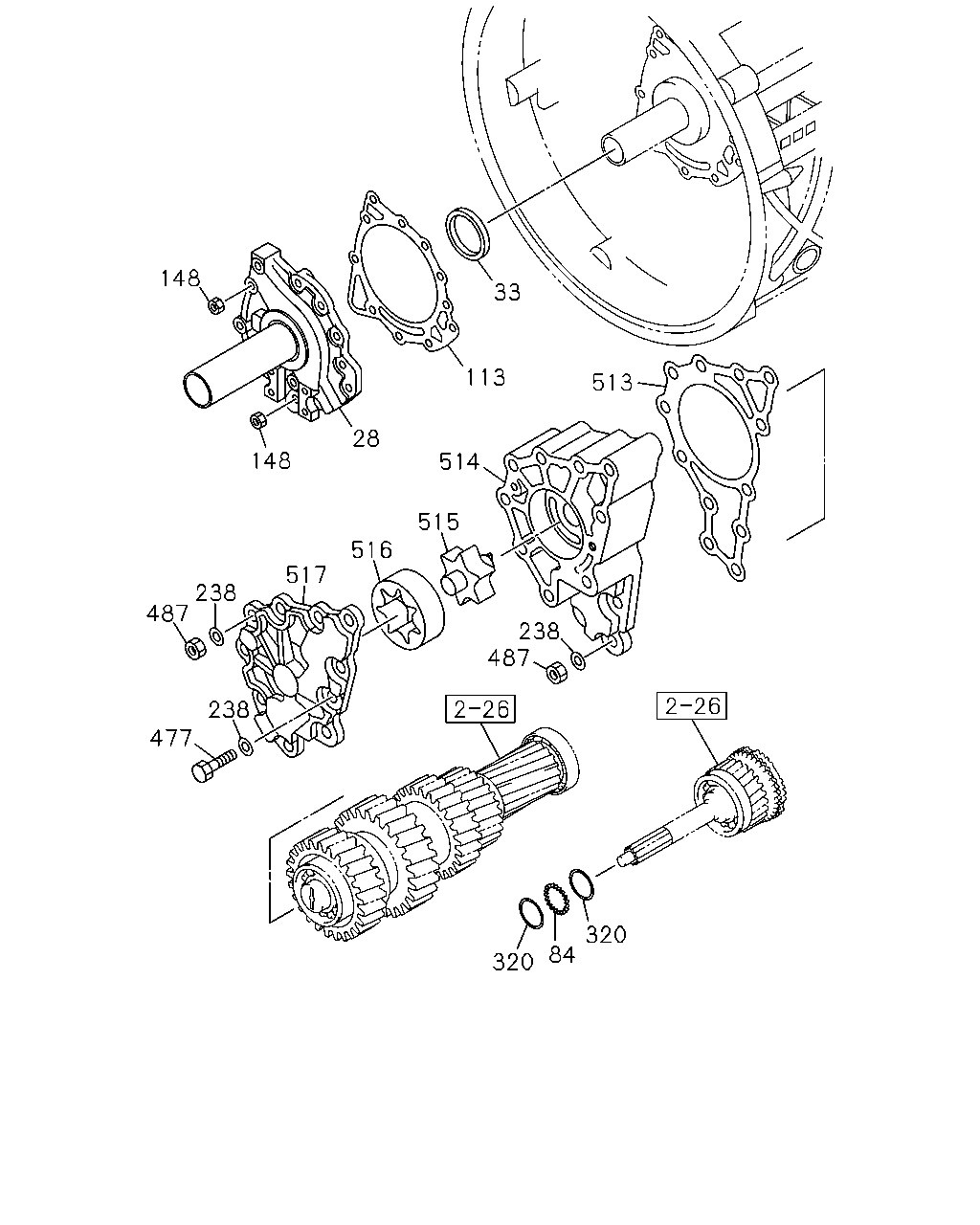

çizim 76061
148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 320 84 320
BalonParca AdiParca NoAdetTipApplied Date A B
28 COVER; FRT,TRANS CASE
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-33121-146-0 01 1 0106- ●
28 COVER; FRT,TRANS CASE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-33121-149-0 01 1 0106- ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 0106- ● ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 0106- ● ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 0106- ● ●
148 NUT 1-33529-056-0 11 1 0106- ● ●
238 WASHER; PL 1-09469-010-0 14 1 0106- ● ●
320 WASHER; COVER 1-33129-007-0 02 1 0106- ● ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 0106- ● ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 0106- ● ●
513 GASKET; HOUSING 1-34159-058-0 01 1 0106- ● ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 0106- ● ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 0106- ● ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 0106- ● ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 0106- ● ●

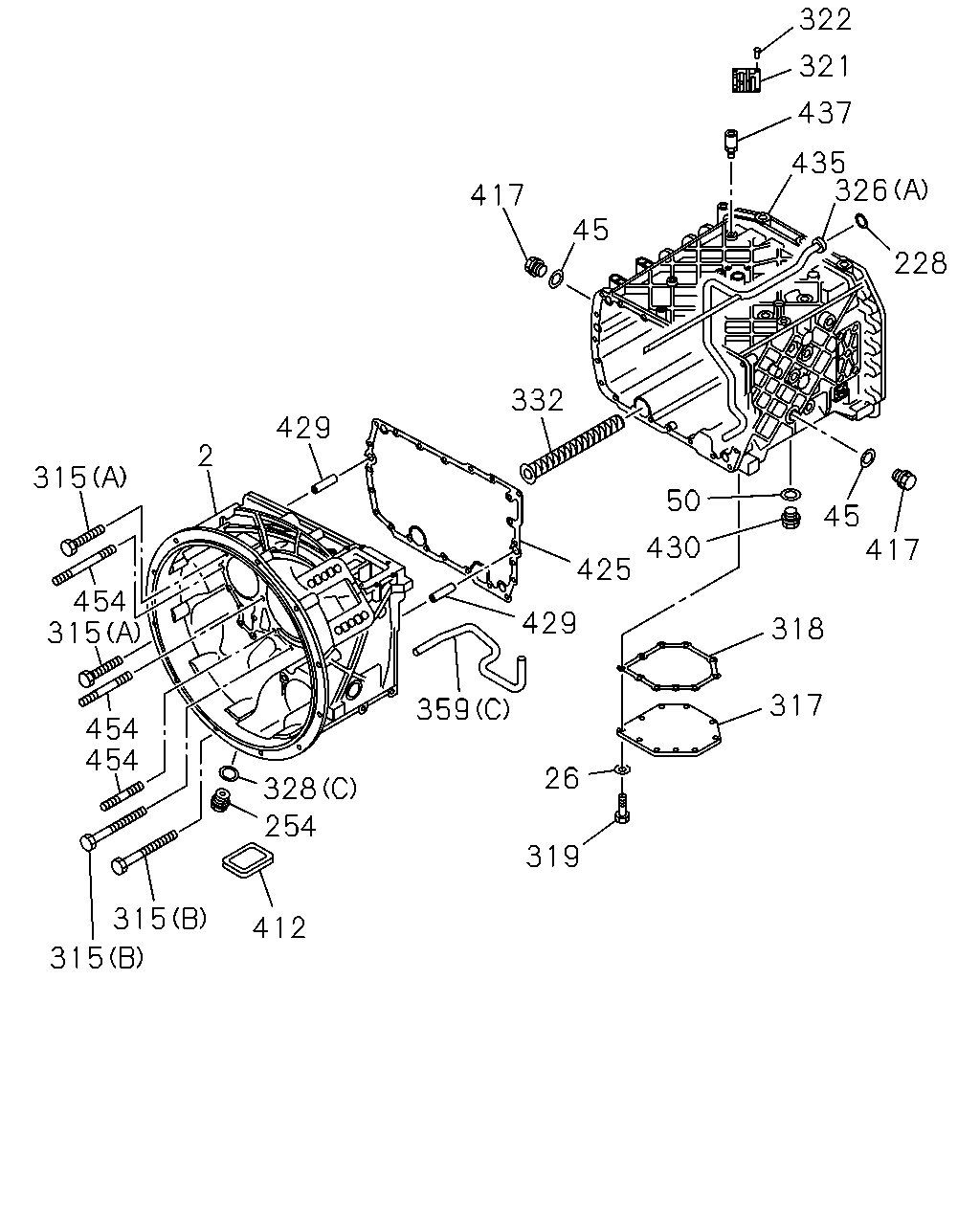

çizim 76683
322 321 437 435 326 417 45 228 332 429 2 315 50 45 417 430 425 429 454 315 318 317 359 454 454 26 328 254 319 315 412 315
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 1-31111-194-0 01 1 0106- ● ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 0106- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 0106- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0106- ● ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 0106- ● ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 0106- ● ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 0106- ● ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 0106- ● ●
317 COVER; CASE 1-33119-274-0 01 1 0106- ● ●
318 GASKET; COVER 1-33119-409-0 01 1 0106- ● ●
319 BOLT; COVER 1-33119-276-0 10 1 0106- ● ●
321 PLATE; NAME 1-33119-277-0 01 1 0106- ● ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 0106- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 0106- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0106- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0106- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0106- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0106- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0106- ● ●
332 FILTER; OIL 1-33119-370-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
412 CAP; CLU HSG 1-31119-022-0 01 1 0106- ● ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 0106- ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 0106- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0106- ● ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 0106- ● ●
435 CASE; TRANS 1-33111-290-0 01 1 0106- ●
435 CASE; TRANS 1-33111-286-0 01 1 0106- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 0106- ● ●
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 0106- ● ●
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 0106- ● ●
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 0106- ● ●

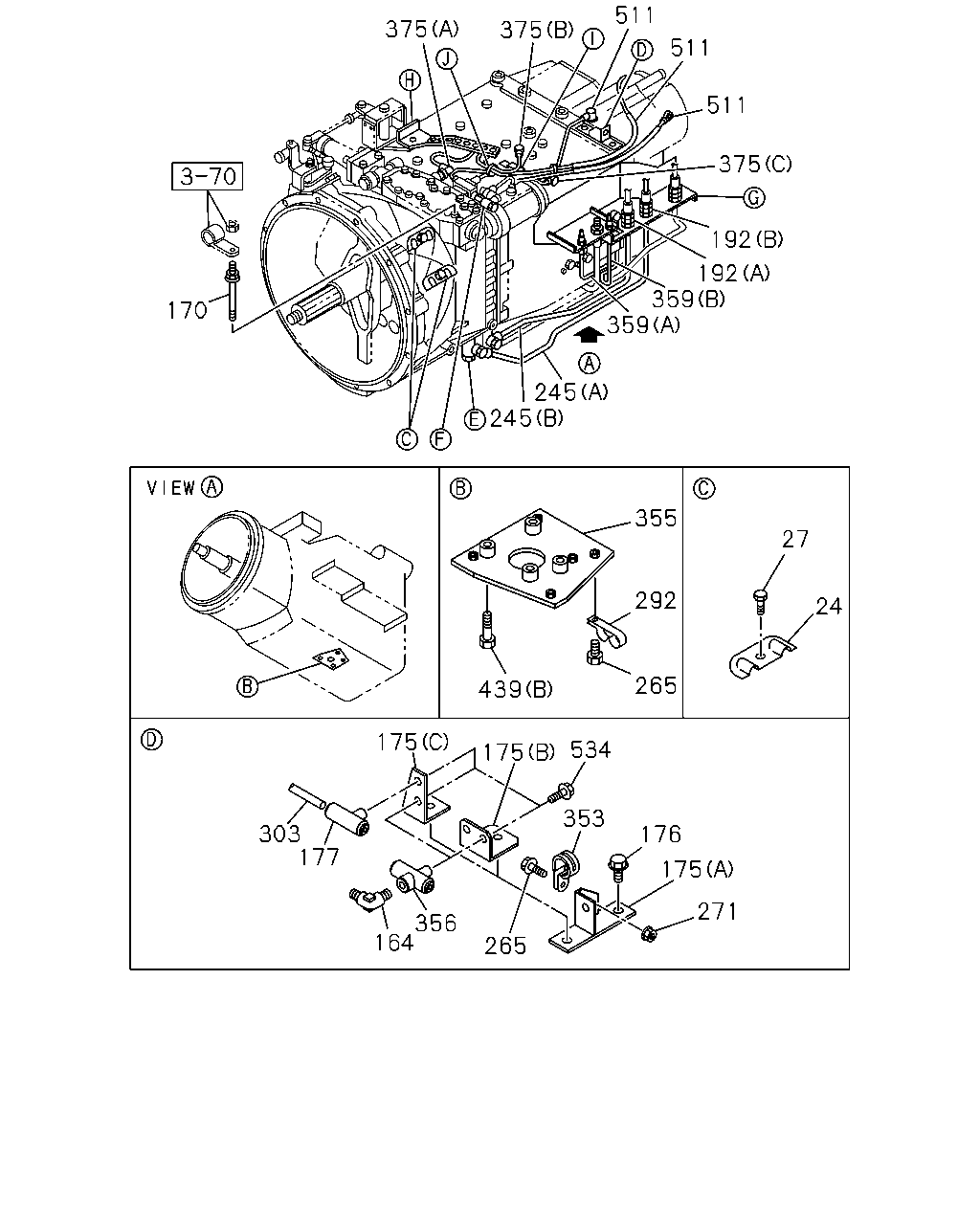

çizim 77648
511 375 375 511 511 375 192 192 359 359 170 245 245 355 27 292 24 265 439 175 534 175 353 303 177 176 175 271 356 164 265
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0106- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0106- ● ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106- ● ●
170 STUD; QUAD BOX 1-09052-017-1 01 1 0108- ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0106- ● ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106 ● ●
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0106- ● ●
177 UNION; NYLON TUBE 1-09661-133-0 01 1 0107- ● ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0106- ● ●
192 HOSE; FLEX,TRANS
(B) L=535 		1-09364-936-0 01 1 0106- ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 0106- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 0106- ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0106- ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0106- ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
265 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0106- ●
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0106- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106 ● ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 0106- ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0106- ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0106- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0106- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0106- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0106- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0106- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0106- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0106- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0202- ●
511 TUBE; CORRUGATE
L=250 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0107-0201 ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ●
511 TUBE; CORRUGATE
L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106- ● ●
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0106- ● ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
