2-08 — CLUTCH MASTER CYLINDER (#11090) — 28 parça

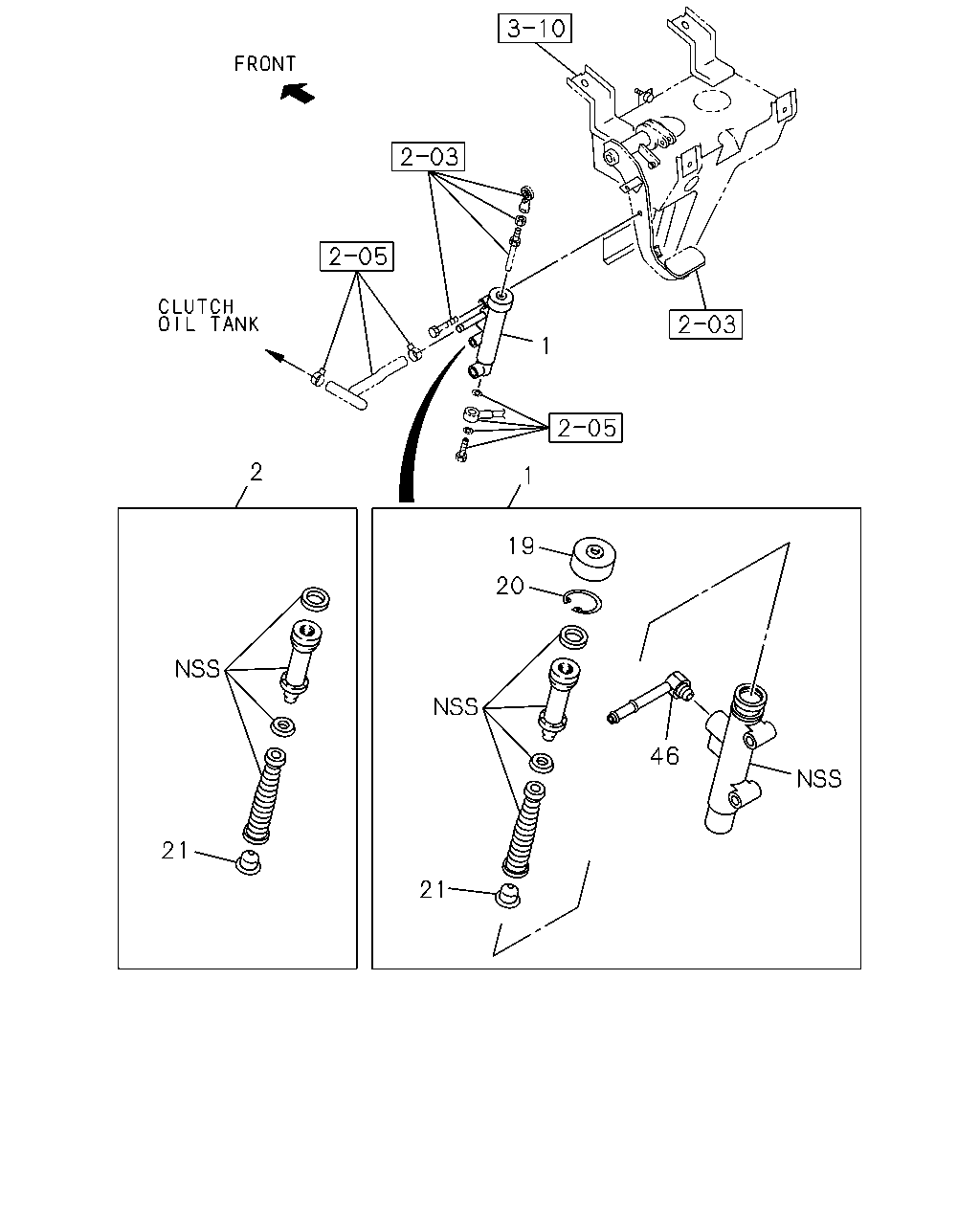

çizim 75787
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47500-247-1 01 1 0106-
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47500-241-3 01 1 0106-
1 CYLINDER ASM; CLUTCH MASTER
FULLER M/T<X9B> 		1-47500-239-2 01 1 0106-
2 REPAIR KIT; CLU M/CYL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47550-048-0 01 1 0106-
2 REPAIR KIT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47550-046-0 01 1 0106-
2 REPAIR KIT; CLU M/CYL
FULLER M/T<X9B> 		1-85572-010-0 01 1 0106-
19 BOOT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47545-011-0 01 1 0106-
19 BOOT; CLU M/CYL
FULLER M/T<X9B> 		9-47545-032-0 01 1 0106-
20 RING; SNAP,BODY
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47515-009-0 01 1 0106-
20 RING; SNAP,BODY
FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 0106-
21 VALVE; CHECK
FULLER M/T<X9B> 		1-47565-004-0 01 1 0106-
21 VALVE; CHECK
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47565-004-0 01 1 0106-
46 CONNECTOR; PIPE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47517-003-0 01 1 0106-
46 CONNECTOR; PIPE
FULLER M/T<X9B> 		1-47559-016-0 01 1 0106-

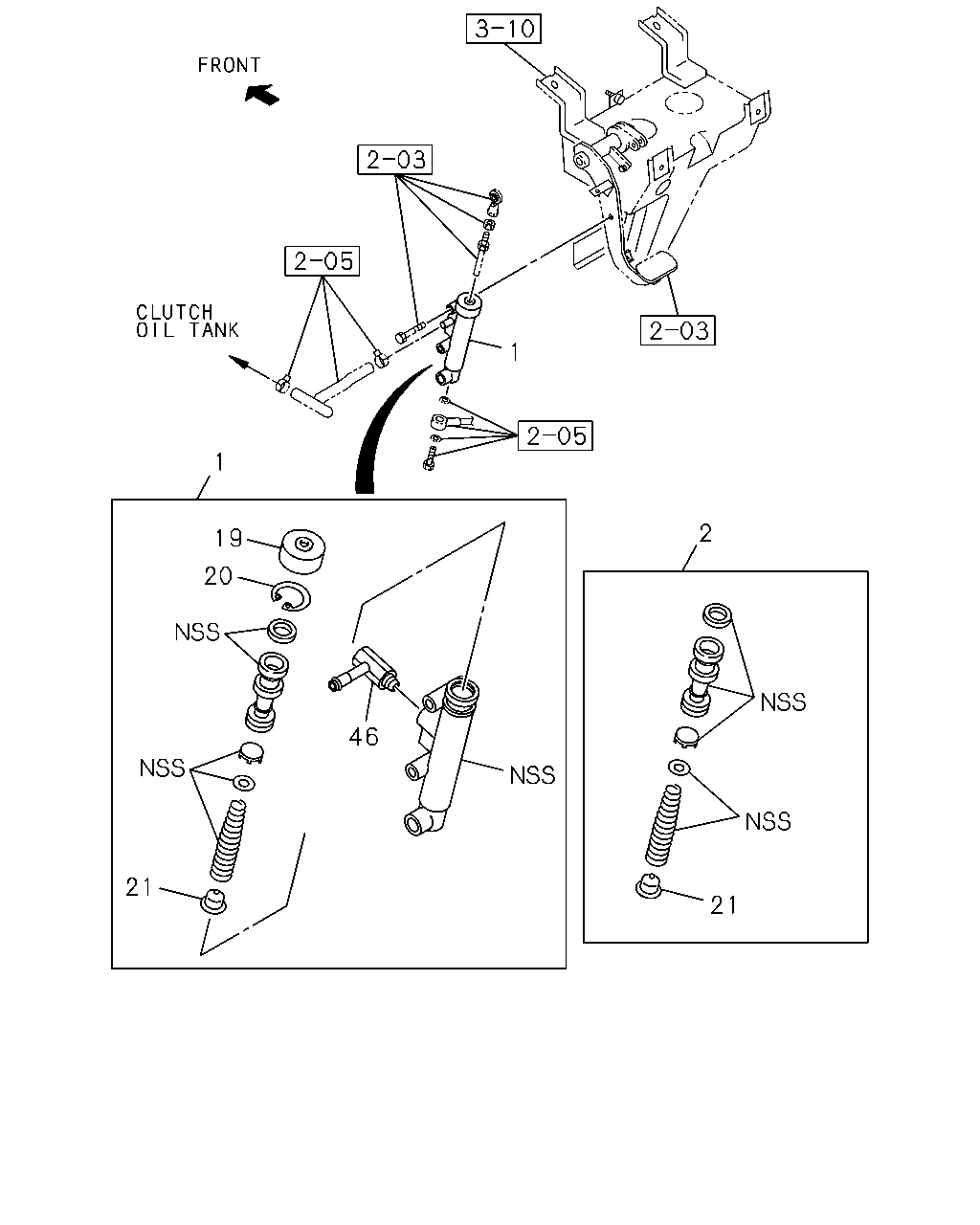

çizim 77640
1 1 2 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47500-247-1 01 1 0106-
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47500-241-3 01 1 0106-
1 CYLINDER ASM; CLUTCH MASTER
FULLER M/T<X9B> 		1-47500-239-2 01 1 0106-
2 REPAIR KIT; CLU M/CYL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47550-048-0 01 1 0106-
2 REPAIR KIT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47550-046-0 01 1 0106-
2 REPAIR KIT; CLU M/CYL
FULLER M/T<X9B> 		1-85572-010-0 01 1 0106-
19 BOOT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47545-011-0 01 1 0106-
19 BOOT; CLU M/CYL
FULLER M/T<X9B> 		9-47545-032-0 01 1 0106-
20 RING; SNAP,BODY
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47515-009-0 01 1 0106-
20 RING; SNAP,BODY
FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 0106-
21 VALVE; CHECK
FULLER M/T<X9B> 		1-47565-004-0 01 1 0106-
21 VALVE; CHECK
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47565-004-0 01 1 0106-
46 CONNECTOR; PIPE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ZF M/T<X9E> 		1-47517-003-0 01 1 0106-
46 CONNECTOR; PIPE
FULLER M/T<X9B> 		1-47559-016-0 01 1 0106-
