2-05 — CLUTCH PIPING (#11087) — 283 parça

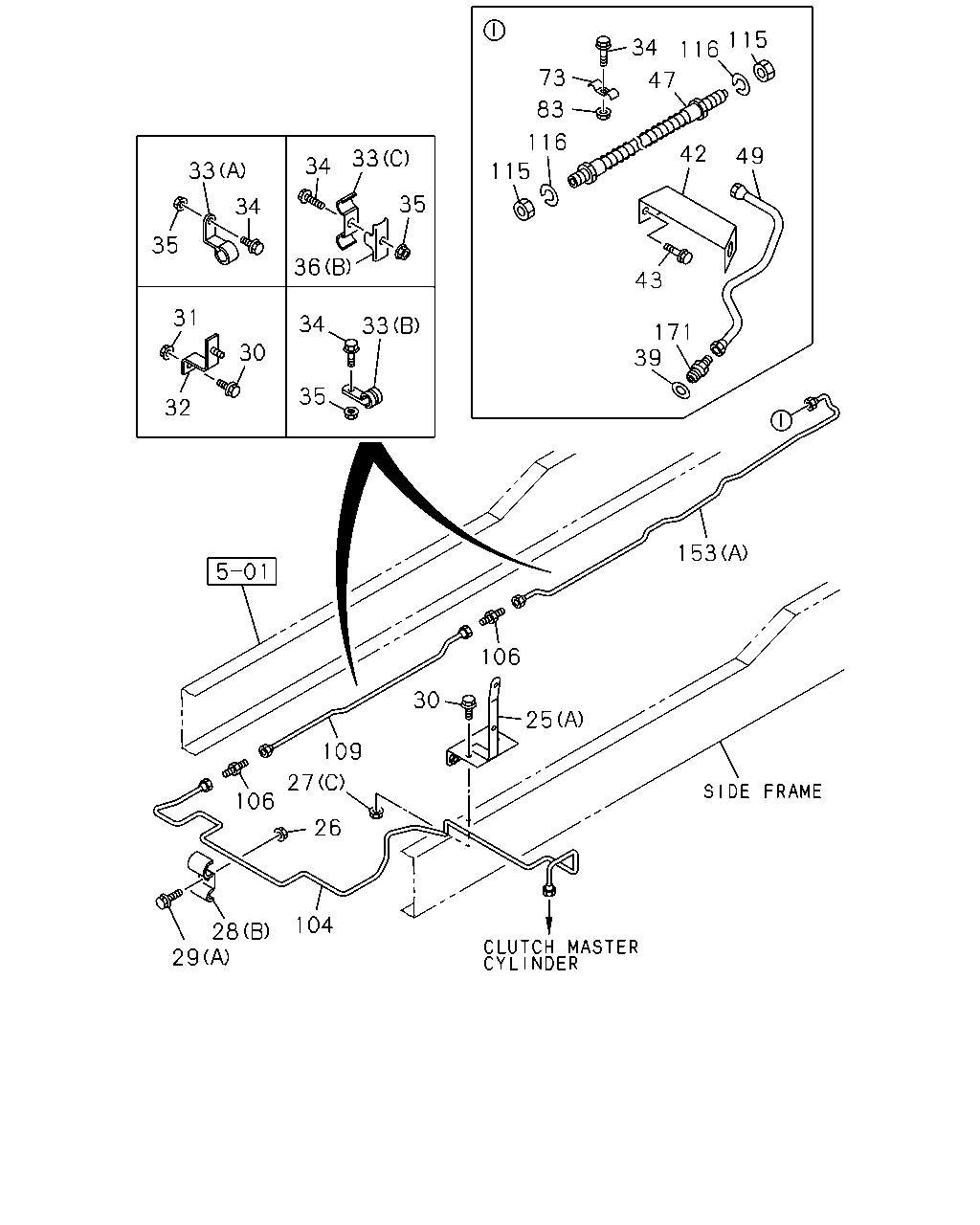

115 34 116 73 47 83 116 42 49 33 34 33 115 35 34 35 36 43 31 34 33 171 39 30 35 32 153 106 30 25 109 27 106 26 104 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0106-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0106-
25	BRACKET; OIL PIPE FULLER M/T<X9B> (F) L=50	1-47475-299-2	02	1	0106-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0106-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0106
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0106-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0106-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0106-
28	CLIP; OIL PIPE FULLER M/T<X9B> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0106
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0106-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
31	NUT; BRKT FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0106-
32	BRACKET; CLIP OIL PIPE FULLER M/T<X9B>	1-47477-235-0	01	1	0106-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> (B) ID=9 L=20	9-09524-835-0	01	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	01	1	0106-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28080-845-0	01	1	0106-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0106-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0106-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0106-
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0106-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0106-
36	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47475-427-1	01	1	0106-
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0106-
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47478-796-0	01	1	0106-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0106-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> L=445	1-09364-478-0	01	1	0106-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER M/T<X9B>	1-49161-120-0	01	1	0106-
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	9-09110-408-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=2296	1-49166-267-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2143	1-49164-307-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-
106	UNION; OIL PIPE FULLER M/T<X9B> M14 STRAIGHT	9-09223-008-1	01	1	0106-
106	UNION; OIL PIPE FULLER M/T<X9B> M14 STRAIGHT	9-09223-008-1	01	1	0106-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0106-
109	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	0106-0205
109	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L=1015 SERVICED BY L=1100	1-47434-409-0	01	1	0206-
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0106-
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0106-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0106-
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0106-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0106-
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	0106-

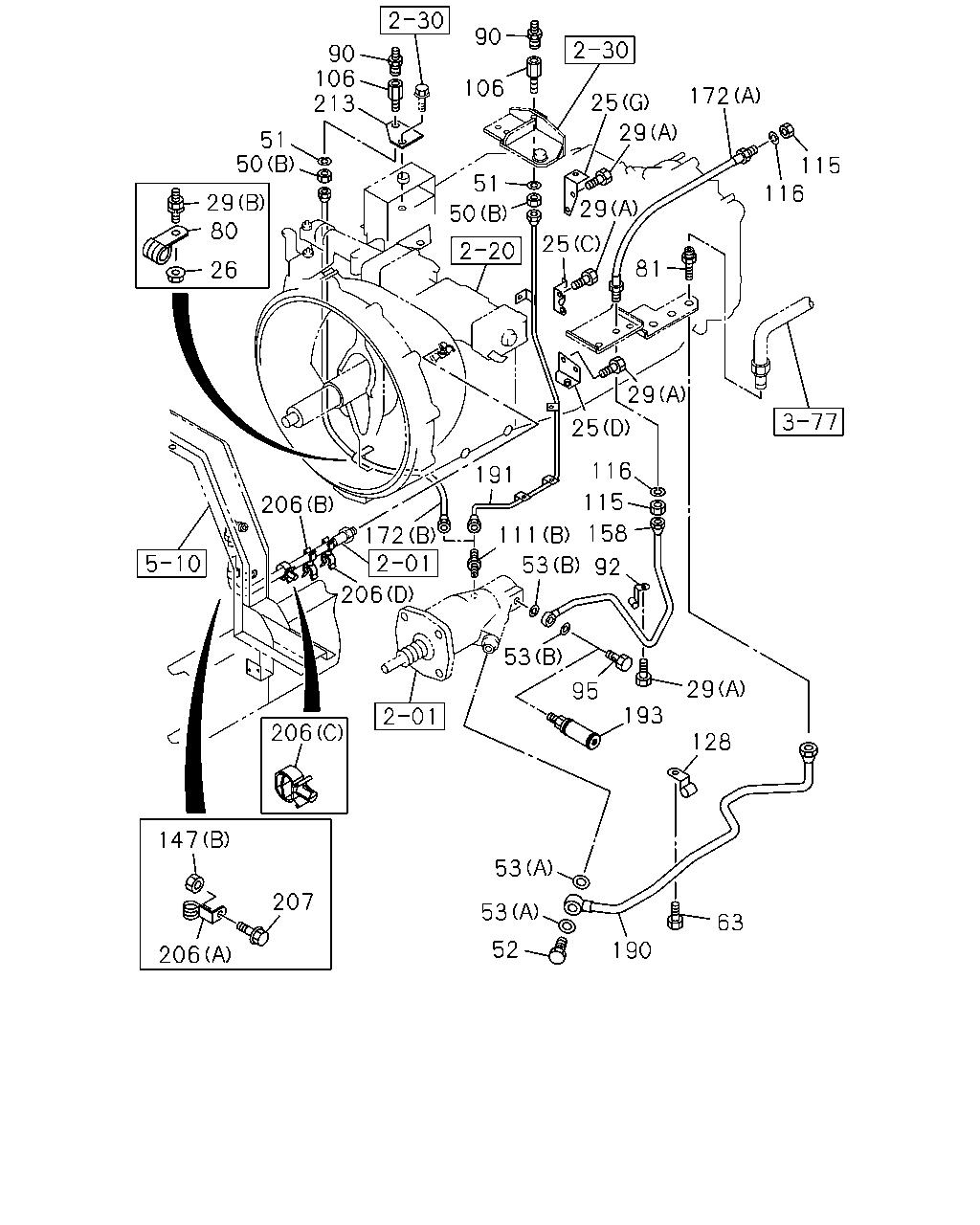

90 90 106 213 106 172 25 29 51 50 115 116 51 29 29 80 50 25 81 26 29 25 116 191 115 206 158 172 111 53 92 206 53 95 29 193 206 128 147 53 207 53 63 52 190 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0106-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0106-
25	BRACKET; OIL PIPE FULLER M/T<X9B> (F) L=50	1-47475-299-2	02	1	0106-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0106-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0106
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0106-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0106
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0106-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M12	9-09840-280-0	01	1	0106-
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0106-
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0106-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0106-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0106-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0106-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0106-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0106-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0106-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=9 H=32 L=24	1-09701-221-0	01	1	0106-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) M14X27 FLANGE	1-09675-086-0	01	1	0106-
106	UNION; OIL PIPE FULLER M/T<X9B> M14 STRAIGHT	9-09223-008-1	01	1	0106-
106	UNION; OIL PIPE FULLER M/T<X9B> M14 STRAIGHT	9-09223-008-1	01	1	0106-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0106-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0106-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0106-
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0106-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0106-
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0106-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0106-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=13 H=18 L=20	1-09701-232-0	01	1	0106-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0106-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0106-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-054-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=470	1-09364-929-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0106-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-730-0	01	1	0106-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0106-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49163-428-0	01	1	0106-0107
193	ABSORBER; CLU TRANSMISSION-ZF 16S221 OD(Y1U)	1-31820-023-0	01	1	0106-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0106-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0106-
206	CLIP; TUBE 6WF1 TC-C(1B8) ZF M/T<X9E> (D) ID=13 & 21	8-94417-626-0	01	1	0108-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0106-
213	BRACKET; OIL HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-47478-478-0	01	1	0108-

36 24 67 67 185 66 186 147 185 58 57 167 187 58 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION FULLER M/T<X9B> L=621	1-47428-362-1	01	1	0106-
24	PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=628	1-47428-381-1	01	1	0106-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0106-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0106-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0106-
36	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47475-427-1	01	1	0106-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0106-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0106-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0106-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0106-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0106-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0106-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0106-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0106-0205
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0106-
187	SEAL; BRKT	1-71117-209-2	01	1	0106-

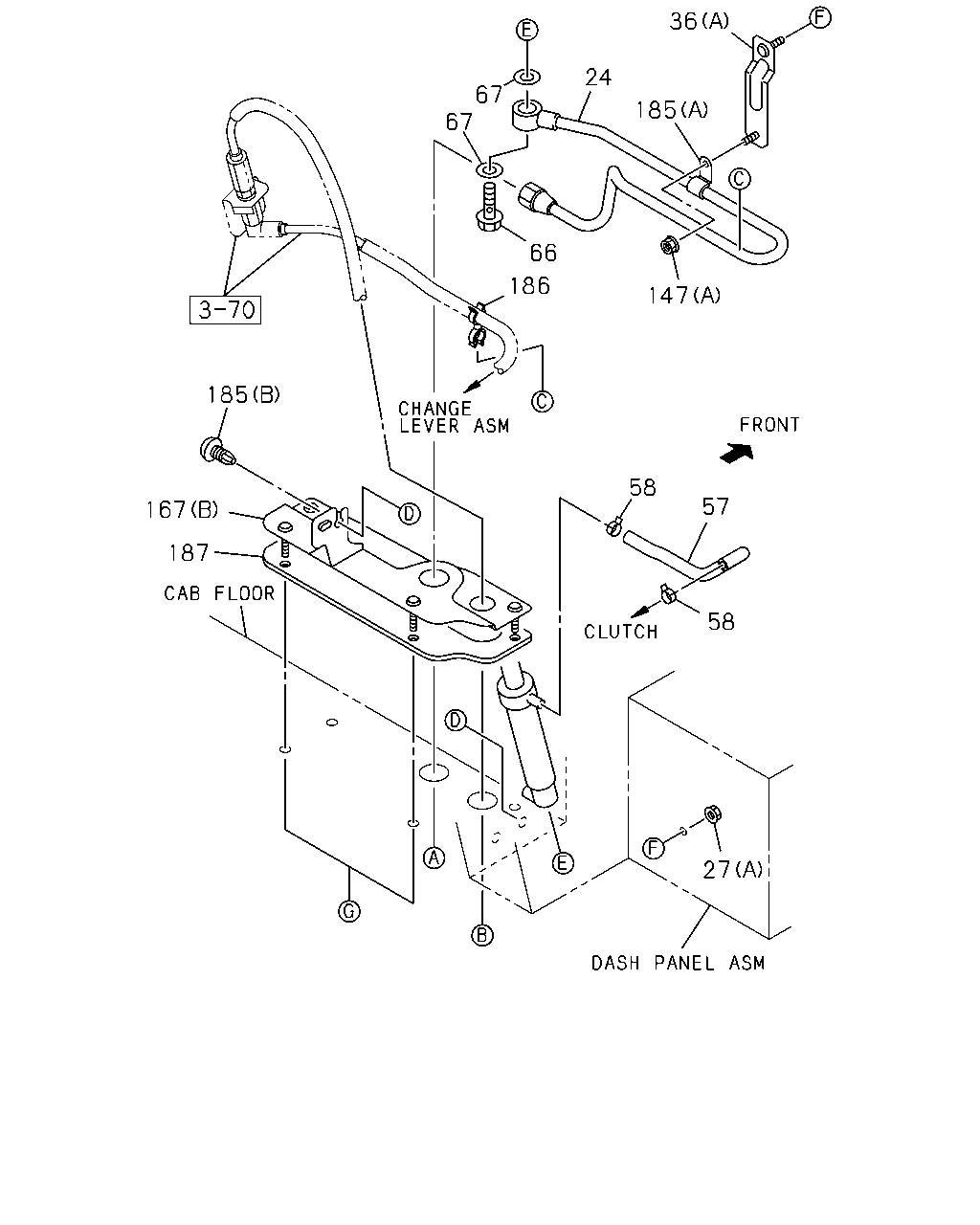

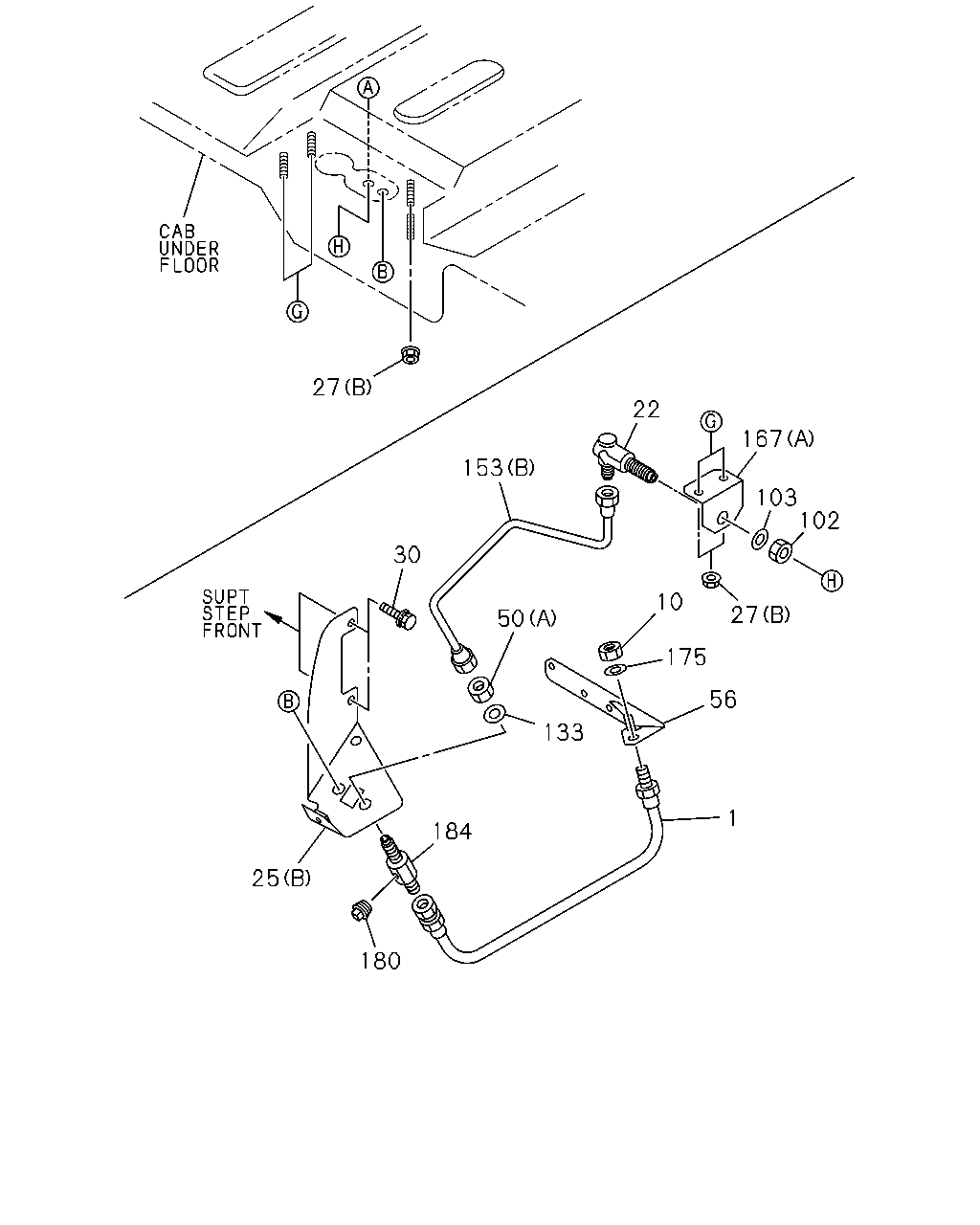

27 22 167 153 103 102 30 10 27 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0106-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0106-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0106-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0106-
25	BRACKET; OIL PIPE FULLER M/T<X9B> (F) L=50	1-47475-299-2	02	1	0106-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0106-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0106-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0106-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0106-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0106-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M12	9-09840-280-0	01	1	0106-
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0106-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0106-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0106-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0106-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0106-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0106-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-
180	PLUG; PIPE	9-09204-510-0	01	1	0106-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0106-

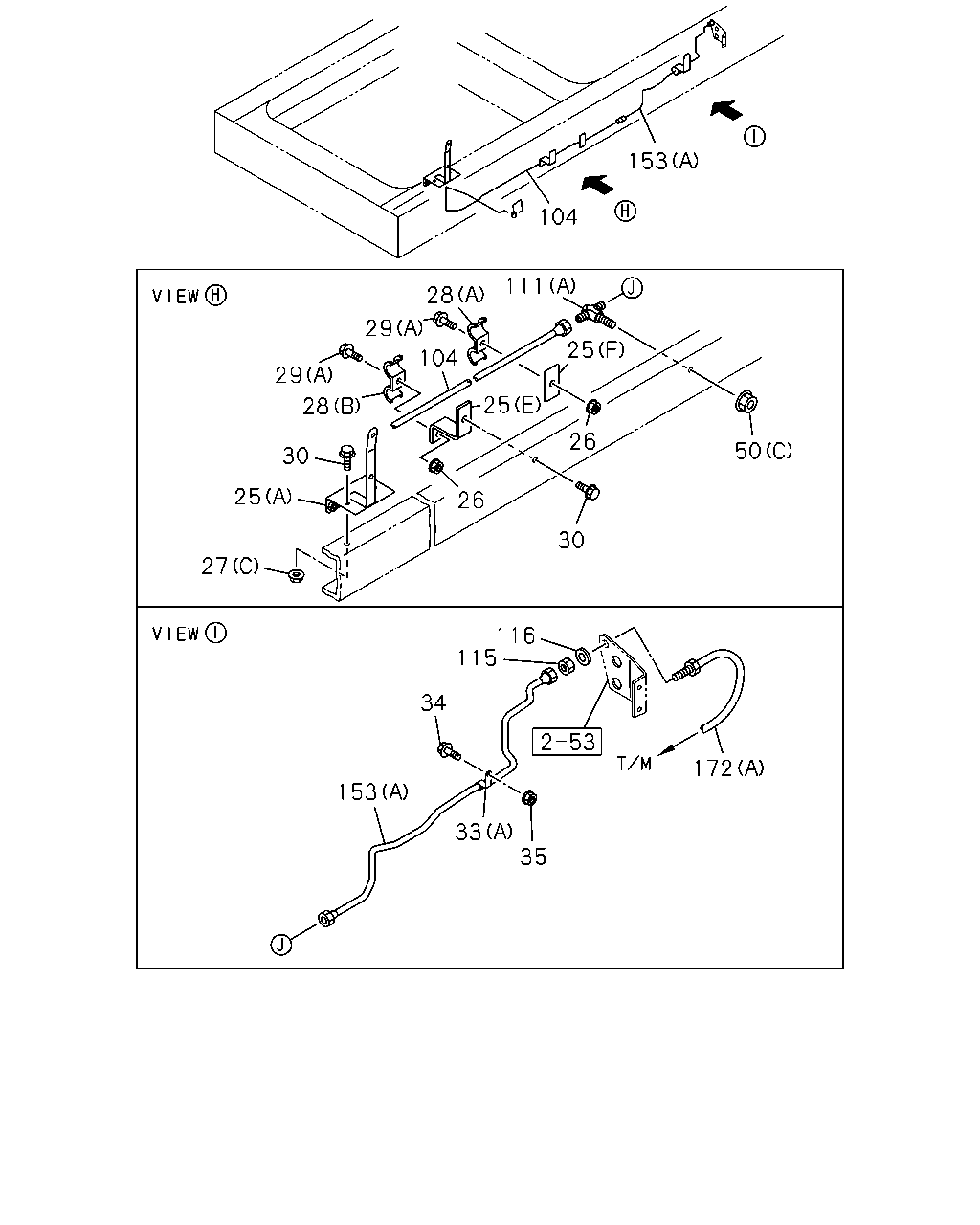

153 104 111 28 29 25 104 29 25 28 26 50 30 25 26 30 27 116 115 34 172 153 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0106-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0106-
25	BRACKET; OIL PIPE FULLER M/T<X9B> (F) L=50	1-47475-299-2	02	1	0106-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0106-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0106
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0106-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0106-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0106-
28	CLIP; OIL PIPE FULLER M/T<X9B> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X16 FLANGE	0-28080-816-0	02	1	0106-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0106
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0106-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> (B) ID=9 L=20	9-09524-835-0	01	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28080-820-0	01	1	0106-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X45 FLANGE	0-28080-845-0	01	1	0106-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0106-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	02	1	0106-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0106-
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0106-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0106-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M12	9-09840-280-0	01	1	0106-
50	NUT; UNION ZF M/T<X9E> (C) M12 FLANGE	0-91150-212-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=2296	1-49166-267-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2143	1-49164-307-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0106-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT FULLER M/T<X9B> M14	9-99111-414-0	02	1	0106-
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0106-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0106-
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	0106-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=470	1-09364-929-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
