◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10630 - FVR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#1108) — 266 parça

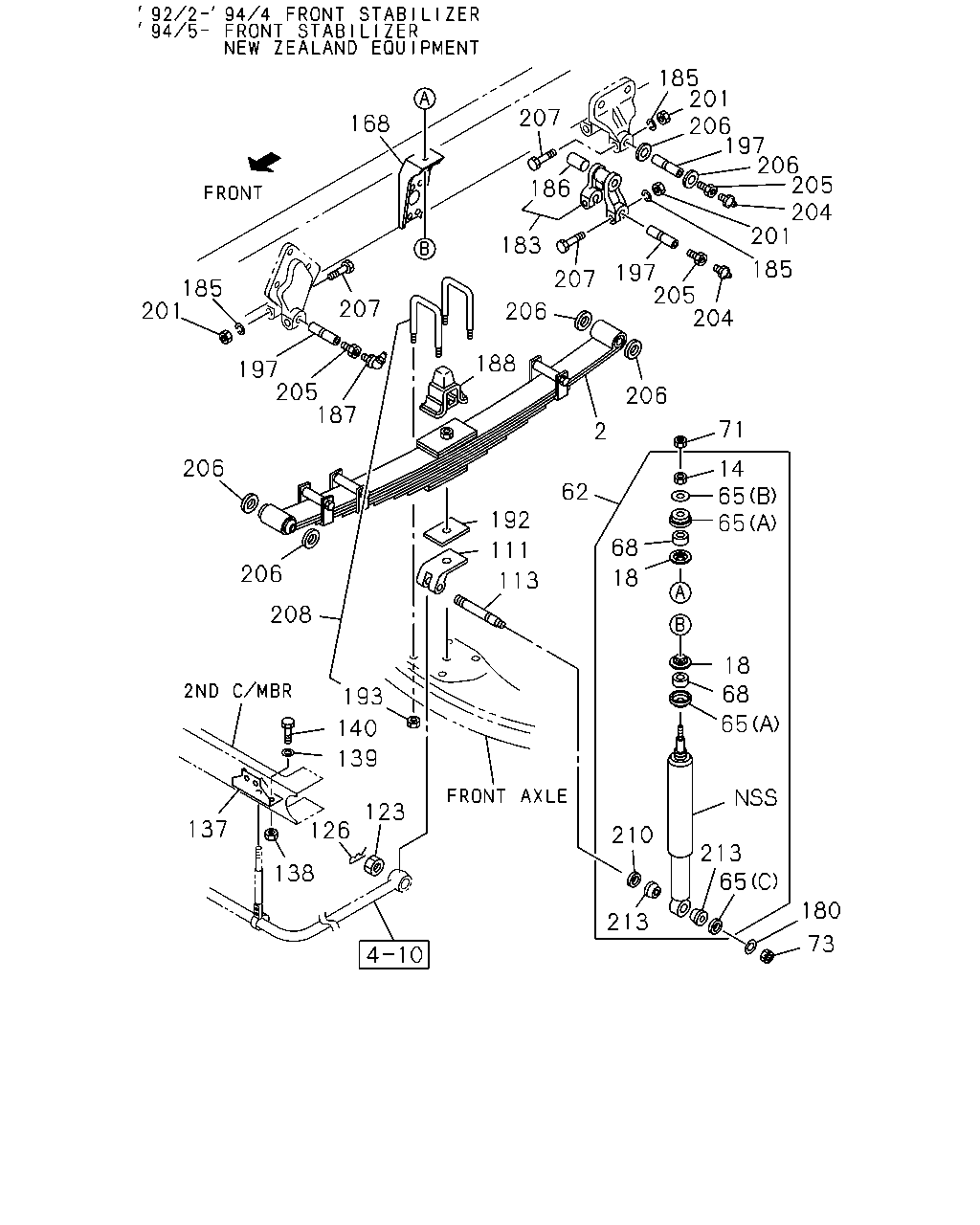

çizim 27432
185 201 206 197 206 205 204 201 207 168 186 183 185 197 205 204 207 185 201 207 206 188 197 205 187 206 71 2 206 14 65 65 62 192 68 111 206 18 113 208 18 68 193 65 140 139 123 126 137 210 213 65 138 180 213 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) FRT TAPER LEAF SUSPENSION<SAR> EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51130-441-0 02 1 9411- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. SUSPENSION HEAVY DUTY VAR2(F41),FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-152-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-071-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR2(F41),FRONT STABILIZER SHAFT<F59>,FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-151-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51130-070-0 02 1 9202-9410 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. SUSPENSION HEAVY DUTY VAR2(F41),AUSTRALIA EQUIPMENT(RR3) 		1-51130-070-0 02 1 9411- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9202-9404 ● ●
14 NUT; S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9405- ● ●
14 NUT; S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9405- ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9202-9404 ● ●
18 WASHER; CENTERING,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> ID=20.8 		9-51631-041-0 04 1 9405- ● ●
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=20.8 		9-51631-041-0 04 1 9405- ●
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=16.8 		1-51631-022-0 04 1 9405- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-304-0 02 1 9202-9404 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-304-0 02 1 9405- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51630-304-0 02 1 9405- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51630-180-3 02 1 9405- ● ●
65 WASHER; S/ABS
(B) 		1-09503-228-0 02 1 9202-9404 ● ●
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-09503-228-0 02 1 9405- ● ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) 		1-09503-228-0 02 1 9405- ●
65 WASHER; S/ABS
(C) 		9-51631-028-0 02 1 9202-9404 ● ●
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (C) 		9-51631-028-0 02 1 9405-9412 ● ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (C) 		9-51631-028-0 02 1 9405-9412 ●
65 WASHER; S/ABS
(A) 		9-51631-040-0 04 1 9202-9404 ● ●
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) 		9-51631-040-0 04 1 9405- ● ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) 		9-51631-040-0 04 1 9405- ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51631-019-0 02 1 9405- ● ●
68 BUSHING; S/ABS 9-51631-039-0 04 1 9202-9404 ● ●
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		9-51631-039-0 04 1 9405- ● ●
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		9-51631-039-0 04 1 9405- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9202-9404 ● ●
71 NUT; LK,S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9405- ● ●
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9405- ●
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9405- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9202-9404 ● ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9405- ● ●
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M20 		9-99110-420-0 02 1 9405- ●
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M16 		9-99110-416-0 02 1 9405- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-700-0 01 1 9202-9404 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-700-0 01 1 9405- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-699-0 01 1 9202-9404 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-699-0 01 1 9405- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-633-1 01 1 9405- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-632-1 01 1 9405- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-1 01 1 9202- ● ●
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> 		1-51682-122-2 02 1 9202-9406 ● ●
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51682-122-2 02 1 9407- ●
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51682-127-1 02 1 9407- ● ●
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M24 		9-99116-424-0 02 1 9202-9406 ● ●
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M24 		9-99116-424-0 02 1 9407- ●
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M22 		9-09116-522-0 02 1 9407- ● ●
126 PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45 		9-08115-045-0 02 1 9202- ● ●
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-2 02 1 9202- ● ●
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 		9-09110-510-0 08 1 9202- ● ●
139 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26 		9-09160-710-0 08 1 9202- ● ●
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9202- ● ●
168 BRACKET; S/ABS,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9405- ●
168 BRACKET; S/ABS,FRT SUSP
6SA1TC ENG(28L) AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9405- ●
168 BRACKET; S/ABS,FRT SUSP
6SA1 STD ENG(06L) FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9405- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-317-0 02 1 9202-9404 ● ●
168 BRACKET; S/ABS,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3),BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9405- ● ●
168 BRACKET; S/ABS,FRT SUSP
6SA1 STD ENG(06L),6SA1TC ENG(28L) AUSTRALIA EQUIPMENT(RR3) BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9405- ● ●
168 BRACKET; S/ABS,FRT SUSP
6SA1 STD ENG(06L) AUSTRALIA EQUIPMENT(RR3) EXC. FRONT STABILIZER SHAFT<F59>,BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9405- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9202-9404 ● ●
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9405- ● ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=21 		9-09160-520-0 02 1 9405- ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		9-09160-516-0 02 1 9405- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9202- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9202-9209 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9202- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9202- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9202- ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9202- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9202- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9202- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9202- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9202- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9202- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9202- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9202- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9202-9406 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT STABILIZER SHAFT<F59> L=230 		1-87870-269-1 04 1 9407- ● ●
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) L=230 		1-87870-269-1 04 1 9407- ●
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) L=210 		1-87870-380-0 04 1 9407- ● ●
210 WASHER; S/ABS,OUTER
ID=27 		9-51631-027-0 02 1 9202-9404 ● ●
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=27 		9-51631-027-0 02 1 9405-9412 ● ●
210 WASHER; S/ABS,OUTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=27 		9-51631-027-0 02 1 9405-9412 ●
210 WASHER; S/ABS,OUTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		1-51631-020-0 02 1 9405- ● ●
213 BUSHING; RUBBER,LWR 9-51631-026-0 04 1 9202-9404 ● ●
213 BUSHING; RUBBER,LWR
EXC. FRONT STABILIZER SHAFT<F59> 		9-51631-026-0 04 1 9405-9412 ● ●
213 BUSHING; RUBBER,LWR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		9-51631-026-0 04 1 9405-9412 ●
213 BUSHING; RUBBER,LWR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51631-009-1 04 1 9405- ● ●

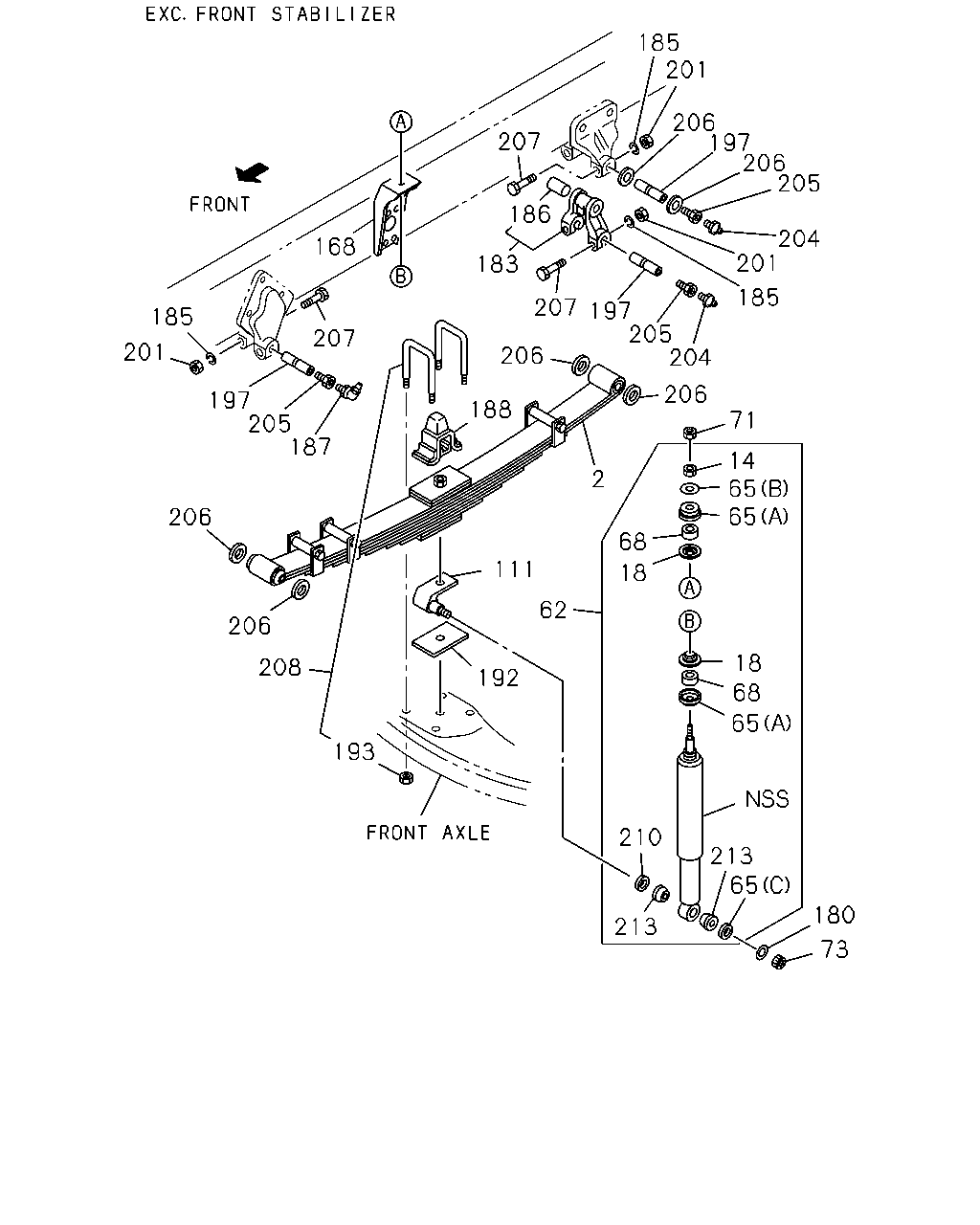

çizim 28072
185 201 206 197 206 205 207 186 204 201 168 183 185 207 197 205 204 185 207 201 206 206 197 187 188 71 14 65 65 2 206 68 111 18 62 206 18 208 192 68 65 193 210 213 65 180 213 73 205
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) FRT TAPER LEAF SUSPENSION<SAR> EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51130-441-0 02 1 9411- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. SUSPENSION HEAVY DUTY VAR2(F41),FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-152-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-071-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR2(F41),FRONT STABILIZER SHAFT<F59>,FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-151-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51130-070-0 02 1 9202-9410 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. SUSPENSION HEAVY DUTY VAR2(F41),AUSTRALIA EQUIPMENT(RR3) 		1-51130-070-0 02 1 9411- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9202-9404 ● ●
14 NUT; S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9405- ● ●
14 NUT; S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9405- ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9202-9404 ● ●
18 WASHER; CENTERING,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> ID=20.8 		9-51631-041-0 04 1 9405- ● ●
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=20.8 		9-51631-041-0 04 1 9405- ●
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=16.8 		1-51631-022-0 04 1 9405- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-304-0 02 1 9202-9404 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-304-0 02 1 9405- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51630-304-0 02 1 9405- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51630-180-3 02 1 9405- ● ●
65 WASHER; S/ABS
(B) 		1-09503-228-0 02 1 9202-9404 ● ●
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-09503-228-0 02 1 9405- ● ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) 		1-09503-228-0 02 1 9405- ●
65 WASHER; S/ABS
(C) 		9-51631-028-0 02 1 9202-9404 ● ●
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (C) 		9-51631-028-0 02 1 9405-9412 ● ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (C) 		9-51631-028-0 02 1 9405-9412 ●
65 WASHER; S/ABS
(A) 		9-51631-040-0 04 1 9202-9404 ● ●
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) 		9-51631-040-0 04 1 9405- ● ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) 		9-51631-040-0 04 1 9405- ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51631-019-0 02 1 9405- ● ●
68 BUSHING; S/ABS 9-51631-039-0 04 1 9202-9404 ● ●
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		9-51631-039-0 04 1 9405- ● ●
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		9-51631-039-0 04 1 9405- ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9202-9404 ● ●
71 NUT; LK,S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9405- ● ●
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9405- ●
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9405- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9202-9404 ● ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9405- ● ●
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M20 		9-99110-420-0 02 1 9405- ●
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M16 		9-99110-416-0 02 1 9405- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-700-0 01 1 9202-9404 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-700-0 01 1 9405- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-699-0 01 1 9202-9404 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-699-0 01 1 9405- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-633-1 01 1 9405- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-632-1 01 1 9405- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-1 01 1 9202- ● ●
168 BRACKET; S/ABS,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9405- ●
168 BRACKET; S/ABS,FRT SUSP
6SA1TC ENG(28L) AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9405- ●
168 BRACKET; S/ABS,FRT SUSP
6SA1 STD ENG(06L) FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9405- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-317-0 02 1 9202-9404 ● ●
168 BRACKET; S/ABS,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3),BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9405- ● ●
168 BRACKET; S/ABS,FRT SUSP
6SA1 STD ENG(06L),6SA1TC ENG(28L) AUSTRALIA EQUIPMENT(RR3) BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9405- ● ●
168 BRACKET; S/ABS,FRT SUSP
6SA1 STD ENG(06L) AUSTRALIA EQUIPMENT(RR3) EXC. FRONT STABILIZER SHAFT<F59>,BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9405- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9202-9404 ● ●
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9405- ● ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=21 		9-09160-520-0 02 1 9405- ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		9-09160-516-0 02 1 9405- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9202- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9202-9209 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9202- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9202- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9202- ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9202- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9202- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9202- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9202- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9202- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9202- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9202- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9202- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9202-9406 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT STABILIZER SHAFT<F59> L=230 		1-87870-269-1 04 1 9407- ● ●
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) L=230 		1-87870-269-1 04 1 9407- ●
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) L=210 		1-87870-380-0 04 1 9407- ● ●
210 WASHER; S/ABS,OUTER
ID=27 		9-51631-027-0 02 1 9202-9404 ● ●
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=27 		9-51631-027-0 02 1 9405-9412 ● ●
210 WASHER; S/ABS,OUTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=27 		9-51631-027-0 02 1 9405-9412 ●
210 WASHER; S/ABS,OUTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		1-51631-020-0 02 1 9405- ● ●
213 BUSHING; RUBBER,LWR 9-51631-026-0 04 1 9202-9404 ● ●
213 BUSHING; RUBBER,LWR
EXC. FRONT STABILIZER SHAFT<F59> 		9-51631-026-0 04 1 9405-9412 ● ●
213 BUSHING; RUBBER,LWR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		9-51631-026-0 04 1 9405-9412 ●
213 BUSHING; RUBBER,LWR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51631-009-1 04 1 9405- ● ●

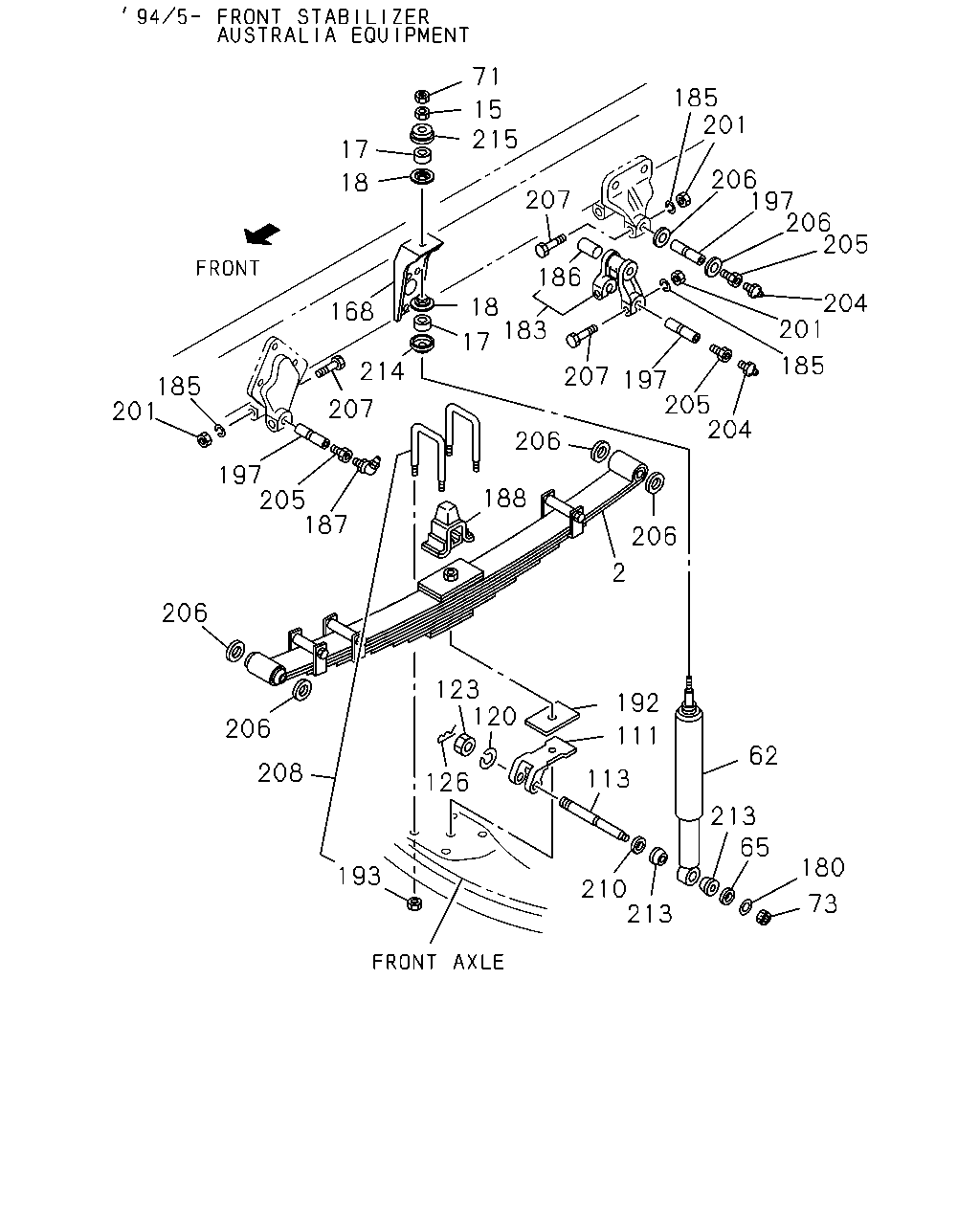

çizim 29242
71 185 201 15 215 17 206 197 206 205 18 207 186 204 201 18 183 168 17 185 214 207 197 205 204 185 201 207 206 197 205 187 188 206 2 206 123 120 192 206 111 62 208 113 126 213 65 180 193 210 213 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) FRT TAPER LEAF SUSPENSION<SAR> EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51130-441-0 02 1 9411- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. SUSPENSION HEAVY DUTY VAR2(F41),FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-152-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) EXC. FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-071-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR2(F41),FRONT STABILIZER SHAFT<F59>,FRT TAPER LEAF SUSPENSION<SAR> 		1-51130-151-0 02 1 9202- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. SUSPENSION HEAVY DUTY VAR2(F41) 		1-51130-070-0 02 1 9202-9410 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. SUSPENSION HEAVY DUTY VAR2(F41),AUSTRALIA EQUIPMENT(RR3) 		1-51130-070-0 02 1 9411- ● ●
15 NUT; S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9405- ● ●
17 BUSHING; RUBBER,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		9-51631-050-0 04 1 9405- ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9202-9404 ● ●
18 WASHER; CENTERING,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> ID=20.8 		9-51631-041-0 04 1 9405- ● ●
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=20.8 		9-51631-041-0 04 1 9405- ●
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=16.8 		1-51631-022-0 04 1 9405- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-304-0 02 1 9202-9404 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-304-0 02 1 9405- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51630-304-0 02 1 9405- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51630-180-3 02 1 9405- ● ●
65 WASHER; S/ABS
(B) 		1-09503-228-0 02 1 9202-9404 ● ●
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) 		1-09503-228-0 02 1 9405- ● ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (B) 		1-09503-228-0 02 1 9405- ●
65 WASHER; S/ABS
(C) 		9-51631-028-0 02 1 9202-9404 ● ●
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (C) 		9-51631-028-0 02 1 9405-9412 ● ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (C) 		9-51631-028-0 02 1 9405-9412 ●
65 WASHER; S/ABS
(A) 		9-51631-040-0 04 1 9202-9404 ● ●
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) 		9-51631-040-0 04 1 9405- ● ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) (A) 		9-51631-040-0 04 1 9405- ●
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51631-019-0 02 1 9405- ● ●
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9202-9404 ● ●
71 NUT; LK,S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> M14 		9-99111-414-0 02 1 9405- ● ●
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M14 		9-99111-414-0 02 1 9405- ●
71 NUT; LK,S/ABS,UPR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M12 		1-09400-006-0 02 1 9405- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9202-9404 ● ●
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9405- ● ●
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M20 		9-99110-420-0 02 1 9405- ●
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M16 		9-99110-416-0 02 1 9405- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-700-0 01 1 9202-9404 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-700-0 01 1 9405- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51681-699-0 01 1 9202-9404 ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51681-699-0 01 1 9405- ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-633-1 01 1 9405- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51681-632-1 01 1 9405- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-1 01 1 9202- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-1 01 1 9202- ● ●
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> 		1-51682-122-2 02 1 9202-9406 ● ●
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		1-51682-122-2 02 1 9407- ●
113 PIN; SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51682-127-1 02 1 9407- ● ●
120 WASHER; PL,SUPPORT BRKT TO BODY
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		9-09160-522-0 02 1 9407- ● ●
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> M24 		9-99116-424-0 02 1 9202-9406 ● ●
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) M24 		9-99116-424-0 02 1 9407- ●
123 NUT; PIN TO SUPPORTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) M22 		9-09116-522-0 02 1 9407- ● ●
126 PIN; SPLIT,STAB
FRONT STABILIZER SHAFT<F59> OD=4.6 L=45 		9-08115-045-0 02 1 9202- ● ●
168 BRACKET; S/ABS,FRT SUSP
AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9405- ●
168 BRACKET; S/ABS,FRT SUSP
6SA1TC ENG(28L) AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9405- ●
168 BRACKET; S/ABS,FRT SUSP
6SA1 STD ENG(06L) FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) EXC. BUMPER W/HEADLAMPS<SLB> 		1-51681-306-0 02 1 9405- ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-317-0 02 1 9202-9404 ● ●
168 BRACKET; S/ABS,FRT SUSP
EXC. AUSTRALIA EQUIPMENT(RR3),BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9405- ● ●
168 BRACKET; S/ABS,FRT SUSP
6SA1 STD ENG(06L),6SA1TC ENG(28L) AUSTRALIA EQUIPMENT(RR3) BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9405- ● ●
168 BRACKET; S/ABS,FRT SUSP
6SA1 STD ENG(06L) AUSTRALIA EQUIPMENT(RR3) EXC. FRONT STABILIZER SHAFT<F59>,BUMPER W/HEADLAMPS<SLB> 		1-51681-317-0 02 1 9405- ●
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9202-9404 ● ●
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9405- ● ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=21 		9-09160-520-0 02 1 9405- ●
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		9-09160-516-0 02 1 9405- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9202- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9202-9209 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9202- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9202- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9202- ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 9202- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9202- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9202- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9202- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9202- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9202- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9202- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9202- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9202-9406 ● ●
208 U-BOLT SET; FRT SPRING
EXC. FRONT STABILIZER SHAFT<F59> L=230 		1-87870-269-1 04 1 9407- ● ●
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) L=230 		1-87870-269-1 04 1 9407- ●
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) L=210 		1-87870-380-0 04 1 9407- ● ●
210 WASHER; S/ABS,OUTER
ID=27 		9-51631-027-0 02 1 9202-9404 ● ●
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=27 		9-51631-027-0 02 1 9405-9412 ● ●
210 WASHER; S/ABS,OUTER
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) ID=27 		9-51631-027-0 02 1 9405-9412 ●
210 WASHER; S/ABS,OUTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=17 		1-51631-020-0 02 1 9405- ● ●
213 BUSHING; RUBBER,LWR 9-51631-026-0 04 1 9202-9404 ● ●
213 BUSHING; RUBBER,LWR
EXC. FRONT STABILIZER SHAFT<F59> 		9-51631-026-0 04 1 9405-9412 ● ●
213 BUSHING; RUBBER,LWR
FRONT STABILIZER SHAFT<F59> NEW ZEALAND EQUIPMENT(PK5) 		9-51631-026-0 04 1 9405-9412 ●
213 BUSHING; RUBBER,LWR
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) 		1-51631-009-1 04 1 9405- ● ●
214 WASHER; S/ABS,UPR,INNER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=14.5 		9-51631-051-0 02 1 9405- ● ●
215 WASHER; S/ABS,UPR,OUTER
FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) ID=14.5 		9-51631-051-0 02 1 9405- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
