Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10872 - EXZ LHD FUEL TANK 400L/400L+400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#11078) — 47 parça
◀

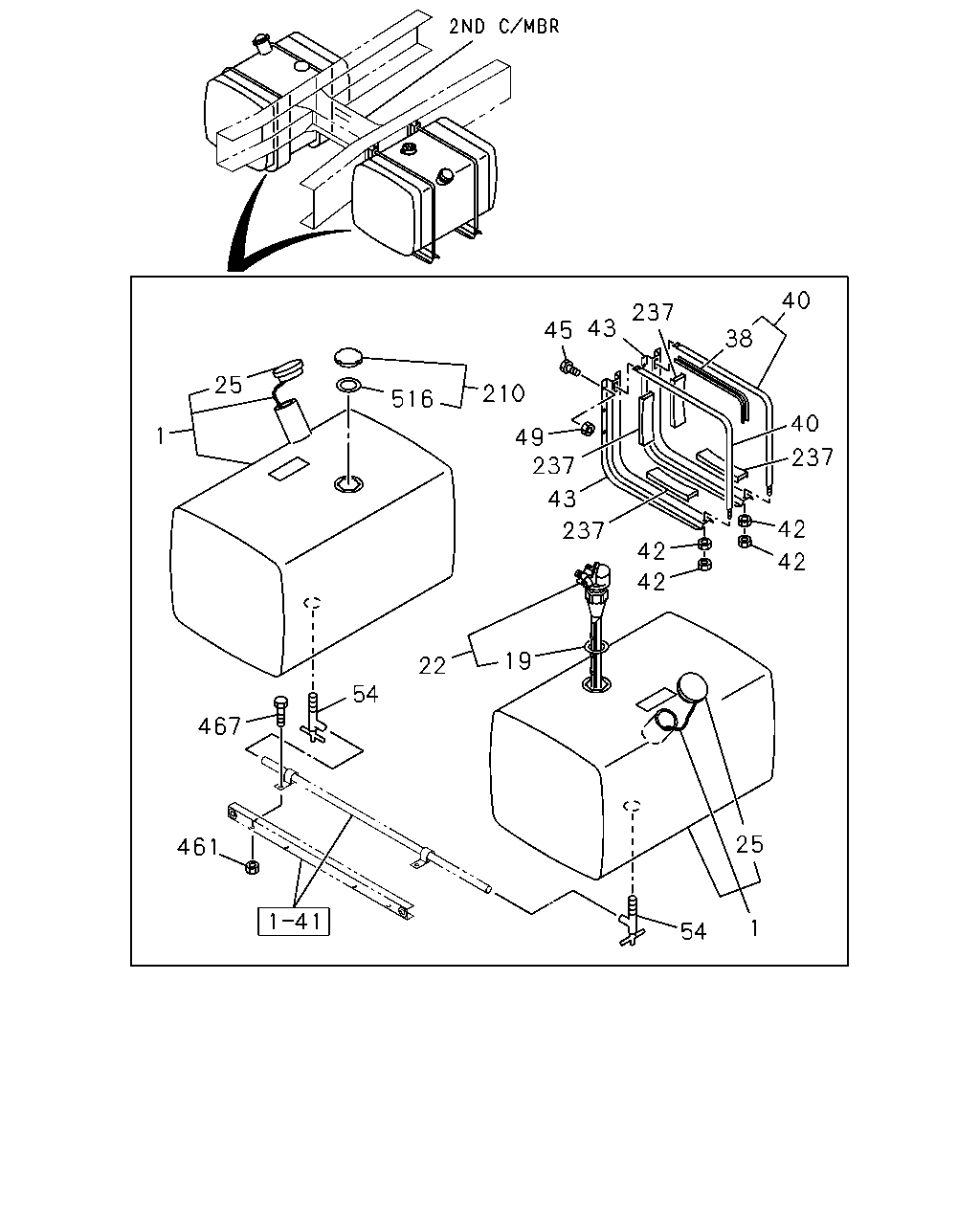

[140A] FUEL TANK 400L+400L (25 parça)

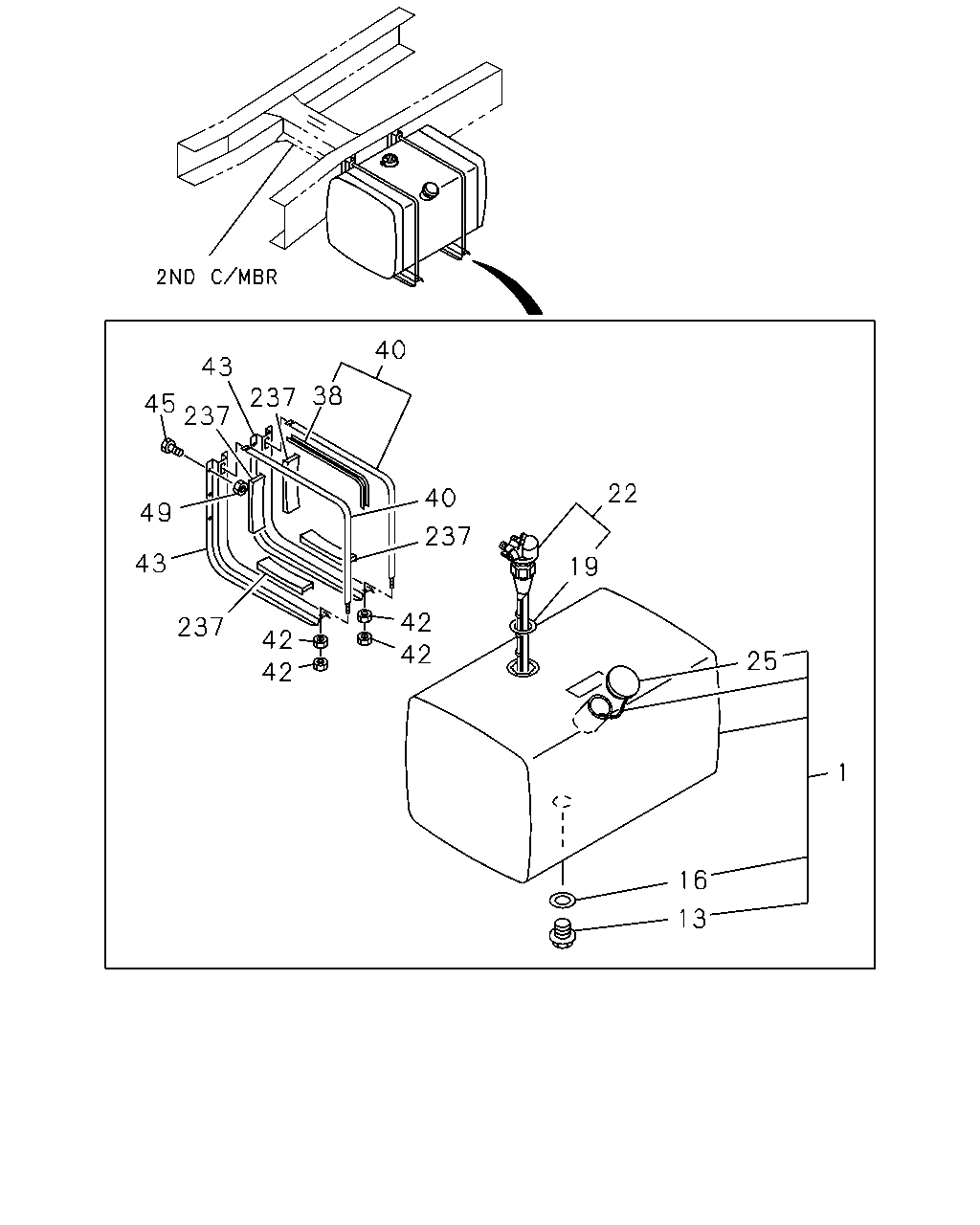

[140A] FUEL TANK 400L (22 parça)
▶
40
237
38
25
210
516
40
237
1
49
237
43
237
42
42
42
42
19
22
54
467
25
461
1
54
45
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
FUEL TANK 400L+400L<NAR> 1020X680X625 400L
1-87411-168-0
02
1
0106-
1
TANK; FUEL
FUEL TANK 400L<SDH> 1020X680X625 400L
1-87411-168-0
01
1
0106-
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0106-
22
UNIT; FUEL TANK
1-83141-132-0
01
1
0106-
25
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
1-22440-056-0
01
1
0106-
25
CAP; FILLER,FUEL TANK
FUEL TANK 400L+400L<NAR>
1-22440-056-0
02
1
0106-
38
INSULATION; SUPPORT BELT
FUEL TANK 400L<SDH> L=1156
1-22553-039-1
02
1
0106-
38
INSULATION; SUPPORT BELT
FUEL TANK 400L+400L<NAR> L=1156
1-22553-039-1
04
1
0106-
40
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH> L=1205
1-22550-227-2
02
1
0106-
40
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L+400L<NAR> L=1205
1-22550-227-2
04
1
0106-
42
NUT; SUPPORT BELT
FUEL TANK 400L<SDH> M10
9-09110-510-0
04
1
0106-
42
NUT; SUPPORT BELT
FUEL TANK 400L+400L<NAR> M10
9-09110-510-0
08
1
0106-
43
BRACKET; FUEL TANK
FUEL TANK 400L<SDH>
1-53461-525-1
02
1
0106-
43
BRACKET; FUEL TANK
FUEL TANK 400L+400L<NAR>
1-53461-525-1
04
1
0106-
45
BOLT; BRKT,FUEL TANK
FUEL TANK 400L<SDH> M12X40 FLANGE
0-28681-240-0
12
1
0106-
45
BOLT; BRKT,FUEL TANK
FUEL TANK 400L+400L<NAR> M12X40 FLANGE
0-28681-240-0
24
1
0106-
49
NUT; BRKT
FUEL TANK 400L<SDH> M12
9-99110-512-0
08
1
0106-
49
NUT; BRKT
FUEL TANK 400L+400L<NAR> M12
9-99110-512-0
16
1
0106-
54
COCK ASM; FUEL TANK
FUEL TANK 400L+400L<NAR>
1-09680-085-0
02
1
0106-
210
CAP; FUEL TANK
FUEL TANK 400L+400L<NAR>
1-22411-076-0
01
1
0106-
237
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH>
1-22553-037-0
04
1
0106-
237
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L+400L<NAR>
1-22553-037-0
08
1
0106-
461
NUT; CLIP,FUEL PIPE
FUEL TANK 400L+400L<NAR> M8 FLANGE
0-91150-108-0
02
1
0106-
467
BOLT
FUEL TANK 400L+400L<NAR> M8X20 FLANGE
0-28680-820-0
02
1
0106-
516
GASKET; CAP
FUEL TANK 400L+400L<NAR> ID=58
1-83149-005-0
01
1
0106-
40
43
38
237
45
237
22
40
49
237
43
19
42
237
42
42
25
42
1
16
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
FUEL TANK 400L+400L<NAR> 1020X680X625 400L
1-87411-168-0
02
1
0106-
1
TANK; FUEL
FUEL TANK 400L<SDH> 1020X680X625 400L
1-87411-168-0
01
1
0106-
13
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 400L<SDH> M18X12
9-99202-318-0
01
1
0106-
16
GASKET; PLUG
FUEL TANK 400L<SDH> T=1.60
1-22416-001-0
01
1
0106-
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0106-
22
UNIT; FUEL TANK
1-83141-132-0
01
1
0106-
25
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
1-22440-056-0
01
1
0106-
25
CAP; FILLER,FUEL TANK
FUEL TANK 400L+400L<NAR>
1-22440-056-0
02
1
0106-
38
INSULATION; SUPPORT BELT
FUEL TANK 400L<SDH> L=1156
1-22553-039-1
02
1
0106-
38
INSULATION; SUPPORT BELT
FUEL TANK 400L+400L<NAR> L=1156
1-22553-039-1
04
1
0106-
40
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH> L=1205
1-22550-227-2
02
1
0106-
40
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L+400L<NAR> L=1205
1-22550-227-2
04
1
0106-
42
NUT; SUPPORT BELT
FUEL TANK 400L<SDH> M10
9-09110-510-0
04
1
0106-
42
NUT; SUPPORT BELT
FUEL TANK 400L+400L<NAR> M10
9-09110-510-0
08
1
0106-
43
BRACKET; FUEL TANK
FUEL TANK 400L<SDH>
1-53461-525-1
02
1
0106-
43
BRACKET; FUEL TANK
FUEL TANK 400L+400L<NAR>
1-53461-525-1
04
1
0106-
45
BOLT; BRKT,FUEL TANK
FUEL TANK 400L<SDH> M12X40 FLANGE
0-28681-240-0
12
1
0106-
45
BOLT; BRKT,FUEL TANK
FUEL TANK 400L+400L<NAR> M12X40 FLANGE
0-28681-240-0
24
1
0106-
49
NUT; BRKT
FUEL TANK 400L<SDH> M12
9-99110-512-0
08
1
0106-
49
NUT; BRKT
FUEL TANK 400L+400L<NAR> M12
9-99110-512-0
16
1
0106-
237
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH>
1-22553-037-0
04
1
0106-
237
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L+400L<NAR>
1-22553-037-0
08
1
0106-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
