◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#11076) — 311 parça

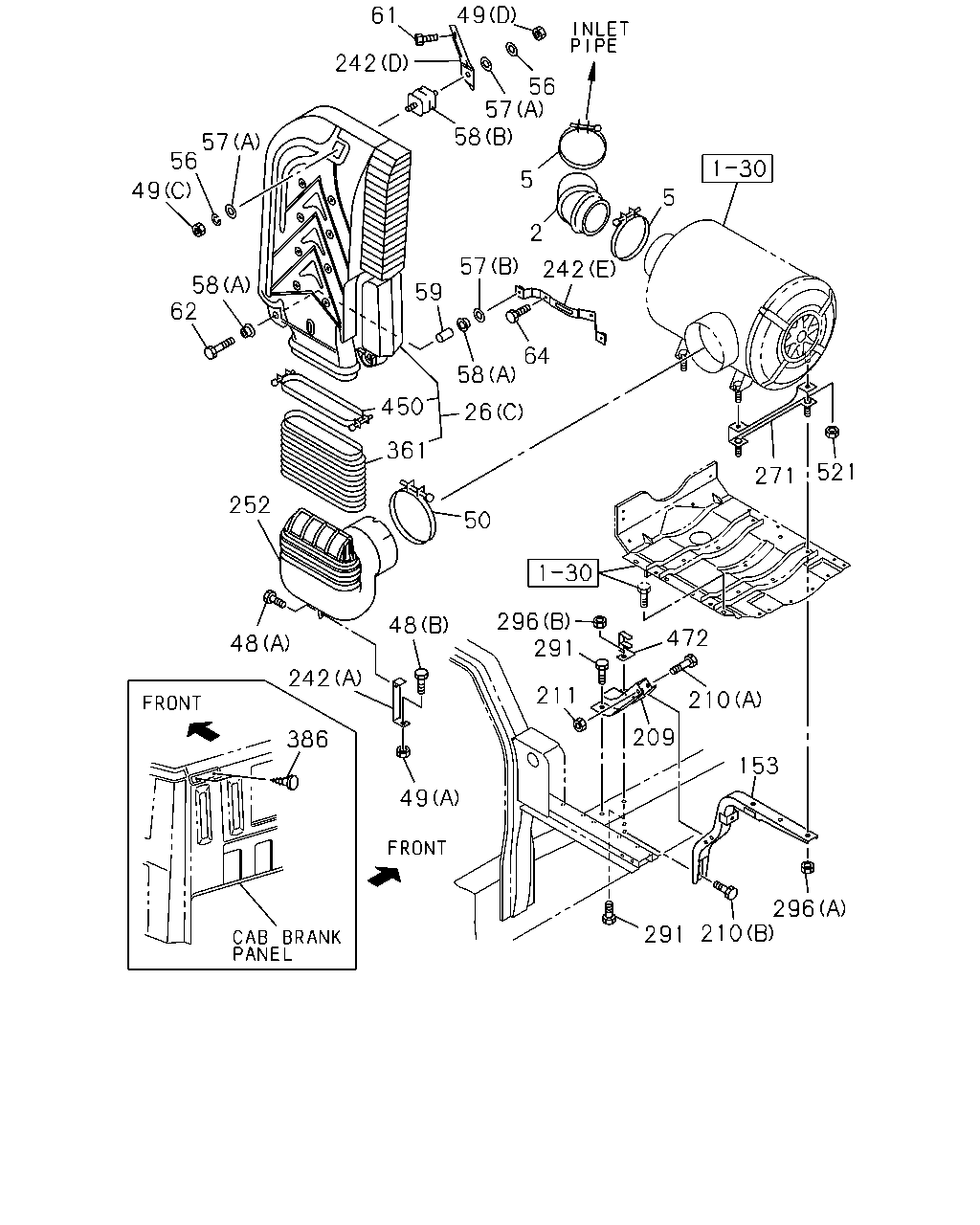

çizim 21360
49 61 242 56 57 58 57 56 5 49 5 2 57 242 58 62 59 64 58 450 26 361 521 271 252 50 296 291 48 472 48 242 211 210 209 386 153 49 296 210 291
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOSE; ACL 1-14231-955-0 01 1 0106-0311 ● ● ● ●
2 HOSE; ACL 1-14231-955-0 01 1 0312- ● ●
2 HOSE; ACL 1-14231-871-0 01 1 0312- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0106- ● ● ● ●
26 DUCT; AIR INT
(A) 		1-14219-258-0 01 1 0106-0112 ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14219-258-0 01 1 0106-0112 ●
26 DUCT; AIR INT
(A) 		1-14219-258-0 01 1 0201- ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14219-258-0 01 1 0201- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0106-0112 ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0201- ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-202-0 01 1 0106-0106 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-202-0 01 1 0107- ●
48 BOLT; AIR DUCT
(C) M10X26 		1-09030-044-1 02 1 0106-0112 ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 0106-0112 ●
48 BOLT; AIR DUCT
(C) M10X26 		1-09030-044-1 02 1 0201- ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 0201- ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ● ● ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0106-0112 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0201- ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0106-0112 ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 0106-0112 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0201- ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 0201- ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91150-210-0 01 1 0106-0112 ● ● ● ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91150-210-0 01 1 0201- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 01 1 0106-0106 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (D) M8 		9-09110-408-0 01 1 0106-0106 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 01 1 0107- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (D) M8 		9-09110-408-0 01 1 0107- ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0106- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0106-0112 ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0106-0112 ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0201- ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0201- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 01 1 0106-0106 ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 0107- ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 04 1 0106-0112 ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 0106-0112 ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 04 1 0201- ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 0201- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0106-0106 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 0106-0106 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0107-0110 ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0111- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 0107- ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0106-0106 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (B) 		1-14119-452-0 01 1 0106-0106 ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0107- ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (B) 		1-14119-452-0 01 1 0107-0110 ●
58 SUPPORT; AIR INL DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) 		1-14119-452-0 01 1 0111- ●
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (B) 		8-97080-149-0 01 1 0111- ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0106-0106 ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> 		1-79998-228-0 02 1 0106-0106 ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0107-0112 ● ● ● ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0201- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> 		1-79998-228-0 02 1 0106-0106 ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0106- ● ● ● ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X26 		1-09030-044-1 02 1 0106-0106 ●
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X26 		1-09030-044-1 02 1 0107- ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0106- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0106-0308 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0309- ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0106-0112 ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0201-0308 ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0309- ●
209 BRACKET; ACL 1-53419-276-0 01 1 0106- ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 0106- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 0106- ● ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ●
242 BRACKET; AIR DUCT
(B) LOWER 		1-79990-041-0 01 1 0106-0112 ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 0106-0112 ●
242 BRACKET; AIR DUCT
(B) LOWER 		1-79990-041-0 01 1 0201- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 0201- ●
242 BRACKET; AIR DUCT
(C) UPPER 		1-79990-045-1 01 1 0106-0112 ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) UPPER 		1-79990-045-1 01 1 0106-0112 ●
242 BRACKET; AIR DUCT
(C) UPPER 		1-79990-045-1 01 1 0201- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) UPPER 		1-79990-045-1 01 1 0201- ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0106-0112 ● ● ● ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0201- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-53419-325-1 01 1 0106- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0106-0110 ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0111- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E) 		1-53419-324-0 01 1 0111- ●
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 0106- ●
252 DUCT; AIR INT 1-14232-059-0 01 1 0201- ● ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 0106- ● ● ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 0106- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 0106- ● ● ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 0106- ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0106-0106 ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0107-0112 ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0201- ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0106-0106 ●
386 PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 01 1 0106- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
EXC. GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 04 1 0106- ● ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0106-0106 ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0107-0112 ● ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0201- ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0106-0106 ●
472 STOPPER; LINK ROD 1-33659-230-0 01 1 0106- ● ● ● ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0106- ● ● ● ●

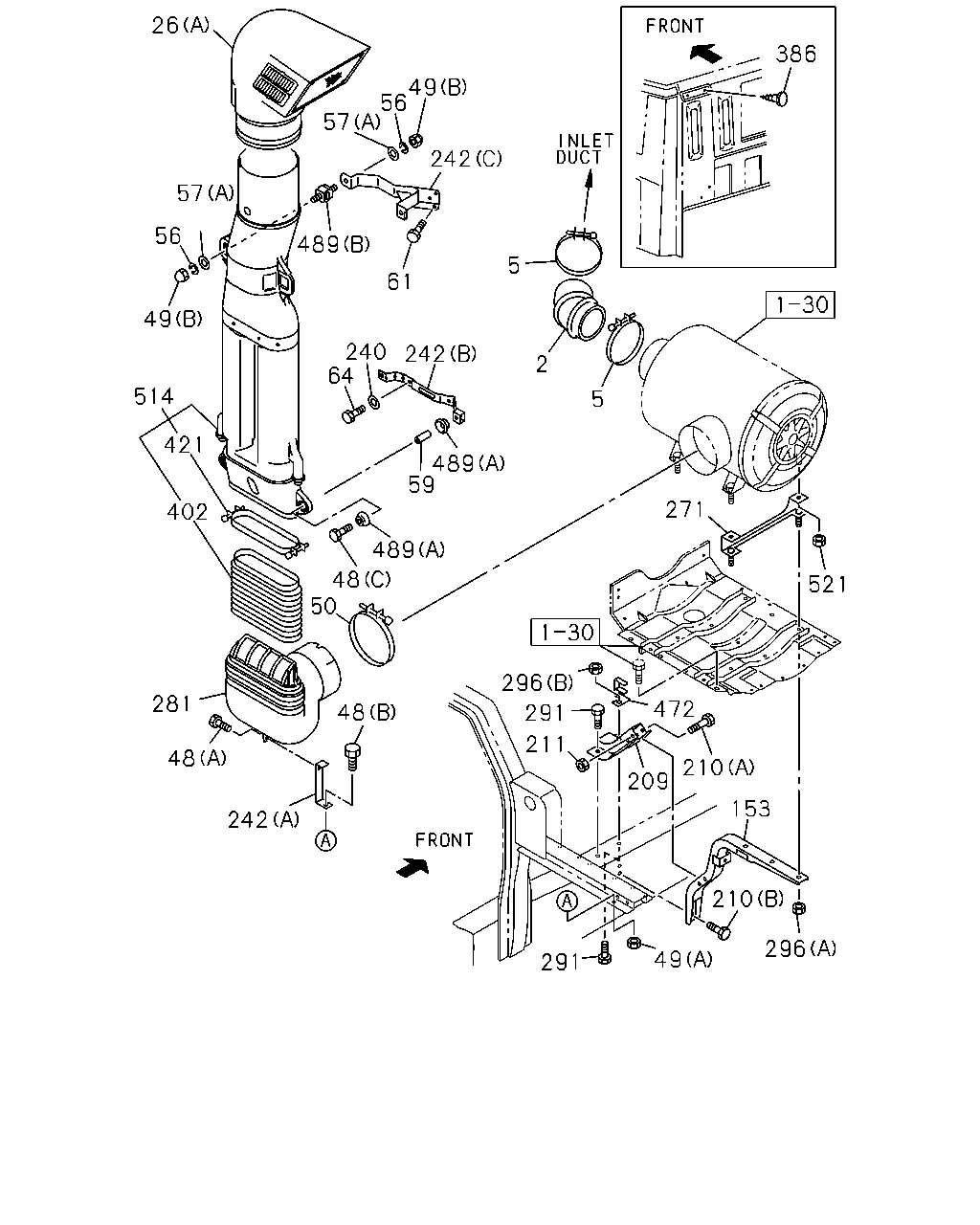

çizim 21363
26 386 49 56 57 242 57 56 489 5 61 49 240 64 242 2 514 5 421 489 59 271 402 489 48 50 521 296 281 472 48 291 211 48 210 209 153 242 210 296 49 291
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOSE; ACL 1-14231-955-0 01 1 0106-0311 ● ● ● ●
2 HOSE; ACL 1-14231-955-0 01 1 0312- ● ●
2 HOSE; ACL 1-14231-871-0 01 1 0312- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0106- ● ● ● ●
26 DUCT; AIR INT
(A) 		1-14219-258-0 01 1 0106-0112 ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14219-258-0 01 1 0106-0112 ●
26 DUCT; AIR INT
(A) 		1-14219-258-0 01 1 0201- ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14219-258-0 01 1 0201- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0106-0112 ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0201- ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-202-0 01 1 0106-0106 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-202-0 01 1 0107- ●
48 BOLT; AIR DUCT
(C) M10X26 		1-09030-044-1 02 1 0106-0112 ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 0106-0112 ●
48 BOLT; AIR DUCT
(C) M10X26 		1-09030-044-1 02 1 0201- ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 0201- ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ● ● ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0106-0112 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0201- ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0106-0112 ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 0106-0112 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0201- ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 0201- ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91150-210-0 01 1 0106-0112 ● ● ● ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91150-210-0 01 1 0201- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 01 1 0106-0106 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (D) M8 		9-09110-408-0 01 1 0106-0106 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 01 1 0107- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (D) M8 		9-09110-408-0 01 1 0107- ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0106- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0106-0112 ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0106-0112 ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0201- ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0201- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 01 1 0106-0106 ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 0107- ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 04 1 0106-0112 ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 0106-0112 ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 04 1 0201- ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 0201- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0106-0106 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 0106-0106 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0107-0110 ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0111- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 0107- ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0106-0106 ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> 		1-79998-228-0 02 1 0106-0106 ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0107-0112 ● ● ● ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0201- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> 		1-79998-228-0 02 1 0106-0106 ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0106- ● ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0106- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0106-0308 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0309- ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0106-0112 ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0201-0308 ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0309- ●
209 BRACKET; ACL 1-53419-276-0 01 1 0106- ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 0106- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 0106- ● ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ●
240 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09985-188-0 01 1 0106-0112 ● ● ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 0106-0112 ●
240 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09985-188-0 01 1 0201- ● ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 0201- ●
242 BRACKET; AIR DUCT
(B) LOWER 		1-79990-041-0 01 1 0106-0112 ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 0106-0112 ●
242 BRACKET; AIR DUCT
(B) LOWER 		1-79990-041-0 01 1 0201- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 0201- ●
242 BRACKET; AIR DUCT
(C) UPPER 		1-79990-045-1 01 1 0106-0112 ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) UPPER 		1-79990-045-1 01 1 0106-0112 ●
242 BRACKET; AIR DUCT
(C) UPPER 		1-79990-045-1 01 1 0201- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) UPPER 		1-79990-045-1 01 1 0201- ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0106-0112 ● ● ● ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0201- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-53419-325-1 01 1 0106- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0106-0110 ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0111- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E) 		1-53419-324-0 01 1 0111- ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 0106- ● ● ● ●
281 DUCT; AIR,VERTICAL INT 1-14230-194-0 01 1 0106-0112 ● ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 0106-0112 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 0201- ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 0106- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 0106- ● ● ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 0106- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 01 1 0106- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
EXC. GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 04 1 0106- ● ● ● ●
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-1 01 1 0106- ● ● ● ●
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 0106- ● ● ● ●
472 STOPPER; LINK ROD 1-33659-230-0 01 1 0106- ● ● ● ●
489 RUBBER; SUPPORT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0106-0112 ● ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0106-0112 ●
489 RUBBER; SUPPORT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0201- ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0201- ●
489 RUBBER; SUPPORT
(B) 		8-97080-149-0 02 1 0106-0112 ● ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 0106-0112 ●
489 RUBBER; SUPPORT
(B) 		8-97080-149-0 02 1 0201- ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 0201- ●
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-0 01 1 0106- ● ● ● ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0106- ● ● ● ●

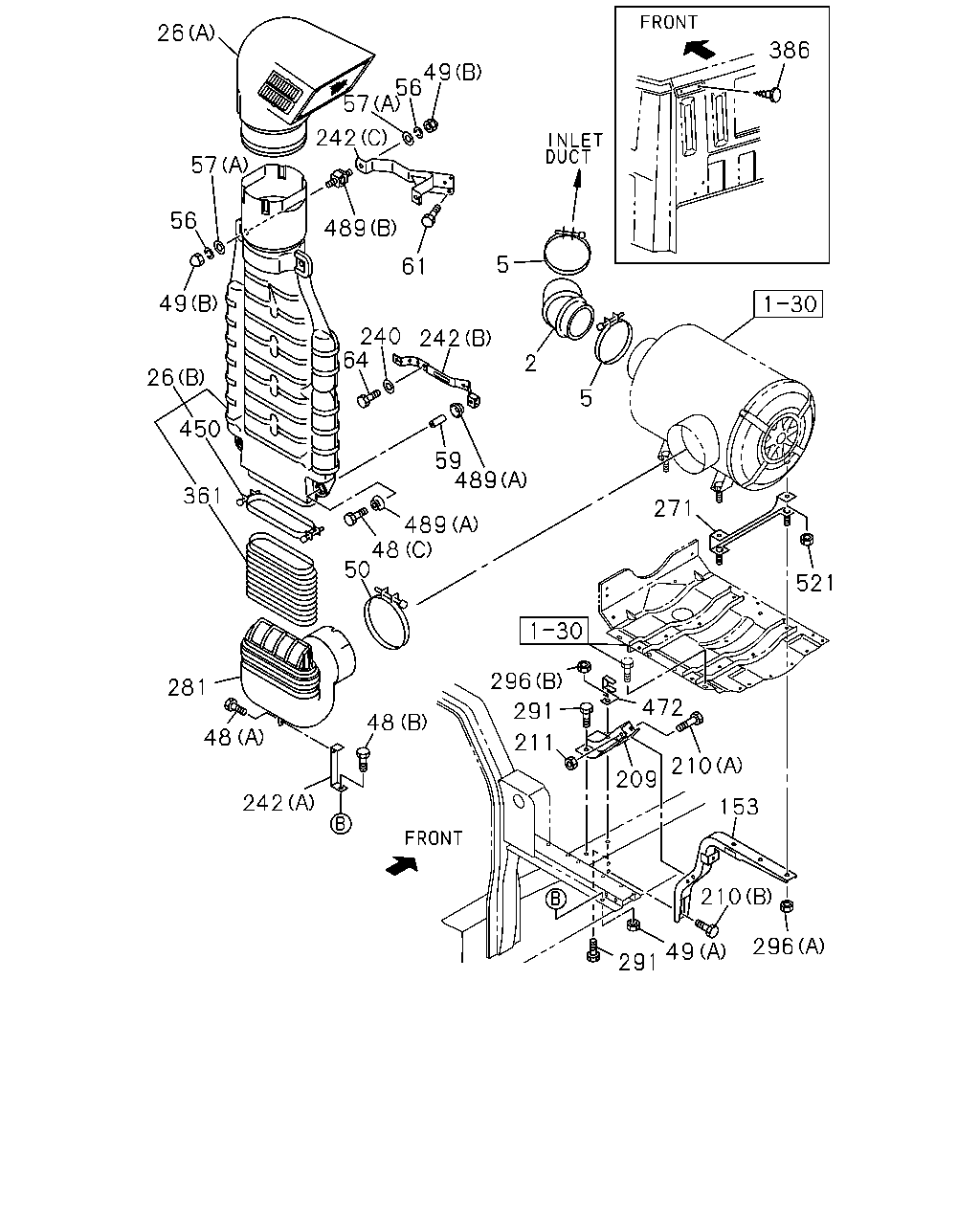

çizim 24189
26 386 49 56 57 242 57 56 489 5 61 49 240 64 242 2 26 5 450 59 489 361 271 489 48 50 521 296 281 472 291 48 48 211 210 209 242 153 210 296 49 291
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOSE; ACL 1-14231-955-0 01 1 0106-0311 ● ● ● ●
2 HOSE; ACL 1-14231-955-0 01 1 0312- ● ●
2 HOSE; ACL 1-14231-871-0 01 1 0312- ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0106- ● ● ● ●
26 DUCT; AIR INT
(A) 		1-14219-258-0 01 1 0106-0112 ● ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14219-258-0 01 1 0106-0112 ●
26 DUCT; AIR INT
(A) 		1-14219-258-0 01 1 0201- ● ●
26 DUCT; AIR INT
PRE CLEANER<W17> (A) 		1-14219-258-0 01 1 0201- ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0106-0112 ● ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (B) 		1-14230-168-0 01 1 0201- ● ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-202-0 01 1 0106-0106 ●
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (C) 		1-14230-202-0 01 1 0107- ●
48 BOLT; AIR DUCT
(C) M10X26 		1-09030-044-1 02 1 0106-0112 ● ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 0106-0112 ●
48 BOLT; AIR DUCT
(C) M10X26 		1-09030-044-1 02 1 0201- ● ●
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X26 		1-09030-044-1 02 1 0201- ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0106-0112 ● ● ● ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0201- ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0106-0112 ● ● ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0201- ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0106-0112 ● ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 0106-0112 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0201- ● ●
49 NUT; AIR DUCT
PRE CLEANER<W17> (B) M8 FLANGE 		1-09984-126-0 04 1 0201- ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91150-210-0 01 1 0106-0112 ● ● ● ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91150-210-0 01 1 0201- ● ● ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 01 1 0106-0106 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (D) M8 		9-09110-408-0 01 1 0106-0106 ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 01 1 0107- ●
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (D) M8 		9-09110-408-0 01 1 0107- ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0106- ● ● ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0106-0112 ● ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0106-0112 ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0201- ● ●
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0201- ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 01 1 0106-0106 ●
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 0107- ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 04 1 0106-0112 ● ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 0106-0112 ●
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 04 1 0201- ● ●
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 0201- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0106-0106 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 0106-0106 ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0107-0110 ●
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0111- ●
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 0107- ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0106-0106 ● ● ●
59 TUBE; DIST,AIR INT DUCT
PRE CLEANER<W17> 		1-79998-228-0 02 1 0106-0106 ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0107-0112 ● ● ● ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0201- ● ● ●
59 TUBE; DIST,AIR INT DUCT
EXC. PRE CLEANER<W17> 		1-79998-228-0 02 1 0106-0106 ●
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0106- ● ● ● ●
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0106- ● ● ● ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0106-0308 ●
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0309- ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0106-0112 ● ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0201-0308 ● ●
153 BRACKET; ACL,FRT 1-53419-299-0 01 1 0309- ●
209 BRACKET; ACL 1-53419-276-0 01 1 0106- ● ● ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28080-870-0 02 1 0106- ● ● ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28681-230-0 01 1 0106- ● ● ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ●
240 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09985-188-0 01 1 0106-0112 ● ● ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 0106-0112 ●
240 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09985-188-0 01 1 0201- ● ●
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 0201- ●
242 BRACKET; AIR DUCT
(B) LOWER 		1-79990-041-0 01 1 0106-0112 ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 0106-0112 ●
242 BRACKET; AIR DUCT
(B) LOWER 		1-79990-041-0 01 1 0201- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) LOWER 		1-79990-041-0 01 1 0201- ●
242 BRACKET; AIR DUCT
(C) UPPER 		1-79990-045-1 01 1 0106-0112 ● ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) UPPER 		1-79990-045-1 01 1 0106-0112 ●
242 BRACKET; AIR DUCT
(C) UPPER 		1-79990-045-1 01 1 0201- ● ●
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (C) UPPER 		1-79990-045-1 01 1 0201- ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0106-0112 ● ● ● ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0201- ● ● ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-53419-325-1 01 1 0106- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0106-0110 ●
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E) 		1-53419-351-1 01 1 0111- ●
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E) 		1-53419-324-0 01 1 0111- ●
271 SPACER; BRKT,ACL 1-53419-343-0 02 1 0106- ● ● ● ●
281 DUCT; AIR,VERTICAL INT 1-14230-194-0 01 1 0106-0112 ● ● ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 0106-0112 ●
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 0201- ●
291 BOLT; ACL
M12X30 FLANGE 		0-28681-230-0 02 1 0106- ● ● ● ●
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 0106- ● ● ● ●
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 0106- ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0106-0106 ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0107-0112 ● ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0201- ● ● ●
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-1 01 1 0106-0106 ●
386 PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 01 1 0106- ● ● ● ●
386 PLUG; DUCT BRKT,AIR INT
EXC. GRIP OUT SIDE<W52> OD=15 L=14.5 		1-76378-157-0 04 1 0106- ● ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0106-0106 ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0107-0112 ● ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0201- ● ● ●
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0106-0106 ●
472 STOPPER; LINK ROD 1-33659-230-0 01 1 0106- ● ● ● ●
489 RUBBER; SUPPORT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0106-0112 ● ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0106-0112 ●
489 RUBBER; SUPPORT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0201- ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0201- ●
489 RUBBER; SUPPORT
(B) 		8-97080-149-0 02 1 0106-0112 ● ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 0106-0112 ●
489 RUBBER; SUPPORT
(B) 		8-97080-149-0 02 1 0201- ● ●
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 0201- ●
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0106- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
