◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

1-30 — AIR CLEANER (#11075) — 127 parça

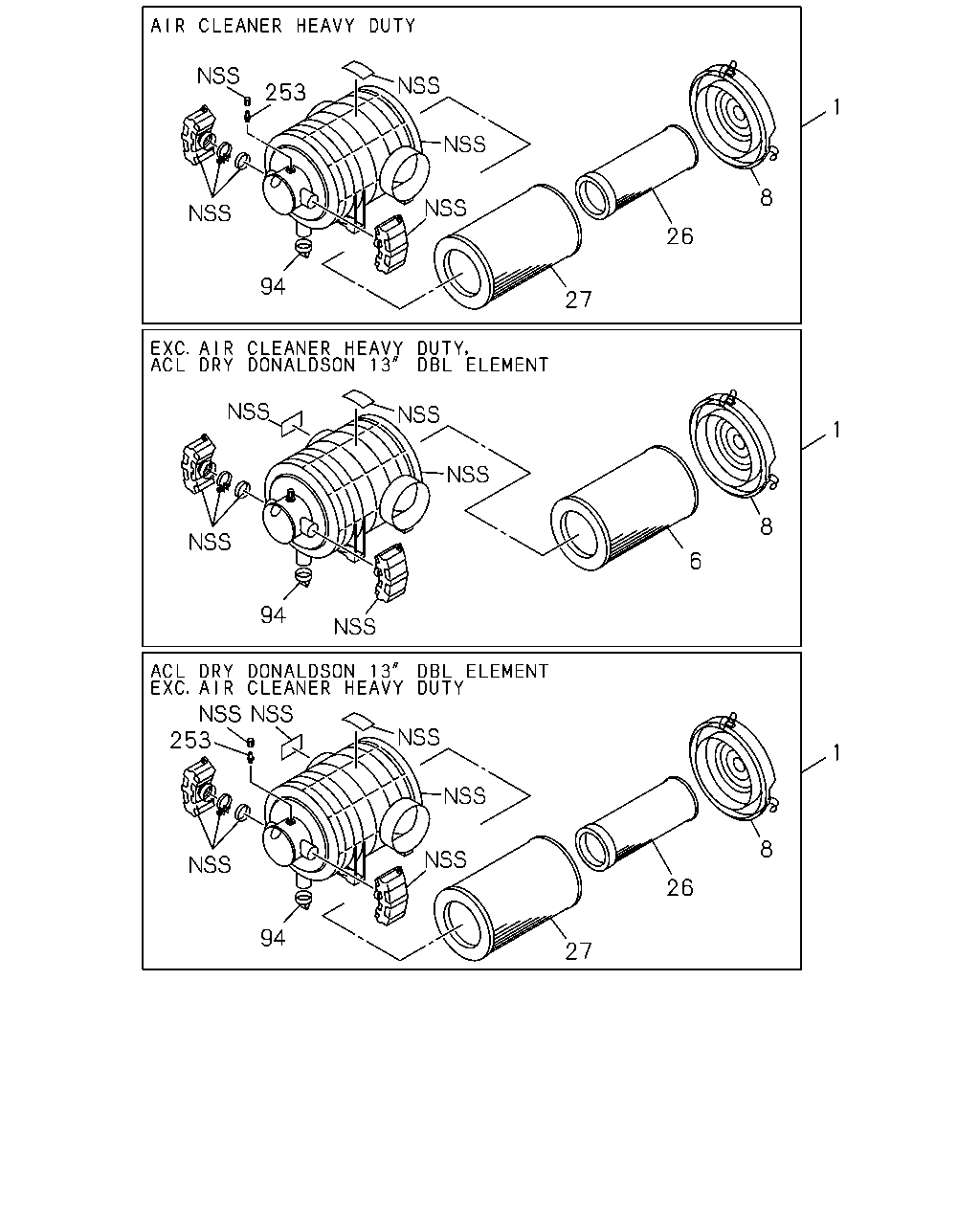

253 1 8 26 94 27 1 8 6 94 253 1 8 26 94 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-832-0	01	1	0106-0308	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-832-0	01	1	0309-	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-832-0	01	1	0309-		●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-834-0	01	1	0106-	●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-740-0	01	1	0106-0308	●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-740-0	01	1	0309-	●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-740-0	01	1	0309-		●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-821-0	01	1	0106-0112		●	●	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-821-0	01	1	0201-0308		●	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-821-0	01	1	0309-			●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-787-3	01	1	0106-0112		●	●	●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-787-3	01	1	0201-0308		●	●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-787-3	01	1	0309-			●
6	FILTER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-203-0	01	1	0106-0308	●
6	FILTER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-203-0	01	1	0309-	●
6	FILTER; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-203-0	01	1	0309-		●
6	FILTER; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0106-0112		●	●	●
6	FILTER; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0201-0308		●	●
6	FILTER; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0309-			●
8	COVER ASM; ACL	1-14212-129-0	01	1	0106-0308	●
8	COVER ASM; ACL	1-14212-129-0	01	1	0309-	●	●
8	COVER ASM; ACL	1-14212-132-0	01	1	0106-0112		●	●	●
8	COVER ASM; ACL	1-14212-132-0	01	1	0201-0308		●	●
8	COVER ASM; ACL	1-14212-132-0	01	1	0309-			●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-217-0	01	1	0106-0308	●
26	FILTER; ACL,INNER AIR CLEANER HEAVY DUTY<K45>	1-14215-217-0	01	1	0106-0308	●
26	FILTER; ACL,INNER AIR CLEANER HEAVY DUTY<K45>	1-14215-217-0	01	1	0309-	●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-217-0	01	1	0309-	●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-217-0	01	1	0309-		●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-220-0	01	1	0106-0112		●	●	●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-220-0	01	1	0201-0308		●	●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-220-0	01	1	0309-			●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-203-0	01	1	0106-0308	●
27	FILTER; ACL,OUTER AIR CLEANER HEAVY DUTY<K45>	1-14215-203-0	01	1	0106-0308	●
27	FILTER; ACL,OUTER AIR CLEANER HEAVY DUTY<K45>	1-14215-203-0	01	1	0309-	●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-203-0	01	1	0309-	●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-203-0	01	1	0309-		●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0106-0112		●	●	●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0201-0308		●	●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0309-			●
94	VALVE; VACUATOR	1-14219-251-0	01	1	0106-0308	●
94	VALVE; VACUATOR	1-14219-251-0	01	1	0309-	●	●
94	VALVE; VACUATOR	1-14219-192-0	01	1	0106-0112		●	●	●
94	VALVE; VACUATOR	1-14219-192-0	01	1	0201-0308		●	●
94	VALVE; VACUATOR	1-14219-192-0	01	1	0309-			●
253	NIPPLE	1-14219-252-0	01	1	0106-0308	●
253	NIPPLE	1-14219-252-0	01	1	0309-	●	●

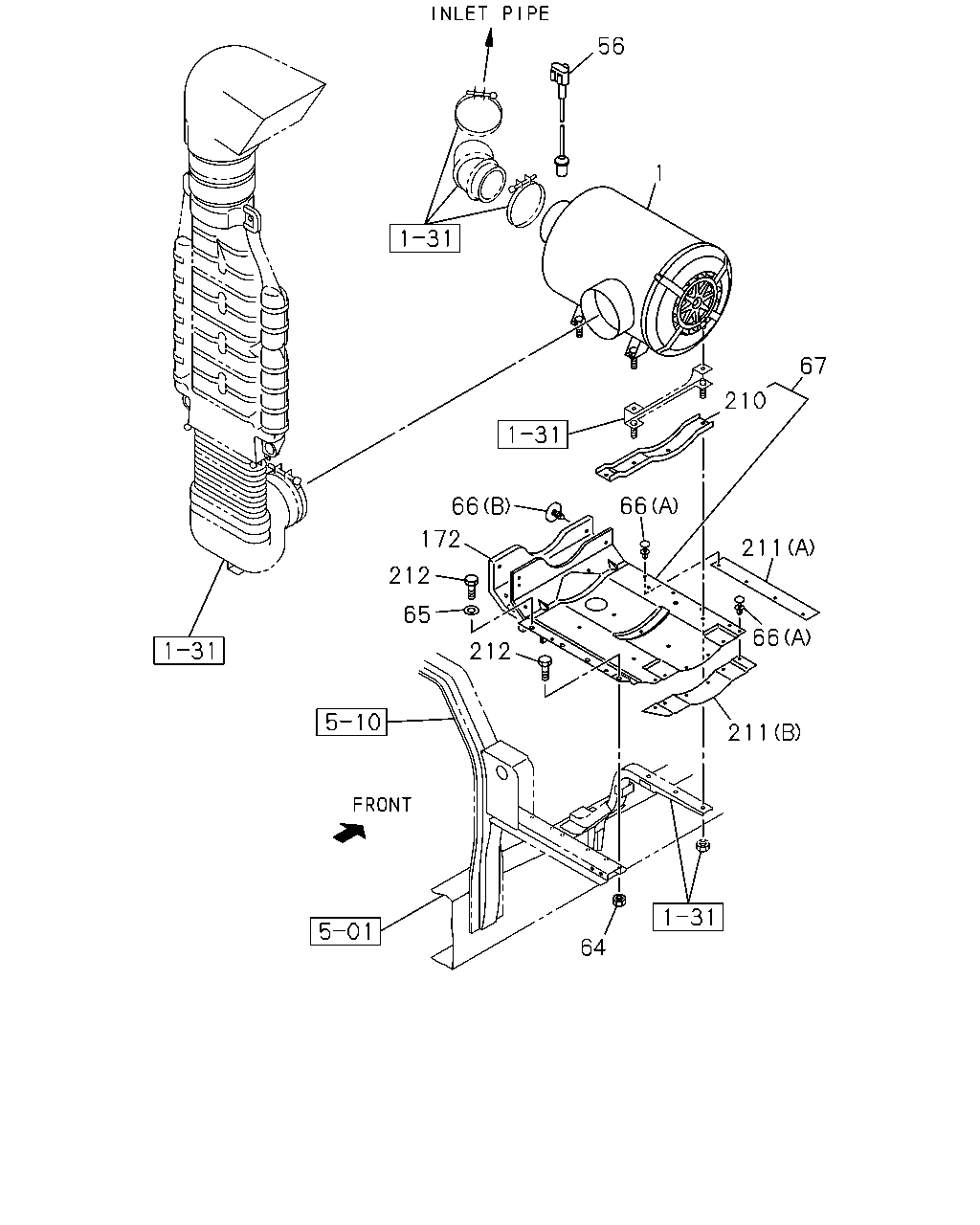

56 1 67 210 66 66 172 211 212 65 66 211 64 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-832-0	01	1	0106-0308	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-832-0	01	1	0309-	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-832-0	01	1	0309-		●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-834-0	01	1	0106-	●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-740-0	01	1	0106-0308	●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-740-0	01	1	0309-	●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-740-0	01	1	0309-		●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-821-0	01	1	0106-0112		●	●	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-821-0	01	1	0201-0308		●	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-821-0	01	1	0309-			●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-787-3	01	1	0106-0112		●	●	●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-787-3	01	1	0201-0308		●	●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-787-3	01	1	0309-			●
56	SWITCH; ACL	1-81530-016-0	01	1	0106-	●	●	●	●
64	NUT; BAND BRKT M10 FLANGE	0-91150-210-0	04	1	0106-	●	●	●	●
65	WASHER; PL ID=10.5 OD=26	9-09160-710-0	03	1	0106-0402	●	●	●	●
65	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	0403-	●	●	●	●
66	CLIP; ACL (A)	5-09987-033-0	09	1	0106-0112	●	●	●	●
66	CLIP; ACL (A)	5-09987-033-0	09	1	0201-	●	●	●
66	CLIP; ACL (B)	8-94279-048-0	07	1	0106-0112	●	●	●	●
66	CLIP; ACL (B)	8-94279-048-0	07	1	0201-	●	●	●
67	COVER; ACL	1-53419-281-3	01	1	0106-0308	●
67	COVER; ACL	1-53419-281-3	01	1	0309-	●	●
67	COVER; ACL	1-53419-304-0	01	1	0106-0112		●	●	●
67	COVER; ACL	1-53419-304-0	01	1	0201-0308		●	●
67	COVER; ACL	1-53419-304-0	01	1	0309-			●
172	INSULATOR; NOISE	1-53446-780-1	01	1	0106-0112	●	●	●	●
172	INSULATOR; NOISE	1-53446-780-1	01	1	0201-	●	●	●
210	BRACKET; ACL MTG	1-53419-283-0	02	1	0106-0112	●	●	●	●
210	BRACKET; ACL MTG	1-53419-283-0	02	1	0201-	●	●	●
211	RUBBER; SEAL (A)	1-79931-007-0	01	1	0106-0112	●	●	●	●
211	RUBBER; SEAL (A)	1-79931-007-0	01	1	0201-	●	●	●
211	RUBBER; SEAL (B)	1-79931-008-2	01	1	0106-0112	●	●	●	●
211	RUBBER; SEAL (B)	1-79931-008-2	01	1	0201-	●	●	●
212	BOLT; MUD COVER M10X25 FLANGE	0-28681-025-0	04	1	0106-	●	●	●	●

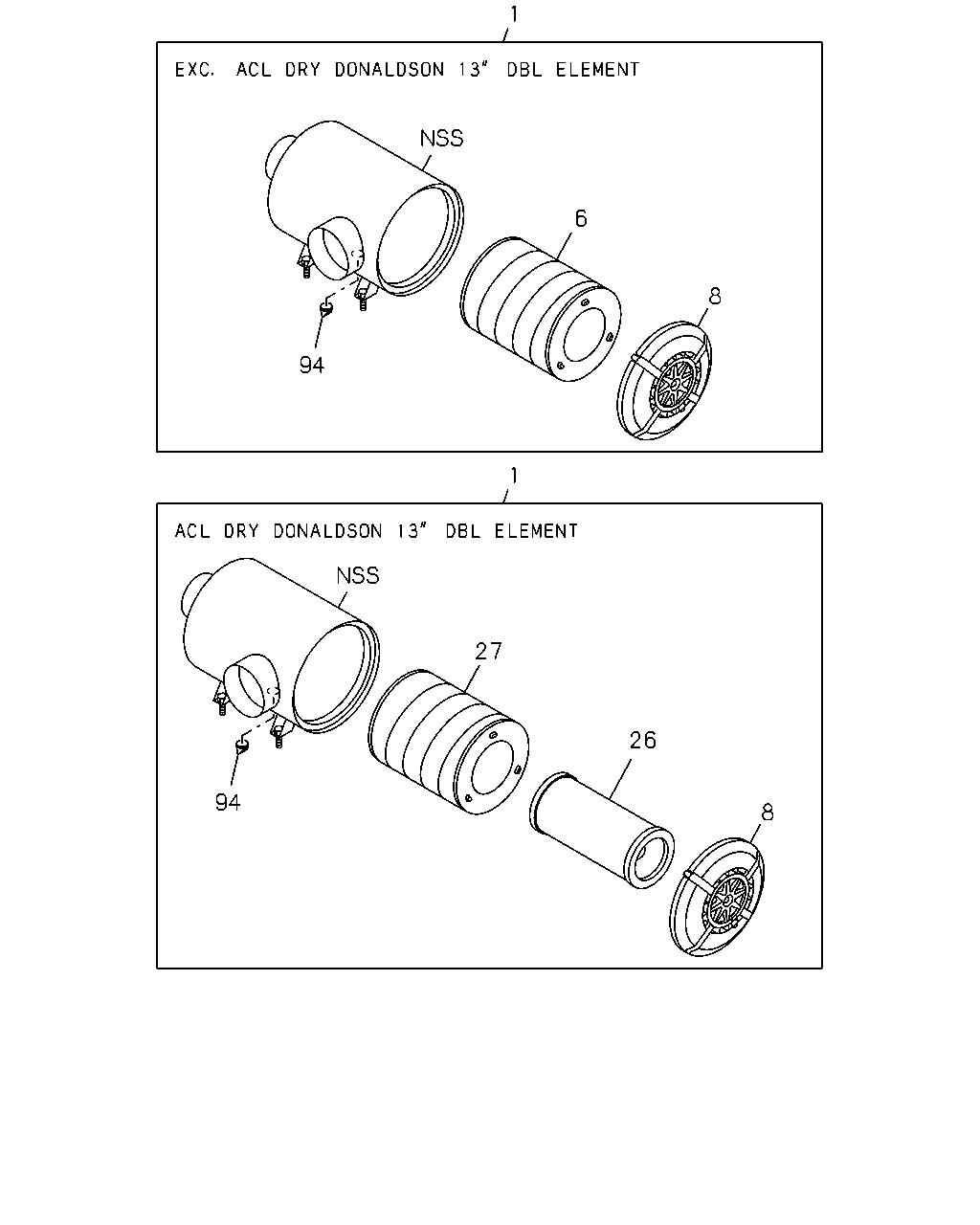

1 6 8 94 1 27 26 94 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-832-0	01	1	0106-0308	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14210-832-0	01	1	0309-	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-832-0	01	1	0309-		●
1	CLEANER ASM; AIR AIR CLEANER HEAVY DUTY<K45>	1-14210-834-0	01	1	0106-	●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-740-0	01	1	0106-0308	●
1	CLEANER ASM; AIR EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-740-0	01	1	0309-	●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-740-0	01	1	0309-		●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-821-0	01	1	0106-0112		●	●	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-821-0	01	1	0201-0308		●	●
1	CLEANER ASM; AIR ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-821-0	01	1	0309-			●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-787-3	01	1	0106-0112		●	●	●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-787-3	01	1	0201-0308		●	●
1	CLEANER ASM; AIR EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14210-787-3	01	1	0309-			●
6	FILTER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-203-0	01	1	0106-0308	●
6	FILTER; ACL EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-203-0	01	1	0309-	●
6	FILTER; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-203-0	01	1	0309-		●
6	FILTER; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0106-0112		●	●	●
6	FILTER; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0201-0308		●	●
6	FILTER; ACL EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0309-			●
8	COVER ASM; ACL	1-14212-129-0	01	1	0106-0308	●
8	COVER ASM; ACL	1-14212-129-0	01	1	0309-	●	●
8	COVER ASM; ACL	1-14212-132-0	01	1	0106-0112		●	●	●
8	COVER ASM; ACL	1-14212-132-0	01	1	0201-0308		●	●
8	COVER ASM; ACL	1-14212-132-0	01	1	0309-			●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-217-0	01	1	0106-0308	●
26	FILTER; ACL,INNER AIR CLEANER HEAVY DUTY<K45>	1-14215-217-0	01	1	0106-0308	●
26	FILTER; ACL,INNER AIR CLEANER HEAVY DUTY<K45>	1-14215-217-0	01	1	0309-	●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-217-0	01	1	0309-	●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-217-0	01	1	0309-		●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-220-0	01	1	0106-0112		●	●	●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-220-0	01	1	0201-0308		●	●
26	FILTER; ACL,INNER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-220-0	01	1	0309-			●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-203-0	01	1	0106-0308	●
27	FILTER; ACL,OUTER AIR CLEANER HEAVY DUTY<K45>	1-14215-203-0	01	1	0106-0308	●
27	FILTER; ACL,OUTER AIR CLEANER HEAVY DUTY<K45>	1-14215-203-0	01	1	0309-	●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45>	1-14215-203-0	01	1	0309-	●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-203-0	01	1	0309-		●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0106-0112		●	●	●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0201-0308		●	●
27	FILTER; ACL,OUTER ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14215-213-0	01	1	0309-			●
94	VALVE; VACUATOR	1-14219-251-0	01	1	0106-0308	●
94	VALVE; VACUATOR	1-14219-251-0	01	1	0309-	●	●
94	VALVE; VACUATOR	1-14219-192-0	01	1	0106-0112		●	●	●
94	VALVE; VACUATOR	1-14219-192-0	01	1	0201-0308		●	●
94	VALVE; VACUATOR	1-14219-192-0	01	1	0309-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
