Sayfa 1-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶

1-10 — RADIATOR (#11073) — 208 parça

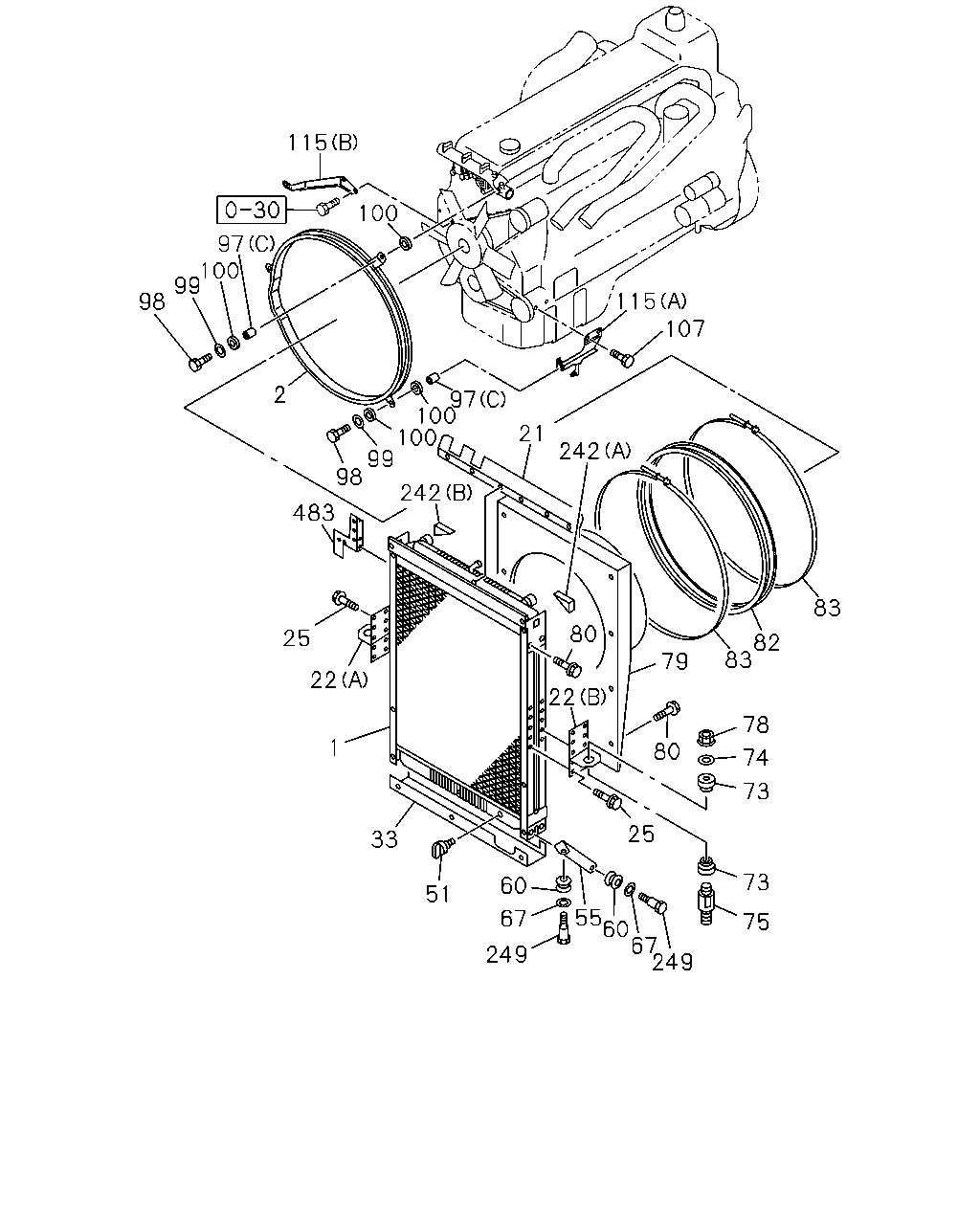

115 100 97 100 99 98 115 107 82 80 97 100 83 2 99 98 100 79 483 242 21 25 22 80 242 1 22 80 78 51 74 33 73 55 60 67 249 73 25 60 75 67 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM	1-21410-729-1	01	1	0106-	●
1	RADIATOR ASM	1-21410-806-0	01	1	0106-0112		●
1	RADIATOR ASM TUNISIA EQUIPMENT(NGT)	1-21410-806-0	01	1	0106-0112			●
1	RADIATOR ASM	1-21410-806-0	01	1	0201-		●
1	RADIATOR ASM EXC. TUNISIA EQUIPMENT(NGT)	1-21410-730-1	01	1	0106-0112			●
1	RADIATOR ASM	1-21410-870-1	01	1	0106-				●
2	GUIDE; FAN	1-21551-369-0	01	1	0106-	●
2	GUIDE; FAN	1-21551-420-0	01	1	0106-0112		●	●	●
2	GUIDE; FAN	1-21551-420-0	01	1	0201-		●		●
21	SEAL; RAD	1-21460-129-0	01	1	0112-	●
21	SEAL; RAD	1-21460-098-0	01	1	0106-0111	●	●	●
21	SEAL; RAD	1-21460-098-0	01	1	0112-0112		●	●
21	SEAL; RAD	1-21460-098-0	01	1	0201-		●
21	SEAL; RAD	1-21460-125-0	01	1	0106-				●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0106-0112	●			●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT) (A)	1-21464-503-0	01	1	0106-0112			●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0201-	●			●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0106-0112	●			●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT) (B)	1-21464-504-0	01	1	0106-0112			●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0201-	●			●
22	BRACKET; RAD MTG (A)	1-21464-658-0	01	1	0106-0112		●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (A)	1-21464-658-0	01	1	0106-0112			●
22	BRACKET; RAD MTG (A)	1-21464-658-0	01	1	0201-		●
22	BRACKET; RAD MTG (B)	1-21464-659-0	01	1	0106-0112		●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (B)	1-21464-659-0	01	1	0106-0112			●
22	BRACKET; RAD MTG (B)	1-21464-659-0	01	1	0201-		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0106-0112	●	●	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0201-	●	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0106-				●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0106-0112	●			●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT)	1-21419-050-0	01	1	0106-0112			●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0201-	●			●
33	PROTECTOR; RAD	1-21419-049-0	01	1	0106-0112		●
33	PROTECTOR; RAD TUNISIA EQUIPMENT(NGT)	1-21419-049-0	01	1	0106-0112			●
33	PROTECTOR; RAD	1-21419-049-0	01	1	0201-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0106-0112	●	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0201-	●	●		●
55	STAY; RAD TO UPR MBR	1-21464-638-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR	1-21464-637-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR	1-21464-653-0	01	1	0106-0112		●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-653-0	01	1	0106-0112			●
55	STAY; RAD TO UPR MBR	1-21464-653-0	01	1	0201-		●
55	STAY; RAD TO UPR MBR	1-21464-652-0	01	1	0106-0112		●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-652-0	01	1	0106-0112			●
55	STAY; RAD TO UPR MBR	1-21464-652-0	01	1	0201-		●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT)	1-21464-499-0	01	1	0106-0112			●	●
55	STAY; RAD TO UPR MBR	1-21464-499-0	01	1	0201-				●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT)	1-21464-498-0	01	1	0106-0112			●	●
55	STAY; RAD TO UPR MBR	1-21464-498-0	01	1	0201-				●
60	GROMMET	1-09332-117-0	04	1	0106-	●	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0106-	●	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	0106-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	0106-	●	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	0106-	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	0106-	●	●	●	●
79	GUIDE; FAN,RAD	1-21551-438-0	01	1	0106-0111	●
79	GUIDE; FAN,RAD	1-21551-415-0	01	1	0112-	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0106-0112		●	●	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0201-		●		●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	15	1	0106-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	17	1	0106-0107		●
80	BOLT; FAN GUIDE TUNISIA EQUIPMENT(NGT) M8X12 FLANGE	0-28080-812-0	17	1	0106-0107			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	17	1	0108-0112		●	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	17	1	0201-		●
80	BOLT; FAN GUIDE EXC. TUNISIA EQUIPMENT(NGT) M8X12 FLANGE	0-28080-812-0	18	1	0106-0107			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0106-				●
82	COVER; FAN,RAD	1-21559-134-1	01	1	0106-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0106-0112		●	●	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0201-		●		●
83	CLIP; FAN COVER	1-09707-127-1	01	1	0106-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0106-0112		●	●	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0201-		●		●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	0106-	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	0106-	●
97	TUBE; DIST,FAN GUIDE (C) ID=11.8 L=27	1-21559-149-0	03	1	0106-0112		●	●	●
97	TUBE; DIST,FAN GUIDE (C) ID=11.8 L=27	1-21559-149-0	03	1	0201-		●		●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28081-045-0	03	1	0106-	●	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0106-	●	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	0106-	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0106-0112	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0201-	●	●		●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0106-0112	●	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0201-	●	●		●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0106-0112	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0201-0307	●	●		●
115	BRACKET; FAN GUIDE (B)	1-21559-485-0	01	1	0308-	●	●		●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	0106-	●
242	BRACKET; RAD (A)	1-21464-661-0	01	1	0106-0112		●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT) (A)	1-21464-661-0	01	1	0106-0112			●
242	BRACKET; RAD (A)	1-21464-661-0	01	1	0201-		●
242	BRACKET; RAD (B)	1-21464-662-0	01	1	0106-0112		●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT) (B)	1-21464-662-0	01	1	0106-0112			●
242	BRACKET; RAD (B)	1-21464-662-0	01	1	0201-		●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT) (A)	1-21464-629-0	01	1	0106-0112			●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT) (B)	1-21464-630-0	01	1	0106-0112			●
242	BRACKET; RAD (A)	1-21464-729-0	01	1	0106-				●
242	BRACKET; RAD (B)	1-21464-730-0	01	1	0106-				●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0106-0201	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0202-	●	●	●	●
249	BOLT; STAY,RAD MBR M8X26	1-09009-175-0	02	1	0202-	●	●	●	●
483	BRACKET; SEAL	1-21460-130-0	01	1	0112-	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0106-0111	●	●	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0112-0112		●	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0201-		●

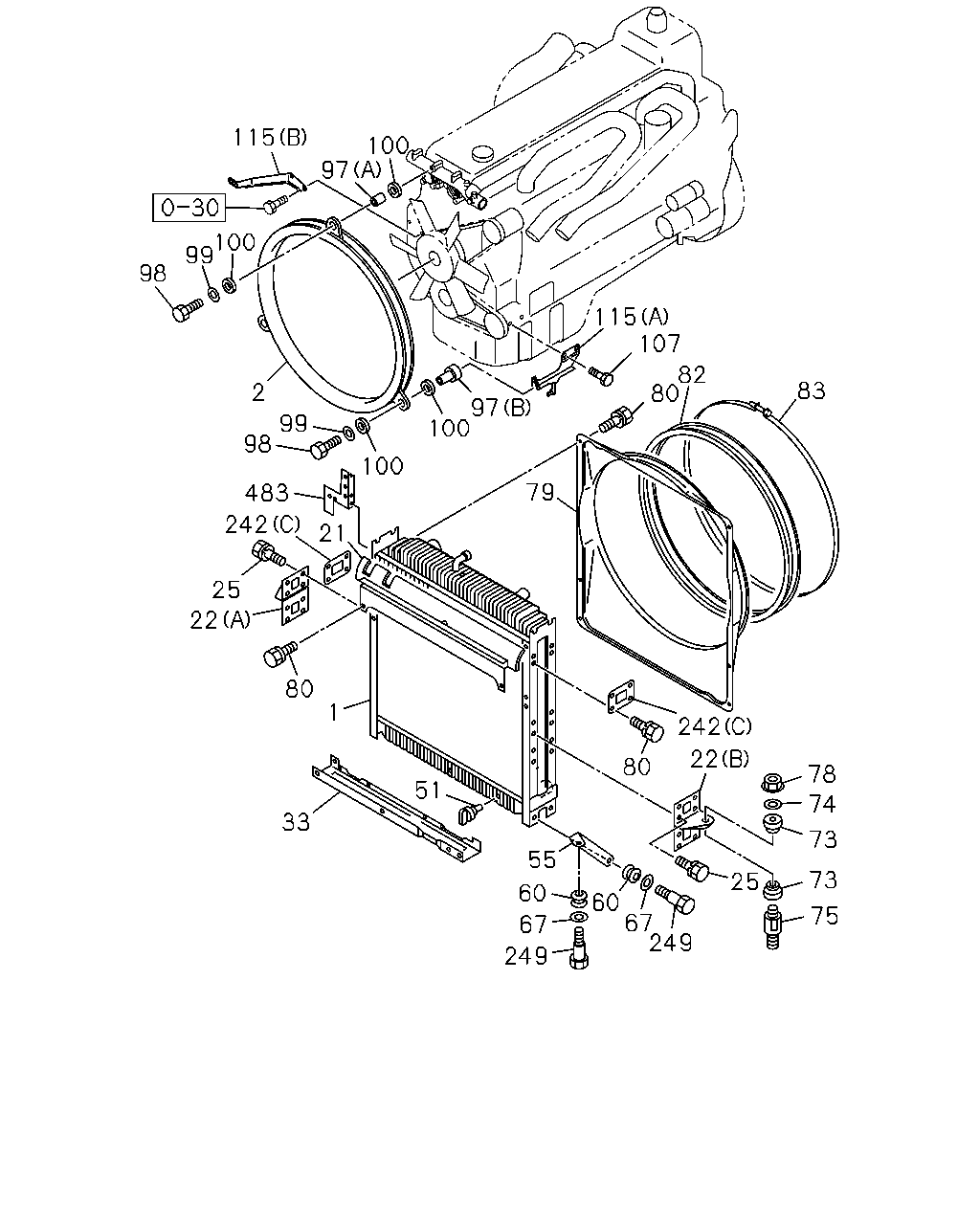

115 100 97 100 99 98 115 107 2 97 100 100 99 98 21 242 242 483 83 80 25 82 83 79 22 22 78 1 80 74 73 25 33 73 60 51 55 60 67 249 67 75 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM	1-21410-729-1	01	1	0106-	●
1	RADIATOR ASM	1-21410-806-0	01	1	0106-0112		●
1	RADIATOR ASM TUNISIA EQUIPMENT(NGT)	1-21410-806-0	01	1	0106-0112			●
1	RADIATOR ASM	1-21410-806-0	01	1	0201-		●
1	RADIATOR ASM EXC. TUNISIA EQUIPMENT(NGT)	1-21410-730-1	01	1	0106-0112			●
1	RADIATOR ASM	1-21410-870-1	01	1	0106-				●
2	GUIDE; FAN	1-21551-369-0	01	1	0106-	●
2	GUIDE; FAN	1-21551-420-0	01	1	0106-0112		●	●	●
2	GUIDE; FAN	1-21551-420-0	01	1	0201-		●		●
21	SEAL; RAD	1-21460-129-0	01	1	0112-	●
21	SEAL; RAD	1-21460-098-0	01	1	0106-0111	●	●	●
21	SEAL; RAD	1-21460-098-0	01	1	0112-0112		●	●
21	SEAL; RAD	1-21460-098-0	01	1	0201-		●
21	SEAL; RAD	1-21460-125-0	01	1	0106-				●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0106-0112	●			●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT) (A)	1-21464-503-0	01	1	0106-0112			●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0201-	●			●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0106-0112	●			●
22	BRACKET; RAD MTG EXC. TUNISIA EQUIPMENT(NGT) (B)	1-21464-504-0	01	1	0106-0112			●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0201-	●			●
22	BRACKET; RAD MTG (A)	1-21464-658-0	01	1	0106-0112		●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (A)	1-21464-658-0	01	1	0106-0112			●
22	BRACKET; RAD MTG (A)	1-21464-658-0	01	1	0201-		●
22	BRACKET; RAD MTG (B)	1-21464-659-0	01	1	0106-0112		●
22	BRACKET; RAD MTG TUNISIA EQUIPMENT(NGT) (B)	1-21464-659-0	01	1	0106-0112			●
22	BRACKET; RAD MTG (B)	1-21464-659-0	01	1	0201-		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0106-0112	●	●	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0201-	●	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0106-				●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0106-0112	●			●
33	PROTECTOR; RAD EXC. TUNISIA EQUIPMENT(NGT)	1-21419-050-0	01	1	0106-0112			●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0201-	●			●
33	PROTECTOR; RAD	1-21419-049-0	01	1	0106-0112		●
33	PROTECTOR; RAD TUNISIA EQUIPMENT(NGT)	1-21419-049-0	01	1	0106-0112			●
33	PROTECTOR; RAD	1-21419-049-0	01	1	0201-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0106-0112	●	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0201-	●	●		●
55	STAY; RAD TO UPR MBR	1-21464-638-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR	1-21464-637-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR	1-21464-653-0	01	1	0106-0112		●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-653-0	01	1	0106-0112			●
55	STAY; RAD TO UPR MBR	1-21464-653-0	01	1	0201-		●
55	STAY; RAD TO UPR MBR	1-21464-652-0	01	1	0106-0112		●
55	STAY; RAD TO UPR MBR TUNISIA EQUIPMENT(NGT)	1-21464-652-0	01	1	0106-0112			●
55	STAY; RAD TO UPR MBR	1-21464-652-0	01	1	0201-		●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT)	1-21464-499-0	01	1	0106-0112			●	●
55	STAY; RAD TO UPR MBR	1-21464-499-0	01	1	0201-				●
55	STAY; RAD TO UPR MBR EXC. TUNISIA EQUIPMENT(NGT)	1-21464-498-0	01	1	0106-0112			●	●
55	STAY; RAD TO UPR MBR	1-21464-498-0	01	1	0201-				●
60	GROMMET	1-09332-117-0	04	1	0106-	●	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0106-	●	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	0106-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	0106-	●	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	0106-	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	0106-	●	●	●	●
79	GUIDE; FAN,RAD	1-21551-438-0	01	1	0106-0111	●
79	GUIDE; FAN,RAD	1-21551-415-0	01	1	0112-	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0106-0112		●	●	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0201-		●		●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	15	1	0106-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	17	1	0106-0107		●
80	BOLT; FAN GUIDE TUNISIA EQUIPMENT(NGT) M8X12 FLANGE	0-28080-812-0	17	1	0106-0107			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	17	1	0108-0112		●	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	17	1	0201-		●
80	BOLT; FAN GUIDE EXC. TUNISIA EQUIPMENT(NGT) M8X12 FLANGE	0-28080-812-0	18	1	0106-0107			●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0106-				●
82	COVER; FAN,RAD	1-21559-134-1	01	1	0106-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0106-0112		●	●	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0201-		●		●
83	CLIP; FAN COVER	1-09707-127-1	01	1	0106-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0106-0112		●	●	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0201-		●		●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	01	1	0106-	●
97	TUBE; DIST,FAN GUIDE (B)	1-21559-273-0	02	1	0106-	●
97	TUBE; DIST,FAN GUIDE (C) ID=11.8 L=27	1-21559-149-0	03	1	0106-0112		●	●	●
97	TUBE; DIST,FAN GUIDE (C) ID=11.8 L=27	1-21559-149-0	03	1	0201-		●		●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28081-045-0	03	1	0106-	●	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0106-	●	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	0106-	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0106-0112	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0201-	●	●		●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0106-0112	●	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0201-	●	●		●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0106-0112	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0201-0307	●	●		●
115	BRACKET; FAN GUIDE (B)	1-21559-485-0	01	1	0308-	●	●		●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	0106-	●
242	BRACKET; RAD (A)	1-21464-661-0	01	1	0106-0112		●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT) (A)	1-21464-661-0	01	1	0106-0112			●
242	BRACKET; RAD (A)	1-21464-661-0	01	1	0201-		●
242	BRACKET; RAD (B)	1-21464-662-0	01	1	0106-0112		●
242	BRACKET; RAD TUNISIA EQUIPMENT(NGT) (B)	1-21464-662-0	01	1	0106-0112			●
242	BRACKET; RAD (B)	1-21464-662-0	01	1	0201-		●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT) (A)	1-21464-629-0	01	1	0106-0112			●
242	BRACKET; RAD EXC. TUNISIA EQUIPMENT(NGT) (B)	1-21464-630-0	01	1	0106-0112			●
242	BRACKET; RAD (A)	1-21464-729-0	01	1	0106-				●
242	BRACKET; RAD (B)	1-21464-730-0	01	1	0106-				●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0106-0201	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0202-	●	●	●	●
249	BOLT; STAY,RAD MBR M8X26	1-09009-175-0	02	1	0202-	●	●	●	●
483	BRACKET; SEAL	1-21460-130-0	01	1	0112-	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0106-0111	●	●	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0112-0112		●	●
483	BRACKET; SEAL	1-21460-092-1	01	1	0201-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
