Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#11072) — 309 parça

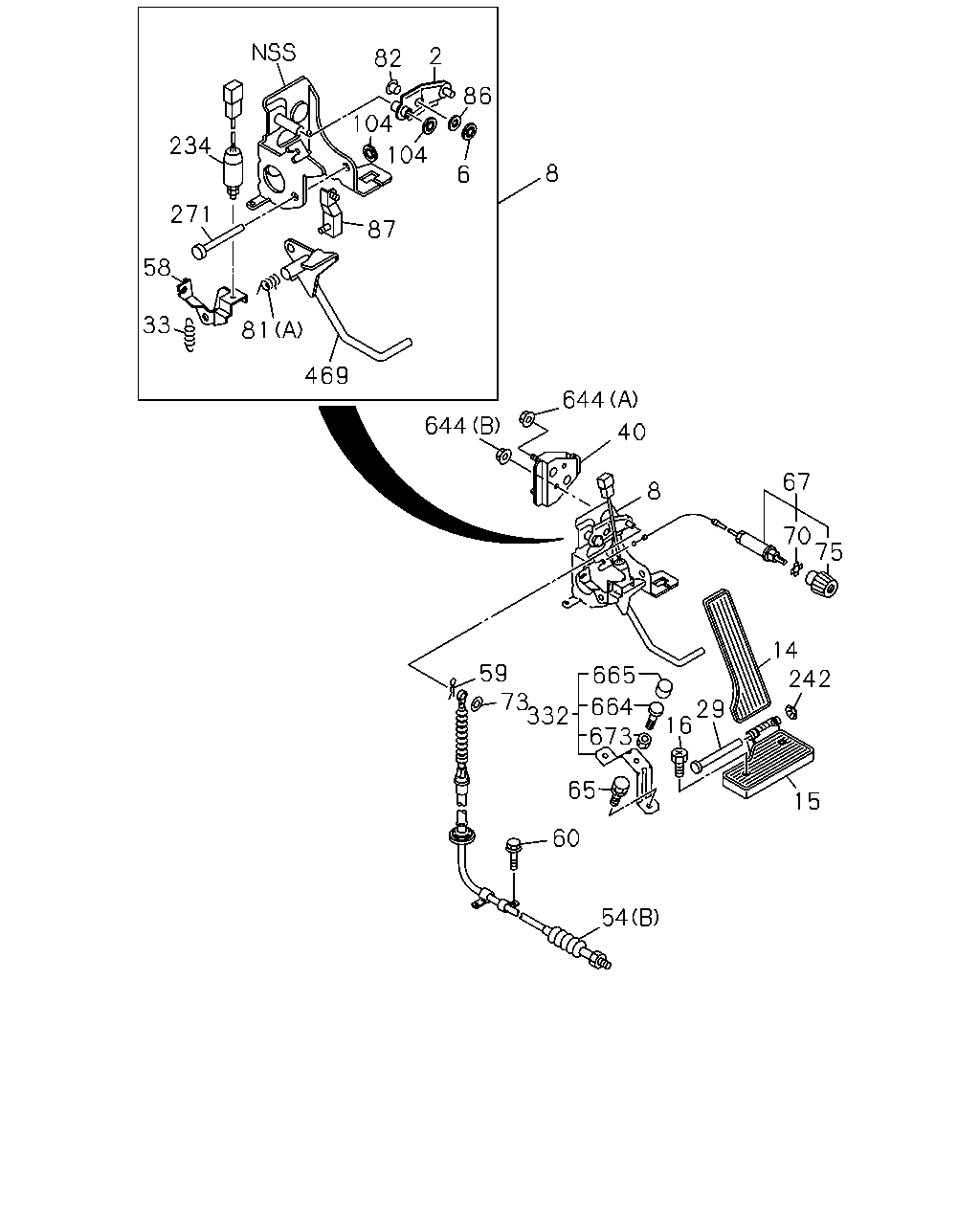

2 82 86 104 234 104 8 6 271 87 58 33 81 469 644 644 40 67 8 70 75 14 242 59 73 332 665 664 673 29 16 65 15 60 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0106-	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0106-	●	●	●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0106-				●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	9-09185-404-0	02	1	0106-	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	0106-	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0106-	●	●	●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0106-				●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0106-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0106-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0106-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0106-	●	●	●	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	0106-	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	0106-	●	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1300	1-23230-132-0	01	1	0106-	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-1	01	1	0106-	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0106-	●	●	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0106-				●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	0106-	●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	0106-	●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0106-	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-	●	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	0106-0204	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=315	1-73908-423-0	01	1	0205-	●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	0106-	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0106-	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	0106-0109	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97137-504-0	01	1	0110-0204	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73908-409-0	01	1	0205-	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0106-0206	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0106-0206				●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0207-				●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0106-	●	●	●	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0106-	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0106-	●	●	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0106-				●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	0106-	●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	0106-	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0106-	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0106-	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0106-				●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0106-	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-2	01	1	0106-	●	●	●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0106-				●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0106-	●	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0106-	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0106-	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0106-				●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0106-	●	●	●	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	0106-	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0106-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0106-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0106-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0106-	●	●	●	●

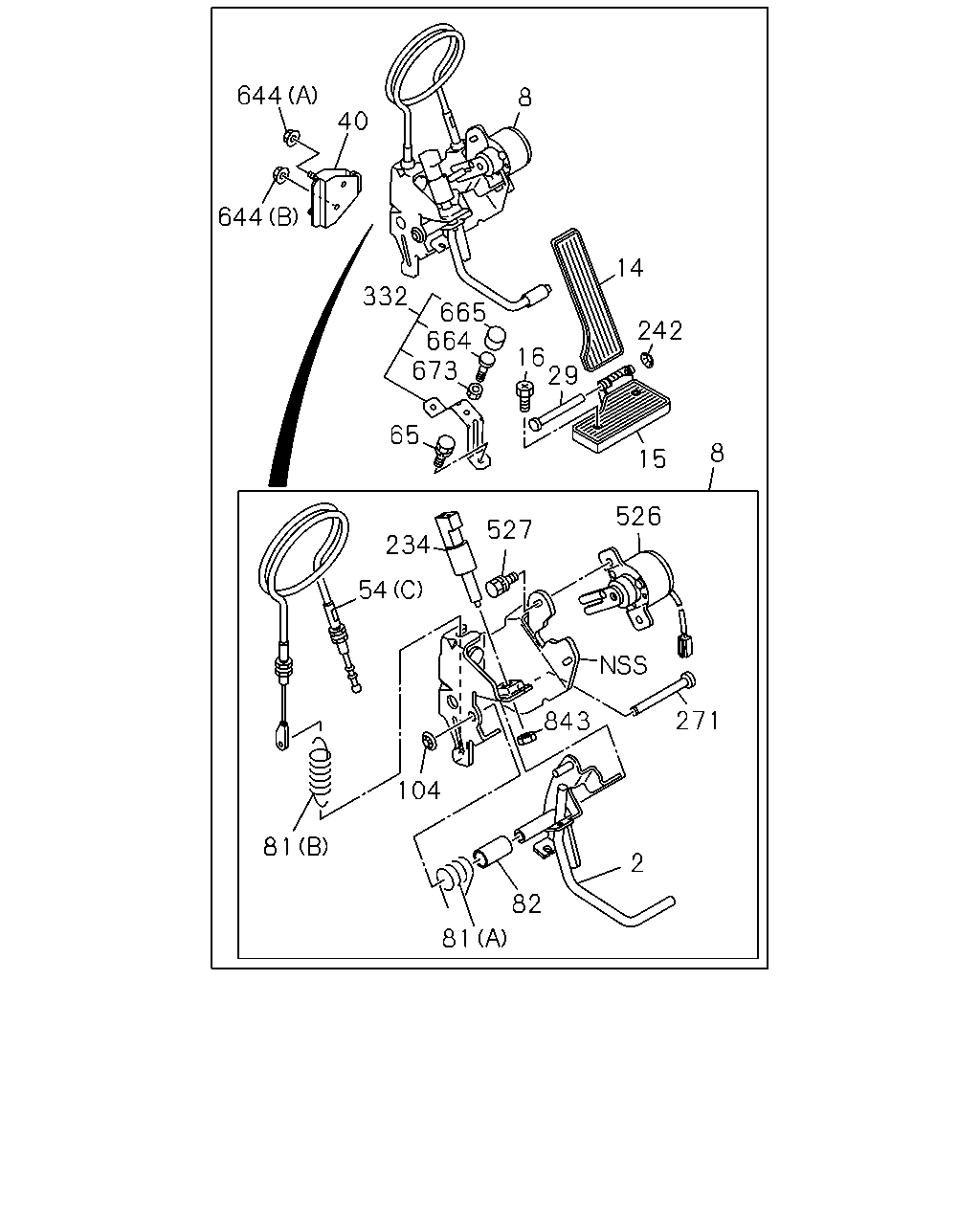

644 8 40 644 14 332 665 664 673 242 16 29 65 8 15 526 527 234 54 843 271 104 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0106-	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0106-	●	●	●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0106-				●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	0106-	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0106-	●	●	●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0106-				●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0106-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0106-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0106-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0106-	●	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	0106-	●	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1300	1-23230-132-0	01	1	0106-	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-1	01	1	0106-	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0106-	●	●	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0106-				●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0106-0206	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0106-0206				●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0207-				●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0106-	●	●	●	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0106-	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0106-	●	●	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0106-				●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0106-	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0106-	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0106-				●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0106-	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-2	01	1	0106-	●	●	●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0106-				●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0106-	●	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0106-	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0106-	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0106-				●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0106-	●	●	●	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	0106-	●	●	●
526	SENSOR; ACCEL	1-81534-003-2	01	1	0106-				●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-0206	●	●	●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-0206				●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-	●	●	●
527	BOLT; ACCEL SENSOR M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-				●
644	NUT; LINK,ENG CONT (B) M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0106-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0106-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0106-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0106-	●	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	0106-	●	●	●
843	NUT M12	9-99111-412-0	01	1	0106-				●

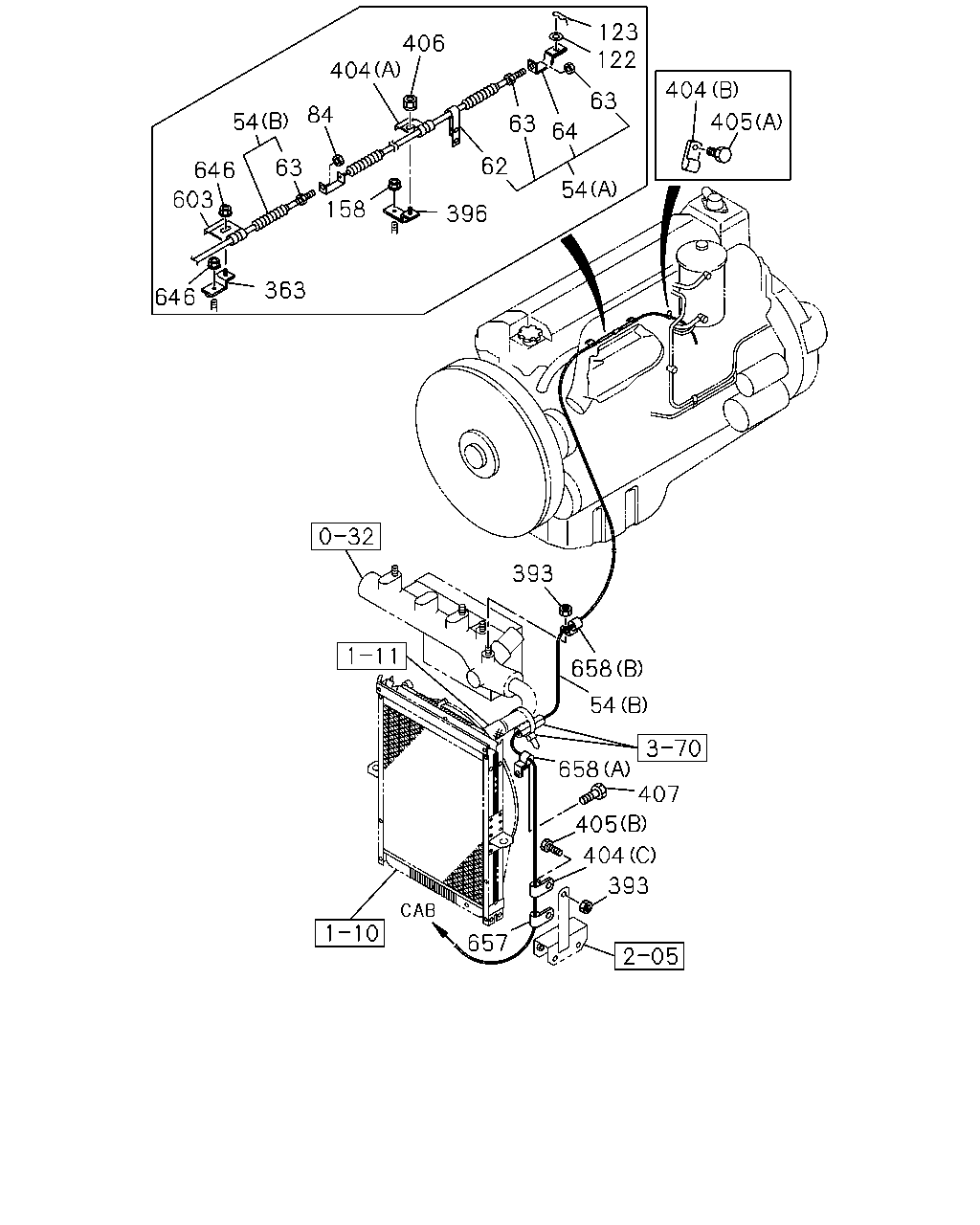

123 122 406 404 63 84 63 64 62 63 646 603 158 396 646 363 393 658 54 658 407 404 393 657 405 404 405 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1300	1-23230-132-0	01	1	0106-	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2160	1-73907-559-1	01	1	0106-	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0106-	●	●	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0106-				●
62	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=30	1-09700-326-0	01	1	0106-	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	02	1	0106-	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	0106-	●
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-23219-105-1	01	1	0106-	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	0106-	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-0501	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8	9-09110-408-0	01	1	0502-	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0106-	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0106-0112	●	●	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0106-0112				●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0201-	●	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0201-				●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	0106-	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0106-0112	●	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0106-0112				●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0201-	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0201-				●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0112	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0201-	●	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	0106-	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-	●
396	BRACKET; CLIP	1-47478-055-0	01	1	0106-0112	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	0201-	●	●
396	BRACKET; CLIP	1-14319-130-1	01	1	0106-				●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0106-	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0106-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0106-0112	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0106-0112	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0201-	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0201-	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	0106-0107	●	●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	0108-	●	●	●	●
404	CLIP; CABLE (C) ID=11 L=20	9-09525-035-0	01	1	0108-				●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0106-0112		●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0201-		●		●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) (B) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	02	1	0106-0112	●	●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	02	1	0201-	●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	03	1	0106-				●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0112	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0201-	●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0106-	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0106-	●
657	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	0106-	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0106-	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-	●

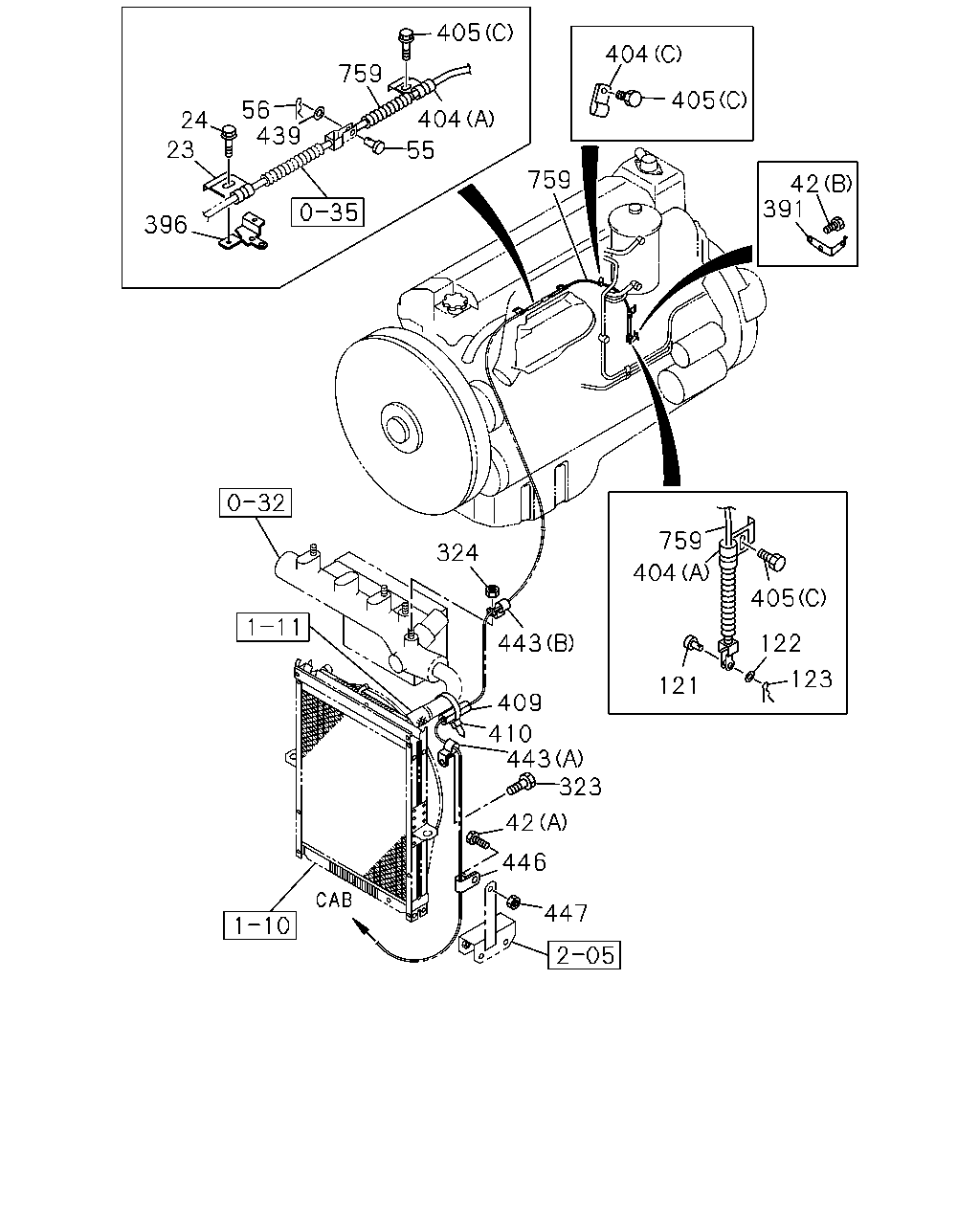

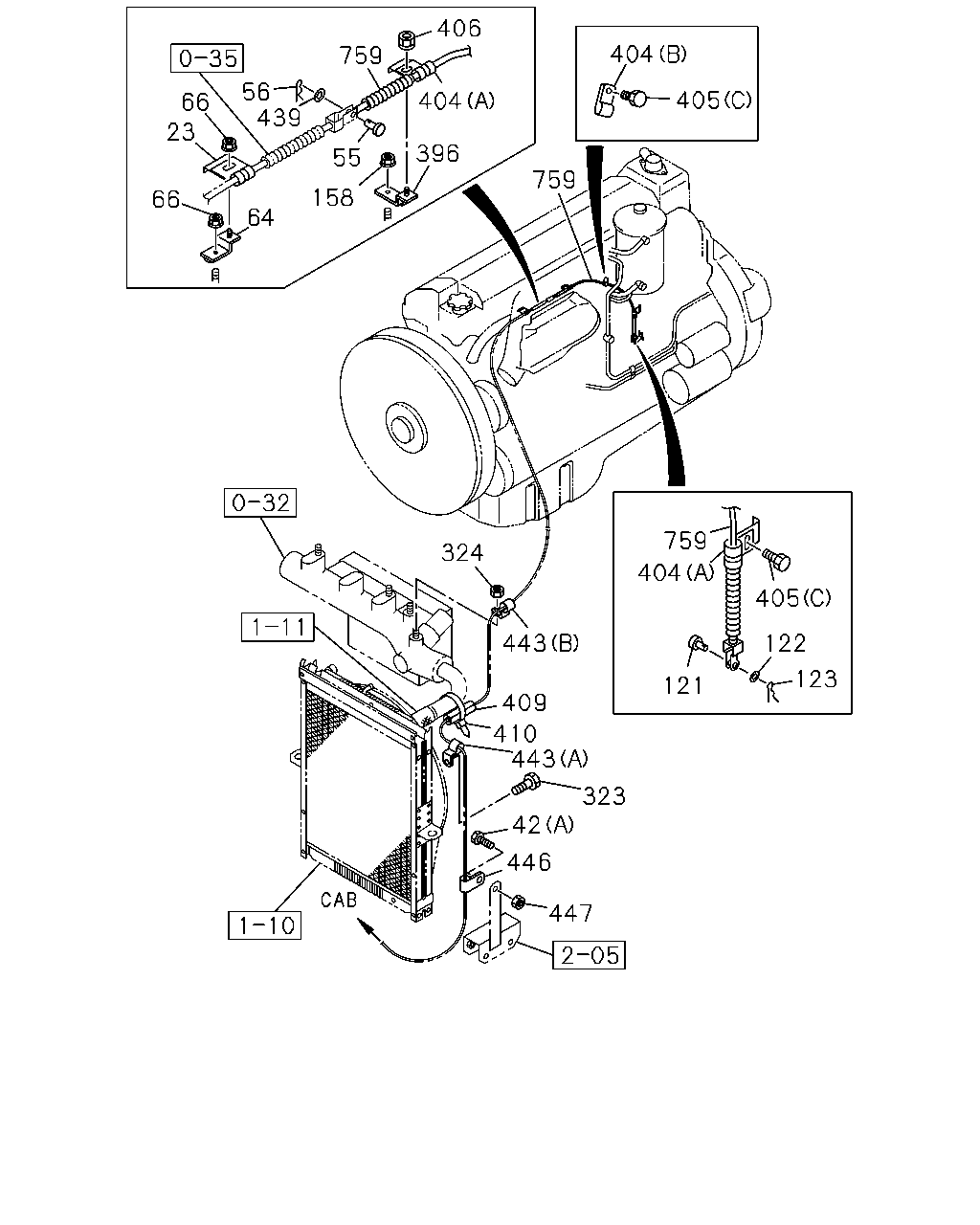

406 404 759 56 439 405 404 66 23 396 55 759 158 66 64 759 324 404 405 443 122 123 121 409 410 443 323 42 446 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0106-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0201-0401	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-140-0	01	1	0201-0401				●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-113-0	01	1	0402-0402	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0402-0402				●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0403-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0403-				●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0106-0112				●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-				●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28080-612-0	02	1	0106-				●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0106-	●	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0106-				●
56	PIN; SNAP,JAW JOINT ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0106-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0106-				●
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-23219-105-1	01	1	0106-	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	0106-	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0106-0112	●	●	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0106-0112				●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0201-	●	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0201-				●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0106-	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0106-0112	●	●	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0106-0112				●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0201-	●	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0201-				●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	0106-	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0106-0112	●	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0106-0112				●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0201-	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0201-				●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0112	●	●	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0201-	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●	●	●
323	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	0106-				●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0106-				●
396	BRACKET; CLIP	1-47478-055-0	01	1	0106-0112	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	0201-	●	●
396	BRACKET; CLIP	1-14319-130-1	01	1	0106-				●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0106-	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0106-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0106-0112	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0106-0112	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0201-	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0201-	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	0106-0107	●	●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	0108-	●	●	●	●
404	CLIP; CABLE (C) ID=11 L=20	9-09525-035-0	01	1	0108-				●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0106-0112		●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0201-		●		●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) (B) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	02	1	0106-0112	●	●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	02	1	0201-	●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	03	1	0106-				●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0112	●	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0201-	●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	0106-0106	●	●	●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	0106-0106				●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=300	1-09707-001-1	01	1	0106-0504	●	●	●
410	CLIP; BAND L=300	1-09707-001-1	01	1	0106-0504				●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=350	1-09707-183-0	01	1	0505-	●	●	●
410	CLIP; BAND L=350	1-09707-183-0	01	1	0505-				●
439	WASHER; PL,PIN,JAW JOINT ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0106-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0106-				●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0106-	●	●	●
443	CLIP; CABLE (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0106-				●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-	●	●	●
443	CLIP; CABLE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-				●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	0106-	●	●	●
446	CLIP; ENG CONT ID=11 L=20	9-09525-035-0	01	1	0106-				●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0106-				●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	0106-0112	●	●	●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	0201-	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0201-		●
759	WIRE; CONT,FUEL CUT L=937	1-23230-201-0	01	1	0106-				●

405 404 759 405 56 439 404 24 23 55 759 42 391 396 759 324 404 405 443 122 123 121 409 410 443 323 42 446 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0106-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0201-0401	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-140-0	01	1	0201-0401				●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-113-0	01	1	0402-0402	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0402-0402				●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0403-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0403-				●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0106-0112				●
24	BOLT; BRKT ELECTRONIC GOV RED4(Q4F) M8X20 FLANGE	0-28680-820-0	01	1	0106-				●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-				●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28080-612-0	02	1	0106-				●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0106-	●	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0106-				●
56	PIN; SNAP,JAW JOINT ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0106-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0106-				●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0106-0112	●	●	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0106-0112				●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0201-	●	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0201-				●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0106-	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0106-0112	●	●	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0106-0112				●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0201-	●	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0201-				●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	0106-	●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0106-0112	●	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0106-0112				●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0201-	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0201-				●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●	●	●
323	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	0106-				●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0106-				●
391	BRACKET; ENG CONT	1-15419-581-1	01	1	0106-				●
396	BRACKET; CLIP	1-47478-055-0	01	1	0106-0112	●	●	●
396	BRACKET; CLIP	1-47478-055-0	01	1	0201-	●	●
396	BRACKET; CLIP	1-14319-130-1	01	1	0106-				●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0106-	●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0106-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0106-0112	●	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0106-0112	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0201-	●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0201-	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	0106-0107	●	●	●	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 L=20	9-09525-035-0	01	1	0108-	●	●	●	●
404	CLIP; CABLE (C) ID=11 L=20	9-09525-035-0	01	1	0108-				●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0106-0112		●	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0201-		●		●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) (B) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	02	1	0106-0112	●	●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	02	1	0201-	●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	03	1	0106-				●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	0106-0106	●	●	●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	0106-0106				●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=300	1-09707-001-1	01	1	0106-0504	●	●	●
410	CLIP; BAND L=300	1-09707-001-1	01	1	0106-0504				●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=350	1-09707-183-0	01	1	0505-	●	●	●
410	CLIP; BAND L=350	1-09707-183-0	01	1	0505-				●
439	WASHER; PL,PIN,JAW JOINT ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0106-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0106-				●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0106-	●	●	●
443	CLIP; CABLE (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0106-				●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-	●	●	●
443	CLIP; CABLE (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-				●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	01	1	0106-	●	●	●
446	CLIP; ENG CONT ID=11 L=20	9-09525-035-0	01	1	0106-				●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0106-				●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	0106-0112	●	●	●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	0201-	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0201-		●
759	WIRE; CONT,FUEL CUT L=937	1-23230-201-0	01	1	0106-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
