0-87 — COUPLING; INJECTION PUMP (#11071) — 32 parça

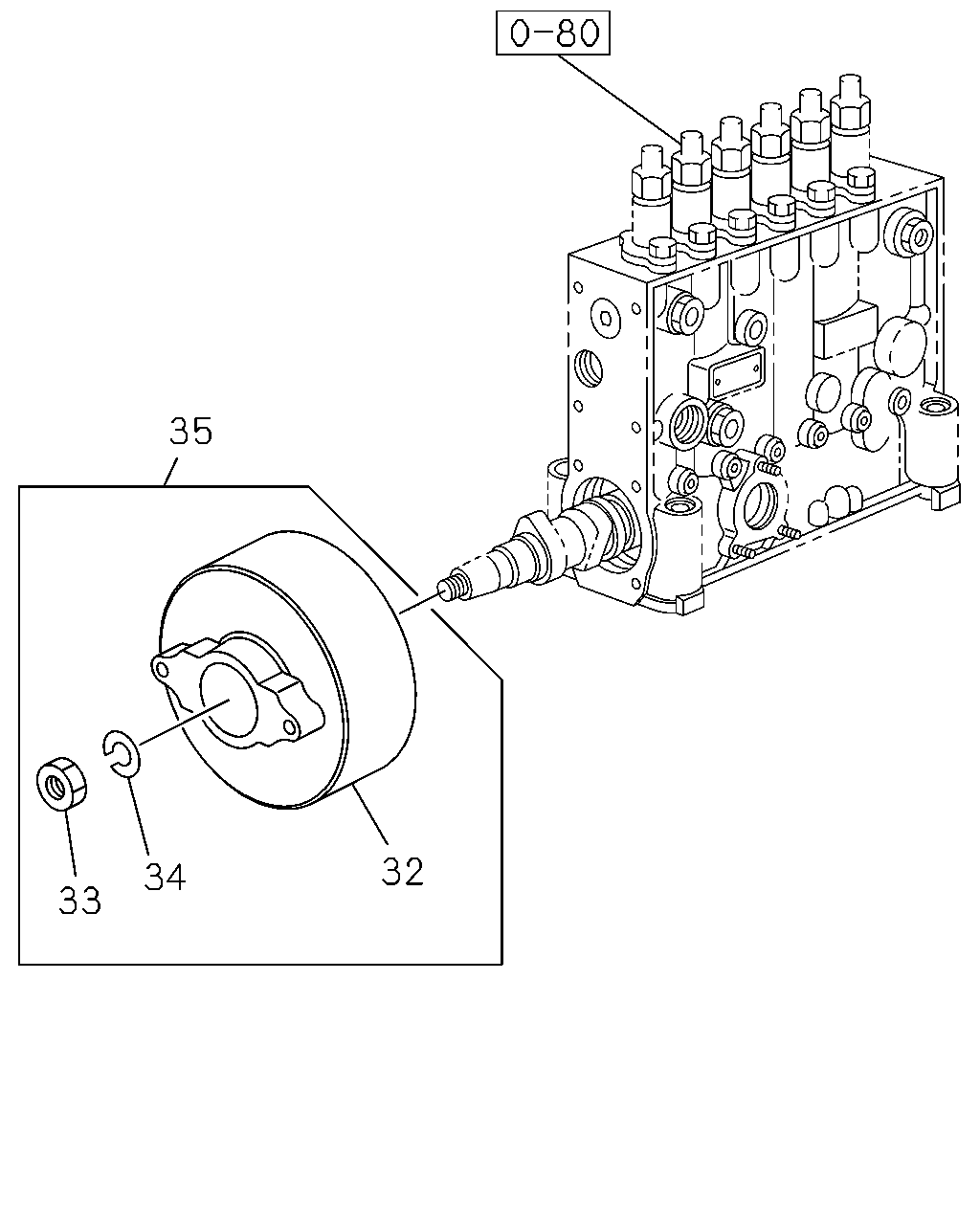

çizim 21263
35 32 34 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 DAMPER; INJ PUMP 1-15744-015-0 01 1 0106-0410 ●
32 DAMPER; INJ PUMP 1-15744-015-0 01 1 0411- ● ● ●
32 DAMPER; INJ PUMP 1-15744-005-1 01 1 0106-0112 ● ● ●
32 DAMPER; INJ PUMP 1-15744-005-1 01 1 0201-0410 ● ●
33 NUT; DAMPER 1-19179-020-0 01 1 0106-0112 ● ● ● ●
33 NUT; DAMPER 1-19179-020-0 01 1 0201- ● ● ●
34 WASHER; DAMPER 1-19179-002-0 01 1 0106-0112 ● ● ● ●
34 WASHER; DAMPER 1-19179-002-0 01 1 0201- ● ● ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 0106-0112 ● ● ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 0201-0410 ● ●
35 DAMPER ASM; INJ PUMP 1-15744-017-0 01 1 0106-0410 ●
35 DAMPER ASM; INJ PUMP 1-15744-017-0 01 1 0411- ● ● ●

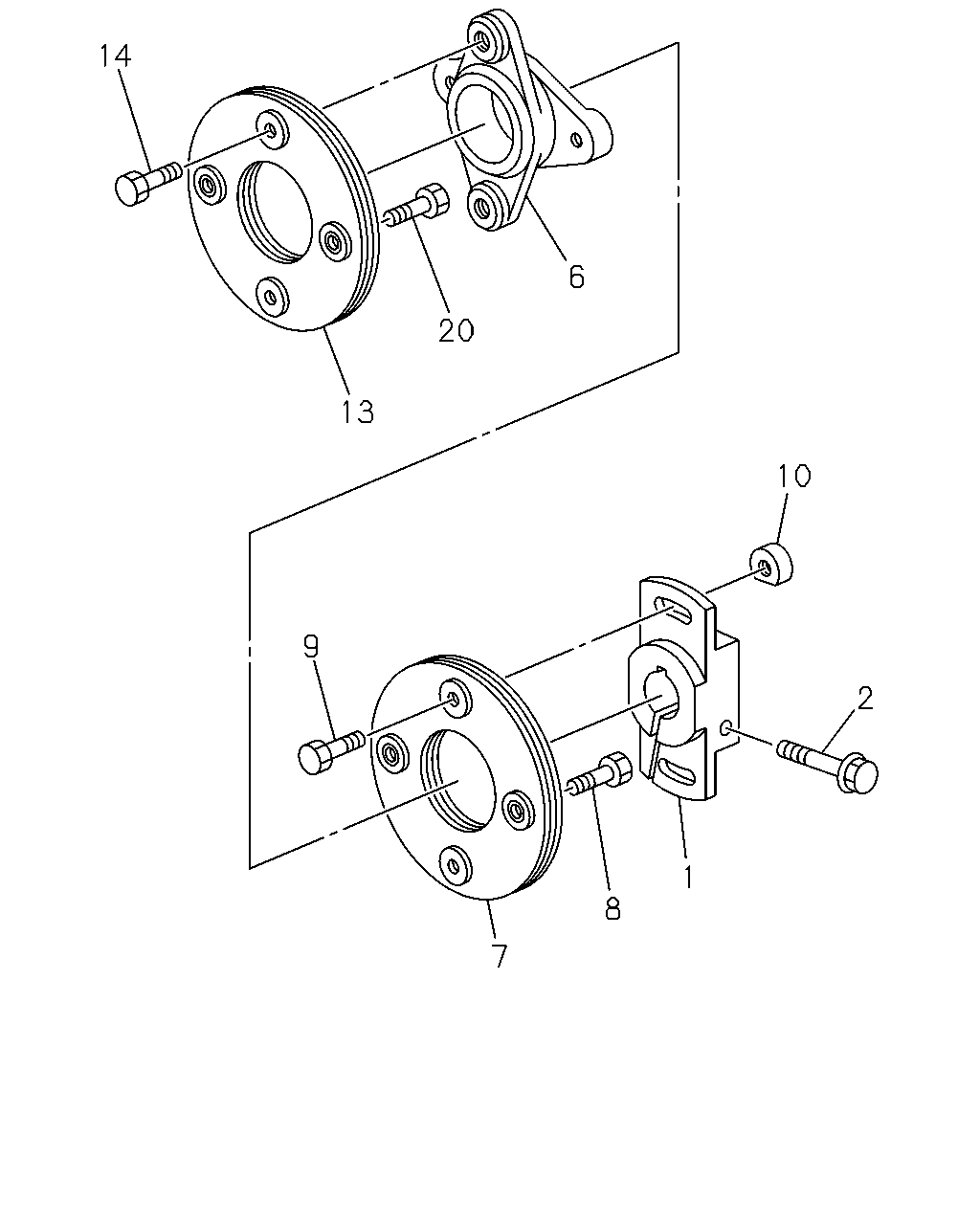

çizim 76645
14 6 20 13 10 9 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 0106-0112 ● ● ● ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 0201- ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 0106-0112 ● ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 0201- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 0106-0112 ● ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 0201- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 0106-0112 ● ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 0201- ● ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 0106-0112 ● ● ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 0201- ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 0106-0112 ● ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 0201- ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 0106-0112 ● ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 0201- ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 0106-0112 ● ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 0201- ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 0106-0112 ● ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 0201- ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 0106-0112 ● ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 0201- ● ● ●
