◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#11063) — 149 parça

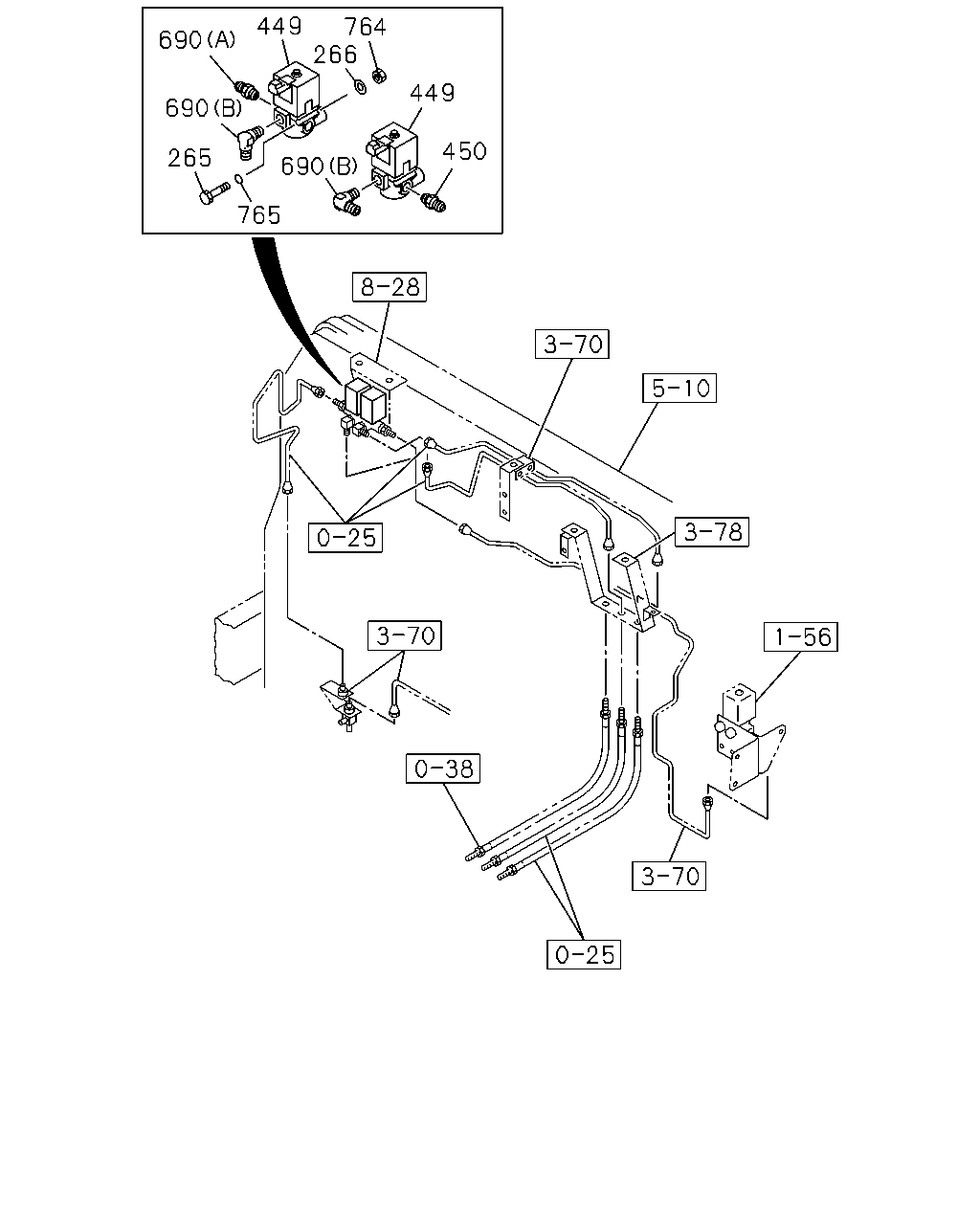

449 450 690 690

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WA1 TC-C(55L)	1-82563-871-2	01	1	0106-
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-N(71L),6WG1 TC-C(72L)	1-82563-871-2	02	1	0106-0112
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-N(71L)	1-82563-871-2	02	1	0201-
450	CONNECTOR; MAG VLV,INL PORT M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0106-0112
450	CONNECTOR; MAG VLV,INL PORT 6WA1 TC-C(55L),6WG1 TC-N(71L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0201-
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0106-0112
690	CONNECTOR 6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0201-
690	CONNECTOR 6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
690	CONNECTOR 6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-0112
690	CONNECTOR 6WG1 TC-N(71L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0201-

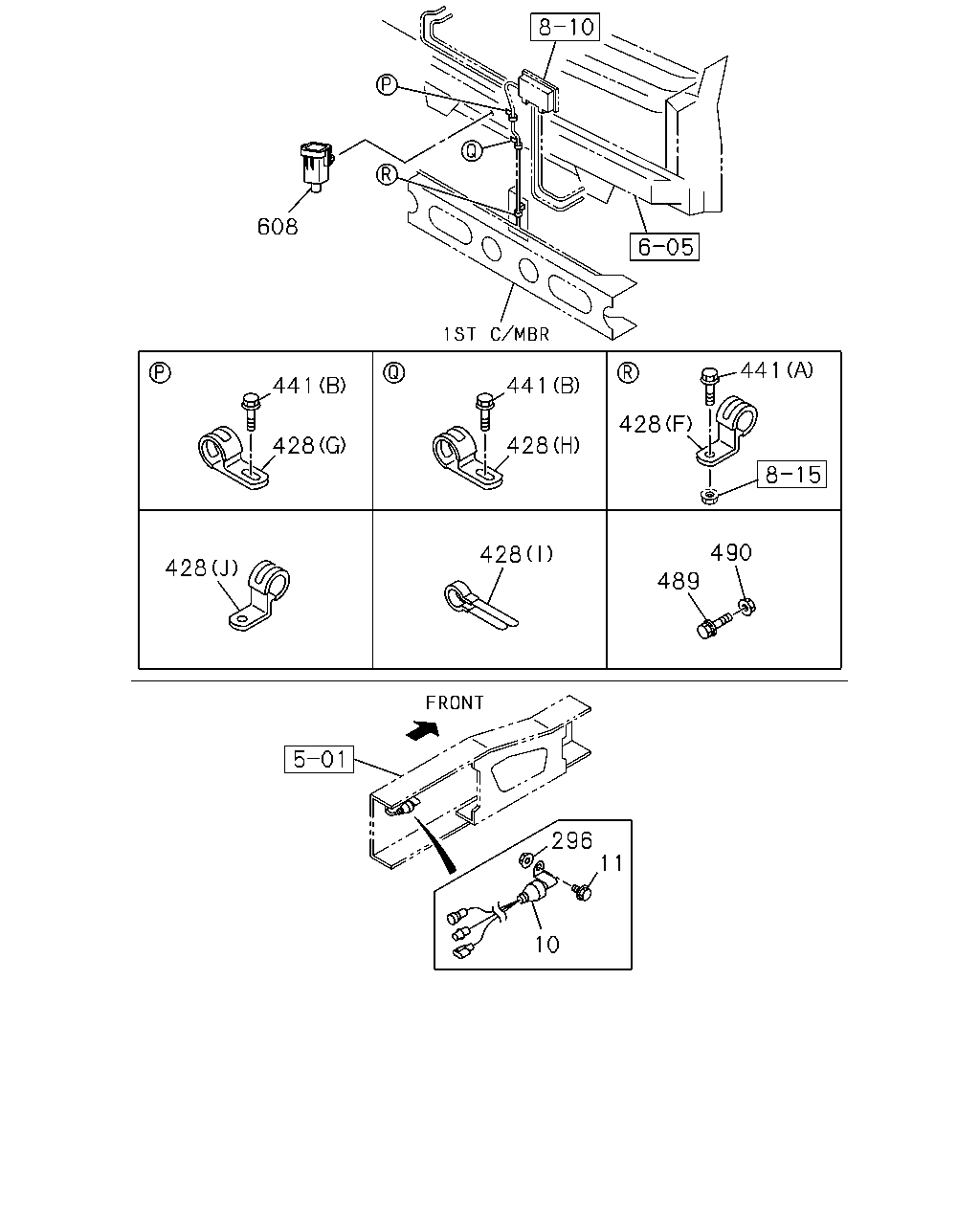

608 441 441 441 428 428 428 490 428 428 489 296 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	0106-
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	0106-
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0106-
428	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0106-
428	CLIP; HARNESS (G) ID=26 L=26	1-09701-236-0	01	1	0106-
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0106-
428	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0106-
428	CLIP; HARNESS (B) L=140	5-09707-031-1	05	1	0106-
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	0106-
428	CLIP; HARNESS (E) ID=11 L=28	9-09917-544-0	01	1	0106-
428	CLIP; HARNESS ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0106-
428	CLIP; HARNESS ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (I) ID=20 L=50	9-09917-430-0	03	1	0106-
428	CLIP; HARNESS 6WF1 TC-C(1B8) (C) L=100	5-09707-036-1	01	1	0106-
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-0112
441	BOLT; HARNESS TO FRAME ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-0112
441	BOLT; HARNESS TO FRAME (A) M8X25 FLANGE	0-28680-825-0	01	1	0201-0211
441	BOLT; HARNESS TO FRAME ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X25 FLANGE	0-28680-825-0	01	1	0201-0211
441	BOLT; HARNESS TO FRAME (A) M8X25 FLANGE	0-28680-825-0	02	1	0212-
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0106-0410
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0106-0410
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-97177-549-0	01	1	0106-

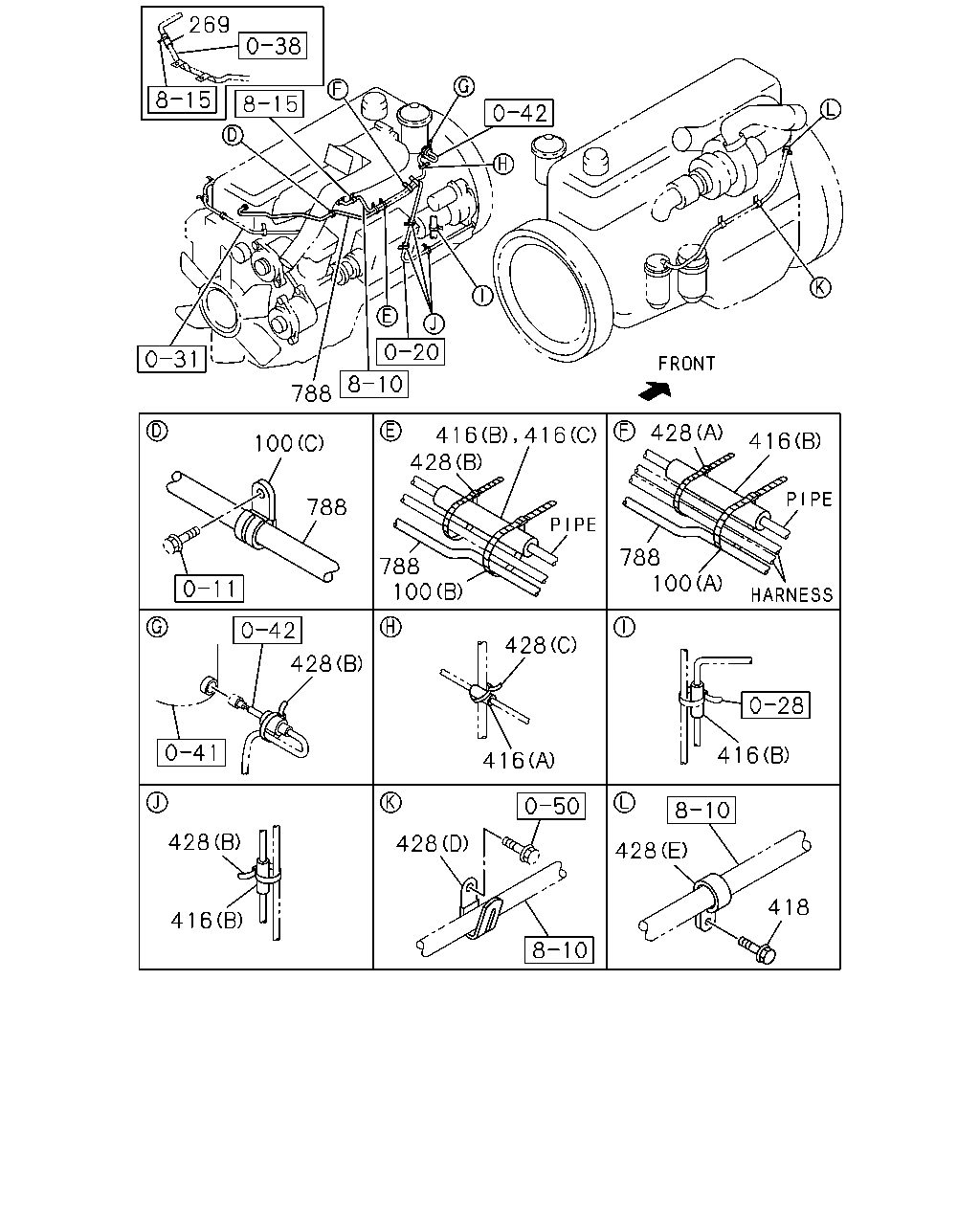

269 788 428 428 416 100 788 788 100 788 100 428 428 416 416 428 428 428 418 416 416 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	CLIP; HARNESS (A) L=180	1-09707-162-1	01	1	0106-
100	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) (C) ID=11 L=30	1-09700-511-0	01	1	0106-0112
100	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) (C) ID=11 L=30	1-09700-511-0	01	1	0201-
100	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) (B) L=140	5-09707-031-1	01	1	0106-0112
100	CLIP; HARNESS 6WF1 TC-C(1B8) (B) L=140	5-09707-031-1	01	1	0106-0112
100	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) (B) L=140	5-09707-031-1	01	1	0201-
100	CLIP; HARNESS 6WF1 TC-C(1B8) (B) L=140	5-09707-031-1	01	1	0201-
100	CLIP; HARNESS 6WF1 TC-C(1B8) (C) ID=11 L=20	9-09525-035-0	01	1	0106-
269	SLEEVE; RUBBER,CABLE ID=18 OD=22 L=25	8-94412-773-0	01	1	0111-
416	SLEEVE; RUBBER 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0106-0112
416	SLEEVE; RUBBER 6WA1 TC-C(55L),6WG1 TC-N(71L) (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0201-
416	SLEEVE; RUBBER 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) ID=10 OD=14 L=30	9-09956-682-0	06	1	0106-0112
416	SLEEVE; RUBBER 6WA1 TC-C(55L),6WG1 TC-N(71L) (B) ID=10 OD=14 L=30	9-09956-682-0	06	1	0201-
416	SLEEVE; RUBBER 6WF1 TC-C(1B8) (A) ID=6 L=30	5-09360-352-0	01	1	0106-
416	SLEEVE; RUBBER 6WF1 TC-C(1B8) (B) ID=10 OD=14 L=30	9-09956-682-0	07	1	0106-
416	SLEEVE; RUBBER 6WG1 TC-N(71L),6WG1 TC-C(72L) (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	0106-0112
416	SLEEVE; RUBBER 6WG1 TC-N(71L) (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	0201-
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	0106-
428	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0106-
428	CLIP; HARNESS (G) ID=26 L=26	1-09701-236-0	01	1	0106-
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0106-
428	CLIP; HARNESS (A) L=250	5-09707-030-1	02	1	0106-
428	CLIP; HARNESS (B) L=140	5-09707-031-1	05	1	0106-
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	0106-
428	CLIP; HARNESS (E) ID=11 L=28	9-09917-544-0	01	1	0106-
428	CLIP; HARNESS ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0106-
428	CLIP; HARNESS ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (I) ID=20 L=50	9-09917-430-0	03	1	0106-
428	CLIP; HARNESS 6WF1 TC-C(1B8) (C) L=100	5-09707-036-1	01	1	0106-
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0106-0112
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0201-0303
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-N(71L)	1-82641-186-0	02	1	0304-
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC-C(1B8)	1-82641-183-0	01	1	0106-

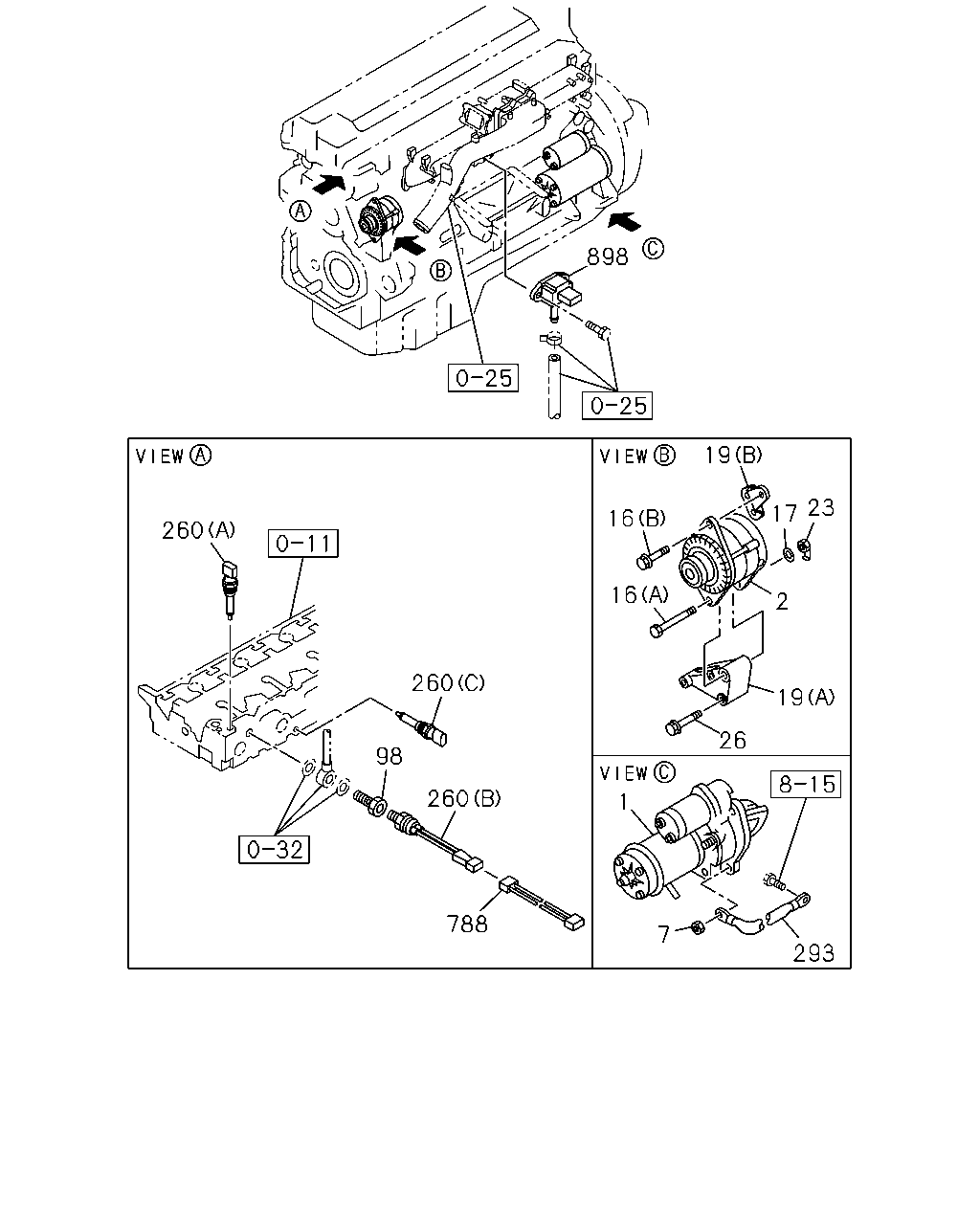

898 19 23 17 2 19 26 16 16 1 7 293 788 260 98 260 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-3	01	1	0106-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-572-6	01	1	0106-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-517-0	01	1	0106-0112
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-N(71L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-517-2	01	1	0201-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-484-7	01	1	0106-
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0106-
16	BOLT; GEN (A) M14X123	1-09040-105-0	01	1	0106-
16	BOLT; GEN 6WF1 TC-C(1B8),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0106-0112
16	BOLT; GEN 6WF1 TC-C(1B8),6WG1 TC-N(71L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0201-
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0106-
19	BRACKET; GEN 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-19711-144-0	01	1	0106-0112
19	BRACKET; GEN 6WA1 TC-C(55L),6WG1 TC-N(71L) (A)	1-19711-144-0	01	1	0201-
19	BRACKET; GEN 6WF1 TC-C(1B8) (A)	1-19711-101-0	01	1	0106-0502
19	BRACKET; GEN 6WF1 TC-C(1B8) (A)	8-97606-317-0	01	1	0503-
19	BRACKET; GEN 6WF1 TC-C(1B8) (B)	1-19711-143-0	01	1	0106-0502
19	BRACKET; GEN 6WF1 TC-C(1B8) (B)	8-97604-177-0	01	1	0503-
19	BRACKET; GEN 6WG1 TC-N(71L),6WG1 TC-C(72L) (B)	1-19711-082-0	01	1	0106-0112
19	BRACKET; GEN 6WG1 TC-N(71L) (B)	1-19711-082-0	01	1	0201-
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	0106-
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	01	1	0106-0107
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	0108-
98	ADAPTER; TEMP SENSOR	1-09675-236-0	01	1	0106-
260	SENSOR; WATER TEMP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-80210-004-0	01	1	0106-0112
260	SENSOR; WATER TEMP 6WA1 TC-C(55L),6WG1 TC-N(71L) (A)	1-80210-004-0	01	1	0201-
260	SENSOR; WATER TEMP 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B)	1-83161-038-0	01	1	0106-0112
260	SENSOR; WATER TEMP 6WA1 TC-C(55L),6WG1 TC-N(71L) (B)	1-83161-038-0	01	1	0201-
260	SENSOR; WATER TEMP 6WF1 TC-C(1B8) (C)	1-80210-005-1	01	1	0106-
260	SENSOR; WATER TEMP 6WF1 TC-C(1B8) (B)	1-83161-040-0	01	1	0106-
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0106-
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0106-0112
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0201-0303
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-N(71L)	1-82641-186-0	02	1	0304-
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC-C(1B8)	1-82641-183-0	01	1	0106-
898	SENSOR; BOOST 6WF1 TC-C(1B8)	1-80220-014-0	01	1	0106-

449 764 266 690 449 690 450 265 690 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; MAG VLV FIX 6WG1 TC-N(71L),6WG1 TC-C(72L) M6X50 FLANGE	0-28080-650-0	01	1	0106-0112
265	BOLT; MAG VLV FIX 6WG1 TC-N(71L) M6X50 FLANGE	0-28080-650-0	01	1	0201-
266	WASHER; PL,MAG VLV FIX 6WG1 TC-N(71L),6WG1 TC-C(72L)	1-82569-266-0	02	1	0106-0112
266	WASHER; PL,MAG VLV FIX 6WG1 TC-N(71L)	1-82569-266-0	02	1	0201-
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WA1 TC-C(55L)	1-82563-871-2	01	1	0106-
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-N(71L),6WG1 TC-C(72L)	1-82563-871-2	02	1	0106-0112
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-N(71L)	1-82563-871-2	02	1	0201-
450	CONNECTOR; MAG VLV,INL PORT M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0106-0112
450	CONNECTOR; MAG VLV,INL PORT 6WA1 TC-C(55L),6WG1 TC-N(71L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0201-
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0106-0112
690	CONNECTOR 6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0201-
690	CONNECTOR 6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0106-
690	CONNECTOR 6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-0112
690	CONNECTOR 6WG1 TC-N(71L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0201-
764	NUT; MAG VLV 6WG1 TC-N(71L),6WG1 TC-C(72L) M6 FLANGE	0-91150-106-0	01	1	0106-0112
764	NUT; MAG VLV 6WG1 TC-N(71L) M6 FLANGE	0-91150-106-0	01	1	0201-
765	GASKET; MAG VLV 6WG1 TC-N(71L),6WG1 TC-C(72L) ID=16.8	9-09565-117-0	01	1	0106-0112
765	GASKET; MAG VLV 6WG1 TC-N(71L) ID=16.8	9-09565-117-0	01	1	0201-

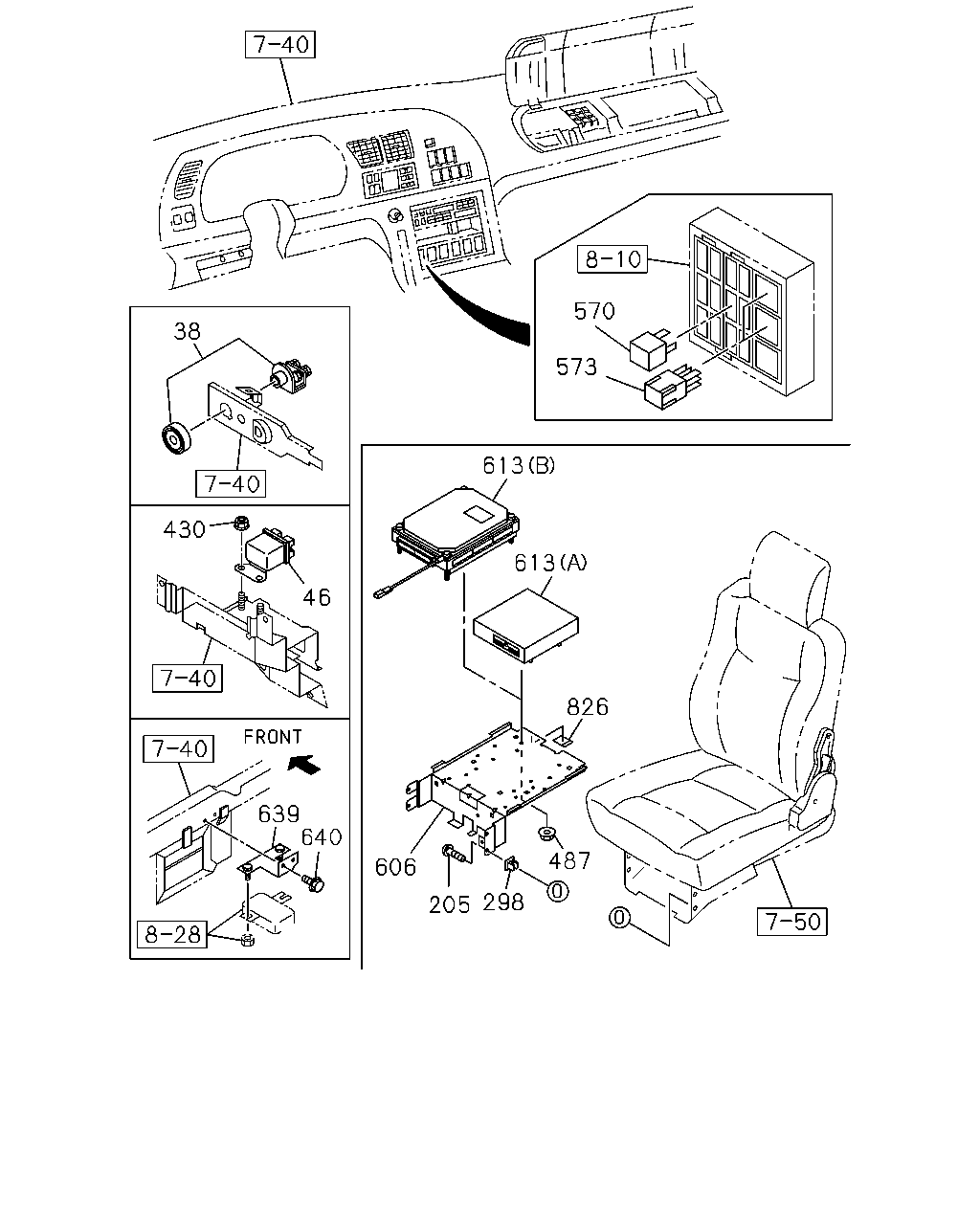

570 38 573 613 430 613 46 826 639 640 487 606 298 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	RESISTOR; CONT,GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	0106-
46	RELAY; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	0106-
205	SCREW; BRKT ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0106-0112
205	SCREW; BRKT 6WF1 TC-C(1B8),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0201-
205	SCREW; BRKT 6WA1 TC-C(55L) M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0201-
298	GROMMET; SCREW ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8	8-94222-314-0	04	1	0106-0112
298	GROMMET; SCREW 6WF1 TC-C(1B8),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) D=9.7X9.7 L=8	8-94222-314-0	04	1	0201-
298	GROMMET; SCREW 6WA1 TC-C(55L) D=9.7X9.7 L=8	8-94222-314-0	04	1	0201-
430	NUT; RELAY FIX GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91150-106-0	01	1	0106-
487	NUT ELECTRONIC GOV RED3(KG5) M6 FLANGE	0-91150-106-0	04	1	0106-0112
487	NUT 6WF1 TC-C(1B8),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6 FLANGE	0-91150-106-0	04	1	0201-
487	NUT 6WA1 TC-C(55L) M6 FLANGE	0-91150-106-0	04	1	0201-
570	RELAY; EXH SHUTTER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0106-
573	RELAY; ELEC GOV ELECTRONIC GOV RED4(Q4F) 24V 12.5A JIDECO	8-97062-815-1	02	1	0106-0111
573	RELAY; ELEC GOV ELECTRONIC GOV RED4(Q4F) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-0212
573	RELAY; ELEC GOV ELECTRONIC GOV RED4(Q4F) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0301-
606	BRACKET; CONT UNIT ELECTRONIC GOV RED3(KG5)	1-75558-598-3	01	1	0106-0112
606	BRACKET; CONT UNIT 6WF1 TC-C(1B8),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-75558-598-3	01	1	0201-
606	BRACKET; CONT UNIT 6WA1 TC-C(55L)	1-75558-598-3	01	1	0201-
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A)	1-80110-480-0	01	1	0106-
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-666-0	01	1	0106-
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B)	1-80110-440-0	01	1	0106-
613	CONTROL UNIT; ENG 6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A)	1-80110-761-1	01	1	0106-
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET STD(T1B) (A)	1-80110-622-0	01	1	0106-0112
613	CONTROL UNIT; ENG 6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A)	1-80110-446-0	01	1	0106-
613	CONTROL UNIT; ENG 6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-625-0	01	1	0106-
639	BRACKET; QOS GLOW TIMER	1-73908-161-0	01	1	0210-
640	BOLT; BRKT,QOS GLOW TIMER M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0210-
826	SEAL; NOISE INSULATION ELECTRONIC GOV RED3(KG5) 30X30	8-97866-626-0	03	1	0106-0112
826	SEAL; NOISE INSULATION 6WF1 TC-C(1B8),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 30X30	8-97866-626-0	03	1	0201-0309
826	SEAL; NOISE INSULATION 6WA1 TC-C(55L) 30X30	8-97866-626-0	03	1	0201-0309
826	SEAL; NOISE INSULATION 6WF1 TC-C(1B8),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 30X30	1-74998-128-0	03	1	0310-
826	SEAL; NOISE INSULATION 6WA1 TC-C(55L) 30X30	1-74998-128-0	03	1	0310-
