◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#11061) — 240 parça

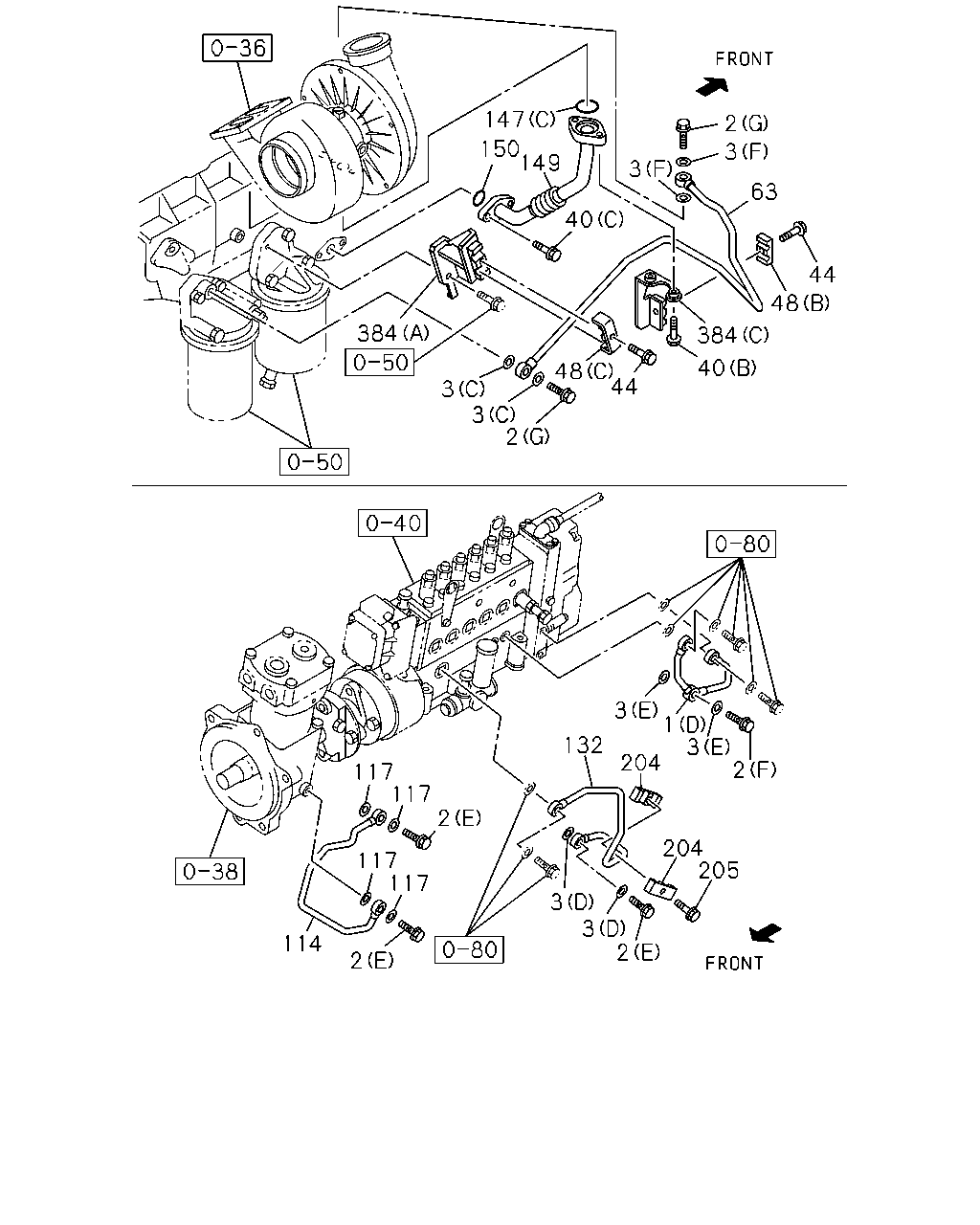

çizim 21344
147 2 150 149 3 3 63 40 44 48 384 384 40 48 44 3 3 2 3 1 3 2 132 204 117 117 2 204 205 117 117 3 3 2 114 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. ELECTRONIC GOV RED3(KG5) (C) 		1-13313-645-0 01 1 0106- ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (A) 		1-13313-449-0 01 1 0106-0112 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (A) 		1-13313-449-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
(A) 		1-13313-449-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (B) 		1-13313-450-0 01 1 0106-0112 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (B) 		1-13313-450-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
(B) 		1-13313-450-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
(D) 		1-13313-750-1 01 1 0106- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(C) M18X26 		1-09675-120-0 01 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M18X26 		1-09675-120-0 01 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(E) M10X21 FLANGE 		1-09675-077-0 03 1 0106- ●
2 BOLT; EYE,OIL PIPE
(F) M14X27 FLANGE 		1-09675-086-0 01 1 0106- ●
2 BOLT; EYE,OIL PIPE
(G) M12X27 FLANGE 		1-09675-160-0 02 1 0106- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 0106-0112 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 0201- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0106-0112 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0201- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0106-0112 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0201- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0106- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=25 		1-09630-141-0 02 1 0106- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=12.2 		9-09571-412-0 02 1 0106- ●
40 BOLT; OIL PIPE
(A) M10X30 FLANGE 		0-28181-030-0 04 1 0106-0112 ● ● ●
40 BOLT; OIL PIPE
(A) M10X30 FLANGE 		0-28181-030-0 04 1 0201- ● ●
40 BOLT; OIL PIPE
(B) M10X25 FLANGE 		0-28181-025-0 02 1 0106- ●
40 BOLT; OIL PIPE
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0106- ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0106-0112 ● ● ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0201- ● ● ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-0 02 1 0106-0112 ● ● ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-2 02 1 0201- ● ●
48 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0106- ●
48 CLIP; OIL PIPE
(C) 		1-09701-265-1 01 1 0106- ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-866-0 01 1 0106-0112 ● ● ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-866-0 01 1 0201- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-978-0 01 1 0106- ●
114 PIPE ASM; OIL,BODY 1-13313-643-0 01 1 0106-0107 ● ● ●
114 PIPE ASM; OIL,BODY 1-13313-643-0 01 1 0108-0112 ● ● ●
114 PIPE ASM; OIL,BODY
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-643-0 01 1 0108-0112 ●
114 PIPE ASM; OIL,BODY 1-13313-643-0 01 1 0201- ● ●
114 PIPE ASM; OIL,BODY
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-643-0 01 1 0201- ●
114 PIPE ASM; OIL,BODY 1-13313-788-0 01 1 0106-0107 ●
114 PIPE ASM; OIL,BODY
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-788-0 01 1 0108-0205 ●
114 PIPE ASM; OIL,BODY
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13314-027-0 01 1 0206- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0106-0112 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0201- ● ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-665-0 01 1 0106-0112 ● ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-665-0 01 1 0201- ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-851-0 01 1 0106- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8 		1-09623-274-0 01 1 0106-0112 ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8 		1-09623-274-0 01 1 0201- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7 		1-09623-450-0 01 1 0106-0112 ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7 		1-09623-450-0 01 1 0201- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1 		8-94399-399-0 01 1 0106- ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-319-0 01 1 0106-0112 ● ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-319-1 01 1 0201- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-980-0 01 1 0106- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0106-0112 ● ● ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0201- ● ● ●
204 CLIP; OIL PIPE 1-09701-132-1 02 1 0106- ●
205 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0106- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-192-0 01 1 0106-0112 ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-192-0 01 1 0201- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0106-0112 ● ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0201- ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(C) 		1-13345-213-0 01 1 0106- ●

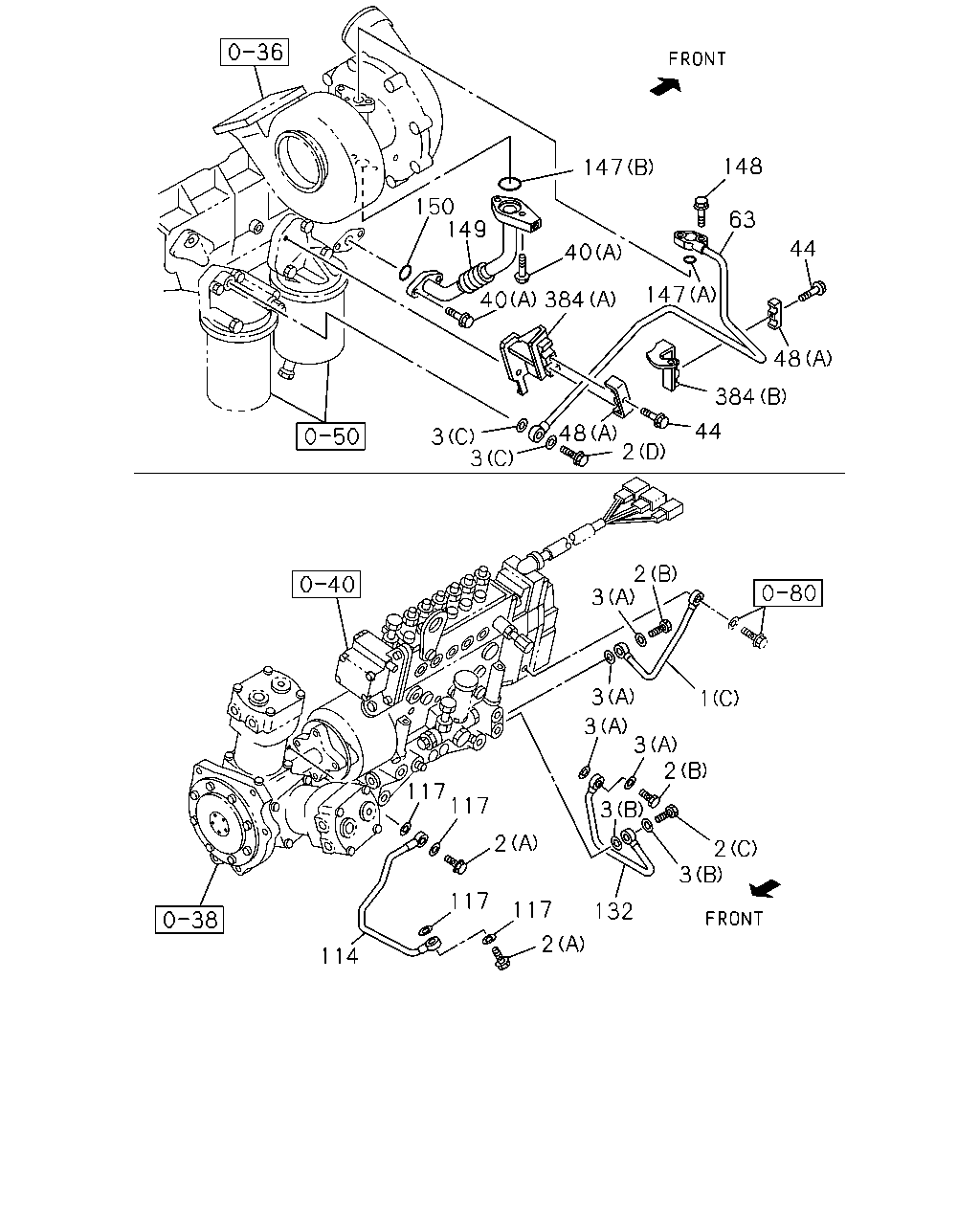

çizim 21896
148 147 150 149 63 44 40 147 384 40 48 384 48 44 2 3 3 2 3 3 1 3 3 2 117 117 3 2 2 3 117 117 132 2 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. ELECTRONIC GOV RED3(KG5) (C) 		1-13313-645-0 01 1 0106- ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (A) 		1-13313-449-0 01 1 0106-0112 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (A) 		1-13313-449-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
(A) 		1-13313-449-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (B) 		1-13313-450-0 01 1 0106-0112 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (B) 		1-13313-450-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
(B) 		1-13313-450-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
(D) 		1-13313-750-1 01 1 0106- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(C) M18X26 		1-09675-120-0 01 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M18X26 		1-09675-120-0 01 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(E) M10X21 FLANGE 		1-09675-077-0 03 1 0106- ●
2 BOLT; EYE,OIL PIPE
(F) M14X27 FLANGE 		1-09675-086-0 01 1 0106- ●
2 BOLT; EYE,OIL PIPE
(G) M12X27 FLANGE 		1-09675-160-0 02 1 0106- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 0106-0112 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 0201- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0106-0112 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0201- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0106-0112 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0201- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0106- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=25 		1-09630-141-0 02 1 0106- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=12.2 		9-09571-412-0 02 1 0106- ●
40 BOLT; OIL PIPE
(A) M10X30 FLANGE 		0-28181-030-0 04 1 0106-0112 ● ● ●
40 BOLT; OIL PIPE
(A) M10X30 FLANGE 		0-28181-030-0 04 1 0201- ● ●
40 BOLT; OIL PIPE
(B) M10X25 FLANGE 		0-28181-025-0 02 1 0106- ●
40 BOLT; OIL PIPE
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0106- ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0106-0112 ● ● ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0201- ● ● ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-0 02 1 0106-0112 ● ● ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-2 02 1 0201- ● ●
48 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0106- ●
48 CLIP; OIL PIPE
(C) 		1-09701-265-1 01 1 0106- ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-866-0 01 1 0106-0112 ● ● ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-866-0 01 1 0201- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-978-0 01 1 0106- ●
114 PIPE ASM; OIL,BODY 1-13313-643-0 01 1 0106-0107 ● ● ●
114 PIPE ASM; OIL,BODY 1-13313-643-0 01 1 0108-0112 ● ● ●
114 PIPE ASM; OIL,BODY
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-643-0 01 1 0108-0112 ●
114 PIPE ASM; OIL,BODY 1-13313-643-0 01 1 0201- ● ●
114 PIPE ASM; OIL,BODY
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-643-0 01 1 0201- ●
114 PIPE ASM; OIL,BODY 1-13313-788-0 01 1 0106-0107 ●
114 PIPE ASM; OIL,BODY
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-788-0 01 1 0108-0205 ●
114 PIPE ASM; OIL,BODY
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13314-027-0 01 1 0206- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0106-0112 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0201- ● ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-665-0 01 1 0106-0112 ● ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-665-0 01 1 0201- ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-851-0 01 1 0106- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8 		1-09623-274-0 01 1 0106-0112 ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8 		1-09623-274-0 01 1 0201- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7 		1-09623-450-0 01 1 0106-0112 ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7 		1-09623-450-0 01 1 0201- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1 		8-94399-399-0 01 1 0106- ●
148 BOLT; FLANGE & BRKT
M10X35 FLANGE 		0-28181-035-0 02 1 0106-0112 ● ● ●
148 BOLT; FLANGE & BRKT
M10X35 FLANGE 		0-28181-035-0 02 1 0201- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-319-0 01 1 0106-0112 ● ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-319-1 01 1 0201- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-980-0 01 1 0106- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0106-0112 ● ● ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0201- ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-192-0 01 1 0106-0112 ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-192-0 01 1 0201- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0106-0112 ● ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0201- ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(C) 		1-13345-213-0 01 1 0106- ●

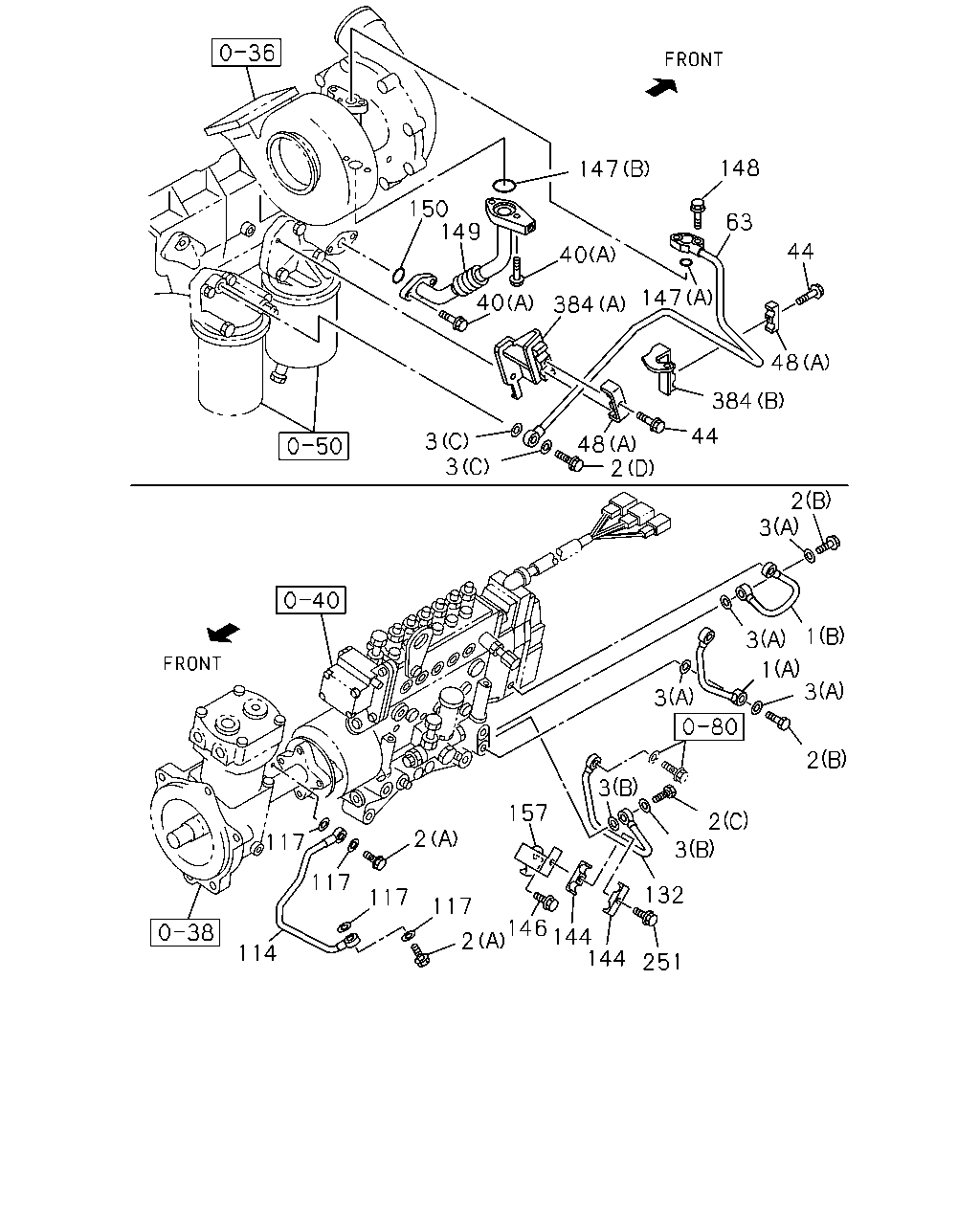

çizim 24056
148 147 150 149 63 44 40 147 384 48 384 44 3 3 48 2 2 3 1 3 1 3 3 2 3 157 2 3 2 117 117 132 117 117 146 144 144 2 114 251
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PIPE; OIL,INJ PUMP TO C/BL
EXC. ELECTRONIC GOV RED3(KG5) (C) 		1-13313-645-0 01 1 0106- ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (A) 		1-13313-449-0 01 1 0106-0112 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (A) 		1-13313-449-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
(A) 		1-13313-449-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (B) 		1-13313-450-0 01 1 0106-0112 ● ● ●
1 PIPE; OIL,INJ PUMP TO C/BL
ELECTRONIC GOV RED3(KG5) (B) 		1-13313-450-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
(B) 		1-13313-450-0 01 1 0201- ●
1 PIPE; OIL,INJ PUMP TO C/BL
(D) 		1-13313-750-1 01 1 0106- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 02 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(C) M18X26 		1-09675-120-0 01 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M18X26 		1-09675-120-0 01 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0106-0112 ● ● ●
2 BOLT; EYE,OIL PIPE
(D) M12X27 FLANGE 		1-09675-160-0 01 1 0201- ● ●
2 BOLT; EYE,OIL PIPE
(E) M10X21 FLANGE 		1-09675-077-0 03 1 0106- ●
2 BOLT; EYE,OIL PIPE
(F) M14X27 FLANGE 		1-09675-086-0 01 1 0106- ●
2 BOLT; EYE,OIL PIPE
(G) M12X27 FLANGE 		1-09675-160-0 02 1 0106- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 0106-0112 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 04 1 0201- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0106-0112 ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0201- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0106-0112 ● ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 02 1 0201- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0106- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=25 		1-09630-141-0 02 1 0106- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=12.2 		9-09571-412-0 02 1 0106- ●
40 BOLT; OIL PIPE
(A) M10X30 FLANGE 		0-28181-030-0 04 1 0106-0112 ● ● ●
40 BOLT; OIL PIPE
(A) M10X30 FLANGE 		0-28181-030-0 04 1 0201- ● ●
40 BOLT; OIL PIPE
(B) M10X25 FLANGE 		0-28181-025-0 02 1 0106- ●
40 BOLT; OIL PIPE
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0106- ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0106-0112 ● ● ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0201- ● ● ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-0 02 1 0106-0112 ● ● ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-2 02 1 0201- ● ●
48 CLIP; OIL PIPE
(B) ID=9 & 9 L=25 		1-09701-212-2 01 1 0106- ●
48 CLIP; OIL PIPE
(C) 		1-09701-265-1 01 1 0106- ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-866-0 01 1 0106-0112 ● ● ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-866-0 01 1 0201- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-978-0 01 1 0106- ●
114 PIPE ASM; OIL,BODY 1-13313-643-0 01 1 0106-0107 ● ● ●
114 PIPE ASM; OIL,BODY 1-13313-643-0 01 1 0108-0112 ● ● ●
114 PIPE ASM; OIL,BODY
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-643-0 01 1 0108-0112 ●
114 PIPE ASM; OIL,BODY 1-13313-643-0 01 1 0201- ● ●
114 PIPE ASM; OIL,BODY
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-643-0 01 1 0201- ●
114 PIPE ASM; OIL,BODY 1-13313-788-0 01 1 0106-0107 ●
114 PIPE ASM; OIL,BODY
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-788-0 01 1 0108-0205 ●
114 PIPE ASM; OIL,BODY
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13314-027-0 01 1 0206- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0106-0112 ● ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0201- ● ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-665-0 01 1 0106-0112 ● ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-665-0 01 1 0201- ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-851-0 01 1 0106- ●
144 CLIP; OIL PIPE,INJ PUMP 1-09701-132-0 02 1 0106-0112 ● ●
144 CLIP; OIL PIPE,INJ PUMP 1-09701-132-1 02 1 0201- ●
146 BOLT; BRKT
M10X16 FLANGE 		0-28181-016-0 01 1 0106-0112 ● ●
146 BOLT; BRKT
M10X16 FLANGE 		0-28181-016-0 01 1 0201- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8 		1-09623-274-0 01 1 0106-0112 ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8 		1-09623-274-0 01 1 0201- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7 		1-09623-450-0 01 1 0106-0112 ● ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7 		1-09623-450-0 01 1 0201- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1 		8-94399-399-0 01 1 0106- ●
148 BOLT; FLANGE & BRKT
M10X35 FLANGE 		0-28181-035-0 02 1 0106-0112 ● ● ●
148 BOLT; FLANGE & BRKT
M10X35 FLANGE 		0-28181-035-0 02 1 0201- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-319-0 01 1 0106-0112 ● ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-319-1 01 1 0201- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-980-0 01 1 0106- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0106-0112 ● ● ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0201- ● ● ●
157 BRACKET; OIL PIPE 1-13345-188-0 01 1 0106-0112 ● ●
157 BRACKET; OIL PIPE 1-13345-188-0 01 1 0201- ●
251 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28680-635-0 01 1 0106-0112 ● ●
251 BOLT; CLIP,OIL PIPE
M6X35 FLANGE 		0-28680-635-0 01 1 0201- ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-192-0 01 1 0106-0112 ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-192-0 01 1 0201- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0106-0112 ● ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0201- ● ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(C) 		1-13345-213-0 01 1 0106- ●

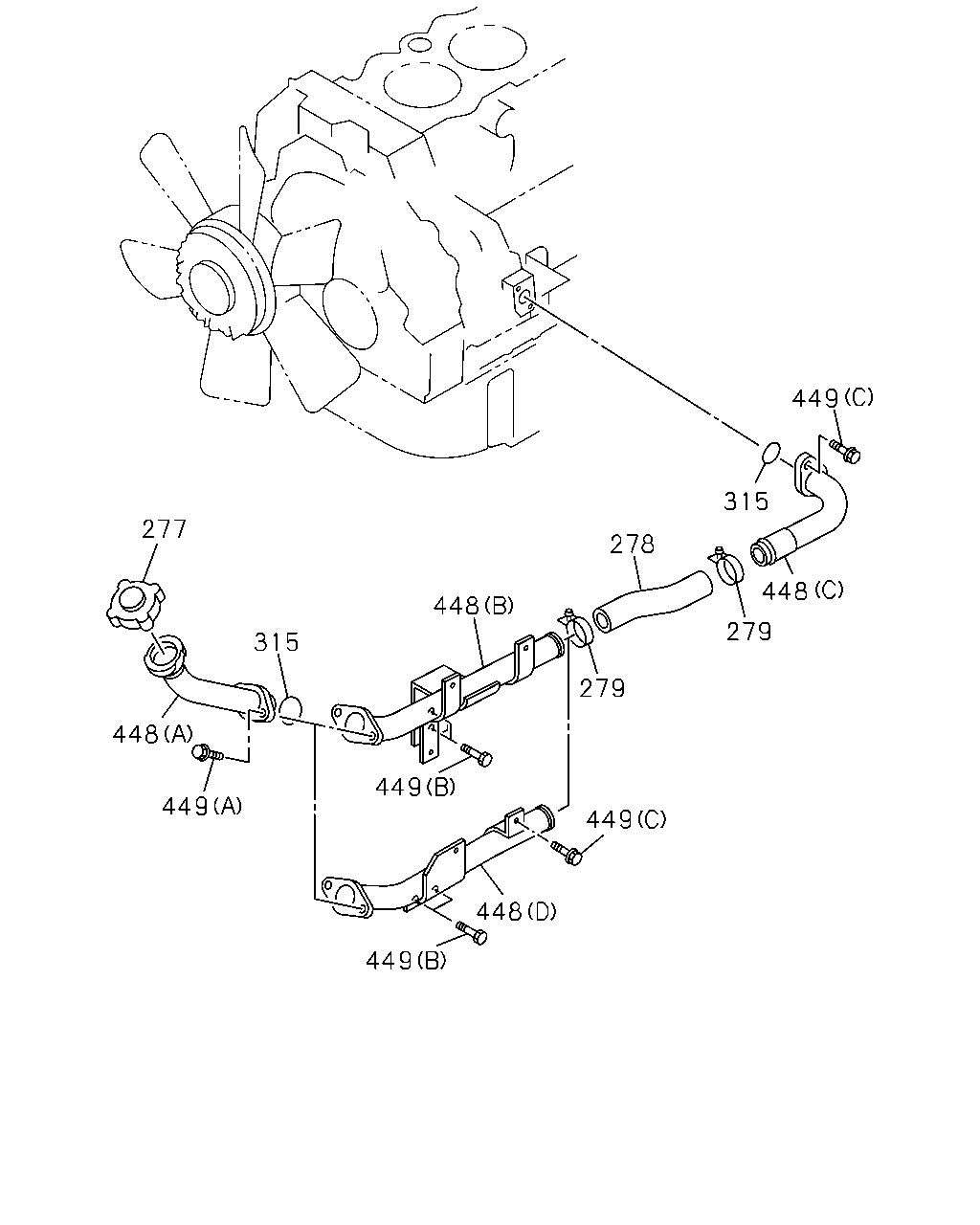

çizim 76672
315 277 278 448 279 315 279 448 449 449 449 448 449 449 448
BalonParca AdiParca NoAdetTipApplied Date A B C D
277 CAP; OIL FILLER 1-11750-020-0 01 1 0106- ● ● ● ●
278 HOSE; RUBBER,OIL FILLER 1-11749-154-0 01 1 0106- ● ● ● ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 0106- ● ● ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-299-0 01 1 0106-0112 ● ● ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-299-0 01 1 0106-0112 ● ● ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-299-0 01 1 0201- ● ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-299-0 01 1 0201- ● ● ●
448 FILLER; OIL
(D) 		1-11741-277-0 01 1 0302- ●
448 FILLER; OIL
(B) 		1-11741-218-0 01 1 0106-0112 ● ● ●
448 FILLER; OIL
(B) 		1-11741-218-0 01 1 0201- ● ●
448 FILLER; OIL
(C) 		1-11740-227-1 01 1 0106-0112 ● ● ● ●
448 FILLER; OIL
(C) 		1-11740-227-2 01 1 0201- ● ● ●
448 FILLER; OIL
(A) 		1-11741-175-4 01 1 0106- ● ● ● ●
449 BOLT; OIL FILLER
(C) M8X16 FLANGE 		0-28080-816-0 01 1 0302- ●
449 BOLT; OIL FILLER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0106-0112 ● ● ●
449 BOLT; OIL FILLER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0201- ● ●
449 BOLT; OIL FILLER
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0106-0112 ● ● ● ●
449 BOLT; OIL FILLER
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0201- ● ● ●
449 BOLT; OIL FILLER
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
