0-41 — FUEL FILTER AND BRACKET (#11057) — 94 parça

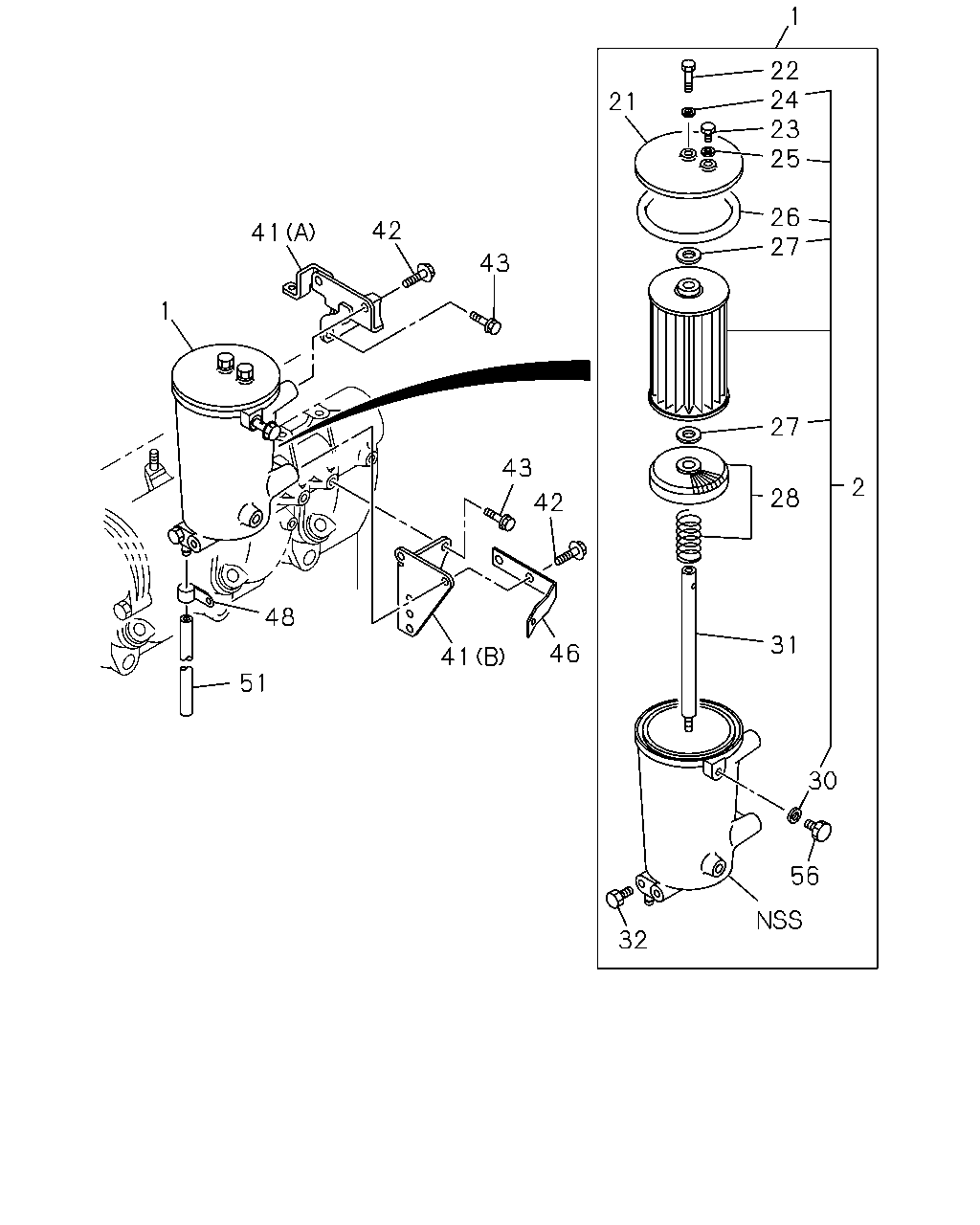

1 22 24 23 25 21 26 27 42 41 43 1 27 43 2 28 42 48 31 46 41 51 30 56 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FILTER ASM; FUEL	1-13200-871-2	01	1	0106-0112	●	●	●
1	FILTER ASM; FUEL	1-13200-871-3	01	1	0201-	●	●
1	FILTER ASM; FUEL	1-13200-820-2	01	1	0106-				●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0106-0112	●	●	●	●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0201-	●	●		●
21	COVER; UPR,FUEL FILTER	1-13212-049-1	01	1	0106-0112	●	●	●	●
21	COVER; UPR,FUEL FILTER	1-13212-049-1	01	1	0201-	●	●		●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0106-0112	●	●	●	●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0201-	●	●		●
23	PLUG; COVER	1-13219-074-0	01	1	0106-0112	●	●	●	●
23	PLUG; COVER	1-13219-074-0	01	1	0201-	●	●		●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0106-0112	●	●	●	●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0201-	●	●		●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0106-0112	●	●	●	●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0201-	●	●		●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0106-0112	●	●	●	●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0201-	●	●		●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0106-0112	●	●	●	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0201-	●	●		●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0106-0112	●	●	●	●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0201-	●	●		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-0112	●	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0106-				●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0106-0112	●	●	●	●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0201-	●	●		●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0106-0112	●	●	●	●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0201-	●	●		●
41	BRACKET; FUEL FILTER EXC. ELECTRONIC GOV RED3(KG5) (B)	1-13219-354-0	01	1	0106-	●
41	BRACKET; FUEL FILTER (A)	1-13219-282-0	01	1	0106-0112	●	●	●
41	BRACKET; FUEL FILTER (A)	1-13219-282-0	01	1	0201-	●	●
41	BRACKET; FUEL FILTER ELECTRONIC GOV RED3(KG5) (C)	1-13219-301-2	01	1	0106-0112	●	●	●
41	BRACKET; FUEL FILTER ELECTRONIC GOV RED3(KG5) (C)	1-13219-301-2	01	1	0201-	●
41	BRACKET; FUEL FILTER (C)	1-13219-301-2	01	1	0201-		●
41	BRACKET; FUEL FILTER (A)	1-13219-350-2	01	1	0106-				●
41	BRACKET; FUEL FILTER (B)	1-13219-351-2	01	1	0106-				●
42	BOLT; FUEL FILTER M10X25 FLANGE	0-28081-025-0	02	1	0311-				●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	0106-0112	●	●	●	●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	0201-	●	●		●
43	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	04	1	0106-0112	●	●	●	●
43	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	04	1	0201-	●	●		●
46	BRACKET	1-83129-470-0	01	1	0311-				●
48	CLIP; VINYL PIPE ID=21 L=47.5	8-94178-108-0	01	1	0106-				●
51	PIPE; VINYL L=750 SERVICED BY L=10000	9-09914-909-0	01	1	0106-0112	●	●	●
51	PIPE; VINYL L=750 SERVICED BY L=10000	9-09914-909-0	01	1	0201-	●	●
51	PIPE; VINYL L=800 SERVICED BY L=10000	9-09914-909-0	01	1	0106-				●
56	PLUG; FUEL FILTER M14X9	9-99202-314-0	01	1	0106-				●

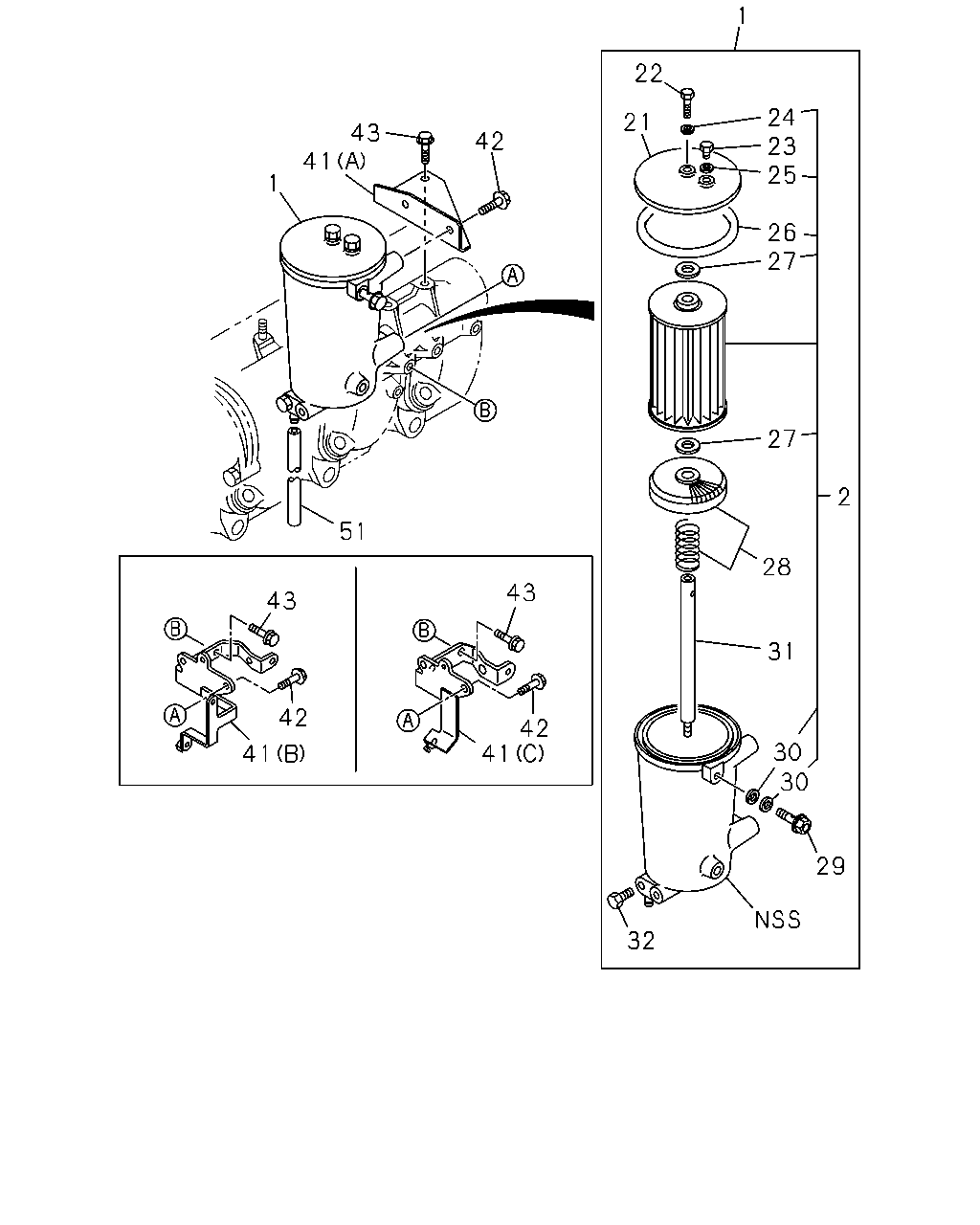

1 22 24 23 25 21 43 41 42 1 26 27 27 2 51 28 43 43 31 42 42 41 30 30 41 29 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FILTER ASM; FUEL	1-13200-871-2	01	1	0106-0112	●	●	●
1	FILTER ASM; FUEL	1-13200-871-3	01	1	0201-	●	●
1	FILTER ASM; FUEL	1-13200-820-2	01	1	0106-				●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0106-0112	●	●	●	●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0201-	●	●		●
21	COVER; UPR,FUEL FILTER	1-13212-049-1	01	1	0106-0112	●	●	●	●
21	COVER; UPR,FUEL FILTER	1-13212-049-1	01	1	0201-	●	●		●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0106-0112	●	●	●	●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0201-	●	●		●
23	PLUG; COVER	1-13219-074-0	01	1	0106-0112	●	●	●	●
23	PLUG; COVER	1-13219-074-0	01	1	0201-	●	●		●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0106-0112	●	●	●	●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0201-	●	●		●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0106-0112	●	●	●	●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0201-	●	●		●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0106-0112	●	●	●	●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0201-	●	●		●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0106-0112	●	●	●	●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0201-	●	●		●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0106-0112	●	●	●	●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0201-	●	●		●
29	VALVE; OVERFLOW	1-13260-074-0	01	1	0106-0112	●	●	●
29	VALVE; OVERFLOW	1-13260-074-0	01	1	0201-	●	●
29	VALVE; OVERFLOW	1-13260-065-0	01	1	0108-0304				●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-0112	●	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0106-				●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0106-0112	●	●	●	●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0201-	●	●		●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0106-0112	●	●	●	●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0201-	●	●		●
41	BRACKET; FUEL FILTER EXC. ELECTRONIC GOV RED3(KG5) (B)	1-13219-354-0	01	1	0106-	●
41	BRACKET; FUEL FILTER (A)	1-13219-282-0	01	1	0106-0112	●	●	●
41	BRACKET; FUEL FILTER (A)	1-13219-282-0	01	1	0201-	●	●
41	BRACKET; FUEL FILTER ELECTRONIC GOV RED3(KG5) (C)	1-13219-301-2	01	1	0106-0112	●	●	●
41	BRACKET; FUEL FILTER ELECTRONIC GOV RED3(KG5) (C)	1-13219-301-2	01	1	0201-	●
41	BRACKET; FUEL FILTER (C)	1-13219-301-2	01	1	0201-		●
41	BRACKET; FUEL FILTER (A)	1-13219-350-2	01	1	0106-				●
41	BRACKET; FUEL FILTER (B)	1-13219-351-2	01	1	0106-				●
42	BOLT; FUEL FILTER M10X25 FLANGE	0-28081-025-0	02	1	0311-				●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	0106-0112	●	●	●	●
42	BOLT; FUEL FILTER M10X20 FLANGE	0-28081-020-0	04	1	0201-	●	●		●
43	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	04	1	0106-0112	●	●	●	●
43	BOLT; BRKT M10X20 FLANGE	0-28181-020-0	04	1	0201-	●	●		●
51	PIPE; VINYL L=750 SERVICED BY L=10000	9-09914-909-0	01	1	0106-0112	●	●	●
51	PIPE; VINYL L=750 SERVICED BY L=10000	9-09914-909-0	01	1	0201-	●	●
51	PIPE; VINYL L=800 SERVICED BY L=10000	9-09914-909-0	01	1	0106-				●
