0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#11054) — 417 parça

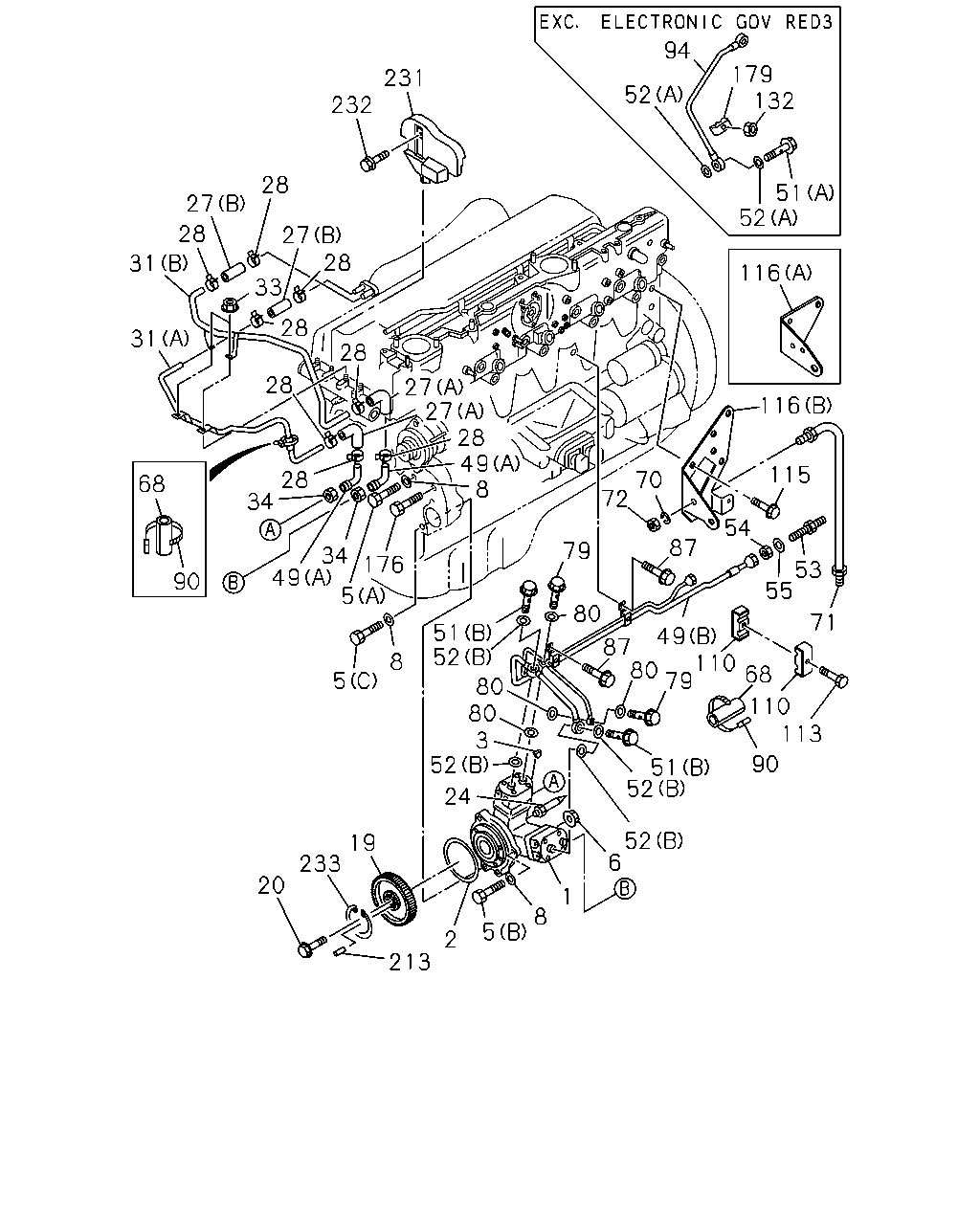

94 179 132 231 52 232 28 51 52 27 28 27 28 31 116 33 28 31 28 28 27 27 28 49 8 116 115 70 72 28 34 68 54 87 79 34 176 53 55 49 90 5 80 71 51 52 49 87 110 80 68 79 8 5 80 80 3 52 110 113 90 51 52 24 52 6 19 233 20 1 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	0106-0107	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	0108-0112	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	0108-0112				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0201-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0201-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0106-0107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0106-0112	●	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0201-	●	●		●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0106-0107	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0108-0112	●	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-0112				●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0201-	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0201-				●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0201-	●	●		●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0106-0112	●	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0201-	●	●		●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0106-0112	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0201-	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0106-				●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0106-0112	●	●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0201-0202	●	●		●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-	●	●		●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0106-0112	●	●	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0201-	●	●		●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	0106-0112	●	●	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0201-	●	●		●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0106-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0108-0112	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-0112				●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0201-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0201-				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0106-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0108-0112	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-0112				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0201-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0201-				●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0106-0107				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0106-0107	●	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0108-0112	●	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-0112				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0201-	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0201-				●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0106-0107				●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0106-0112	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0201-	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0106-0112	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0201-	●	●
31	PIPE; AIR,AIR CMPR SUCTION	1-19193-327-0	01	1	0106-0107				●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19193-327-0	01	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-408-0	01	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-				●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0106-0112	●	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0201-	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0106-0107	●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0108-0112	●	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0108-0112				●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0201-	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0201-				●
49	PIPE; AIR,CHARGE CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19193-371-0	01	1	0106-	●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0106-0107	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0108-0112	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-0112				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0201-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0201-				●
49	PIPE; AIR,CHARGE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19192-661-2	01	1	0106-0112	●	●	●
49	PIPE; AIR,CHARGE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19192-661-2	01	1	0201-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0106-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-				●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0106-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE	1-09675-077-0	01	1	0106-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0106-0112	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0201-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0106-0107				●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	0108-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0106-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0106-0112	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0201-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0106-0107				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0108-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0108-				●
53	UNION; CHARGE PIPE CLUTCH 15.5" TWIN PLATE SPICER(TEY)	1-09654-318-1	01	1	0106-	●	●
53	UNION; CHARGE PIPE	1-09654-318-1	01	1	0106-				●
54	NUT; PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) M22	9-09111-522-0	01	1	0106-	●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0106-				●
55	WASHER; LK,PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) ID=22.5	9-09150-522-0	01	1	0106-	●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0106-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0106-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	0106-0112	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	0201-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0106-0107				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-				●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0106-0112	●	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0201-	●	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0106-0112	●	●	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0201-	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0106-0112	●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0201-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0106-0112	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0201-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0106-0107				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0108-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0106-0112	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0201-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0106-0107				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0108-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	02	1	0108-				●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0106-0112	●	●	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0201-	●	●		●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0106-0112	●	●	●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0201-	●	●
94	PIPE; AIR,BOOST EXC. ELECTRONIC GOV RED3(KG5)	1-19193-109-0	01	1	0106-	●
110	CLIP; AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY)	1-09701-210-0	02	1	0106-0112	●	●	●
110	CLIP; AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY)	1-09701-210-0	02	1	0201-	●	●
113	BOLT; CLIP,AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) M6X40 FLANGE	0-28080-640-0	01	1	0106-0112	●	●	●
113	BOLT; CLIP,AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) M6X40 FLANGE	0-28080-640-0	01	1	0201-	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0106-0112	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0201-	●	●		●
116	BRACKET; AIR PIPE CLUTCH 15.5" TWIN PLATE SPICER(TEY) (A)	1-19199-386-0	01	1	0106-	●	●
116	BRACKET; AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19199-212-0	01	1	0106-0112	●	●	●
116	BRACKET; AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19199-212-1	01	1	0201-	●	●
116	BRACKET; AIR PIPE (C)	1-19199-308-0	01	1	0106-				●
132	NUT; CLIP EXC. ELECTRONIC GOV RED3(KG5) M6 FLANGE	0-91150-106-0	01	1	0106-	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0106-0112	●	●	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0201-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0106-				●
179	CLIP; PIPE EXC. ELECTRONIC GOV RED3(KG5)	1-09701-132-1	02	1	0106-	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0106-0112	●	●	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0201-	●	●		●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	0106-0112		●	●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	0201-		●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	0106-0112		●	●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	0201-		●
233	RING; FRICTION	1-12529-003-0	01	1	0106-0112		●	●	●
233	RING; FRICTION	1-12529-003-0	01	1	0201-0205		●		●

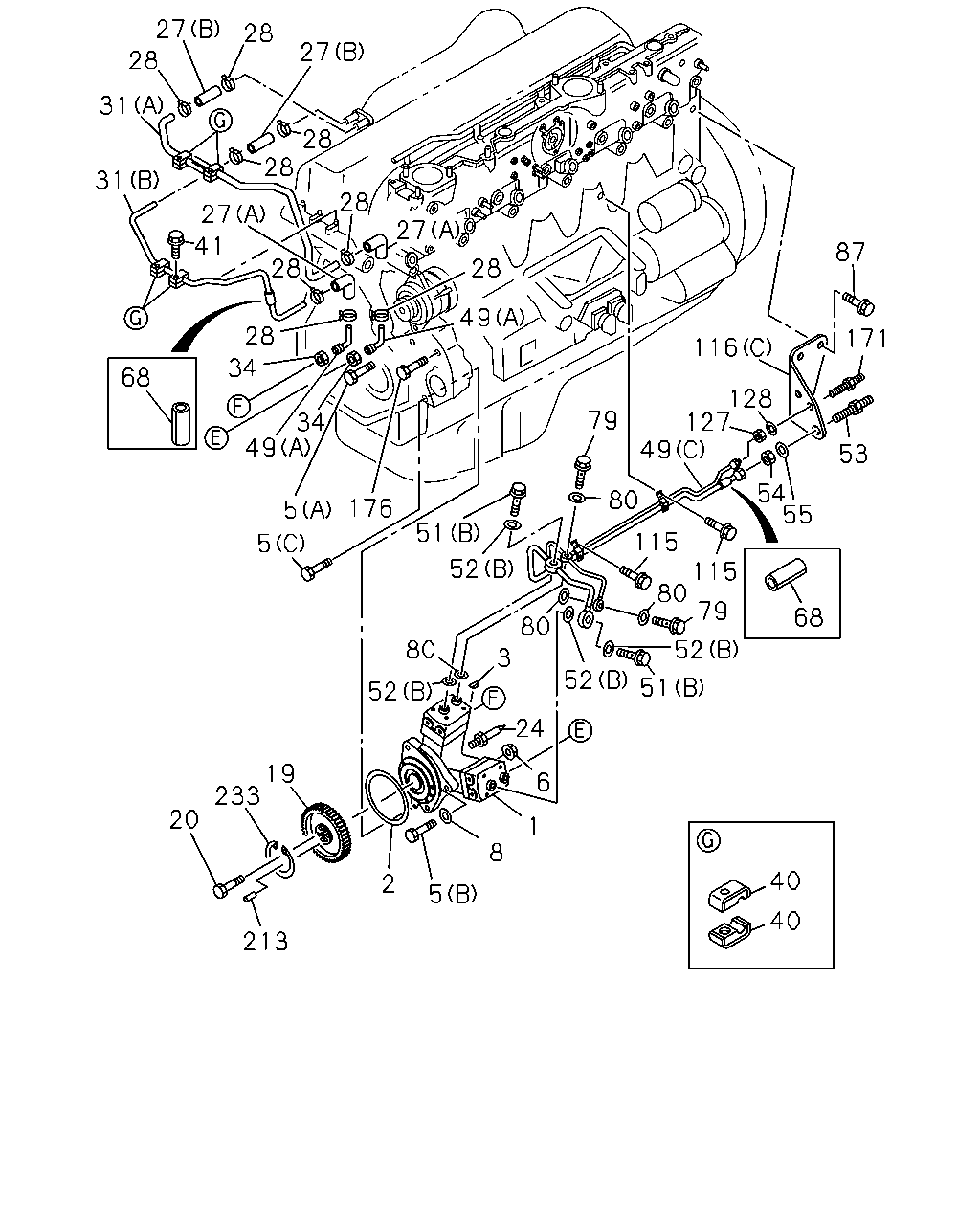

27 28 28 41 1 28 31 274 27 28 49 131 87 68 5 176 171 116 128 127 5 51 79 49 53 55 54 80 52 115 115 40 80 52 68 40 24 2 19 233 6 1 20 8 5 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	0106-0107	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	0108-0112	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	0108-0112				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0201-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0201-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0106-0107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0106-0112	●	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0201-	●	●		●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0106-0112	●	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0201-	●	●		●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0106-0112	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0201-	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0106-				●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0106-0112	●	●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0201-0202	●	●		●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-	●	●		●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0106-0112	●	●	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0201-	●	●		●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	0106-0112	●	●	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0201-	●	●		●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0106-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0108-0112	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-0112				●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0201-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0201-				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0106-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0108-0112	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-0112				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0201-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0201-				●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0106-0107				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0106-0107	●	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0108-0112	●	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-0112				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0201-	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0201-				●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0106-0107				●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0106-0112	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0201-	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0106-0112	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0201-	●	●
31	PIPE; AIR,AIR CMPR SUCTION	1-19193-327-0	01	1	0106-0107				●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19193-327-0	01	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-408-0	01	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-				●
40	CLIP; AIR PIPE	1-09701-281-0	04	1	0106-0107				●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-281-1	04	1	0108-				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-284-0	08	1	0108-				●
41	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	02	1	0106-0107				●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X45 FLANGE	0-28080-845-0	02	1	0108-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) M8X70 FLANGE	0-28080-870-0	02	1	0108-				●
49	PIPE; AIR,CHARGE CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19193-371-0	01	1	0106-	●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0106-0107	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0108-0112	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-0112				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0201-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0201-				●
49	PIPE; AIR,CHARGE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19192-661-2	01	1	0106-0112	●	●	●
49	PIPE; AIR,CHARGE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19192-661-2	01	1	0201-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0106-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-				●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0106-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE	1-09675-077-0	01	1	0106-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0106-0112	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0201-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0106-0107				●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	0108-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0106-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0106-0112	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0201-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0106-0107				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0108-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0108-				●
53	UNION; CHARGE PIPE CLUTCH 15.5" TWIN PLATE SPICER(TEY)	1-09654-318-1	01	1	0106-	●	●
53	UNION; CHARGE PIPE	1-09654-318-1	01	1	0106-				●
54	NUT; PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) M22	9-09111-522-0	01	1	0106-	●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0106-				●
55	WASHER; LK,PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) ID=22.5	9-09150-522-0	01	1	0106-	●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0106-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0106-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	0106-0112	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	0201-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0106-0107				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0106-0112	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0201-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0106-0107				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0108-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0106-0112	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0201-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0106-0107				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0108-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	02	1	0108-				●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0106-0112	●	●	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0201-	●	●		●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0106-0112	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0201-	●	●		●
116	BRACKET; AIR PIPE CLUTCH 15.5" TWIN PLATE SPICER(TEY) (A)	1-19199-386-0	01	1	0106-	●	●
116	BRACKET; AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19199-212-0	01	1	0106-0112	●	●	●
116	BRACKET; AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19199-212-1	01	1	0201-	●	●
116	BRACKET; AIR PIPE (C)	1-19199-308-0	01	1	0106-				●
127	NUT; UNION M12	9-09840-280-0	01	1	0106-				●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0106-				●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0106-0107				●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26.8	1-09623-415-0	01	1	0108-				●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0106-				●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0106-0112	●	●	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0201-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0106-				●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0106-0112	●	●	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0201-	●	●		●
233	RING; FRICTION	1-12529-003-0	01	1	0106-0112		●	●	●
233	RING; FRICTION	1-12529-003-0	01	1	0201-0205		●		●
274	BOLT; PIPE M8X20 FLANGE	0-28080-820-0	02	1	0106-0107				●
274	BOLT; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE	0-28080-820-0	02	1	0108-				●

27 28 28 27 31 28 28 31 28 27 27 41 87 28 28 49 28 171 116 34 68 128 127 49 34 49 79 53 54 55 80 176 5 51 115 5 52 115 80 79 80 3 68 80 52 52 52 51 24 19 233 6 20 1 8 40 2 5 40 213

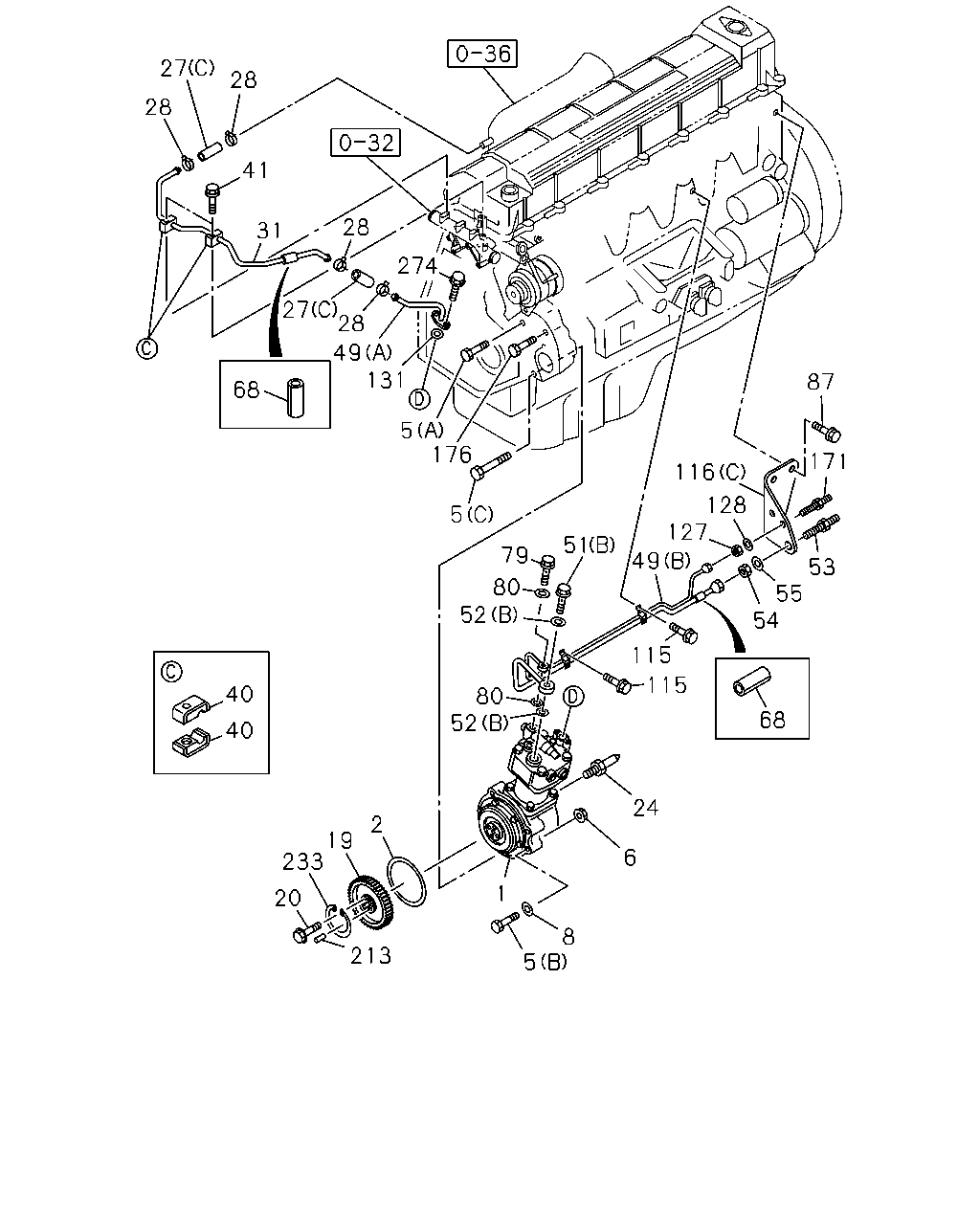

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	0106-0107	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	0108-0112	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	0108-0112				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0201-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0201-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0106-0107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0106-0112	●	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0201-	●	●		●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0106-0107	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0108-0112	●	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-0112				●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0201-	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0201-				●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0201-	●	●		●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0106-0112	●	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0201-	●	●		●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0106-0112	●	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0201-	●	●		●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0106-0112	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0201-	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0106-				●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0106-0112	●	●	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0201-0202	●	●		●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-	●	●		●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0106-0112	●	●	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0201-	●	●		●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	0106-0112	●	●	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0201-	●	●		●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0106-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0108-0112	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-0112				●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0201-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0201-				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0106-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0108-0112	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-0112				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0201-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0201-				●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0106-0107				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0106-0107	●	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0108-0112	●	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-0112				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0201-	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0201-				●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0106-0107				●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0106-0112	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0201-	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0106-0112	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0201-	●	●
31	PIPE; AIR,AIR CMPR SUCTION	1-19193-327-0	01	1	0106-0107				●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19193-327-0	01	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-408-0	01	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-				●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0106-0107	●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0108-0112	●	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0108-0112				●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0201-	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0201-				●
40	CLIP; AIR PIPE	1-09701-281-0	04	1	0106-0107				●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-281-1	04	1	0108-				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-284-0	08	1	0108-				●
41	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	02	1	0106-0107				●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X45 FLANGE	0-28080-845-0	02	1	0108-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) M8X70 FLANGE	0-28080-870-0	02	1	0108-				●
49	PIPE; AIR,CHARGE CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19193-371-0	01	1	0106-	●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0106-0107	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0108-0112	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-0112				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0201-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0201-				●
49	PIPE; AIR,CHARGE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19192-661-2	01	1	0106-0112	●	●	●
49	PIPE; AIR,CHARGE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19192-661-2	01	1	0201-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0106-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-				●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0106-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE	1-09675-077-0	01	1	0106-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0106-0112	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0201-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0106-0107				●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	0108-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0106-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0106-0112	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0201-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0106-0107				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0108-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0108-				●
53	UNION; CHARGE PIPE CLUTCH 15.5" TWIN PLATE SPICER(TEY)	1-09654-318-1	01	1	0106-	●	●
53	UNION; CHARGE PIPE	1-09654-318-1	01	1	0106-				●
54	NUT; PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) M22	9-09111-522-0	01	1	0106-	●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0106-				●
55	WASHER; LK,PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) ID=22.5	9-09150-522-0	01	1	0106-	●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0106-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0106-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	0106-0112	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	0201-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0106-0107				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0106-0112	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0201-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0106-0107				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0108-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0106-0112	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0201-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0106-0107				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0108-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	02	1	0108-				●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0106-0112	●	●	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0201-	●	●		●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0106-0112	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0201-	●	●		●
116	BRACKET; AIR PIPE CLUTCH 15.5" TWIN PLATE SPICER(TEY) (A)	1-19199-386-0	01	1	0106-	●	●
116	BRACKET; AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19199-212-0	01	1	0106-0112	●	●	●
116	BRACKET; AIR PIPE EXC. CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19199-212-1	01	1	0201-	●	●
116	BRACKET; AIR PIPE (C)	1-19199-308-0	01	1	0106-				●
127	NUT; UNION M12	9-09840-280-0	01	1	0106-				●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0106-				●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0106-				●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0106-0112	●	●	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0201-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0106-				●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0106-0112	●	●	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0201-	●	●		●
233	RING; FRICTION	1-12529-003-0	01	1	0106-0112		●	●	●
233	RING; FRICTION	1-12529-003-0	01	1	0201-0205		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
