◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶

0-37 — TURBOCHARGER (#11053) — 84 parça

10 23 23 45 18 17 17 17 17 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14453-041-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14453-069-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14453-111-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-037-0	04	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) SMALL ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) LARGE ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14453-026-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-038-0	04	1	-

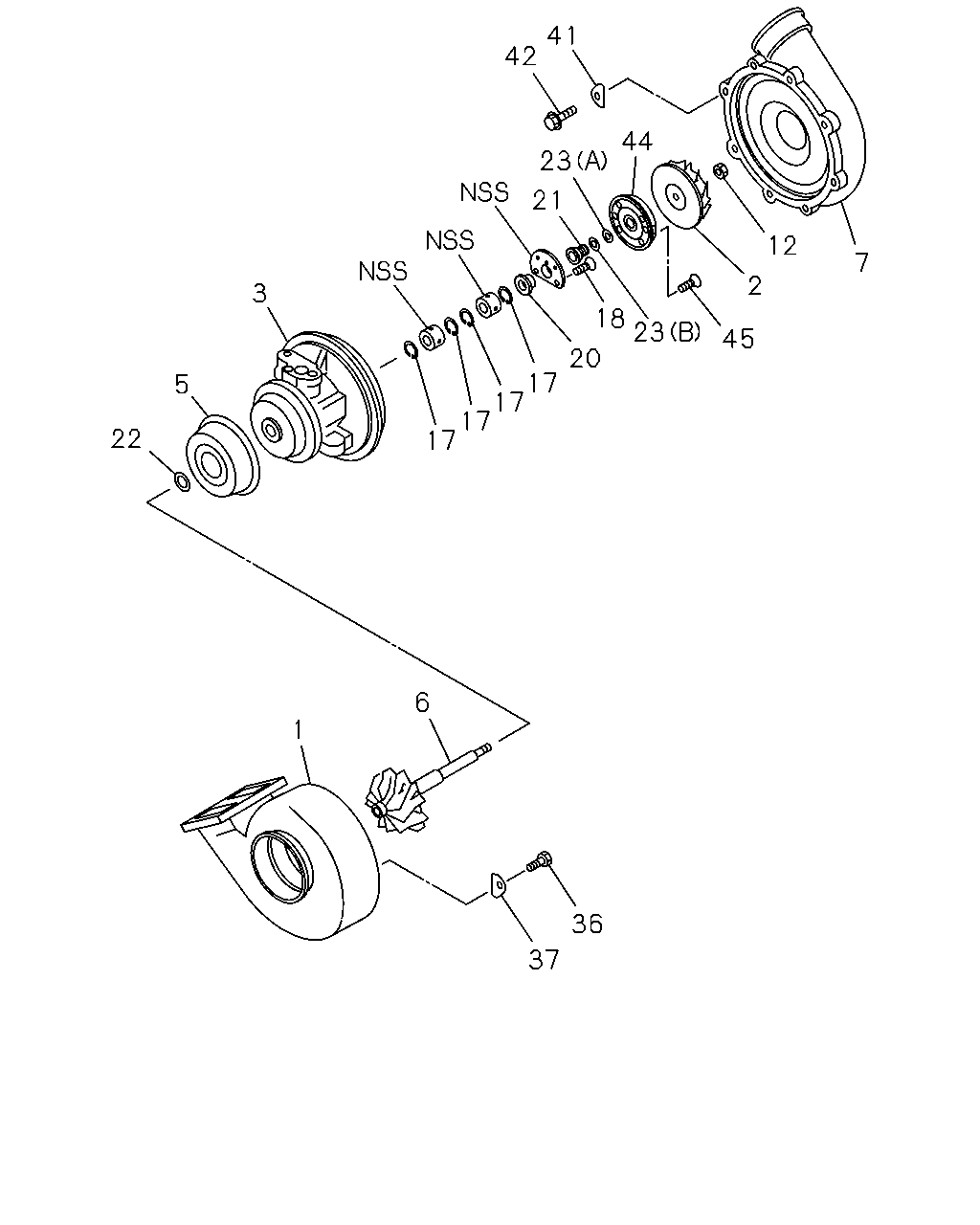

41 42 44 23 21 12 7 2 3 18 23 45 20 17 17 17 17 5 22 6 1 36 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14415-090-1	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14415-107-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14451-059-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14451-061-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14411-044-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14411-059-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14411-081-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14425-017-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14450-038-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14450-056-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14414-066-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14414-101-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14414-140-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-290-2	1-09400-047-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-328-3	1-09400-119-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14455-026-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-037-0	04	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14453-028-0	01	1	-
20	BUSHING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14453-070-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14455-027-0	01	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14455-036-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14453-027-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (A) SMALL ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14453-025-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER (B) LARGE ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14453-026-0	01	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09000-405-0	10	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: C = 1-14400-401-2	1-09100-044-0	06	1	-
37	PLATE; LK,TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-14421-018-0	10	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14421-016-0	06	1	-
41	PLATE; LK,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14421-016-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-09000-404-0	11	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-09000-404-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-038-0	05	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14425-007-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14425-018-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14425-030-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-038-0	04	1	-

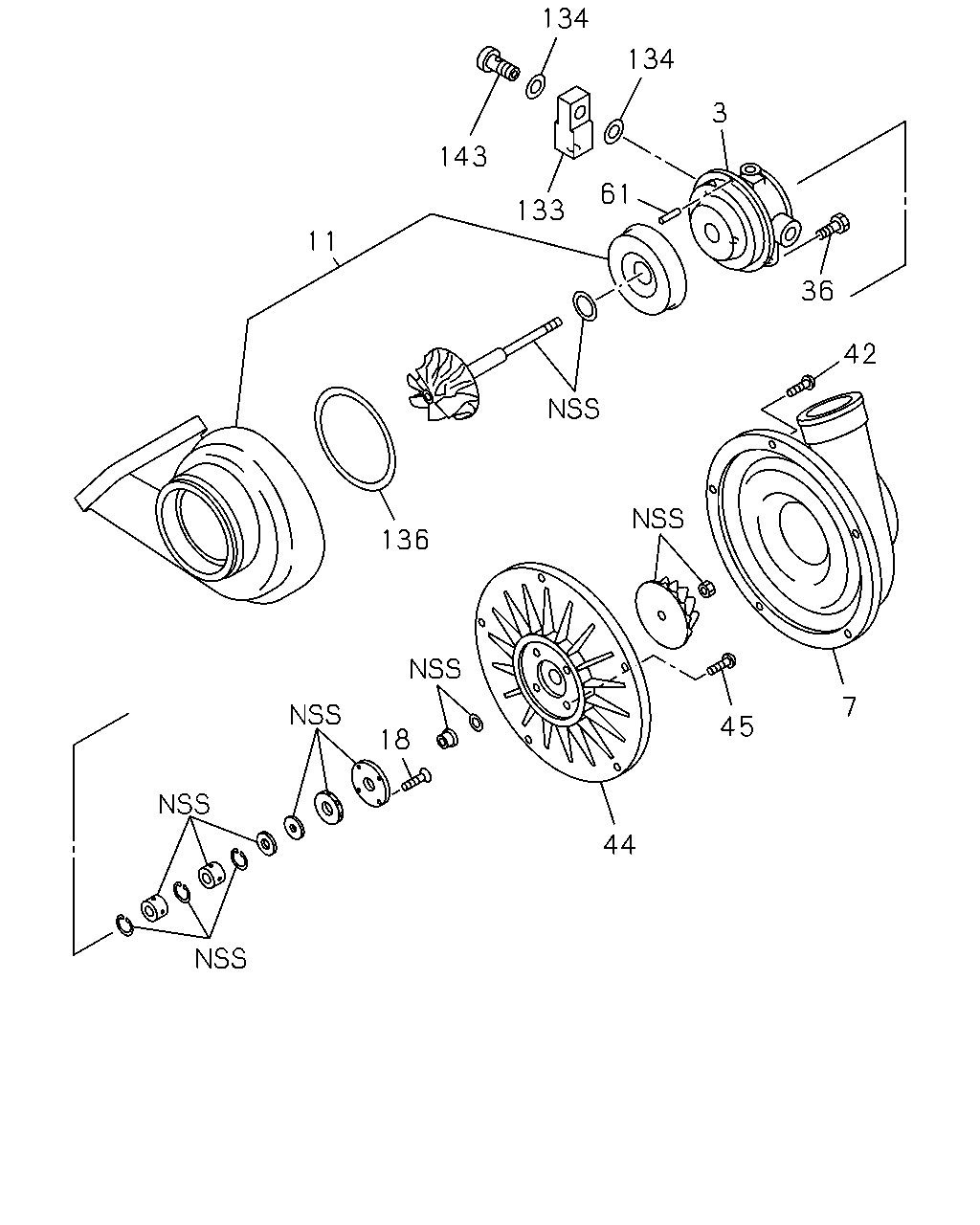

134 134 3 143 61 133 11 36 42 136 7 45 18 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14411-044-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14411-059-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14411-081-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14414-066-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14414-101-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14414-140-0	01	1	-
11	HOUSING ASM; TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14453-108-0	01	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-037-0	04	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09000-405-0	10	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: C = 1-14400-401-2	1-09100-044-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-09000-404-0	11	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-09000-404-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-038-0	05	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14425-007-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14425-018-0	01	1	-
44	PLATE; SEAL,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14425-030-0	01	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09100-014-0	04	1	-
45	SCREW; SEAL PLATE,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-038-0	04	1	-
61	PIN; TURBINE BRG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14425-051-0	01	1	-
134	GASKET; ADAPTER ASM PART: C = 1-14400-401-2	1-14419-158-0	02	1	-
136	GASKET; TURBINE HSG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14419-177-0	01	1	-
143	BOLT; EYE ASM PART: C = 1-14400-401-2	1-09100-036-0	01	1	-

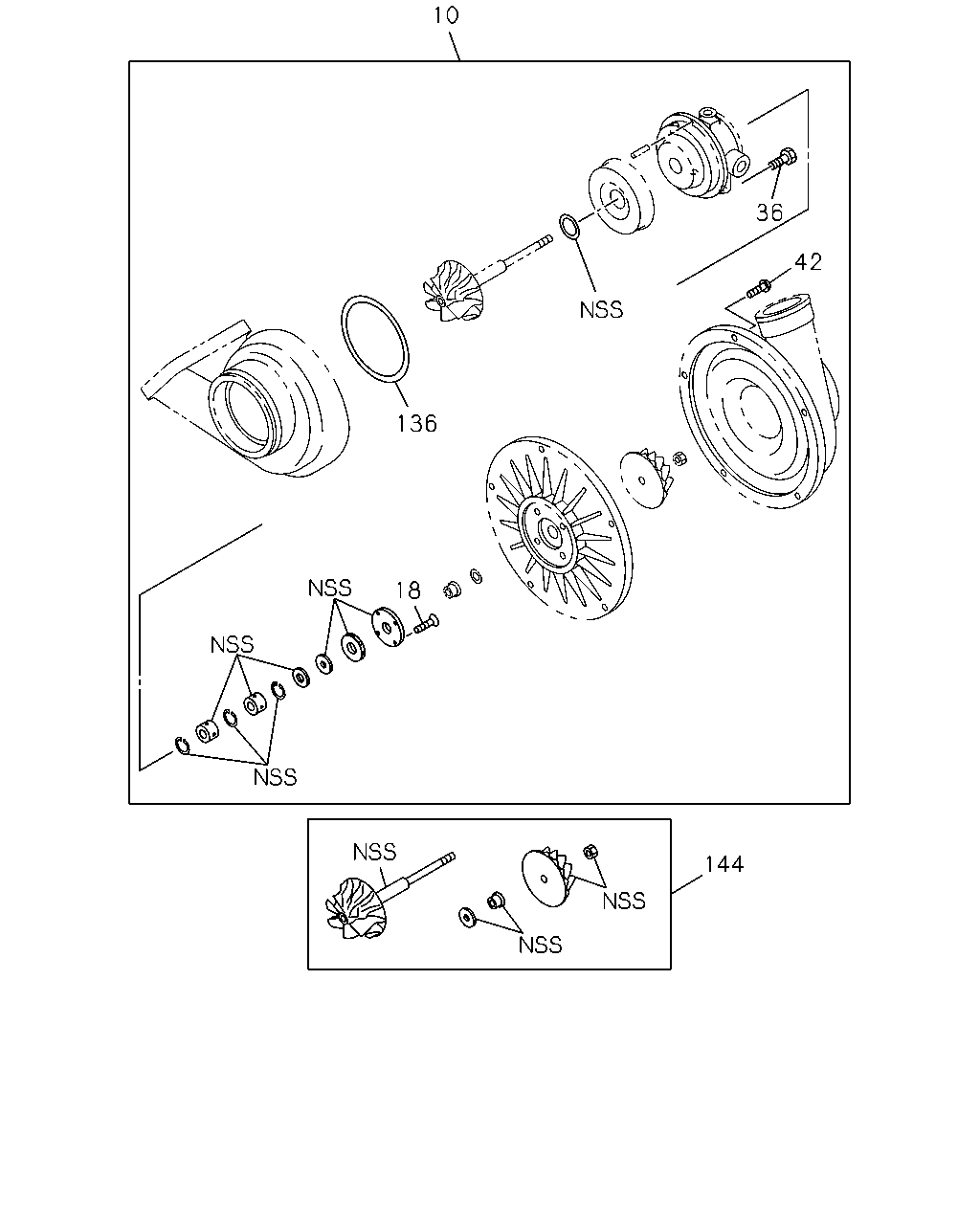

10 36 42 136 18 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	REPAIR KIT; TURBOCHARGER ASM PART: A = 1-14400-290-2	1-14453-041-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: B = 1-14400-328-3	1-14453-069-0	01	1	-
10	REPAIR KIT; TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14453-111-0	01	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09100-015-0	04	1	-
18	SCREW; THRUST BRG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-037-0	04	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: A = 1-14400-290-2, B = 1-14400-328-3	1-09000-405-0	10	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: C = 1-14400-401-2	1-09100-044-0	06	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: B = 1-14400-328-3	1-09000-404-0	11	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: A = 1-14400-290-2	1-09000-404-0	08	1	-
42	BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-09100-038-0	05	1	-
136	GASKET; TURBINE HSG,TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14419-177-0	01	1	-
144	TURBINE KIT; TURBOCHARGER ASM PART: C = 1-14400-401-2	1-14453-110-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
