0-36 — TURBOCHARGER SYSTEM (#11052) — 145 parça

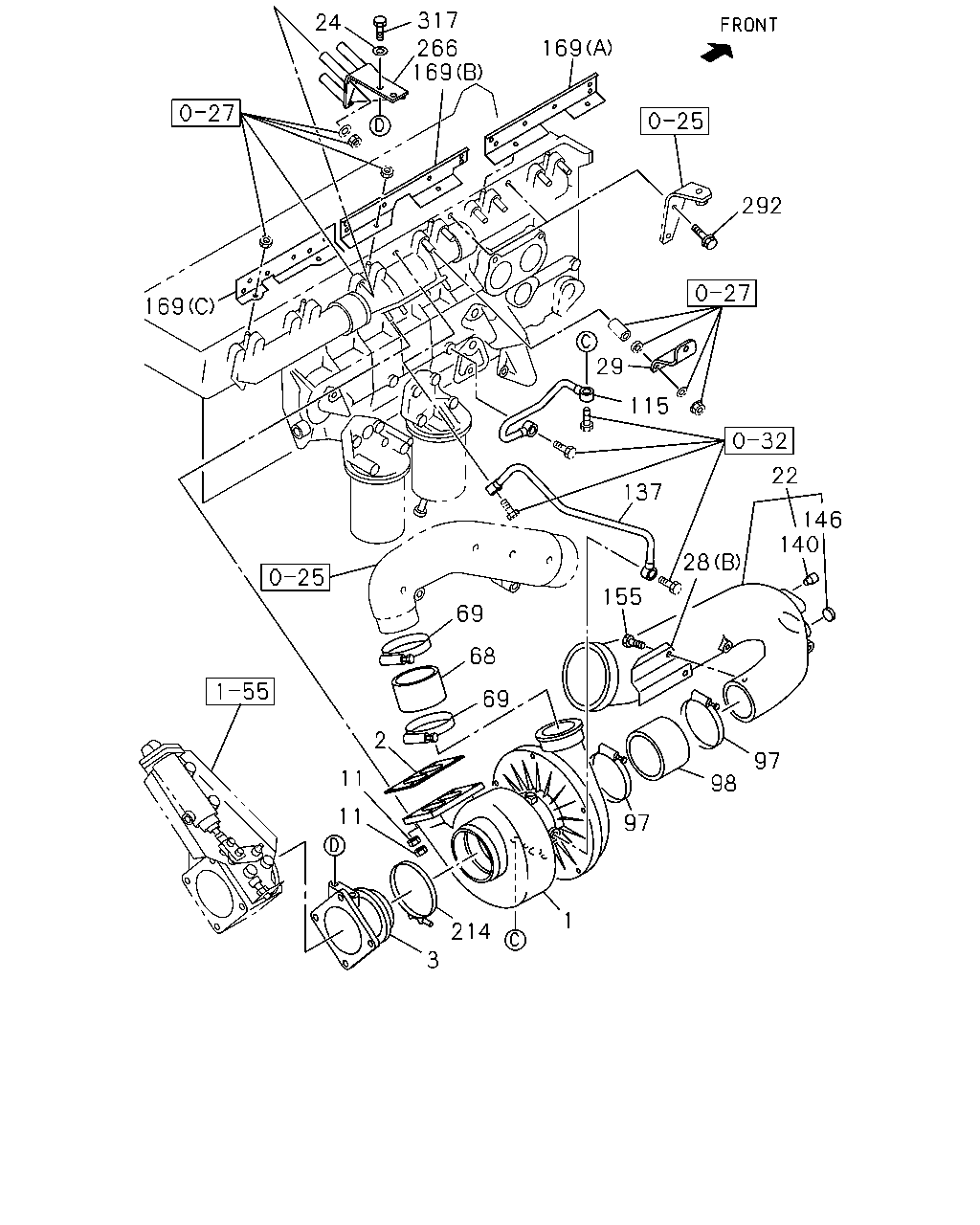

çizim 76674
317 266 169 24 169 292 169 29 115 22 137 146 140 28 155 69 68 69 2 97 11 98 11 97 1 214 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-290-2 01 1 0106- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-328-1 01 1 0106-0112 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-328-3 01 1 0201- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-401-2 01 1 0106- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 0106-0112 ● ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 0201- ● ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-542-1 01 1 0106-0112 ● ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-542-1 01 1 0201- ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-633-3 01 1 0106- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0106- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0106-0112 ● ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0201- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-084-1 01 1 0106-0112 ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-084-2 01 1 0201- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-331-1 01 1 0106-0107 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-331-3 01 1 0108- ●
22 DUCT; INL,ACL TO TURBOCHARGER
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-445-1 01 1 0108- ●
24 WASHER; PL,PIPE 1-09500-007-0 02 1 0106-0112 ● ● ● ●
24 WASHER; PL,PIPE 1-09500-007-0 02 1 0201- ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 0106-0112 ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 0201- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 0106-0112 ● ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 0201- ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0106-0112 ● ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0201- ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 0106-0112 ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 0201- ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-990-0 01 1 0106-0212 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-125-0 01 1 0301- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 0106-0112 ● ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 0201-0306 ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-198-0 02 1 0307- ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-94320-428-0 02 1 0106-0306 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		1-09707-202-0 02 1 0307- ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0106-0112 ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0201-0306 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 02 1 0307- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0106-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0307- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 0106-0112 ● ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 0201- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0106- ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-605-0 01 1 0106-0112 ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-605-0 01 1 0201- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-797-0 01 1 0106- ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-506-2 01 1 0106-0112 ● ● ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-506-2 01 1 0201- ● ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-968-0 01 1 0106- ●
140 PIPE; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94256-799-2 01 1 0108- ●
140 PIPE; AIR PIPE 9-14119-228-1 02 1 0106-0107 ● ● ●
140 PIPE; AIR PIPE 9-14119-228-1 02 1 0108-0112 ● ● ●
140 PIPE; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 02 1 0108-0112 ●
140 PIPE; AIR PIPE 9-14119-228-1 02 1 0201- ● ●
140 PIPE; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 02 1 0201- ●
146 PLUG; INL PIPE
OD=30 		8-94241-638-0 01 1 0106- ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0106-0112 ● ● ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0201- ● ● ●
169 PROTECTOR; HEAT,HD COVER
(A) 		1-14181-301-1 01 1 0106-0110 ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 0106-0112 ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 0201- ● ● ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-320-0 01 1 0106-0112 ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-320-0 01 1 0201- ● ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0106-0112 ● ● ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0201- ● ● ●
266 BRACKET; EXH PIPE 1-14149-195-0 01 1 0106-0112 ● ● ●
266 BRACKET; EXH PIPE 1-14149-195-0 01 1 0201- ● ●
266 BRACKET; EXH PIPE 1-14149-219-3 01 1 0106- ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 0106-0112 ● ● ● ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 0201- ● ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0106-0112 ● ● ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0201- ● ● ●

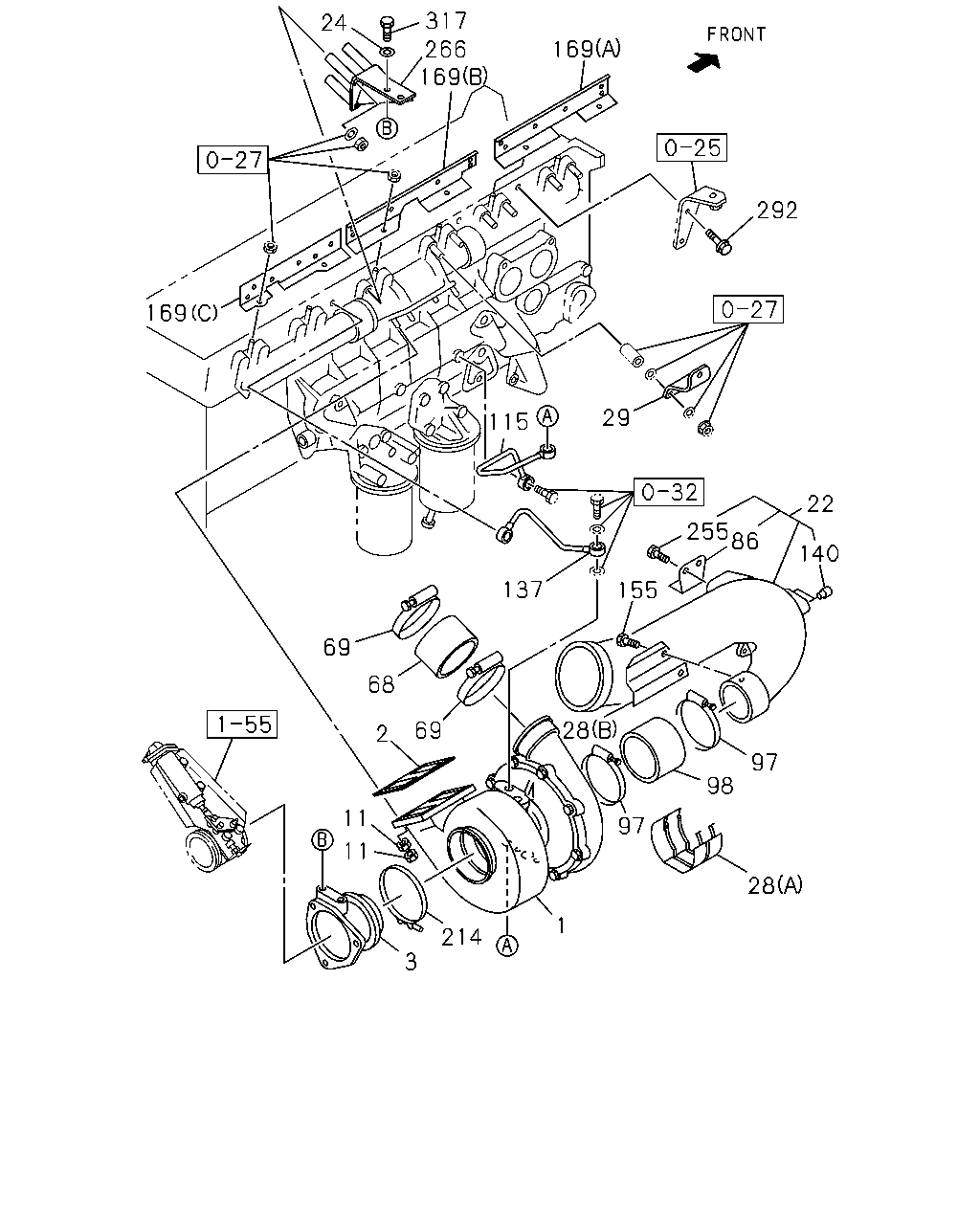

çizim 77673
317 266 169 24 169 292 169 29 115 22 255 86 140 137 155 69 68 28 69 2 97 98 11 97 11 28 1 214 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-290-2 01 1 0106- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-328-1 01 1 0106-0112 ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-328-3 01 1 0201- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-401-2 01 1 0106- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 0106-0112 ● ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 0201- ● ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-542-1 01 1 0106-0112 ● ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-542-1 01 1 0201- ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-633-3 01 1 0106- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0106- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0106-0112 ● ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0201- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-084-1 01 1 0106-0112 ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-084-2 01 1 0201- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 1-14134-331-1 01 1 0106-0107 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-331-3 01 1 0108- ●
22 DUCT; INL,ACL TO TURBOCHARGER
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-445-1 01 1 0108- ●
24 WASHER; PL,PIPE 1-09500-007-0 02 1 0106-0112 ● ● ● ●
24 WASHER; PL,PIPE 1-09500-007-0 02 1 0201- ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 0106-0112 ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 0201- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 0106-0112 ● ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 0201- ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0106-0112 ● ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 0201- ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 0106-0112 ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 0201- ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-990-0 01 1 0106-0212 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-125-0 01 1 0301- ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 0106-0112 ● ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 0201-0306 ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-198-0 02 1 0307- ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-94320-428-0 02 1 0106-0306 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		1-09707-202-0 02 1 0307- ●
86 BRACKET; INL PIPE 1-14119-361-0 01 1 0106-0112 ● ● ●
86 BRACKET; INL PIPE 1-14119-361-0 01 1 0201- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0106-0112 ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 0201-0306 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-113 		1-09707-199-0 02 1 0307- ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-155-0 02 1 0106-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-139 		1-09707-200-0 02 1 0307- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 0106-0112 ● ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 0201- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0106- ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-605-0 01 1 0106-0112 ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-605-0 01 1 0201- ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-797-0 01 1 0106- ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-506-2 01 1 0106-0112 ● ● ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-506-2 01 1 0201- ● ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-968-0 01 1 0106- ●
140 PIPE; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94256-799-2 01 1 0108- ●
140 PIPE; AIR PIPE 9-14119-228-1 02 1 0106-0107 ● ● ●
140 PIPE; AIR PIPE 9-14119-228-1 02 1 0108-0112 ● ● ●
140 PIPE; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 02 1 0108-0112 ●
140 PIPE; AIR PIPE 9-14119-228-1 02 1 0201- ● ●
140 PIPE; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 02 1 0201- ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0106-0112 ● ● ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 0201- ● ● ●
169 PROTECTOR; HEAT,HD COVER
(A) 		1-14181-301-1 01 1 0106-0110 ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 0106-0112 ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 0201- ● ● ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-320-0 01 1 0106-0112 ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-320-0 01 1 0201- ● ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0106-0112 ● ● ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 0201- ● ● ●
255 BOLT; INL PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 0106-0112 ● ● ●
255 BOLT; INL PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 0201- ● ●
266 BRACKET; EXH PIPE 1-14149-195-0 01 1 0106-0112 ● ● ●
266 BRACKET; EXH PIPE 1-14149-195-0 01 1 0201- ● ●
266 BRACKET; EXH PIPE 1-14149-219-3 01 1 0106- ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 0106-0112 ● ● ● ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 0201- ● ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0106-0112 ● ● ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0201- ● ● ●
