0-35 — ENGINE CONTROL VALVE AND LEVER (#11051) — 28 parça

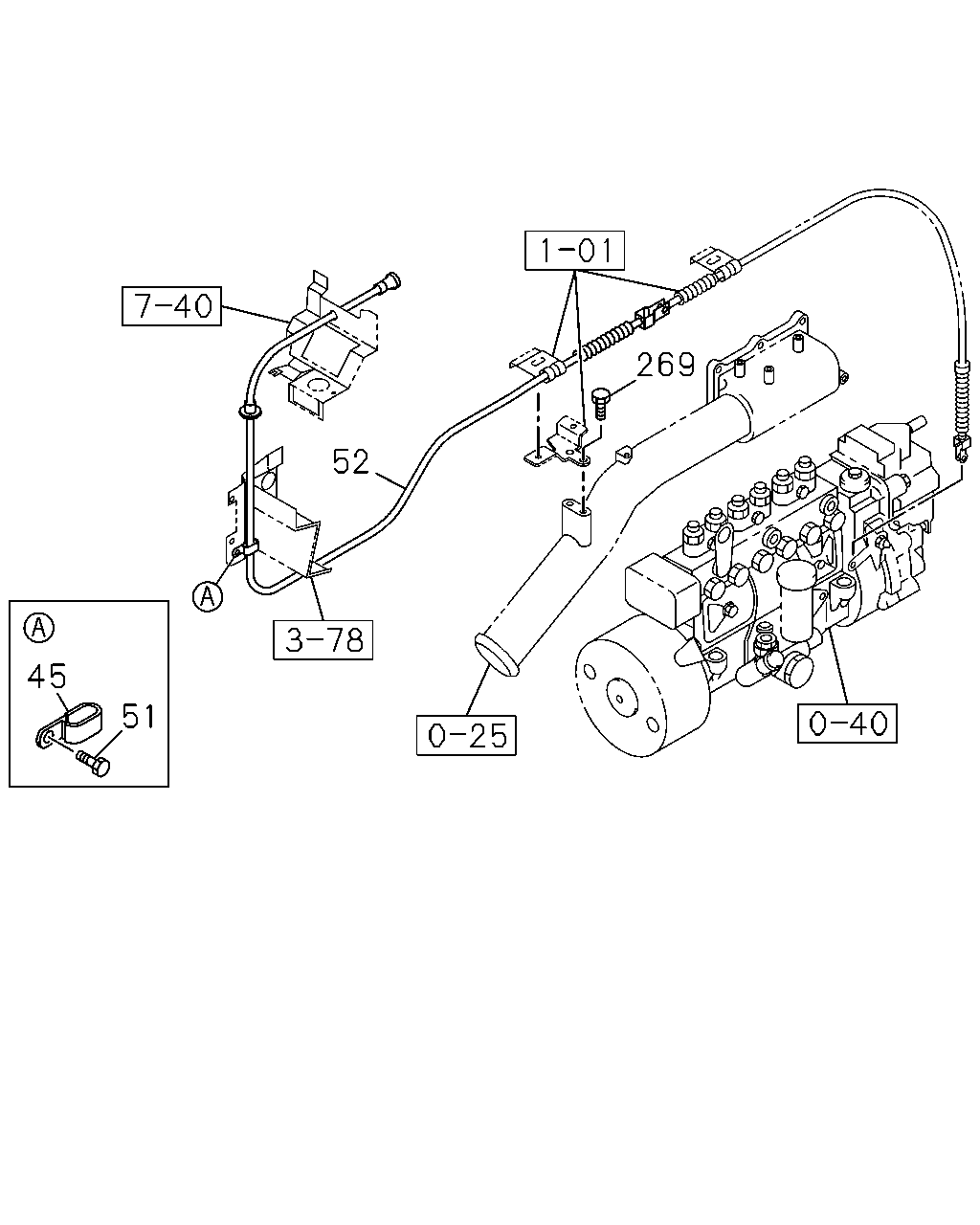

çizim 23667
269 52 45 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
45 CLIP; FUEL CUT CABLE
EXC. RLD GOVERNOR(SD7) ID=9 L=20 		9-09524-835-0 01 1 0106-0306 ● ●
45 CLIP; FUEL CUT CABLE
EXC. RLD GOVERNOR(SD7) ID=11 L=20 		9-09525-035-0 01 1 0307- ● ●
51 BOLT; CLIP,FUEL CUT CABLE
EXC. RLD GOVERNOR(SD7) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0106- ● ●
52 CABLE; FUEL CUT
EXC. RLD GOVERNOR(SD7) L=2535 		1-73907-594-4 01 1 0106- ● ●
269 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 0106- ●

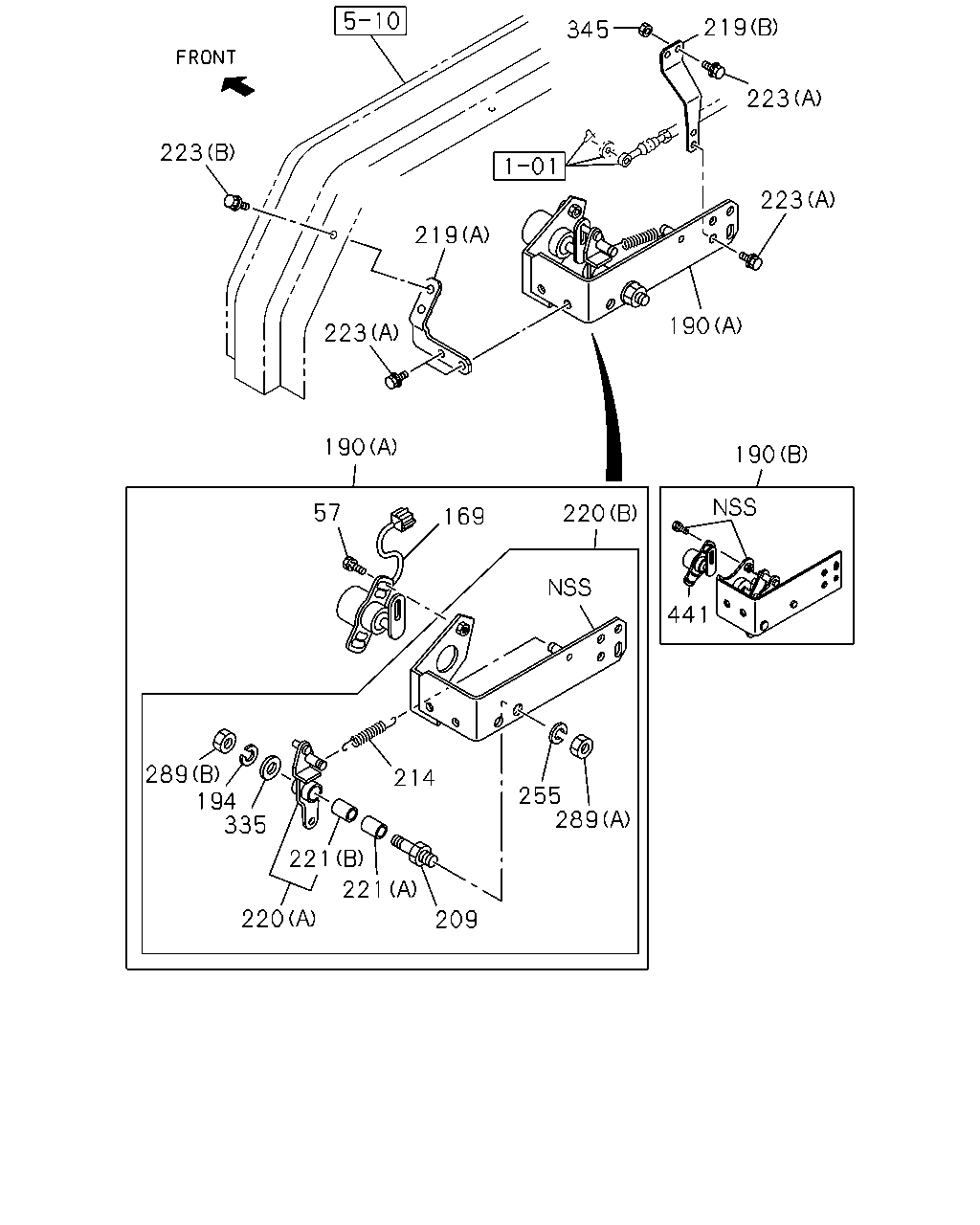

çizim 75813
219 345 223 223 223 219 190 223 190 190 57 220 169 441 289 194 335 214 255 289 221 221 220 209
BalonParca AdiParca NoAdetTipApplied Date A B C D
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0106-0206 ● ● ● ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 0106-0206 ● ● ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-504-0 01 1 0106-0206 ● ● ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		8-97219-466-3 01 1 0207- ● ● ● ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 0106-0206 ● ● ● ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-14336-002-1 01 1 0106-0206 ● ● ● ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 0106-0206 ● ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-511-0 01 1 0106-0206 ● ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-580-0 01 1 0207- ● ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-512-0 01 1 0106-0206 ● ● ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-582-0 01 1 0207- ● ● ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-357-0 01 1 0106-0206 ● ● ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-505-0 01 1 0106-0206 ● ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 0106-0206 ● ● ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 0106-0206 ● ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X20 FLANGE 		0-28680-820-0 06 1 0106- ● ● ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ● ● ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 0106-0206 ● ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 0106-0206 ● ● ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 0106-0206 ● ● ● ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 0106-0206 ● ● ● ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ●
441 SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-97200-308-0 01 1 0207- ● ● ● ●
