0-32 — WATER PIPING; ENGINE (#11049) — 98 parça

91 91 90 91 90 89 91 92 91 90 91 90 91 90 91 91 91 90 91 89 91 91 91 90 91 90 90 90 91 89 91 92 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

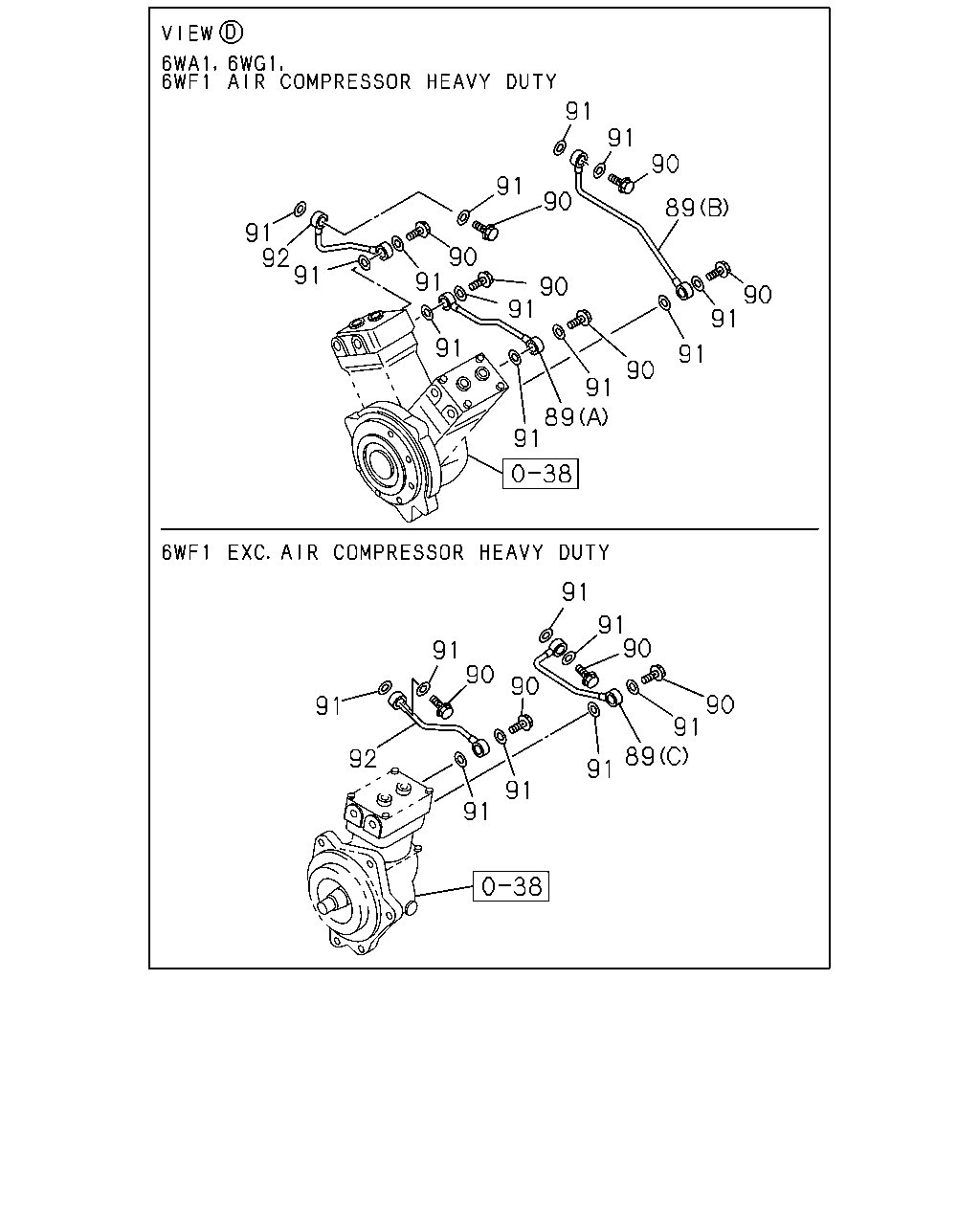

89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0106-0107	●	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0108-0112	●	●	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-687-0	01	1	0108-0112				●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0201-	●	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-687-0	01	1	0201-				●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0106-0107	●	●	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0108-0112	●	●	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-689-0	01	1	0108-0112				●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0201-	●	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-689-0	01	1	0201-				●
89	PIPE; WATER,AIR CMPR,IN (C)	1-13721-794-0	01	1	0106-0107				●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-13721-794-0	01	1	0108-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0106-0112	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0201-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0106-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	02	1	0108-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0106-0112	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0201-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0106-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	04	1	0108-				●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0106-0107	●	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0108-0112	●	●	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-691-0	01	1	0108-0112				●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0201-	●	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-691-0	01	1	0201-				●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0106-0107				●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13722-003-0	01	1	0108-				●

126 126 126 127 127 126 126 126 127 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

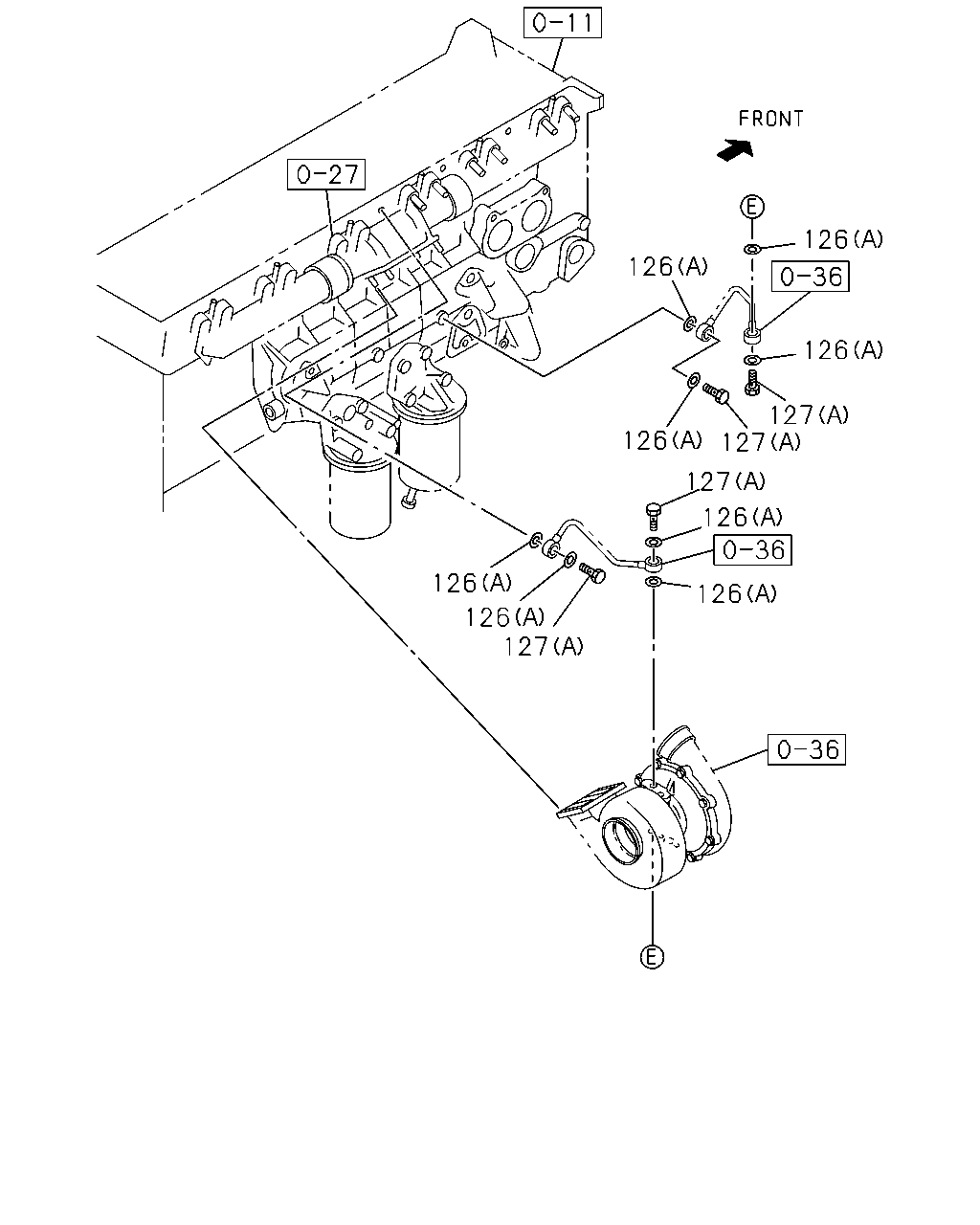

126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0106-0112	●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0201-	●	●

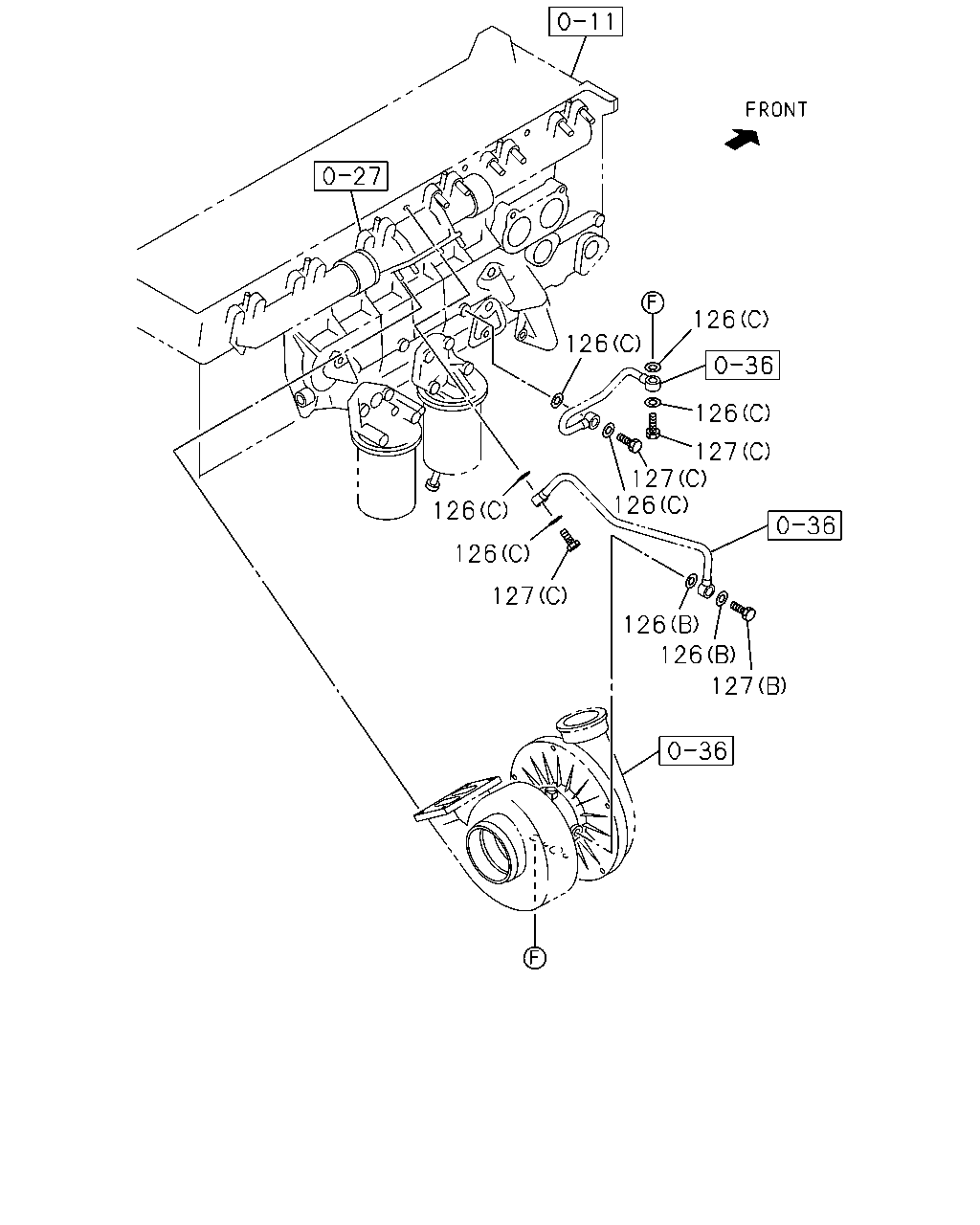

126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0106-				●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25	1-09630-141-0	06	1	0106-				●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0106-0112	●	●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0201-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0106-				●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0106-				●

207 30 109 107 104 95 110 107 110 95 95 112 110 110 112 95 104 110 109 105 105 105 56 59 112 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0108-				●

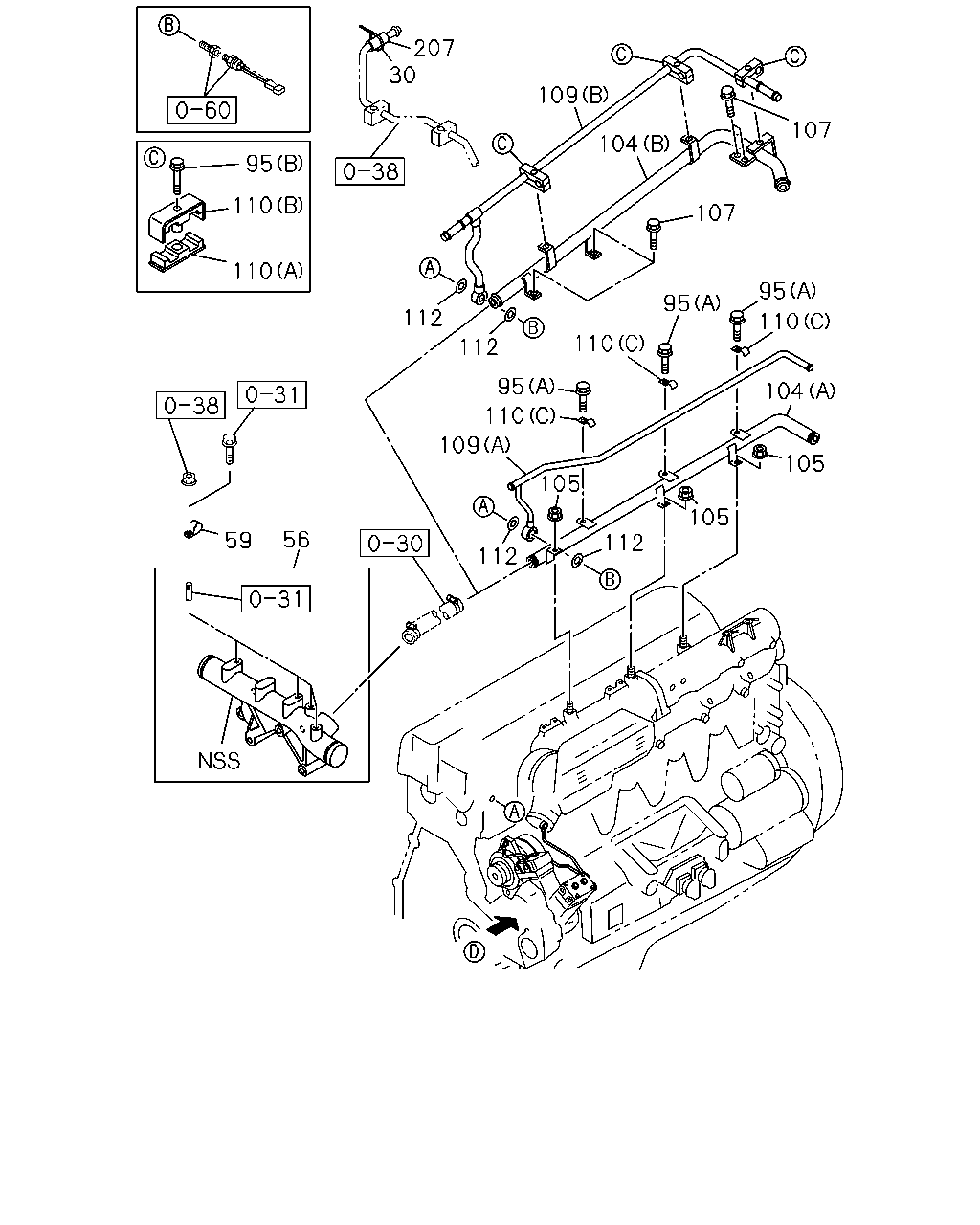

56	PIPE; WATER OUTLET	1-13721-763-0	01	1	0106-0108	●	●	●
56	PIPE; WATER OUTLET	1-13721-587-1	01	1	0109-0112	●	●	●
56	PIPE; WATER OUTLET	1-13721-587-1	01	1	0201-	●	●
56	PIPE; WATER OUTLET	1-13721-935-1	01	1	0106-0106				●
56	PIPE; WATER OUTLET	1-13722-006-0	01	1	0107-				●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	0106-0112	●	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	0201-	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0106-0110				●
59	CLIP; HARNESS,WATER OUTLET PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11 L=24	9-09525-045-0	02	1	0111-				●
59	CLIP; HARNESS,WATER OUTLET PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 L=44	8-94225-185-0	02	1	0111-				●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	0106-0112	●	●	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	0201-	●	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0106-				●
104	PIPE; WATER CHARGE (A)	1-13721-617-0	01	1	0106-	●
104	PIPE; WATER CHARGE (A)	1-13721-647-0	01	1	0106-0112		●	●
104	PIPE; WATER CHARGE (A)	1-13721-647-0	01	1	0201-		●
104	PIPE; WATER CHARGE (B)	1-13721-934-0	01	1	0106-				●
105	NUT; PIPE M10 FLANGE	0-91150-210-0	03	1	0106-0112	●	●	●
105	NUT; PIPE M10 FLANGE	0-91150-210-0	03	1	0201-	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0106-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-971-0	01	1	0106-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-648-0	01	1	0106-0112		●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-648-0	01	1	0201-		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (B)	1-13721-933-0	01	1	0106-				●
110	CLIP; AIR PIPE (C) ID=9.7 L=20	1-09700-878-1	03	1	0106-0112	●	●	●
110	CLIP; AIR PIPE (C) ID=9.7 L=20	1-09700-878-1	03	1	0201-	●	●
110	CLIP; AIR PIPE (A)	1-09701-180-0	04	1	0106-				●
110	CLIP; AIR PIPE (B) ID=10 & 10 L=25	8-94393-280-2	04	1	0106-				●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	02	1	0106-0112	●	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	02	1	0201-	●	●		●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0108-				●

87 88 88 88 87 1 65 88 176 48 88 50 65 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

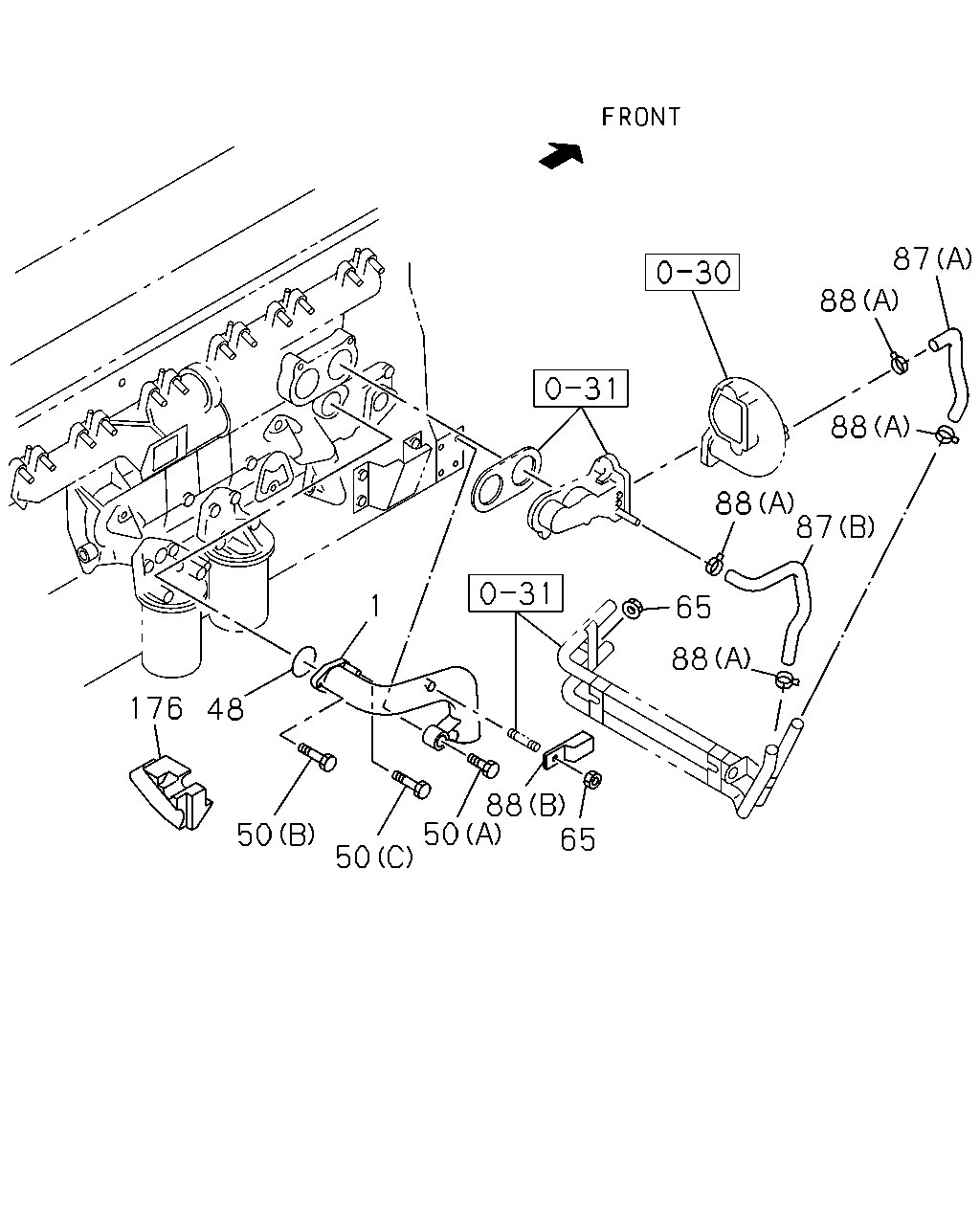

1	PIPE; WATER PUMP,INL	1-13711-718-0	01	1	0106-0106	●	●	●	●
1	PIPE; WATER PUMP,INL	1-13711-611-2	01	1	0107-0112	●	●	●	●
1	PIPE; WATER PUMP,INL	1-13711-611-2	01	1	0201-	●	●		●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0106-0112	●	●	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0201-	●	●		●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0106-0112	●	●	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0201-	●	●		●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0106-0112	●	●	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0201-	●	●		●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0106-0112	●	●	●	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0201-	●	●		●
65	NUT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE	0-91150-110-0	02	1	0106-0112	●	●	●	●
65	NUT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE	0-91150-110-0	02	1	0201-	●	●		●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83565-572-0	01	1	0106-0112	●	●	●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83565-572-0	01	1	0201-	●	●		●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83565-577-0	01	1	0106-0112	●	●	●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83565-577-0	01	1	0201-	●	●		●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	04	1	0106-0112	●	●	●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	04	1	0201-	●	●		●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	9-09915-663-0	01	1	0106-0112	●	●	●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	9-09915-663-0	01	1	0201-	●	●		●
176	INSULATOR; WATER PIPE	1-19389-189-1	01	1	0106-0112		●	●
176	INSULATOR; WATER PIPE	1-19389-189-1	01	1	0201-		●

126 126 126 127 127 126 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0106-0112	●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0201-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0106-				●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25	1-09630-141-0	06	1	0106-				●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0106-0112	●	●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0201-	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0106-				●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0106-				●
