◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#11048) — 59 parça

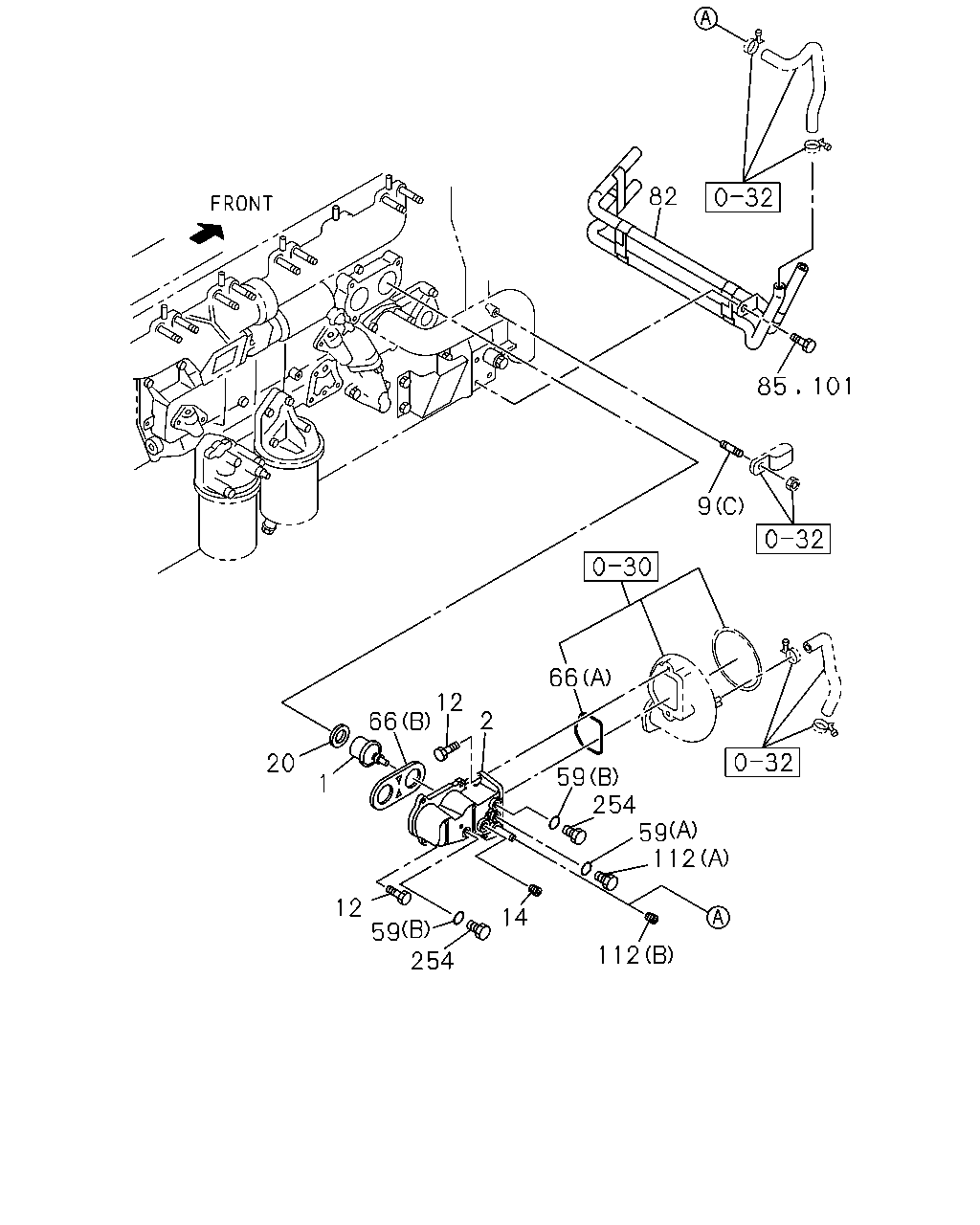

çizim 75380
82 85 101 9 66 12 66 2 20 59 254 59 112 1 12 59 254 14 112
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 THERMOSTAT
79 CELSIUS 		1-13770-041-1 02 1 0106-0112 ●
1 THERMOSTAT
INJ PUMP Q SET STD(T1B) 79 CELSIUS 		1-13770-041-1 02 1 0106-0112 ● ●
1 THERMOSTAT
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. STRG VARIABLE CONTROL<TFY> 79 CELSIUS 		1-13770-041-1 02 1 0106-0112 ● ●
1 THERMOSTAT
79 CELSIUS 		1-13770-041-2 02 1 0201- ●
1 THERMOSTAT
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 79 CELSIUS 		1-13770-041-2 02 1 0201- ●
1 THERMOSTAT
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 79 CELSIUS 		1-13770-041-2 02 1 0201- ●
1 THERMOSTAT
INJ PUMP Q SET SPECIAL +5%Q(T1A) CLUTCH 15.5" TWIN PLATE SPICER(TEY) STRG VARIABLE CONTROL<TFY> 82 CELSIUS 		8-98271-161-0 02 1 0106- ●
1 THERMOSTAT
82 CELSIUS 		8-98271-161-0 02 1 0106- ●
2 HOUSING; THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13711-828-2 01 1 0106- ●
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-577-0 01 1 0106-0112 ● ● ● ●
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-577-0 01 1 0201-0303 ● ● ●
2 HOUSING; THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13710-550-0 01 1 0304- ● ● ●
9 STUD; WATER PIPE
(A),(B) M8X20 L=32 		9-04110-820-0 04 1 0106-0112 ● ● ●
9 STUD; WATER PIPE
(A),(B) M8X20 L=32 		9-04110-820-0 04 1 0201- ● ●
9 STUD; WATER PIPE
(C) M10X20 L=35 		9-04411-020-0 01 1 0106-0112 ● ● ● ●
9 STUD; WATER PIPE
(C) M10X20 L=35 		9-04411-020-0 01 1 0201- ● ● ●
9 STUD; WATER PIPE
(B) M8X20 L=32 		9-04110-820-0 02 1 0106- ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 0106-0112 ● ● ● ●
12 BOLT; HSG
M10X25 FLANGE 		0-28181-025-0 05 1 0201- ● ● ●
14 PLUG; SW
PT3/8 		8-94475-259-0 01 1 0106-0112 ● ● ● ●
14 PLUG; SW
PT3/8 		8-94475-259-0 01 1 0201- ● ● ●
20 RING; SEAL 1-13779-011-0 02 1 0106-0112 ● ● ● ●
20 RING; SEAL 1-13779-011-0 02 1 0201- ● ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 01 1 0106-0112 ● ● ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 01 1 0201- ● ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 02 1 0106-0112 ● ● ● ●
59 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 02 1 0201- ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 0106-0112 ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=105.6 		1-09623-247-0 01 1 0201- ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 0106-0112 ● ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-13743-036-1 01 1 0201- ● ● ●
82 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13721-669-1 01 1 0106- ● ●
82 PIPE; WATER,HTR 1-13721-670-0 01 1 0106-0112 ● ●
82 PIPE; WATER,HTR 1-13721-670-0 01 1 0201- ●
85 BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE 		0-28981-420-0 01 1 0106-0112 ● ● ●
85 BOLT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M14X20 FLANGE 		0-28981-420-0 01 1 0201- ● ●
101 BOLT; PIPE
M10X20 FLANGE 		0-28081-020-0 01 1 0106-0303 ●
101 BOLT; PIPE
M14X20 FLANGE 		0-28981-420-0 01 1 0304- ●
112 PLUG
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) PT3/8 T=8.0 		1-09605-066-0 01 1 0106- ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 0106-0112 ● ● ● ●
112 PLUG
(A) M12X9 		1-09604-095-0 01 1 0201- ● ● ●
254 PLUG; HSG
M16X12 		9-99202-316-0 02 1 0106-0112 ● ● ● ●
254 PLUG; HSG
M16X12 		9-99202-316-0 02 1 0201- ● ● ●
çizim 77644
52 60 9 9 60 50 50
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 STUD; WATER PIPE
(A),(B) M8X20 L=32 		9-04110-820-0 04 1 0106-0112 ● ● ●
9 STUD; WATER PIPE
(A),(B) M8X20 L=32 		9-04110-820-0 04 1 0201- ● ●
9 STUD; WATER PIPE
(C) M10X20 L=35 		9-04411-020-0 01 1 0106-0112 ● ● ● ●
9 STUD; WATER PIPE
(C) M10X20 L=35 		9-04411-020-0 01 1 0201- ● ● ●
9 STUD; WATER PIPE
(B) M8X20 L=32 		9-04110-820-0 02 1 0106- ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 04 1 0106- ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 0106-0112 ● ● ● ●
50 BOLT; OUTLET PIPE
(B) M10X50 FLANGE 		0-28181-050-0 02 1 0201- ● ● ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 01 1 0106-0112 ● ●
50 BOLT; OUTLET PIPE
(A) M10X85 FLANGE 		8-94397-359-1 01 1 0201- ●
50 BOLT; OUTLET PIPE
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0106- ●
52 BOLT; JOINT,THERMOSTAT
M8X16 FLANGE 		0-28080-816-0 02 1 0106-0110 ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 0106-0112 ● ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=55.6 		1-09623-452-0 01 1 0201- ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 0106-0112 ● ● ● ●
60 GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=62.6 		1-09623-505-0 01 1 0201- ● ● ●
