◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10872 - EXZ LHD FUEL TANK 400L/400L+400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#11047) — 97 parça

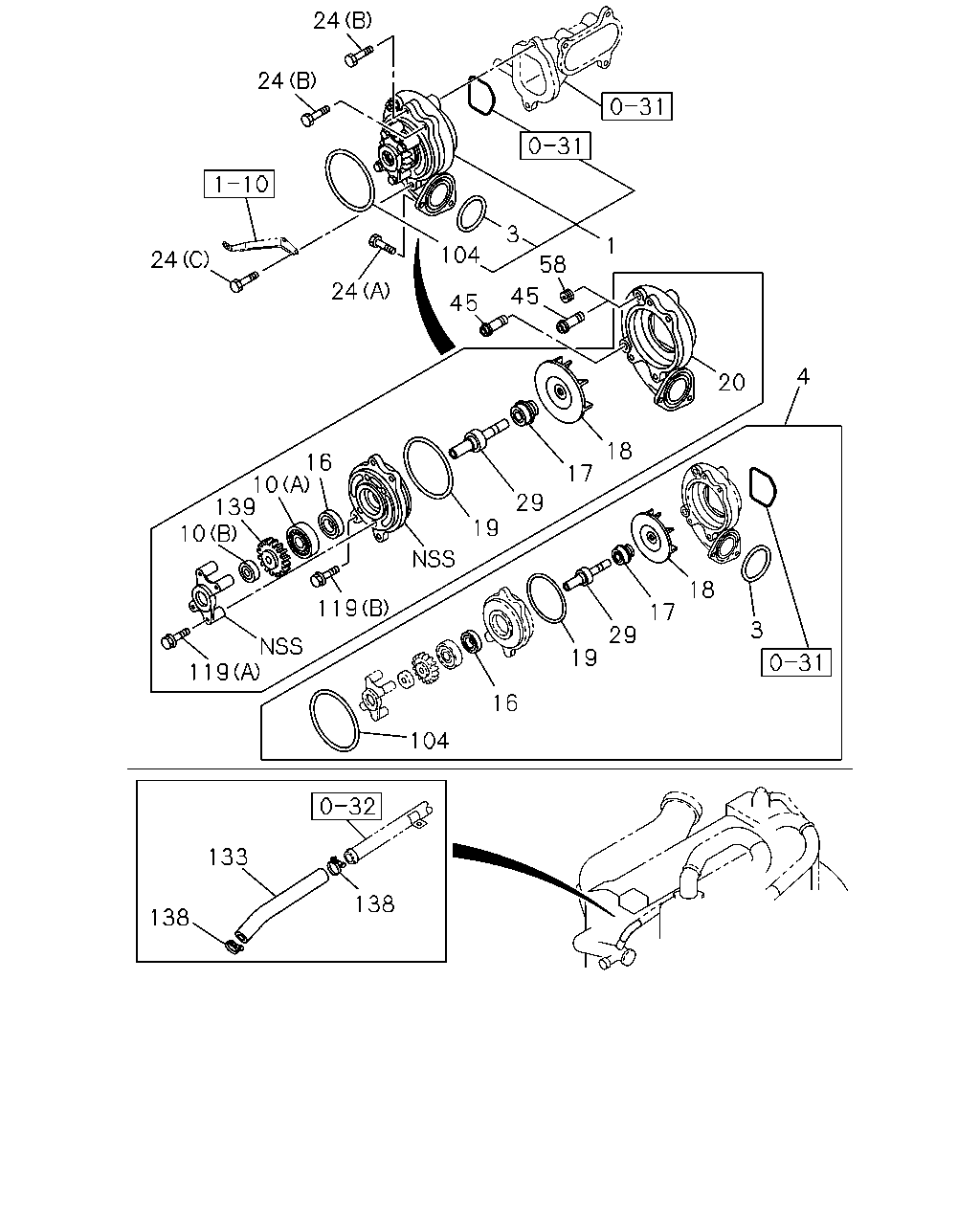

çizim 75981
24 24 3 1 104 24 58 24 45 45 4 20 18 16 17 10 139 10 29 19 18 119 17 3 29 19 119 16 104 133 138 138
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-057-2 01 1 0106-0108 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-13650-057-2 01 1 0106-0108 ● ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-13650-057-2 01 1 0106-0108 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-056-2 01 1 0109-0112 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-13650-056-2 01 1 0109-0112 ● ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-13650-056-2 01 1 0109-0112 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-056-3 01 1 0201-0303 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-13650-056-3 01 1 0201-0303 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-13650-056-3 01 1 0201-0303 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-171-0 01 1 0304-0409 ●
1 PUMP ASM; WATER,W/GASKET
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-13650-171-0 01 1 0304-0409 ●
1 PUMP ASM; WATER,W/GASKET
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-13650-171-0 01 1 0304-0409 ●
1 PUMP ASM; WATER,W/GASKET 8-97606-250-2 01 1 0410- ●
1 PUMP ASM; WATER,W/GASKET
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		8-97606-250-2 01 1 0410- ●
1 PUMP ASM; WATER,W/GASKET
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		8-97606-250-2 01 1 0410- ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-058-2 01 1 0106-0108 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-160-1 01 1 0109-0303 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-084-1 01 1 0106-0107 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH 15.5" TWIN PLATE SPICER(TEY) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-13650-084-1 01 1 0108-0108 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-084-1 01 1 0108-0108 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH 15.5" TWIN PLATE SPICER(TEY) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-13650-069-3 01 1 0109-0303 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-069-3 01 1 0109-0303 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH 15.5" TWIN PLATE SPICER(TEY) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-13650-170-0 01 1 0304-0409 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-170-0 01 1 0304-0409 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH 15.5" TWIN PLATE SPICER(TEY) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		8-97606-249-2 01 1 0410- ●
1 PUMP ASM; WATER,W/GASKET 8-97606-249-2 01 1 0410- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0106-0112 ● ● ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0201- ● ● ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 0106-0112 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) INJ PUMP Q SET STD(T1B) 		1-87811-843-0 01 1 0106-0112 ● ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. STRG VARIABLE CONTROL<TFY> 		1-87811-843-0 01 1 0106-0112 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 0201-0412 ●
4 REPAIR KIT; WATER PUMP
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-87811-843-0 01 1 0201-0412 ●
4 REPAIR KIT; WATER PUMP
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-87811-843-0 01 1 0201-0412 ●
4 REPAIR KIT; WATER PUMP 1-87812-921-0 01 1 0501- ●
4 REPAIR KIT; WATER PUMP
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-87812-921-0 01 1 0501- ●
4 REPAIR KIT; WATER PUMP
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-87812-921-0 01 1 0501- ●
4 REPAIR KIT; WATER PUMP 1-87811-879-0 01 1 0106-0107 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH 15.5" TWIN PLATE SPICER(TEY) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-87811-879-0 01 1 0108-0412 ●
4 REPAIR KIT; WATER PUMP 1-87811-879-0 01 1 0108-0412 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH 15.5" TWIN PLATE SPICER(TEY) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-87812-922-0 01 1 0501- ●
4 REPAIR KIT; WATER PUMP 1-87812-922-0 01 1 0501- ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0106-0112 ● ● ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0201- ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0106-0112 ● ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0201- ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0106-0112 ● ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0201- ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0106-0112 ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0201- ● ● ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 0106-0112 ●
18 IMPELLER; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) INJ PUMP Q SET STD(T1B) 		1-13621-049-0 01 1 0106-0112 ● ●
18 IMPELLER; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. STRG VARIABLE CONTROL<TFY> 		1-13621-049-0 01 1 0106-0112 ● ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 0201- ●
18 IMPELLER; WATER PUMP
INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-13621-049-0 01 1 0201- ●
18 IMPELLER; WATER PUMP
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-13621-049-0 01 1 0201- ●
18 IMPELLER; WATER PUMP 1-13621-060-0 01 1 0106-0107 ●
18 IMPELLER; WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CLUTCH 15.5" TWIN PLATE SPICER(TEY) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,INJ PUMP ELEC GOV HIGH ALTITUDE COMPENSATOR(Q3T) 		1-13621-060-0 01 1 0108- ●
18 IMPELLER; WATER PUMP 1-13621-060-0 01 1 0108- ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 0106-0112 ● ● ● ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 0201-0501 ● ● ●
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 0502- ● ● ●
20 COVER; WATER PUMP 1-13612-041-1 01 1 0106-0108 ● ● ● ●
20 COVER; WATER PUMP 1-13612-038-1 01 1 0109-0112 ● ● ● ●
20 COVER; WATER PUMP 1-13612-038-1 01 1 0201-0303 ● ● ●
20 COVER; WATER PUMP 1-13612-055-1 01 1 0304- ● ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 0106-0112 ● ● ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 0201- ● ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0106-0112 ● ● ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0201- ● ● ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 0106-0112 ● ● ● ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 0201- ● ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0106-0112 ● ● ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0201- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0106-0112 ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0106-0112 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0201- ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 0201- ●
58 PLUG; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 		5-09605-005-0 01 1 0304- ● ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 01 1 0304- ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 		5-09605-005-0 01 1 0106-0303 ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 		5-09605-005-0 02 1 0304- ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 0106-0112 ● ● ● ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 0201- ● ● ●
119 BOLT; PUMP COVER
(B) M10X20 		0-23801-020-0 01 1 0106-0112 ● ● ● ●
119 BOLT; PUMP COVER
(B) M10X20 		0-23801-020-0 01 1 0201-0303 ● ● ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0304- ● ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0106-0112 ● ● ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0201- ● ● ●
133 HOSE; RUBBER,WATER PIPE
L=270 SERVICED BY L=3000 		0-03580-300-0 01 1 0106-0112 ● ● ● ●
133 HOSE; RUBBER,WATER PIPE
L=270 SERVICED BY L=3000 		0-03580-300-0 01 1 0201- ● ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 0106-0112 ● ● ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 0201- ● ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 0106-0112 ● ● ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 0201-0202 ● ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-216-0 01 1 0203-0409 ● ● ●
139 GEAR; WATER PUMP,DRIVE 8-97606-219-0 01 1 0410- ● ● ●
