0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#11041) — 79 parça

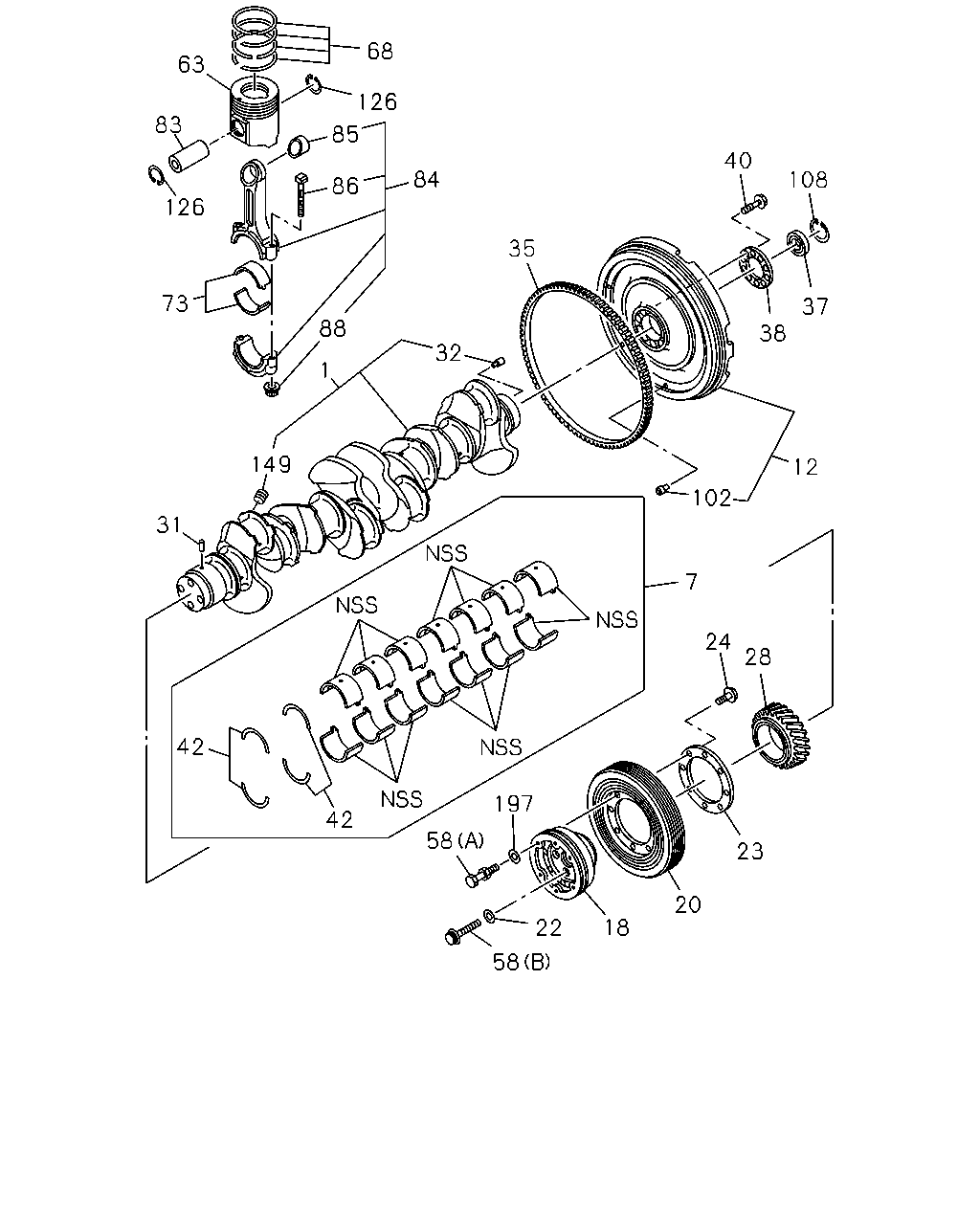

çizim 77534
68 63 126 83 85 40 84 108 86 126 35 73 37 88 38 32 1 149 12 102 31 7 24 28 42 197 42 58 23 20 18 22 58
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CRANKSHAFT 1-12310-625-9 01 1 0106- ●
1 CRANKSHAFT 1-12310-675-1 01 1 0106-0112 ● ●
1 CRANKSHAFT 1-12310-675-1 01 1 0201- ●
1 CRANKSHAFT 1-12310-682-2 01 1 0106- ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-093-0 01 1 0106-0112 ● ● ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-093-3 01 1 0201- ● ● ●
12 FLYWHEEL
CLUTCH 15.5" TWIN PLATE SPICER(TEY) 		1-12330-480-0 01 1 0106- ● ● ●
12 FLYWHEEL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-12330-417-0 01 1 0106-0112 ● ● ●
12 FLYWHEEL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-12330-417-0 01 1 0201-0202 ● ●
12 FLYWHEEL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) 		1-12330-507-0 01 1 0203- ● ●
12 FLYWHEEL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) 		1-12330-442-0 01 1 0106- ●
18 PULLEY; CR/SHF
1-GROOVE 		1-12371-420-2 01 1 0106-0112 ● ● ● ●
18 PULLEY; CR/SHF
1-GROOVE 		1-12371-420-2 01 1 0201- ● ● ●
20 DAMPER; CR/SHF 1-12375-153-0 01 1 0106-0404 ● ●
20 DAMPER; CR/SHF 1-12375-214-1 01 1 0405- ● ●
20 DAMPER; CR/SHF 1-12375-193-0 01 1 0106-0112 ● ●
20 DAMPER; CR/SHF 1-12375-193-0 01 1 0201- ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 04 1 0106-0112 ● ● ● ●
22 PLATE; PULLEY
ID=18 		9-09851-862-0 04 1 0201- ● ● ●
23 WASHER; DAMPER 1-12379-039-0 01 1 0106-0112 ● ● ● ●
23 WASHER; DAMPER 1-12379-039-1 01 1 0201- ● ● ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28791-230-0 08 1 0106-0112 ● ● ● ●
24 BOLT; DAMPER
M12X30 FLANGE 		0-28791-230-0 08 1 0201- ● ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-061-1 01 1 0106-0112 ● ● ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-061-1 01 1 0201-0202 ● ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-068-0 01 1 0203-0401 ● ● ●
28 GEAR; CR/SHF
Z=48 		1-12521-061-2 01 1 0402- ● ● ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 0106-0112 ● ● ● ●
31 KEY; FEATHER,CR/SHF
OD=5 L=6 		9-09878-626-0 01 1 0201- ● ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 0106-0112 ● ● ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 0201- ● ● ●
35 GEAR; RING
Z=139 		1-12333-013-0 01 1 0106-0112 ● ● ● ●
35 GEAR; RING
Z=139 		1-12333-013-1 01 1 0201- ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 0106-0112 ● ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 1-09800-257-0 01 1 0201- ● ● ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 0106-0112 ● ● ● ●
38 WASHER; FLYWHEEL 1-12336-011-0 01 1 0201- ● ● ●
40 BOLT; FLYWHEEL 1-09070-017-1 10 1 0106-0112 ● ● ● ●
40 BOLT; FLYWHEEL 1-09070-017-1 10 1 0201- ● ● ●
42 WASHER; THRUST,CR/SHF 1-11599-009-0 02 1 0106-0112 ● ● ● ●
42 WASHER; THRUST,CR/SHF 1-11599-009-0 02 1 0201- ● ● ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09029-073-0 06 1 0106-0112 ● ● ● ●
58 BOLT; CR/SHF PULLEY
(A) 		1-09029-073-0 06 1 0201- ● ● ●
58 BOLT; CR/SHF PULLEY
(B) 		1-09070-017-1 04 1 0106-0112 ● ● ● ●
58 BOLT; CR/SHF PULLEY
(B) 		1-09070-017-1 04 1 0201- ● ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-908-1 06 1 0106- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-887-1 06 1 0106-0112 ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-887-2 06 1 0201- ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-943-0 06 1 0106-0303 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		1-12111-999-1 06 1 0304- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-141-0 06 1 0106- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-143-0 06 1 0106-0112 ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-143-0 06 1 0201- ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-134-0 06 1 0106-0311 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-154-0 06 1 0312- ●
73 METAL SET; CONN ROD,STANDARD 1-12271-072-0 06 1 0106-0111 ● ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-072-0 06 1 0112-0112 ● ● ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-072-1 06 1 0201- ● ● ●
73 METAL SET; CONN ROD,STANDARD 1-12271-080-0 06 1 0106-0111 ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-1 06 1 0106-0112 ● ● ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-029-1 06 1 0201- ● ● ●
84 ROD ASM; CONN 1-12230-176-2 06 1 0106-0112 ● ● ●
84 ROD ASM; CONN 1-12230-176-2 06 1 0201- ● ●
84 ROD ASM; CONN 1-12230-185-1 06 1 0106- ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-037-4 06 1 0106-0112 ● ● ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-037-4 06 1 0201- ● ● ●
86 BOLT; CONNROD 1-12235-036-3 12 1 0106-0112 ● ● ● ●
86 BOLT; CONNROD 1-12235-036-3 12 1 0201- ● ● ●
88 NUT; CONNROD 1-12239-005-1 12 1 0106-0112 ● ● ● ●
88 NUT; CONNROD 1-12239-005-1 12 1 0201- ● ● ●
102 PIN; TIMING SENSOR 1-12339-013-0 06 1 0106-0112 ● ● ● ●
102 PIN; TIMING SENSOR 1-12339-013-0 06 1 0201- ● ● ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 0106-0112 ● ● ● ●
108 RING; SNAP,BRG SET
OD=67.2 		9-09180-163-0 01 1 0201- ● ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 0106-0112 ● ● ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-082-0 12 1 0201- ● ● ●
149 PLUG
PT1 		1-09605-021-0 06 1 0106-0112 ● ● ● ●
149 PLUG
PT1 		1-09605-021-0 06 1 0201- ● ● ●
197 WASHER; PL,FAN DRIVE
ID=10.5 		9-09164-510-0 06 1 0106- ●
