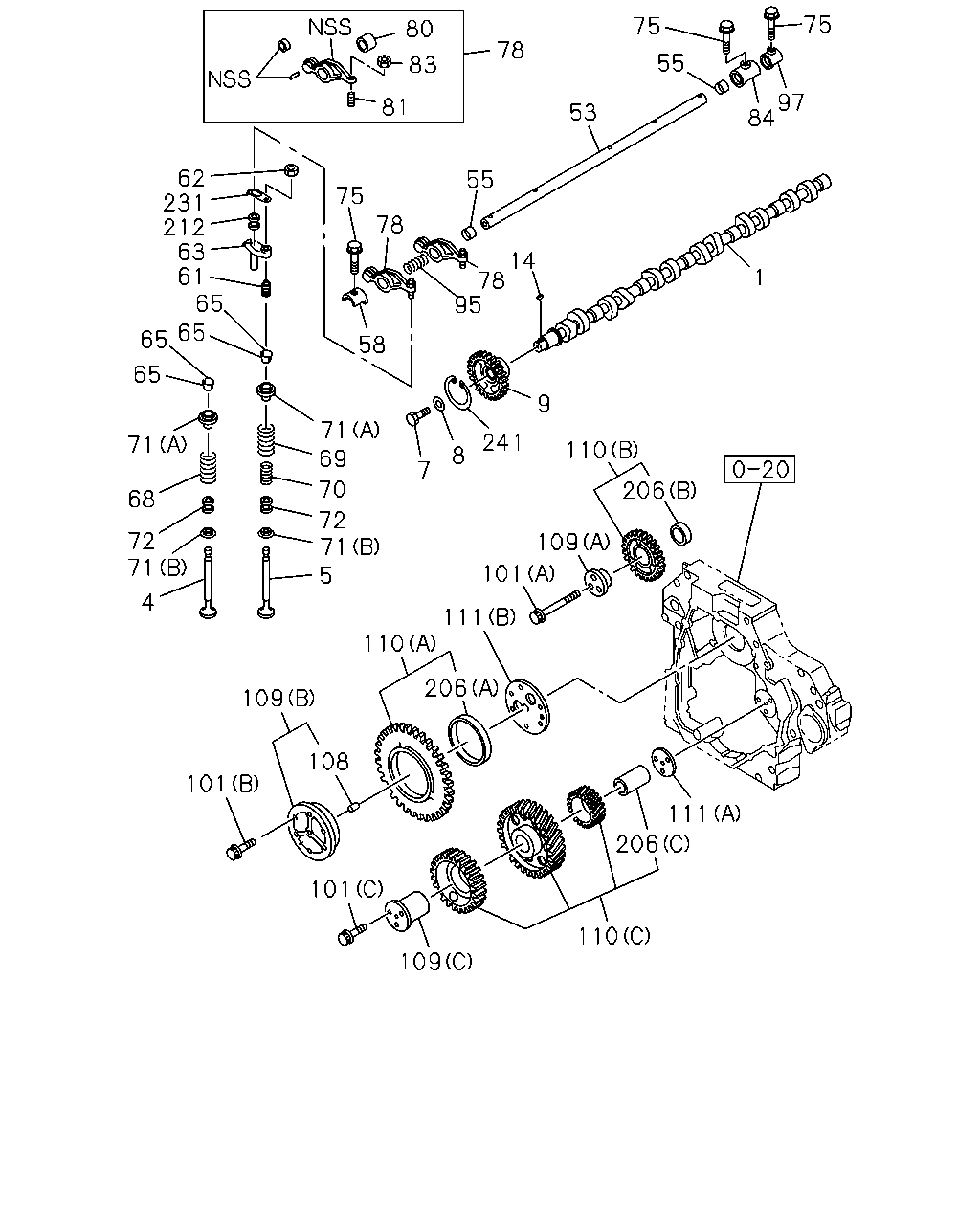

0-14 — CAMSHAFT AND VALVE (#11040) — 123 parça

75 75 80 78 55 83 97 84 81 53 62 231 212 63 61 65 55 75 78 14 78 95 1 65 65 58 65 9 71 69 241 71 110 8 7 70 206 68 72 71 5 72 71 109 101 4 111 110 206 109 108 101 111 206 101 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	1-12511-255-2	01	1	0106-0112	●	●	●	●
1	CAMSHAFT	1-12511-255-2	01	1	0201-	●	●	●
4	VALVE; INL	1-12551-145-5	12	1	0106-		●
4	VALVE; INL	1-12551-151-0	12	1	0106-0112			●	●
4	VALVE; INL	1-12551-151-3	12	1	0201-			●
4	VALVE; INL	1-12551-162-3	12	1	0106-	●
5	VALVE; EXH	1-12552-102-1	12	1	0106-		●
5	VALVE; EXH	1-12552-109-0	12	1	0106-0112			●	●
5	VALVE; EXH	1-12552-109-1	12	1	0201-			●
5	VALVE; EXH	1-12552-100-2	12	1	0106-	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0106-0112	●	●	●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0201-	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0106-0112	●	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0201-	●	●	●
9	GEAR; CM/SHF Z=54	1-12522-055-2	01	1	0106-0112	●	●	●	●
9	GEAR; CM/SHF Z=54	1-12522-055-2	01	1	0201-0202	●	●	●
9	GEAR; CM/SHF Z=54	1-12522-060-0	01	1	0203-	●	●	●
14	KEY; CM/SHF	9-08055-516-0	01	1	0106-0112	●	●	●	●
14	KEY; CM/SHF	9-08055-516-0	01	1	0201-	●	●	●
53	SHAFT; ROCKER ARM	1-12621-090-0	01	1	0106-0107		●	●	●
53	SHAFT; ROCKER ARM	1-12621-090-0	01	1	0108-0202		●
53	SHAFT; ROCKER ARM	1-12621-098-0	01	1	0203-		●
53	SHAFT; ROCKER ARM	1-12621-092-0	01	1	0106-0107	●
53	SHAFT; ROCKER ARM	1-12621-092-0	01	1	0108-0112	●		●	●
53	SHAFT; ROCKER ARM	1-12621-092-0	01	1	0201-	●		●
55	PLUG; ROCKER SHAFT END OD=18	9-11129-082-0	02	1	0106-0112	●	●	●	●
55	PLUG; ROCKER SHAFT END OD=18	9-11129-082-0	02	1	0201-	●	●	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-071-0	01	1	0106-		●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-070-1	01	1	0106-0112	●		●	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-070-3	01	1	0201-	●		●
61	SCREW; ADJ,BRIDGE	9-12616-053-0	12	1	0106-0106		●
61	SCREW; ADJ,BRIDGE	1-12616-042-0	12	1	0106-0106	●		●	●
61	SCREW; ADJ,BRIDGE	1-12616-042-0	12	1	0107-0112	●	●	●	●
61	SCREW; ADJ,BRIDGE	1-12616-042-0	12	1	0201-	●	●	●
62	NUT; ADJ SCREW LK BRIDGE M10	9-09840-310-0	12	1	0106-0112	●	●	●	●
62	NUT; ADJ SCREW LK BRIDGE M10	9-09840-310-0	12	1	0201-	●	●	●
63	BRIDGE	1-12611-281-0	12	1	0106-		●
63	BRIDGE	1-12611-277-2	12	1	0106-0112	●		●	●
63	BRIDGE	1-12611-277-3	12	1	0201-	●		●
65	COLLAR; SPLIT	1-12565-007-0	48	1	0106-0112	●	●	●	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	0201-	●	●	●
68	SPRING; VLV	1-12561-092-0	12	1	0106-0112	●	●	●	●
68	SPRING; VLV	1-12561-092-0	12	1	0201-0505	●	●	●
68	SPRING; VLV	8-97603-305-0	12	1	0506-	●	●	●
69	SPRING; VLV,OUTER	1-12561-093-0	12	1	0106-0112	●	●	●	●
69	SPRING; VLV,OUTER	1-12561-093-0	12	1	0201-	●	●	●
70	SPRING; VLV,INNER	1-12562-060-0	12	1	0106-0112	●	●	●	●
70	SPRING; VLV,INNER	1-12562-060-0	12	1	0201-	●	●	●
71	SEAT; SPR (A) UPPER	1-12563-055-0	24	1	0106-0109		●	●	●
71	SEAT; SPR (B) LOWER	1-12563-056-2	24	1	0106-0112	●	●	●	●
71	SEAT; SPR (B) LOWER	1-12563-056-2	24	1	0201-	●	●	●
71	SEAT; SPR (A) UPPER	1-12563-060-0	24	1	0106-0109	●
71	SEAT; SPR (A) UPPER	1-12563-060-0	24	1	0110-0112	●	●	●	●
71	SEAT; SPR (A) UPPER	1-12563-060-0	24	1	0201-	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-020-0	24	1	0106-0112	●	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-020-0	24	1	0201-	●	●	●
75	BOLT; BRKT M12X97 FLANGE	1-09044-087-1	07	1	0106-0112	●	●	●	●
75	BOLT; BRKT M12X97 FLANGE	1-09044-087-1	07	1	0201-	●	●	●
78	ARM; ROCKER	1-12610-061-1	12	1	0106-0107		●	●	●
78	ARM; ROCKER	1-12610-061-1	12	1	0108-0202		●
78	ARM; ROCKER	1-12610-079-2	12	1	0106-0107	●
78	ARM; ROCKER	1-12610-079-2	12	1	0108-0112	●		●	●
78	ARM; ROCKER	1-12610-079-2	12	1	0201-0201	●		●
78	ARM; ROCKER	1-12610-080-0	12	1	0202-0202	●		●
78	ARM; ROCKER	1-12610-080-0	12	1	0203-	●	●	●
80	BUSHING; ROCKER ARM	1-09330-129-0	12	1	0106-0107	●
80	BUSHING; ROCKER ARM	1-09330-129-0	12	1	0108-0112	●		●	●
80	BUSHING; ROCKER ARM	1-09330-129-0	12	1	0201-0201	●		●
81	SCREW; ADJ,ROCKER ARM	1-12616-034-1	12	1	0106-0112	●	●	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-034-1	12	1	0201-	●	●	●
83	NUT; ADJ SCREW,LK M12	9-99110-512-0	12	1	0106-0112	●	●	●	●
83	NUT; ADJ SCREW,LK M12	9-99110-512-0	12	1	0201-	●	●	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-069-0	05	1	0106-		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-068-1	05	1	0106-0112	●		●	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-068-2	05	1	0201-	●		●
95	SPRING; ROCKER SHAFT	1-09580-472-1	06	1	0106-0112	●	●	●	●
95	SPRING; ROCKER SHAFT	1-09580-472-1	06	1	0201-	●	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-073-0	01	1	0106-		●
97	BRACKET; ROCKER SHAFT,RR	1-12628-072-1	01	1	0106-0112	●		●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-072-3	01	1	0201-	●		●
101	BOLT; THRUST COLLAR (A) M10X40 FLANGE	0-28181-040-0	03	1	0106-0112	●	●	●	●
101	BOLT; THRUST COLLAR (A) M10X40 FLANGE	0-28181-040-0	03	1	0201-	●	●	●
101	BOLT; THRUST COLLAR (B) M10X60 FLANGE	0-28181-060-0	06	1	0106-0112	●	●	●	●
101	BOLT; THRUST COLLAR (B) M10X60 FLANGE	0-28181-060-0	06	1	0201-	●	●	●
101	BOLT; THRUST COLLAR (C) M12X114	1-09070-087-2	03	1	0106-0112	●	●	●	●
101	BOLT; THRUST COLLAR (C) M12X114	1-09070-087-2	03	1	0201-	●	●	●
108	DOWEL; SHAFT OD=12 L=32	9-08161-232-0	01	1	0106-0112	●	●	●	●
108	DOWEL; SHAFT OD=12 L=32	9-08161-232-0	01	1	0201-	●	●	●
109	SHAFT; IDLE GEAR (B)	1-12531-076-1	01	1	0106-0112	●	●	●	●
109	SHAFT; IDLE GEAR (B)	1-12531-076-2	01	1	0201-	●	●	●
109	SHAFT; IDLE GEAR (C)	1-12531-092-0	01	1	0106-0112	●	●	●	●
109	SHAFT; IDLE GEAR (C)	1-12531-092-1	01	1	0201-	●	●	●
109	SHAFT; IDLE GEAR (A)	1-12531-093-0	01	1	0106-0112	●	●	●	●
109	SHAFT; IDLE GEAR (A)	1-12531-093-1	01	1	0201-	●	●	●
110	GEAR ASM; IDLE (C)	1-12523-232-6	01	1	0106-		●	●
110	GEAR ASM; IDLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C)	1-12523-232-6	01	1	0106-	●
110	GEAR ASM; IDLE (B)	1-12523-215-3	01	1	0106-0112	●	●	●	●
110	GEAR ASM; IDLE (B)	1-12523-215-3	01	1	0201-0202	●	●	●
110	GEAR ASM; IDLE (B)	1-12523-371-1	01	1	0203-	●	●	●
110	GEAR ASM; IDLE (A)	1-12523-313-0	01	1	0106-0112	●	●	●	●
110	GEAR ASM; IDLE (A)	1-12523-313-0	01	1	0201-0202	●	●	●
110	GEAR ASM; IDLE (A)	1-12523-369-1	01	1	0203-	●	●	●
110	GEAR ASM; IDLE (C)	1-12523-231-5	01	1	0106-0112				●
110	GEAR ASM; IDLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C)	1-12523-231-5	01	1	0106-0112	●
110	GEAR ASM; IDLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C)	1-12523-231-6	01	1	0201-	●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	0106-0112	●	●	●	●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	0201-	●	●	●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	0106-0112	●	●	●	●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	0201-	●	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	1-09330-108-0	01	1	0106-0112	●	●	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	1-09330-108-0	01	1	0201-	●	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	1-09330-113-0	01	1	0106-0112	●	●	●	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	1-09330-113-0	01	1	0201-	●	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-09330-124-0	01	1	0106-0112	●	●	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-09330-124-1	01	1	0201-	●	●	●
212	CAP; ADJ SCREW	1-12616-037-0	12	1	0106-		●
212	CAP; ADJ SCREW	1-12616-040-0	12	1	0106-0112	●		●	●
212	CAP; ADJ SCREW	1-12616-040-0	12	1	0201-	●		●
231	PLATE; CAP	1-12619-004-0	12	1	0106-		●
231	PLATE; CAP	1-12619-011-2	12	1	0106-0112	●		●	●
231	PLATE; CAP	1-12619-011-2	12	1	0201-	●		●
241	RING; FRICTION	1-12529-003-0	01	1	0106-0112	●		●	●
241	RING; FRICTION	1-12529-003-0	01	1	0201-0205	●		●
